XT24 - 610 Davit System

XT24 - 610 Davit System

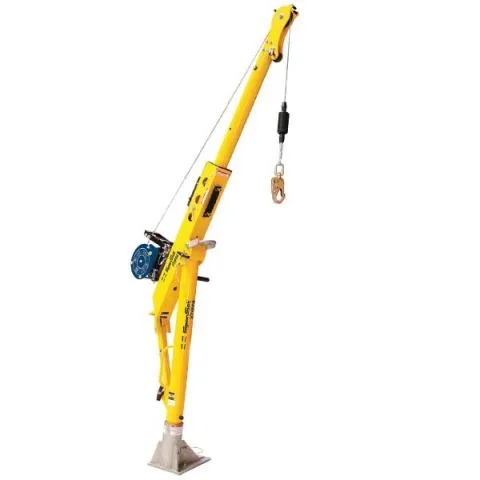

Adjustable davit system

  • Safe access into a wide variety of confined spaces
  • Easily positioned from 385mm, 450mm and 601mm
  • Solution where other conventional systems are impractical
  • 10:1 Safety factor exceeds AS/NZS 5532, CSA, ANSI, OSHA, CSST and CE Standards

This unique, adjustable davit system was developed to allow workers greater versatility, with the mast adapter permanently fixed to a structure and the davit arm and mast easlily moved between jobs as required.

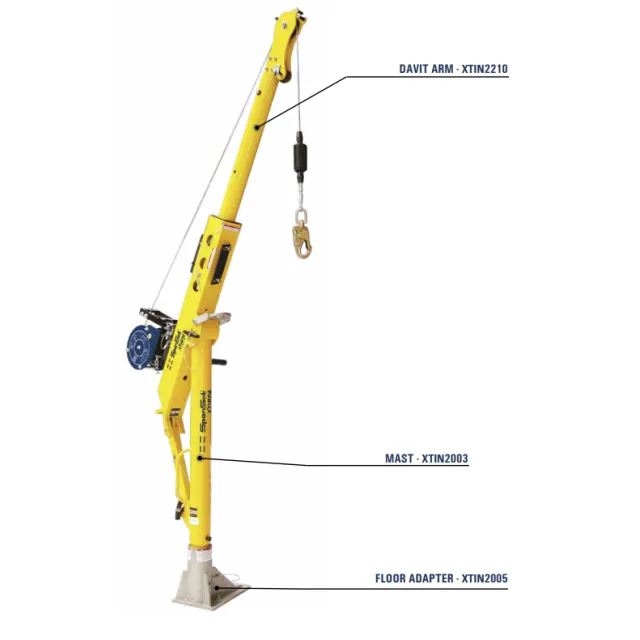

Main Components:

XTIN2210 - 610mm (24") davit arm
Equipped with a bracket for the self-retracting lifeline and winch to ease access to confined spaces. To be used with mast XTIN2003 and an appropriate base. Extendable from 381 to 610mm. Equipped with a 22 kN anchor point.
Material: Aluminum
Dimensions: L 1436-1896mm x W 148mm x H 286mm
Weight: 15 kg

XTIN2003 - Mast
To be used with davit arm XTIN2210 and a suitable adapter.
Material: Aluminum
Dimensions: Ø 76mm x H 1145mm
Weight: 10 kg

XTIN2005 - Floor adapter for concrete and steel
To be used with mast XTIN2003 and 610mm davit arm XTIN2210 on concrete or steel. Increases the range of the system by installing it near the edge of the structure. Anchor bolts not included.*Allowable working angle.
Material: AISI 304 stainless steel
*Also available in zinc plated steel (SPXTIN-2106) or AISI 316 stainless steel (SPXTIN-2311).
Dimensions: L 318mm x W 203mm x H 235 mm
Weight: 10 kg

XTIN2044, XTIN2045, XTIN2109 - Mast extensions
Used to extend the height of the mast XTIN2003
Material: aluminum
XTIN2044 - Length : 381mm (9 kg)
XTIN2045 - Length : 610mm (11 kg)
XTIN2109 - Length : 457mm (10 kg)
