Exoset Grade 10 Lifting Chain

Lifting Chain configurations

The type of sling used, one, two, four legs, and the angle of each chain leg to the vertical, can all have a bearing on the maximum working load limits.

It is for this reason that such things as lifting beams and lifting spreaders are added, to keep each chain as close to the vertical as possible, increasing the maximum weight it can safely lift.

1-leg Lifting Chain

Use from the centre of gravity of the load, to the hook

Chain Ø mm WLL 90°
6 1.4 t
8 2.5 t
10 4 t
13 6.7 t
16 10 t

2-leg Lifting Chain

Chain normally attached to each end of the load.

Chain Ø mm WLL 0-45° WLL 45-60°
6 1.9 t 1.4 t
8 3.5 t 2.5 t
10 5.6 t 4 t
13 9.3 t 6.7 t
16 14 t 10 t

3-leg Lifting Chain

Chain attached to the load using three lifting points

Chain Ø mm WLL 0-45° WLL 45-60°
6 2.9 t 2.1 t
8 5.2 t 3.7 t
10 8.4 t 6 t
13 14 t 10 t
16 21 t 15 t

4-leg Lifting Chain

Chain attached to the four corners of the load

Chain Ø mm WLL 0-45° WLL 45-60°
6 2.9 t 2.1 t
8 5.2 t 3.7 t
10 8.4 t 6 t
13 14 t 10 t
16 21 t 15 t

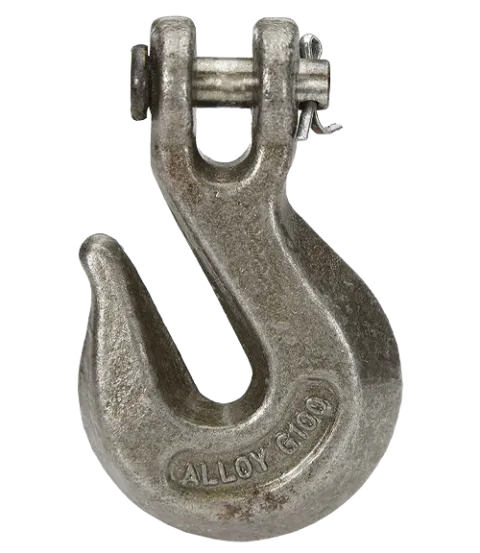

Benefits of using Shortening Grab Hooks

One chain sling able to be shortened for use at different lifting lengths.

Shortening Grab Hooks in multi-leg slings will adjust the leg length but care must be taken to ensure that no one leg is overloaded as a result. Bear in mind that if the legs are not equally disposed about vertical, the leg making the smallest angle to the vertical will carry a larger share of the load.



Choosing the Right Grab Hooks

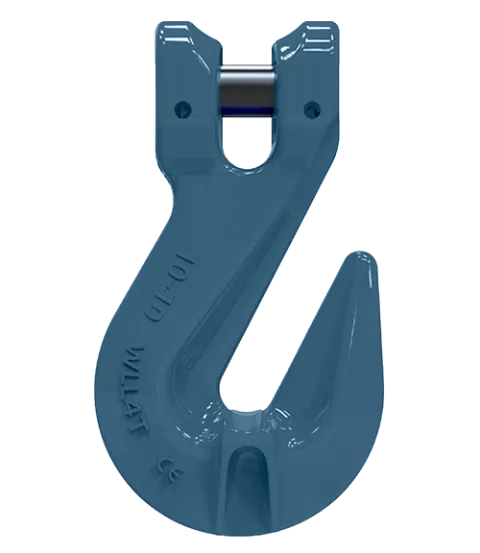

EXOSET® Cradle Grab Hook
0% reduction in sling capacity

Cradle Grab Hook cradles the length of a single link along the bottom of the throat opening, allowing enough room for a single link diameter to extend downward from both sides.

Advantages of working with SpanSet

A supplier with 50 years of experience that can help you find the most durable and cost-effective solution.

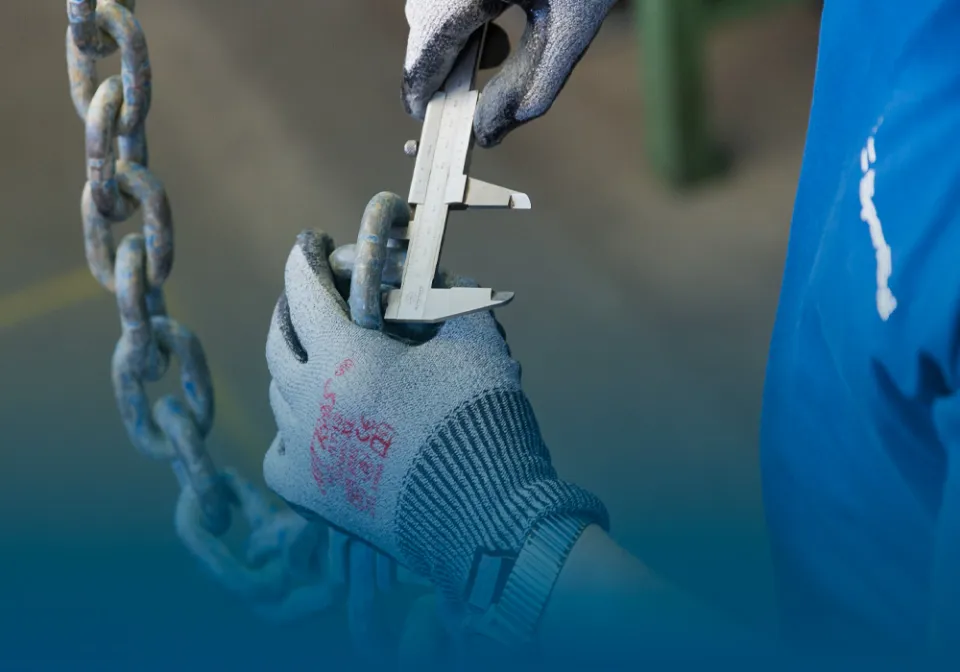

Inspection and Repair Services

Specializes in lifting equipment repairs

Ensured experience engineers who can handle different types of equipment repairs effectively.

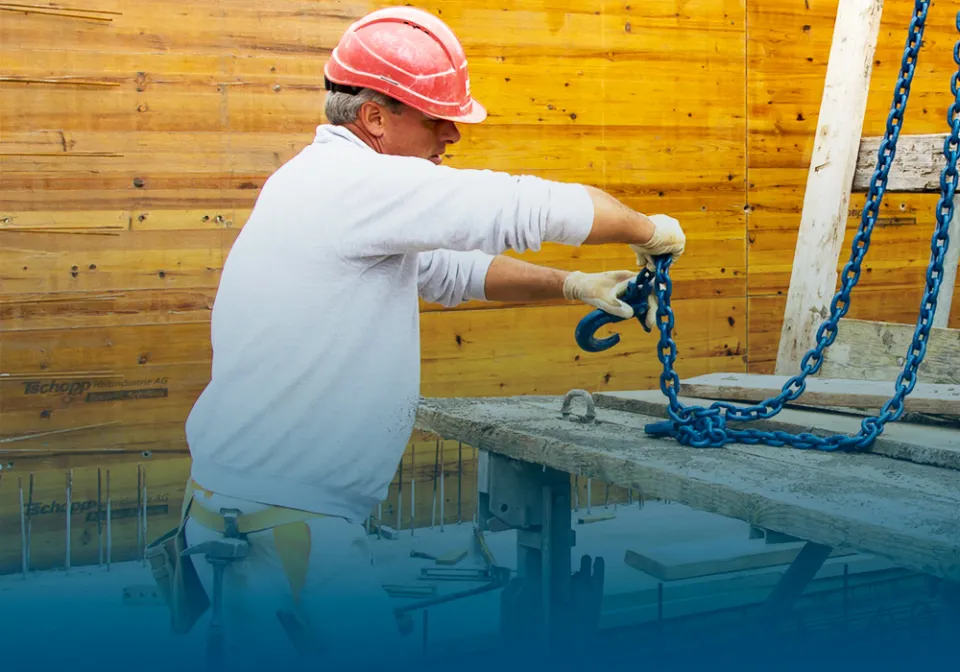

Available spare parts

All components available

Service life of your equipment will be much longer, and in case of wear and tear you will be able to solve.

Accessories

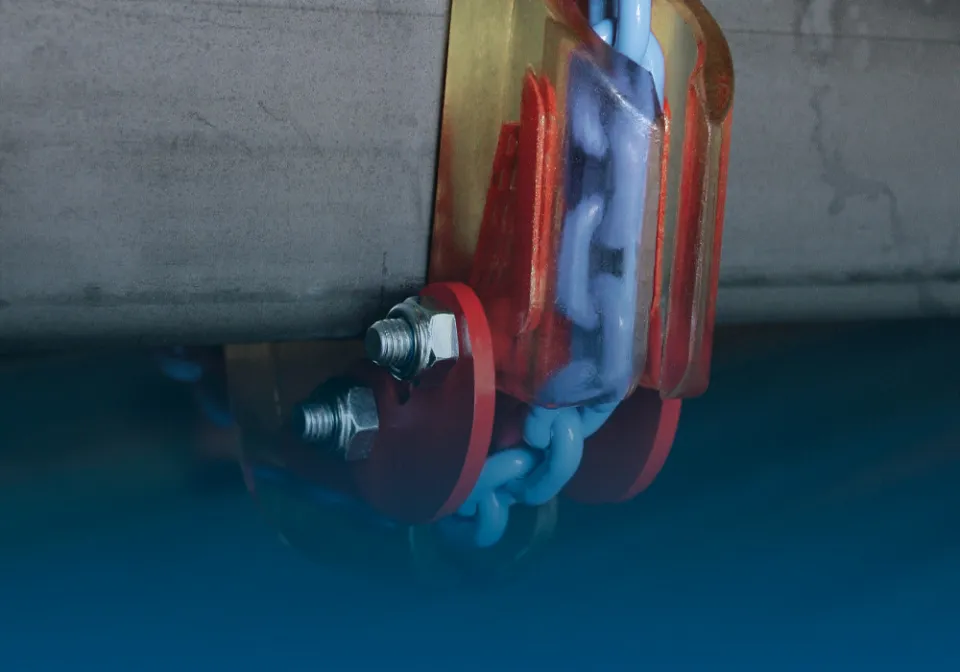

Load and equipment protection

The main limitation of the chain is the impact on the load, with the edge protections and covers you can make your equipment much more functional.

Configurable products - Available On-line

Main picture Exoset 1-leg Shortable
Exoset 1-leg Shortable
Grade 100 Lifting Chain
Adjustable length, 1 Leg Chain sling Grade 100 with oval ring, can be shortened, with self-closing safety hook or with lifting hook having a safety device
Main picture Exoset 2-leg Shortable
Exoset 2-leg Shortable
Grade 100 Lifting Chain
Adjustable length, 2 Leg Chain sling Grade 100 with oval ring, can be shortened, with self-closing safety hook or with lifting hook having a safety device
Main picture Exoset 3-leg Shortable
Exoset 3-leg Shortable
Grade 100 Lifting Chain
Adjustable length, 3 Leg Chain sling Grade 100 with oval ring, can be shortened, with self-closing safety hook or with lifting hook
Main picture Exoset 4-leg Shortable
Exoset 4-leg Shortable
Grade 100 Lifting Chain
Adjustable length, 4 Leg Chain sling Grade 100 chain sling adjustable length with oval ring, can be shortened, with self-closing safety hook or with lifting hook
Main picture Secutex chain hose
Secutex chain hose
Secutex
Secutex® chain hose protects the chain (sandblasting) and the rigger
Main picture Secutex joint edge protection for chains
Secutex joint edge protection for chains
Secutex
Secutex® joint edge protectors for chains protect the chain (sandblasting) and the rigger

EXOSET Catalog

Check all the measures, load capacities and tips necessary for the best configuration of your Exoser working equipment.

Download >

Exoset Load Control Range >

SpanSet Customer Service Team

At SpanSet we like to offer a complete service to our customers, from the choice of the right product, its configuration, even services to offer them the higger safety levels.
