Baggerhaken zum Anschweissen

CHF 105.60

exkl. MWST

Baggerhaken zum Anschweissen

Schweissbare Erweiterung für sicheres Anheben von Lasten

CHF 105.60

exkl. MWST


Verfügbar innerhalb von 15 Tage
Artikelnummer: UKN-0,75
GIN: 2008693
UKN-0,75 G80 0.75t
  • Ausgezeichnete Seitenstabilität
  • Feder ist aus rostfreiem Stahl
  • Kann ohne vorherige Erwärmung angeschweißt werden

Modell auswählen

CHF 105.60

exkl. MWST


Verfügbar innerhalb von 15 Tage

...

Material Güteklasse 80

Güteklasse 80

Technische Produktinformationen

  • Klasse
    80
  • Sicherheitsfaktor
    5:1
  • Farbe
    Gelb
  • Hauptmaterial
    Stahl
  • Normen
    EN 474-1
  • Verkaufseinheit (VE)
    Stk
  • Verpackungseinheit (VPE) Inhalt
    1

Produktdownloads

Datasheet
Download

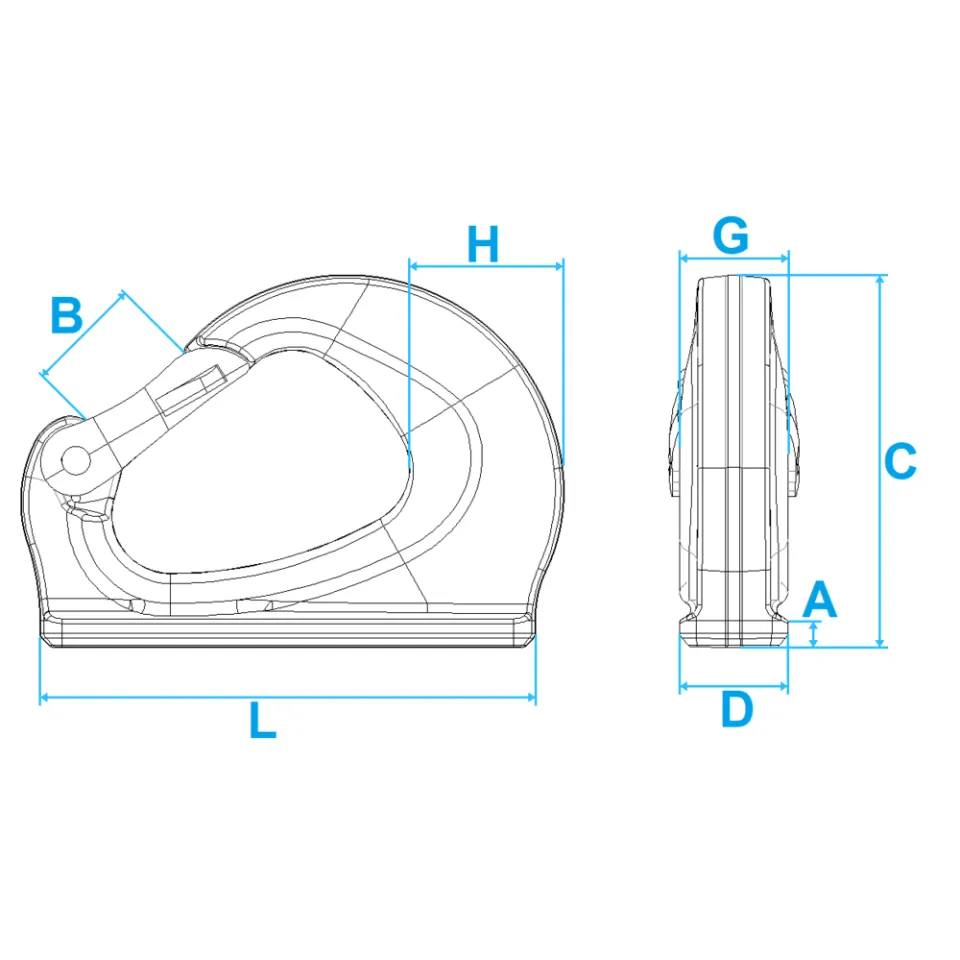

Technische Zeichnung

GIN Artikelbezeichnung WLL WLL Abmessung A Abmessung B Abmessung C Abmessung D Abmessung G Abmessung H Abmessung L Nettogewicht kg
2008693 UKN-0,75 G80 0.75t 0.75 t 750 kg 5 mm 20 mm 56 mm 19 mm 13 mm 20 mm 81.5 mm 0.3 kg
2008694 UKN-1 G80 1t 1 t 1000 kg 6 mm 21 mm 72 mm 25 mm 17 mm 25 mm 95 mm 0.6 kg
2008695 UKN-2 G80 2t 2 t 2000 kg 8 mm 26 mm 86 mm 30 mm 20 mm 30 mm 114 mm 1 kg
2008696 UKN-3 G80 3t 3 t 3000 kg 10 mm 29 mm 105 mm 35 mm 23 mm 30 mm 132 mm 1.3 kg
2008697 UKN-4 G80 4t 4 t 4000 kg 11 mm 29 mm 111 mm 42 mm 29 mm 38 mm 140 mm 1.9 kg
2008698 UKN-5 G80 5t 5 t 5000 kg 12 mm 34 mm 130 mm 45 mm 30 mm 46 mm 165 mm 2.8 kg
2008699 UKN-8 G80 8t 8 t 8000 kg 13 mm 34 mm 133 mm 50 mm 40 mm 51 mm 172 mm 3.7 kg
2008700 UKN-10 G80 10t 10 t 10000 kg 14 mm 47 mm 168 mm 55 mm 43 mm 58 mm 220 mm 6.3 kg
2008701 UKN-15 G80 15t 15 t 15000 kg 15 mm 53 mm 188 mm 60 mm 50 mm 67 mm 240 mm 8.8 kg
