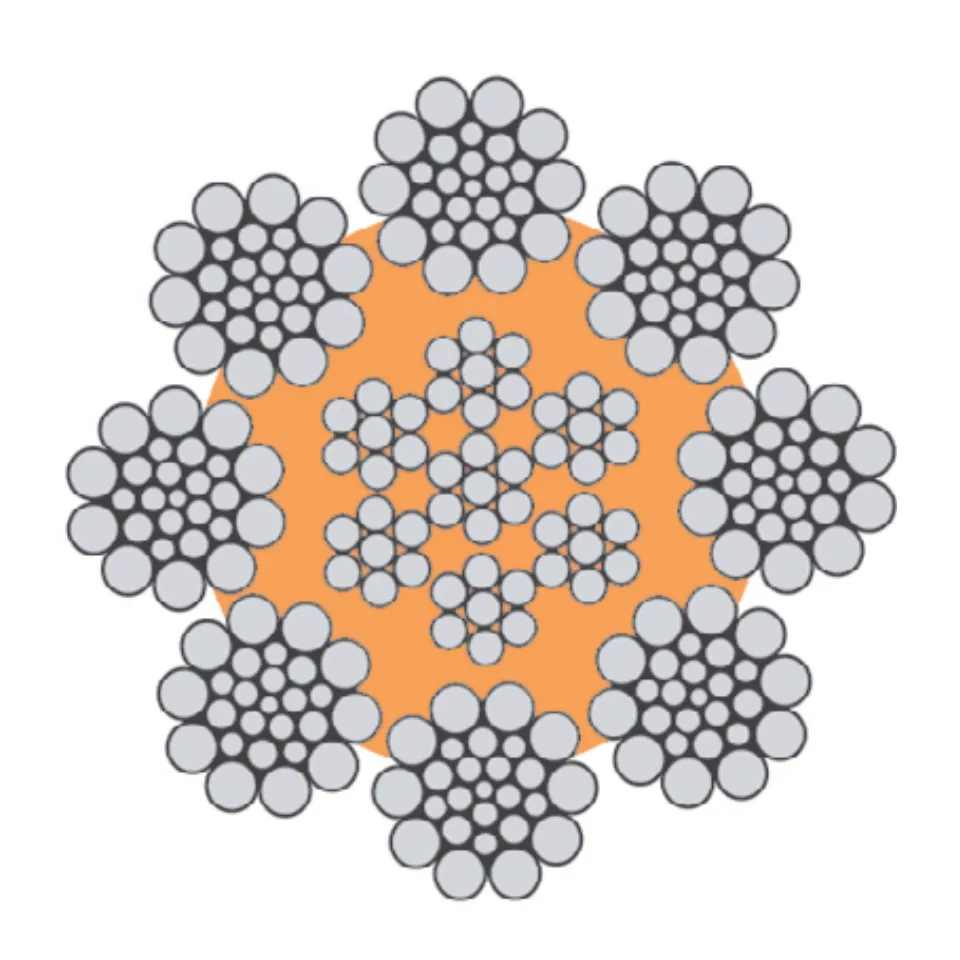

Hyflex 8P RHOL

Hyflex 8P RHOL

Tali Serbaguna 6 & 8 Strand Produk Konvensional

Item Number: 2023748
SSID ERP Code: UM8X26OP-IWd10.0SZ1960G
HYFLEX 8X26 10MM Pi RHOL
  • Rope untuk crane yang fleksibel berkualitas tinggi serta untuk wire rope sling dengan desain dan kapasitas beban yang sesuai dengan EN 13414-1.
  • Performa tekukan yang bagus secara konsisten.
  • Uji tarik hingga putus untuk menjamin kekuatan
  • Sepenuhnya dilumasi.
  • RHOL - Right Hand Ordinary Lay.

Select Model

Please contact customer service for purchase or more information

Recommendations for Use

Do not use damaged wire ropes and slings with defects, such as wire breaks, bulges, bruises, kinks, severed core, heavy wear, rust damage or others. Do not exceed the specified load carrying capacity (WLL). Do not strike at a tilt angle exceeding 60°. Do not use wire ropes with broken strands. Do not use in contact with chemicals. Sling ropes may only be used for lifting and transporting loads and only by instructed persons. The regulation on the safe use of cranes (Crane Regulation) must be observed without fail (Suva-Form.1420. d).

Product Technical Information

  • Temperature Range
    -40° C to + 100° C
  • Main Material
    Steel
  • Packaging Unit (PU)
    pcs
  • Packaging Unit (PU) Content
    1

Item Number Item Name Rope Diameter Minimum Breaking Force [Kn] Minimum Breaking Force [Tn]
2023748 HYFLEX 8X26 10MM Pi RHOL 10 mm 72.9 kN 7.4 t
2023749 HYFLEX 8X26 11MM Pi RHOL 11 mm 86.1 kN 8.8 t
2023750 HYFLEX 8X26 12MM Pi RHOL 12 mm 105 kN 10.7 t
2023751 HYFLEX 8X26 13MM Pi RHOL 13 mm 124 kN 12.6 t
2023752 HYFLEX 8X26 14MM Pi RHOL 14 mm 143 kN 14.6 t
2023753 HYFLEX 8X26 15MM Pi RHOL 15 mm 164 kN 16.7 t
2023754 HYFLEX 8X26 16MM Pi RHOL 16 mm 187 kN 19.1 t
2023755 HYFLEX 8X26 17MM Pi RHOL 17 mm 211 kN 21.5 t
2023756 HYFLEX 8X26 18MM Pi RHOL 18 mm 239 kN 24.4 t
2023757 HYFLEX 8X26 19MM Pi RHOL 19 mm 269 kN 27.4 t
2023758 HYFLEX 8X26 20MM Pi RHOL 20 mm 295 kN 30.1 t
2023759 HYFLEX 8X26 22MM Pi RHOL 22 mm 356 kN 36.3 t
2023760 HYFLEX 8X26 24MM Pi RHOL 24 mm 423 kN 43.1 t
2023761 HYFLEX 8X26 26MM Pi RHOL 26 mm 500 kN 51 t
2023762 HYFLEX 8X26 28MM Pi RHOL 28 mm 572 kN 58.3 t
2023763 HYFLEX 8X26 30MM Pi RHOL 30 mm
2023764 HYFLEX 8X26 32MM Pi RHOL 32 mm 747 kN 76.1 t
2023765 HYFLEX 8X26 34MM Pi RHOL 34 mm 843 kN 85.9 t
2023766 HYFLEX 8X26 36MM Pi RHOL 36 mm 935 kN 95.3 t
2023767 HYFLEX 8X26 38MM Pi RHOL 38 mm 1043 kN 106 t
2023768 HYFLEX 8X26 40MM Pi RHOL 40 mm 1162 kN 118 t
2023769 HYFLEX 8X26 42MM Pi RHOL 42 mm 1305 kN 133 t
2023770 HYFLEX 8X26 44MM Pi RHOL 44 mm 1412 kN 144 t
2023771 HYFLEX 8X26 46MM Pi RHOL 46 mm 1543 kN 157 t
2023772 HYFLEX 8X26 48MM Pi RHOL 48 mm 1680 kN 171 t
2023773 HYFLEX 8X26 50MM Pi RHOL 50 mm 1833 kN 187 t
2023774 HYFLEX 8X26 52MM Pi RHOL 52 mm 1972 kN 201 t
