Liftfix Roundsling
Liftfix Roundsling
Standar Teruji untuk Penggunaan Sehari-hari
Item Number: 2017131
SSID ERP Code: RS-L1000-1M
RS-L1000-1M

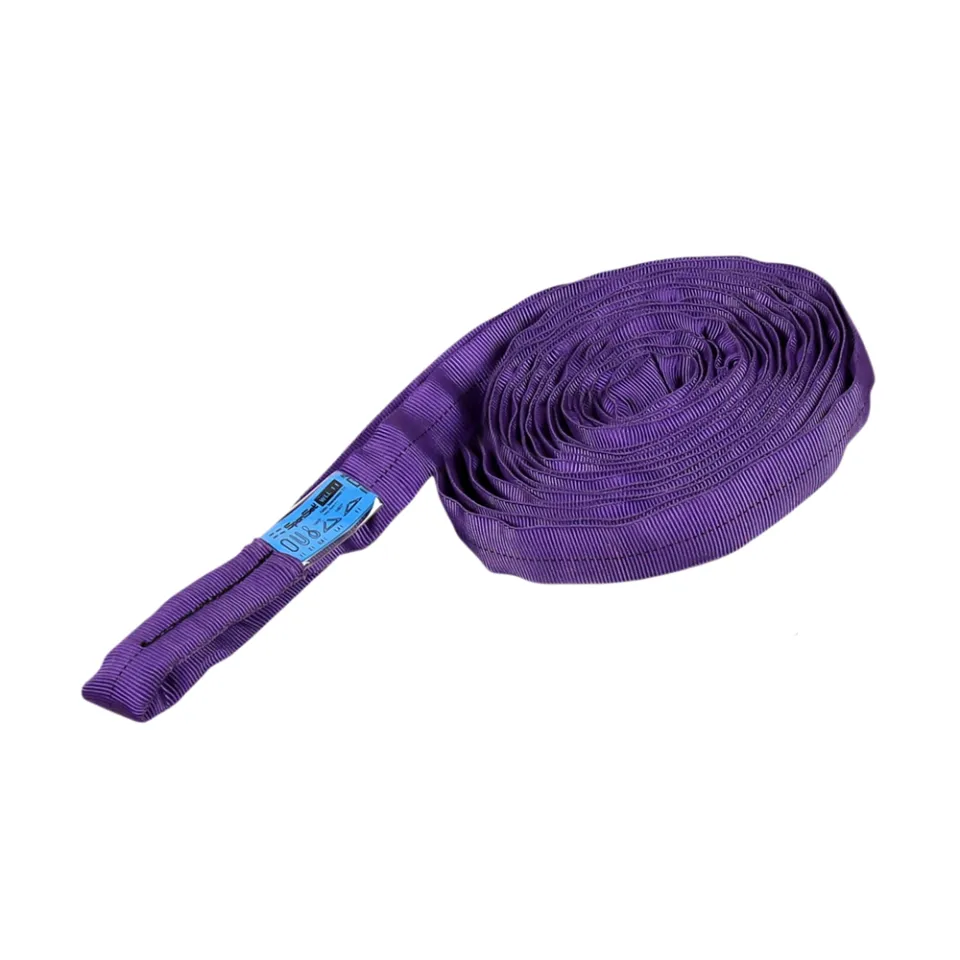

SpanSet Roundsling Liftfix 1T, 1m
- Dibuat sesuai dengan standar Eropa 1492-2
- Standar keselamatan 7:1
- Mengikuti kode warna internasional untuk indikator BBP (Batas Beban Penggunaan)
- Nomor seri unik pada setiap produk untuk pelacakan dan catatan inspeksi
- Indikasi kapasitas beban tercetak pada label 2 lapis yang tahan sobek
- Dilengkapi dengan sertifikat konfirmasi, label identifikasi produk, dan buku panduan pengguna
- Dapat dilengkapi dengan sleeve pelindung sudut tajam dan transponder RFID untuk pelacakan dan identifikasi yang lebih baik
Select Model
Label terlipat
Lindungi dari kerusakan dengan informasi yang dijahit di dalamnya
Label dibuat lebih pendek pada lipatannya untuk melindungi informasi dari abrasi sehingga lebih sedikit terkena angin dan gaya geser.
RFID opsional
Tali pengikat untuk retrofit
Semua perlengkapan SpanSet dapat dilengkapi dengan transponder RFID untuk manajemen aset dengan IDXpert.
Liftfix — Standar Teruji untuk Penggunaan Sehari-hari
Sesuai Standar
Roundsling Liftfix dibuat sesuai dengan standar Eropa 1492-2, memastikan bahwa produk tersebut memenuhi tolak ukur keselamatan dan kualitas tertinggi. Penanda Kapasitas Angkat berbentuk garis dari benang yang dianyam pada sleeve, memberikan kemudahan bagi Anda mengenali sabuk pengangkat yang dibutuhkan secara tepat, memperlancar operasi pengangkatan Anda dengan presisi dan keandalan yang tak tertanding.
Label Anti-Sobek
Dirancang dengan fokus pada keselamatan dan daya tahan yang tinggi, Roundsling Liftfix memiliki label anti-sobek dengan jahitan dua lapis yang kuat untuk bertahan dalam kondisi ekstrim, agar memastikan informasi penting tetap terbaca seiring waktu.
Perlindungan dari Abrasi dan Sudut Tajam
Liftfix dapat dilengkapi dengan aksesoris pelindung seperti Secutex SC untuk melindungi roundsling dari kerusakan selama operasi pengangkatan. Aksesoris ini dapat meningkatkan perlindungan dari abrasi. Untuk beban dengan sudut yang tajam, Liftfix juga dapat menggunakan pelindung tambahan seperti SpanSet NoCut®, yang memberikan perlindungan menyeluruh dan memperpanjang masa pakai sling di lingkungan yang ekstrim.
Product Technical Information
-
Safety Factor:
7:1
-
Norms:
EN 1492-2: 2000
-
Dimension L1 max:
20 m
-
Label Protection:
Yes
-
Main Material:
Polyester
-
Packaging Unit (PU):
pcs
-
Packaging Unit (PU) Content:
1
Technical Drawings
Variants information
| Item Number | Item Name | WLL | Weight Net | WLL | Dimension L1 min | Dimension L1 | Colour |
|---|---|---|---|---|---|---|---|
| 2017131
SSID ERP Code: RS-L1000-1M |
RS-L1000-1M | 1000 kg | 0.9 kg | 1 t | 0.5 m | 1 m | Purple |
| 2017132
SSID ERP Code: RS-L1000-2M |
RS-L1000-2M | 1000 kg | 1.3 kg | 1 t | 0.5 m | 2 m | Purple |
| 2017635
SSID ERP Code: RS-L1000-3M |
RS-L1000-3M | 1000 kg | 1.7 kg | 1 t | 0.5 m | 3 m | Purple |
| 2017636
SSID ERP Code: RS-L1000-4M |
RS-L1000-4M | 1000 kg | 2.1 kg | 1 t | 0.5 m | 4 m | Purple |
| 2017637
SSID ERP Code: RS-L1000-5M |
RS-L1000-5M | 1000 kg | 2.5 kg | 1 t | 0.5 m | 5 m | Purple |
| 2017638
SSID ERP Code: RS-L1000-6M |
RS-L1000-6M | 1000 kg | 2.9 kg | 1 t | 0.5 m | 6 m | Purple |
| 2017639
SSID ERP Code: RS-L1000-8M |
RS-L1000-8M | 1000 kg | 3.7 kg | 1 t | 0.5 m | 8 m | Purple |
| 2017640
SSID ERP Code: RS-L1000-10M |
RS-L1000-10M | 1000 kg | 4.5 kg | 1 t | 0.5 m | 10 m | Purple |
| 2017641
SSID ERP Code: RS-L2000-1M |
RS-L2000-1M | 2000 kg | 1.1 kg | 2 t | 0.5 m | 1 m | Green |
| 2017642
SSID ERP Code: RS-L2000-2M |
RS-L2000-2M | 2000 kg | 1.7 kg | 2 t | 0.5 m | 2 m | Green |
| 2017643
SSID ERP Code: RS-L2000-3M |
RS-L2000-3M | 2000 kg | 2.3 kg | 2 t | 0.5 m | 3 m | Green |
| 2017644
SSID ERP Code: RS-L2000-4M |
RS-L2000-4M | 2000 kg | 2.9 kg | 2 t | 0.5 m | 4 m | Green |
| 2017645
SSID ERP Code: RS-L2000-5M |
RS-L2000-5M | 2000 kg | 3.5 kg | 2 t | 0.5 m | 5 m | Green |
| 2017646
SSID ERP Code: RS-L2000-6M |
RS-L2000-6M | 2000 kg | 4.1 kg | 2 t | 0.5 m | 6 m | Green |
| 2017647
SSID ERP Code: RS-L2000-8M |
RS-L2000-8M | 2000 kg | 5.3 kg | 2 t | 0.5 m | 8 m | Green |
| 2017648
SSID ERP Code: RS-L2000-10M |
RS-L2000-10M | 2000 kg | 6.5 kg | 2 t | 0.5 m | 10 m | Green |
| 2017649
SSID ERP Code: RS-L3000-1M |
RS-L3000-1M | 3000 kg | 1.1 kg | 3 t | 0.5 m | 1 m | Yellow |
| 2017650
SSID ERP Code: RS-L3000-2M |
RS-L3000-2M | 3000 kg | 1.7 kg | 3 t | 0.5 m | 2 m | Yellow |
| 2017651
SSID ERP Code: RS-L3000-3M |
RS-L3000-3M | 3000 kg | 2.3 kg | 3 t | 0.5 m | 3 m | Yellow |
| 2017652
SSID ERP Code: RS-L3000-4M |
RS-L3000-4M | 3000 kg | 2.9 kg | 3 t | 0.5 m | 4 m | Yellow |
| 2017653
SSID ERP Code: RS-L3000-5M |
RS-L3000-5M | 3000 kg | 3.5 kg | 3 t | 0.5 m | 5 m | Yellow |
| 2017654
SSID ERP Code: RS-L3000-6M |
RS-L3000-6M | 3000 kg | 4.1 kg | 3 t | 0.5 m | 6 m | Yellow |
| 2017655
SSID ERP Code: RS-L3000-8M |
RS-L3000-8M | 3000 kg | 5.3 kg | 3 t | 0.5 m | 8 m | Yellow |
| 2017656
SSID ERP Code: RS-L3000-10M |
RS-L3000-10M | 3000 kg | 6.5 kg | 3 t | 0.5 m | 10 m | Yellow |
| 2017657
SSID ERP Code: RS-L4000-1M |
RS-L4000-1M | 4000 kg | 1.5 kg | 4 t | 0.5 m | 1 m | Grey |
| 2017659
SSID ERP Code: RS-L4000-3M |
RS-L4000-3M | 4000 kg | 4.5 kg | 4 t | 0.5 m | 3 m | Grey |
| 2017660
SSID ERP Code: RS-L4000-4M |
RS-L4000-4M | 4000 kg | 4.5 kg | 4 t | 0.5 m | 4 m | Grey |
| 2017661
SSID ERP Code: RS-L4000-5M |
RS-L4000-5M | 4000 kg | 5.5 kg | 4 t | 0.5 m | 5 m | Grey |
| 2017662
SSID ERP Code: RS-L4000-6M |
RS-L4000-6M | 4000 kg | 6.5 kg | 4 t | 0.5 m | 6 m | Grey |
| 2017663
SSID ERP Code: RS-L4000-8M |
RS-L4000-8M | 4000 kg | 8.5 kg | 4 t | 0.5 m | 8 m | Grey |
| 2017664
SSID ERP Code: RS-L4000-10M |
RS-L4000-10M | 4000 kg | 10.5 kg | 4 t | 0.5 m | 10 m | Grey |
| 2017665
SSID ERP Code: RS-L5000-2M |
RS-L5000-2M | 5000 kg | 2.5 kg | 5 t | 1 m | 2 m | Red |
| 2017666
SSID ERP Code: RS-L5000-3M |
RS-L5000-3M | 5000 kg | 3.5 kg | 5 t | 1 m | 3 m | Red |
| 2017667
SSID ERP Code: RS-L5000-4M |
RS-L5000-4M | 5000 kg | 4.5 kg | 5 t | 1 m | 4 m | Red |
| 2017668
SSID ERP Code: RS-L5000-5M |
RS-L5000-5M | 5000 kg | 5.5 kg | 5 t | 1 m | 5 m | Red |
| 2017669
SSID ERP Code: RS-L5000-6M |
RS-L5000-6M | 5000 kg | 6.5 kg | 5 t | 1 m | 6 m | Red |
| 2017670
SSID ERP Code: RS-L5000-8M |
RS-L5000-8M | 5000 kg | 8.5 kg | 5 t | 1 m | 8 m | Red |
| 2017671
SSID ERP Code: RS-L5000-10M |
RS-L5000-10M | 5000 kg | 10.5 kg | 5 t | 1 m | 10 m | Red |
| 2017689
SSID ERP Code: RS-L5000-1M |
RS-L5000-1M | 5000 kg | 1.5 kg | 5 t | 1 m | 1 m | Red |
| 2017690
SSID ERP Code: RS-L6000-1M |
RS-L6000-1M | 6000 kg | 1.9 kg | 6 t | 1 m | 1 m | Brown |
| 2017691
SSID ERP Code: RS-L6000-2M |
RS-L6000-2M | 6000 kg | 3.3 kg | 6 t | 1 m | 2 m | Brown |
| 2017692
SSID ERP Code: RS-L6000-3M |
RS-L6000-3M | 6000 kg | 4.7 kg | 6 t | 1 m | 3 m | Brown |
| 2017693
SSID ERP Code: RS-L6000-4M |
RS-L6000-4M | 6000 kg | 6.1 kg | 6 t | 1 m | 4 m | Brown |
| 2017694
SSID ERP Code: RS-L6000-5M |
RS-L6000-5M | 6000 kg | 8.9 kg | 6 t | 1 m | 5 m | Brown |
| 2017695
SSID ERP Code: RS-L6000-6M |
RS-L6000-6M | 6000 kg | 8.9 kg | 6 t | 1 m | 6 m | Brown |
| 2017696
SSID ERP Code: RS-L6000-8M |
RS-L6000-8M | 6000 kg | 11.7 kg | 6 t | 1 m | 8 m | Brown |
| 2017697
SSID ERP Code: RS-L6000-10M |
RS-L6000-10M | 6000 kg | 14.5 kg | 6 t | 1 m | 10 m | Brown |
| 2017698
SSID ERP Code: RS-L8000-1M |
RS-L8000-1M | 8000 kg | 2.3 kg | 8 t | 1 m | 1 m | Biru |
| 2017699
SSID ERP Code: RS-L8000-2M |
RS-L8000-2M | 8000 kg | 4.1 kg | 8 t | 1 m | 2 m | Biru |
| 2017700
SSID ERP Code: RS-L8000-3M |
RS-L8000-3M | 8000 kg | 5.9 kg | 8 t | 1 m | 3 m | Biru |
| 2017701
SSID ERP Code: RS-L8000-4M |
RS-L8000-4M | 8000 kg | 7.7 kg | 8 t | 1 m | 4 m | Biru |
| 2017702
SSID ERP Code: RS-L8000-5M |
RS-L8000-5M | 8000 kg | 9.5 kg | 8 t | 1 m | 5 m | Biru |
| 2017703
SSID ERP Code: RS-L8000-6M |
RS-L8000-6M | 8000 kg | 11.3 kg | 8 t | 1 m | 6 m | Biru |
| 2017704
SSID ERP Code: RS-L8000-8M |
RS-L8000-8M | 8000 kg | 14.9 kg | 8 t | 1 m | 8 m | Biru |
| 2017705
SSID ERP Code: RS-L8000-10M |
RS-L8000-10M | 8000 kg | 18.5 kg | 8 t | 1 m | 10 m | Biru |
| 2017706
SSID ERP Code: RS-L10000-2M |
RS-L10000-2M | 10000 kg | 4.9 kg | 10 t | 1 m | 2 m | orange |
| 2017707
SSID ERP Code: RS-L10000-3M |
RS-L10000-3M | 10000 kg | 7.1 kg | 10 t | 1 m | 3 m | orange |
| 2017708
SSID ERP Code: RS-L10000-4M |
RS-L10000-4M | 10000 kg | 9.3 kg | 10 t | 1 m | 4 m | orange |
| 2017709
SSID ERP Code: RS-L10000-5M |
RS-L10000-5M | 10000 kg | 11.5 kg | 10 t | 1 m | 5 m | orange |
| 2017710
SSID ERP Code: RS-L10000-6M |
RS-L10000-6M | 10000 kg | 13.7 kg | 10 t | 1 m | 6 m | orange |
| 2017711
SSID ERP Code: RS-L10000-8M |
RS-L10000-8M | 10000 kg | 18.1 kg | 10 t | 1 m | 8 m | orange |
| 2017712
SSID ERP Code: RS-L10000-10M |
RS-L10000-10M | 10000 kg | 22.5 kg | 10 t | 1 m | 10 m | orange |
| 2017713
SSID ERP Code: RS-L15000-2M |
RS-L15000-2M | 15000 kg | 7.3 kg | 15 t | 1 m | 2 m | orange |
| 2017714
SSID ERP Code: RS-L15000-3M |
RS-L15000-3M | 15000 kg | 10.7 kg | 15 t | 1 m | 3 m | orange |
| 2017715
SSID ERP Code: RS-L15000-4M |
RS-L15000-4M | 15000 kg | 14.1 kg | 15 t | 1 m | 4 m | orange |
| 2017716
SSID ERP Code: RS-L15000-5M |
RS-L15000-5M | 15000 kg | 17.5 kg | 15 t | 1 m | 5 m | orange |
| 2017717
SSID ERP Code: RS-L15000-6M |
RS-L15000-6M | 15000 kg | 20.9 kg | 15 t | 1 m | 6 m | orange |
| 2017718
SSID ERP Code: RS-L15000-8M |
RS-L15000-8M | 15000 kg | 27.7 kg | 15 t | 1 m | 8 m | orange |
| 2017719
SSID ERP Code: RS-L15000-10M |
RS-L15000-10M | 15000 kg | 34.5 kg | 15 t | 1 m | 10 m | orange |
| 2017720
SSID ERP Code: RS-L20000-2M |
RS-L20000-2M | 20000 kg | 8.9 kg | 20 t | 1 m | 2 m | orange |
| 2017721
SSID ERP Code: RS-L20000-3M |
RS-L20000-3M | 20000 kg | 13.1 kg | 20 t | 1 m | 3 m | orange |
| 2017722
SSID ERP Code: RS-L20000-4M |
RS-L20000-4M | 20000 kg | 17.3 kg | 20 t | 1 m | 4 m | orange |
| 2017723
SSID ERP Code: RS-L20000-5M |
RS-L20000-5M | 20000 kg | 21.5 kg | 20 t | 1 m | 5 m | orange |
| 2017725
SSID ERP Code: RS-L20000-8M |
RS-L20000-8M | 20000 kg | 34.1 kg | 20 t | 1 m | 8 m | orange |
| 2017726
SSID ERP Code: RS-L20000-10M |
RS-L20000-10M | 20000 kg | 42.5 kg | 20 t | 1 m | 10 m | orange |
| 2017727
SSID ERP Code: RS-L25000-2M |
RS-L25000-2M | 25000 kg | 11.1 kg | 25 t | 1 m | 2 m | orange |
| 2017728
SSID ERP Code: RS-L25000-3M |
RS-L25000-3M | 25000 kg | 16.4 kg | 25 t | 1 m | 3 m | orange |
| 2017729
SSID ERP Code: RS-L25000-4M |
RS-L25000-4M | 25000 kg | 21.7 kg | 25 t | 1 m | 4 m | orange |
| 2017731
SSID ERP Code: RS-L25000-6M |
RS-L25000-6M | 25000 kg | 32.3 kg | 25 t | 1 m | 6 m | orange |
| 2017732
SSID ERP Code: RS-L25000-8M |
RS-L25000-8M | 25000 kg | 42.9 kg | 25 t | 1 m | 8 m | orange |
| 2017733
SSID ERP Code: RS-L25000-10M |
RS-L25000-10M | 25000 kg | 53.5 kg | 25 t | 1 m | 10 m | orange |
| 2017734
SSID ERP Code: RS-L30000-2M |
RS-L30000-2M | 30000 kg | 14.5 kg | 30 t | 1 m | 2 m | orange |
| 2017735
SSID ERP Code: RS-L30000-3M |
RS-L30000-3M | 30000 kg | 21.5 kg | 30 t | 1 m | 3 m | orange |
| 2017736
SSID ERP Code: RS-L30000-4M |
RS-L30000-4M | 30000 kg | 28.5 kg | 30 t | 1 m | 4 m | orange |
| 2017737
SSID ERP Code: RS-L30000-5M |
RS-L30000-5M | 30000 kg | 35.5 kg | 30 t | 1 m | 5 m | orange |
| 2017738
SSID ERP Code: RS-L30000-6M |
RS-L30000-6M | 30000 kg | 42.5 kg | 30 t | 1 m | 6 m | orange |
| 2017739
SSID ERP Code: RS-L30000-8M |
RS-L30000-8M | 30000 kg | 56.5 kg | 30 t | 1 m | 8 m | orange |
| 2017740
SSID ERP Code: RS-L30000-10M |
RS-L30000-10M | 30000 kg | 70.5 kg | 30 t | 1 m | 10 m | orange |
