Powerform 8 RHOL

Powerform 8 RHOL

High Performance Compacted Strands Products

Item Number: 2023545
SSID ERP Code: UM8X26CO-IWd10.0SZ1960G

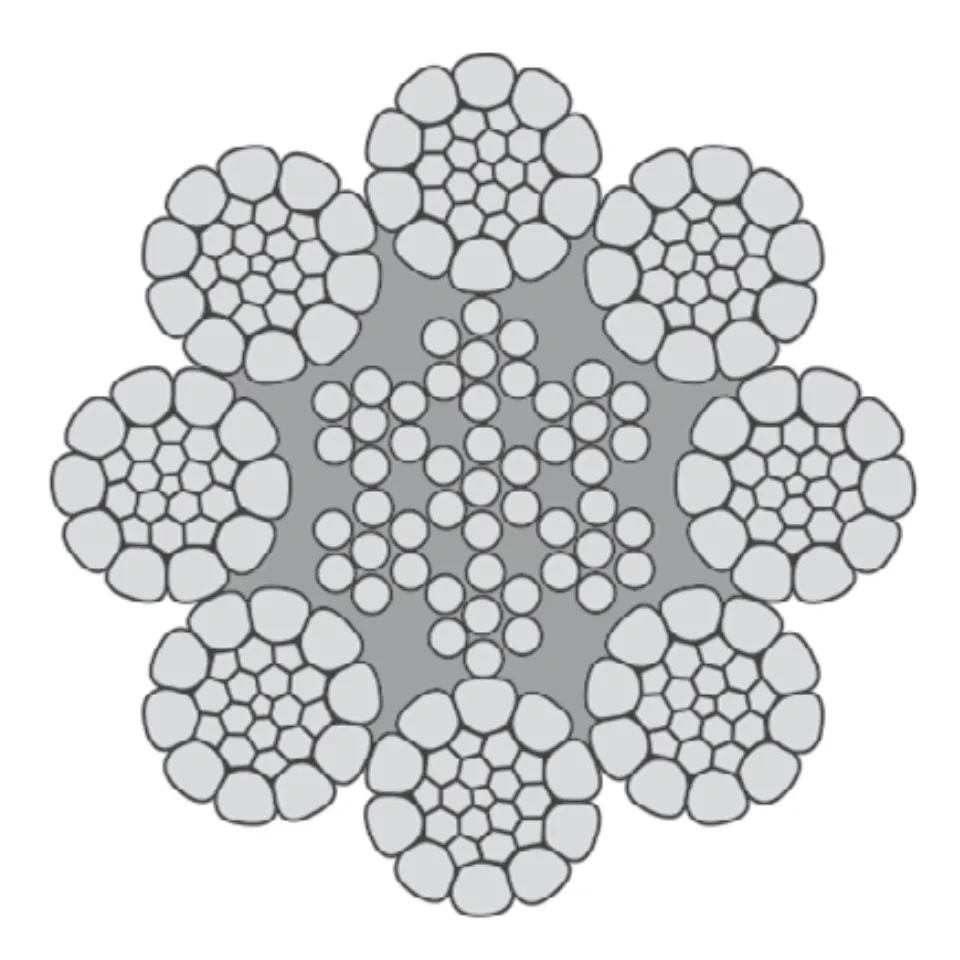

POWERFORM 8X26 10MM RHOL
USHA 10MM POWERFORM 8X26 COMPACTED IWRC RHOL 1960 GALV
  • Stranded Ropes with Compacted Strands which giving properties improvement over Conventional Ropes.
  • Excellent Fatigue Life due to good sheave contact.
  • High Breaking Load.
  • Crush resistant & low elongation.
  • Plastic inside of rope covered the IWRC giving consistent core performance-
  • RHOL - Right Hand Ordinary Lay.

Select Model

All wire rope that we supply are only high quality and certified products according to International Standard of BS EN 12385, API Spec 9A, ISO 2408 and SNI.

These wire Rope are manufactured by a company that has ISO 9001:2015 certification and also have 3rd party certification from ABS, DNV-GL and Lloyds.

Recommendations for Use

Do not use damaged wire ropes and slings with defects, such as wire breaks, bulges, bruises, kinks, severed core, heavy wear, rust damage or others. Do not exceed the specified load carrying capacity (WLL). Do not strike at a tilt angle exceeding 60°. Do not use wire ropes with broken strands. Do not use in contact with chemicals. Sling ropes may only be used for lifting and transporting loads and only by instructed persons. The regulation on the safe use of cranes (Crane Regulation) must be observed without fail (Suva-Form.1420. d).

Product Technical Information

  • Temperature Range: -40° C to + 100° C
  • Main Material: Steel
  • Packaging Unit (PU): pcs
  • Packaging Unit (PU) Content: 1

Item Number Item Name Rope Diameter Minimum Breaking Force [Kn] Minimum Breaking Force [Tn]
2023545
SSID ERP Code: UM8X26CO-IWd10.0SZ1960G 		POWERFORM 8X26 10MM RHOL 10 mm 87.8 kN 9 t
2023546
SSID ERP Code: UM8X26CO-IWd11.0SZ1960G 		POWERFORM 8X26 11MM RHOL 11 mm 106 kN 10.8 t
2023547
SSID ERP Code: UM8X26CO-IWd12.0SZ1960G 		POWERFORM 8X26 12MM RHOL 12 mm 126 kN 12.8 t
2023548
SSID ERP Code: UM8X26CO-IWd13.0SZ1960G 		POWERFORM 8X26 13MM RHOL 13 mm 148 kN 15.1 t
2023549
SSID ERP Code: UM8X26CO-IWd14.0SZ1960G 		POWERFORM 8X26 14MM RHOL 14 mm 172 kN 17.5 t
2023550
SSID ERP Code: UM8X26CO-IWd15.0SZ1960G 		POWERFORM 8X26 15MM RHOL 15 mm 198 kN 20.2 t
2023555
SSID ERP Code: UM8X26CO-IWd16.0SZ1960G 		POWERFORM 8X26 16MM RHOL 16 mm 225 kN 22.9 t
2023557
SSID ERP Code: UM8X26CO-IWd17.0SZ1960G 		POWERFORM 8X26 17MM RHOL 17 mm 254 kN 25.9 t
2023558
SSID ERP Code: UM8X26CO-IWd18.0SZ1960G 		POWERFORM 8X26 18MM RHOL 18 mm 284 kN 29 t
2023559
SSID ERP Code: UM8X26CO-IWd19.0SZ1960G 		POWERFORM 8X26 19MM RHOL 19 mm 317 kN 32.3 t
2023560
SSID ERP Code: UM8X26CO-IWd20.0SZ1960G 		POWERFORM 8X26 20MM RHOL 20 mm 351 kN 35.8 t
2023561
SSID ERP Code: UM8X26CO-IWd22.0SZ1960G 		POWERFORM 8X26 22MM RHOL 22 mm 425 kN 43.3 t
2023563
SSID ERP Code: UM8X26CO-IWd24.0SZ1960G 		POWERFORM 8X26 24MM RHOL 24 mm 506 kN 51.6 t
2023565
SSID ERP Code: UM8X26CO-IWd26.0SZ1960G 		POWERFORM 8X26 26MM RHOL 26 mm 594 kN 60.6 t
2023569
SSID ERP Code: UM8X26CO-IWd28.0SZ1960G 		POWERFORM 8X26 28MM RHOL 28 mm 688 kN 70.1 t
2023570
SSID ERP Code: UM8X26CO-IWd30.0SZ1960G 		POWERFORM 8X26 30MM RHOL 30 mm 790 kN 80.5 t
2023572
SSID ERP Code: UM8X26CO-IWd32.0SZ1960G 		POWERFORM 8X26 32MM RHOL 32 mm 899 kN 91.6 t
2023574
SSID ERP Code: UM8X26CO-IWd34.0SZ1960G 		POWERFORM 8X26 34MM RHOL 34 mm 1013 kN 103 t
2023576
SSID ERP Code: UM8X26CO-IWd36.0SZ1960G 		POWERFORM 8X26 36MM RHOL 36 mm 1138 kN 116 t
2023577
SSID ERP Code: UM8X26CO-IWd38.0SZ1960G 		POWERFORM 8X26 38MM RHOL 38 mm 1268 kN 129 t
2023579
SSID ERP Code: UM8X26CO-IWd40.0SZ1960G 		POWERFORM 8X26 40MM RHOL 40 mm 1405 kN 143 t
2023581
SSID ERP Code: UM8X26CO-IWd42.0SZ1960G 		POWERFORM 8X26 42MM RHOL 42 mm 1535 kN 156 t
2023582
SSID ERP Code: UM8X26CO-IWd44.0SZ1960G 		POWERFORM 8X26 44MM RHOL 44 mm 1700 kN 173 t
2023583
SSID ERP Code: UM8X26CO-IWd46.0SZ1960G 		POWERFORM 8X26 46MM RHOL 46 mm 1858 kN 189 t
2023585
SSID ERP Code: UM8X26CO-IWd48.0SZ1960G 		POWERFORM 8X26 48MM RHOL 48 mm 2023 kN 206 t
2023587
SSID ERP Code: UM8X26CO-IWd50.0SZ1960G 		POWERFORM 8X26 50MM RHOL 50 mm 2200 kN 224 t
2023589
SSID ERP Code: UM8X26CO-IWd52.0SZ1960G 		POWERFORM 8X26 52MM RHOL 52 mm 2374 kN 242 t
