Racthet Lashing 75mm, Eco, Endless

Racthet Lashing 75mm, Eco, Endless

Item Number: 2021128
SSID ERP Code: 20040E/3-4M/END
20040E/3-4M/END

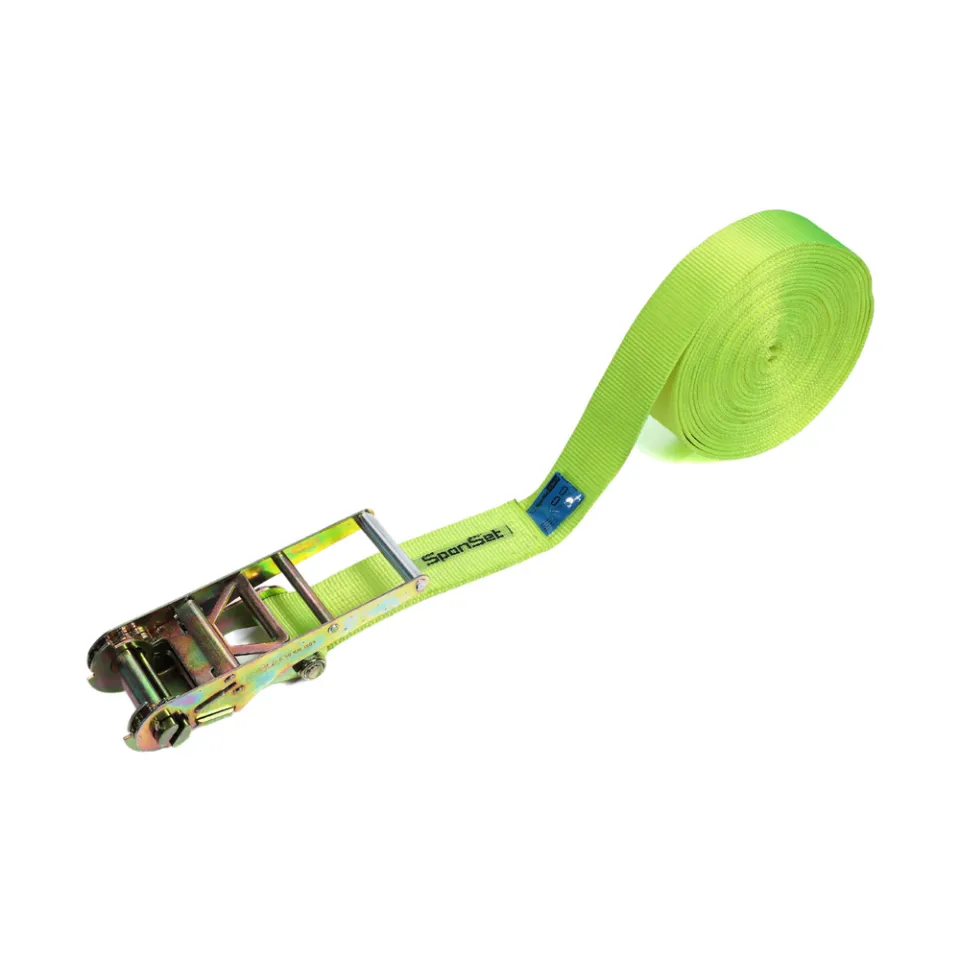

SpanSet Ratchet Lashing ABS 20040 Endless, 4m. Webbing Width 75mm, Color Yellow.
  • Manufactured in accordance to EN 12195-2
  • Made from highest grade material
  • Unique Serial Number on each single product for traceability and inspection record
  • Optional accessories are available to improve load securing application
  • Supplied with Certificate of Conformance, Product Identification Label and User Manual book
  • Available in standard and customized length

Select Model

Please contact customer service for purchase or more information

Product Technical Information

  • Norms: EN 12195-2: 2001
  • Webbing Width B: 75
  • Label Protection: Yes
  • Webbing Material: 100% Polyester, thermofixed and low-stretch
  • Main Material: Polyester
  • Ratchet Type: Push-up

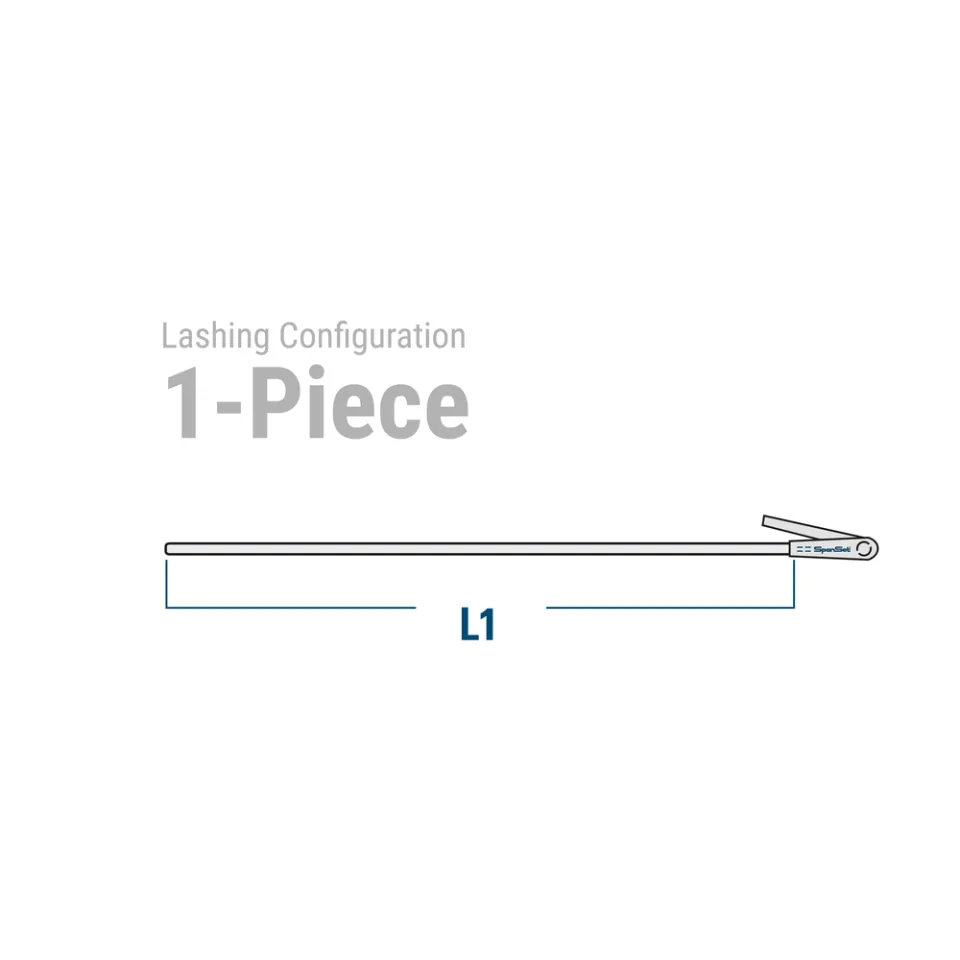

  • Lashing Type: One-piece
  • Packaging Unit (PU): pcs
  • Packaging Unit (PU) Content: 1

Product downloads and manuals

Instruction Manual
(en id)
Download
Instruction Manual_2
(en id)
Download

Technical Drawings

Item Number Item Name Weight Net Dimension L1
2021128
SSID ERP Code: 20040E/3-4M/END
20040E/3-4M/END 6.5 kg 4 m
2021129
SSID ERP Code: 20040E/3-6M/END
20040E/3-6M/END 7.8 kg 6 m
2021130
SSID ERP Code: 20040E/3-8M/END
20040E/3-8M/END 9.1 kg 8 m
2021131
SSID ERP Code: 20040E/3-10M/END
20040E/3-10M/END 10.4 kg 10 m
2021132
SSID ERP Code: 20040E/3-12M/END
20040E/3-12M/END 11.7 kg 12 m
