Ratchet Lashing 25mm, LC 250daN

Ratchet Lashing 25mm, LC 250daN


Item Number: 2021109
SSID ERP Code: 20004/2-A-2M-11
20004/2-A-2M-11

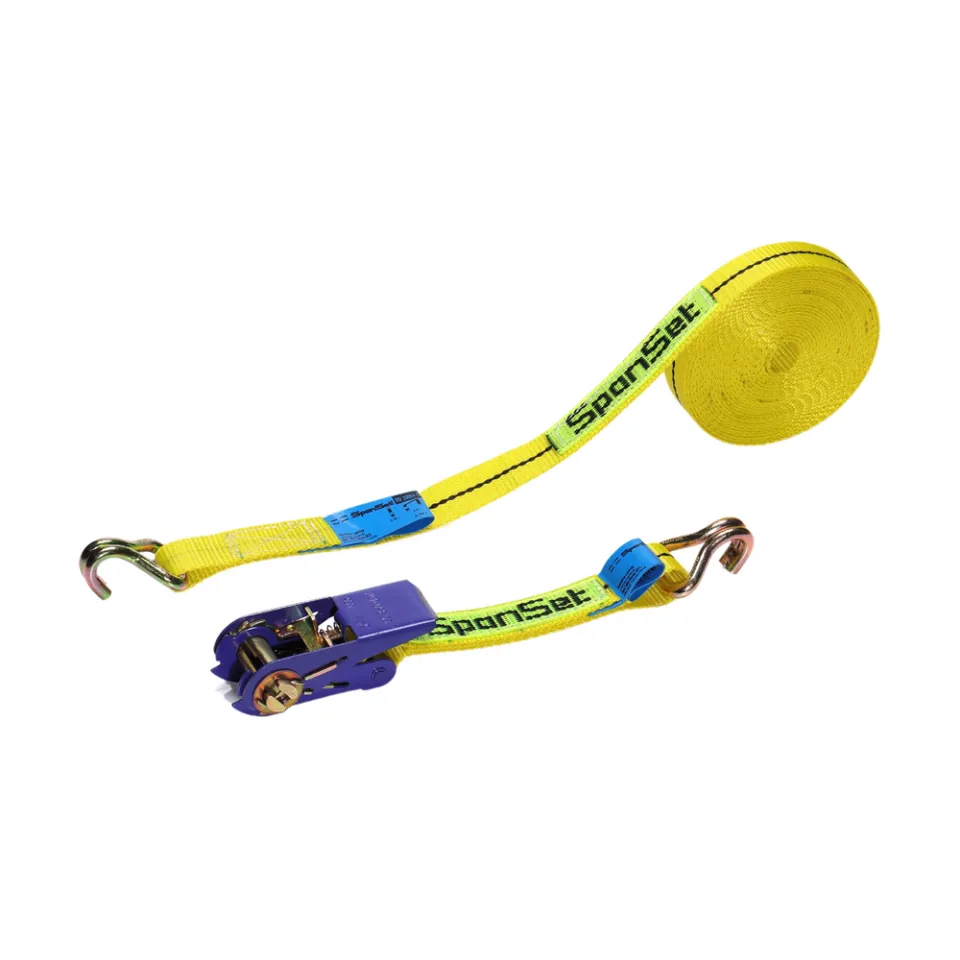

SpanSet Ratchet Lashing 20004 Claw, 2m. Webbing Width 25mm, Color Yellow.
  • Manufactured in accordance to EN 12195-2
  • Made from highest grade material
  • Unique Serial Number on each single product for traceability and inspection record
  • Optional accessories are available to improve load securing application
  • Supplied with Certificate of Conformance, Product Identification Label and User Manual book
  • Available in standard and customized length

Select Model


...

Product Technical Information


  • Norms: EN 12195-2: 2001
  • Webbing Width B: 25
  • Label Protection: Yes
  • Colour: yellow
  • Webbing Material: 100% Polyester, thermofixed and low-stretch
  • Main Material: Polyester
  • Ratchet Type: Push-up
  • Lashing Type: Two-piece
  • Packaging Unit (PU): pcs
  • Packaging Unit (PU) Content: 1
  • Lashing Capacity: 250 daN

Product downloads and manuals


Instruction Manual
(en id)
Download
Instruction Manual_2
(en id)
Download

Technical Drawings



Item Number Item Name Weight Net Dimension L1 Lashing End Fitting Component
2021109
SSID ERP Code: 20004/2-A-2M-11
20004/2-A-2M-11 0.5 kg 2 m Claw Hook

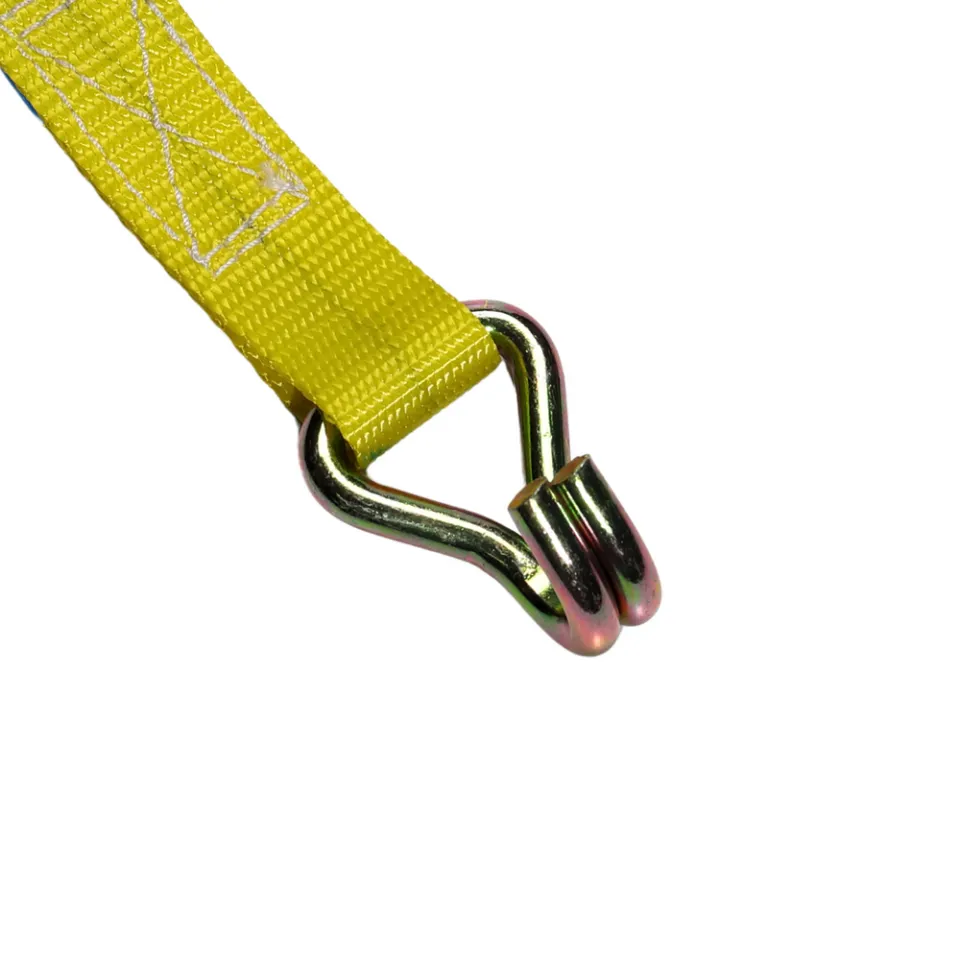

Claw Hook 25mm
2021110
SSID ERP Code: 20004/2-B-2M-11
20004/2-B-2M-11 0.7 kg 2 m S-Hook
S-Hook 25mm
2021111
SSID ERP Code: 20004/2-C-2M-11
20004/2-C-2M-11 0.45 kg 2 m Delta Ring
D-25
2023695
SSID ERP Code: 20004/2-A-4M-11
20004/2-A-4M-11 0.6 kg 4 m Claw Hook
Claw Hook 25mm
2023696
SSID ERP Code: 20004/2-A-6M-11
20004/2-A-6M-11 0.7 kg 6 m Claw Hook
Claw Hook 25mm
2023697
SSID ERP Code: 20004/2-A-8M-11
20004/2-A-8M-11 0.8 kg 8 m Claw Hook
Claw Hook 25mm
2023698
SSID ERP Code: 20004/2-A-10M-11
20004/2-A-10M-11 0.9 kg 10 m Claw Hook
Claw Hook 25mm
2023699
SSID ERP Code: 20004/2-A-12M-11
20004/2-A-12M-11 1 kg 12 m Claw Hook
Claw Hook 25mm
2023700
SSID ERP Code: 20004/2-B-4M-11
20004/2-B-4M-11 0.8 kg 4 m S-Hook
S-Hook 25mm
2023701
SSID ERP Code: 20004/2-B-6M-11
20004/2-B-6M-11 0.9 kg 6 m S-Hook
S-Hook 25mm
2023702
SSID ERP Code: 20004/2-B-8M-11
20004/2-B-8M-11 1 kg 8 m S-Hook
S-Hook 25mm
2023703
SSID ERP Code: 20004/2-B-10M-11
20004/2-B-10M-11 1.1 kg 10 m S-Hook
S-Hook 25mm
2023704
SSID ERP Code: 20004/2-B-12M-11
20004/2-B-12M-11 1.2 kg 12 m S-Hook
S-Hook 25mm
2023705
SSID ERP Code: 20004/2-C-4M-11
20004/2-C-4M-11 0.55 kg 4 m Delta Ring
D-25
2023706
SSID ERP Code: 20004/2-C-6M-11
20004/2-C-6M-11 0.65 kg 6 m Delta Ring
D-25
2023707
SSID ERP Code: 20004/2-C-8M-11
20004/2-C-8M-11 0.75 kg 8 m Delta Ring
D-25
2023708
SSID ERP Code: 20004/2-C-10M-11
20004/2-C-10M-11 0.8 kg 10 m Delta Ring
D-25
2023709
SSID ERP Code: 20004/2-C-12M-11
20004/2-C-12M-11 0.9 kg 12 m Delta Ring
D-25
