Ratchet Lashing Cambuckle 25mm, LC 250daN

Ratchet Lashing Cambuckle 25mm, LC 250daN

Item Number: 2027706
SSID ERP Code: 1153/2-A-2M-11
1153/2-A-2M-11

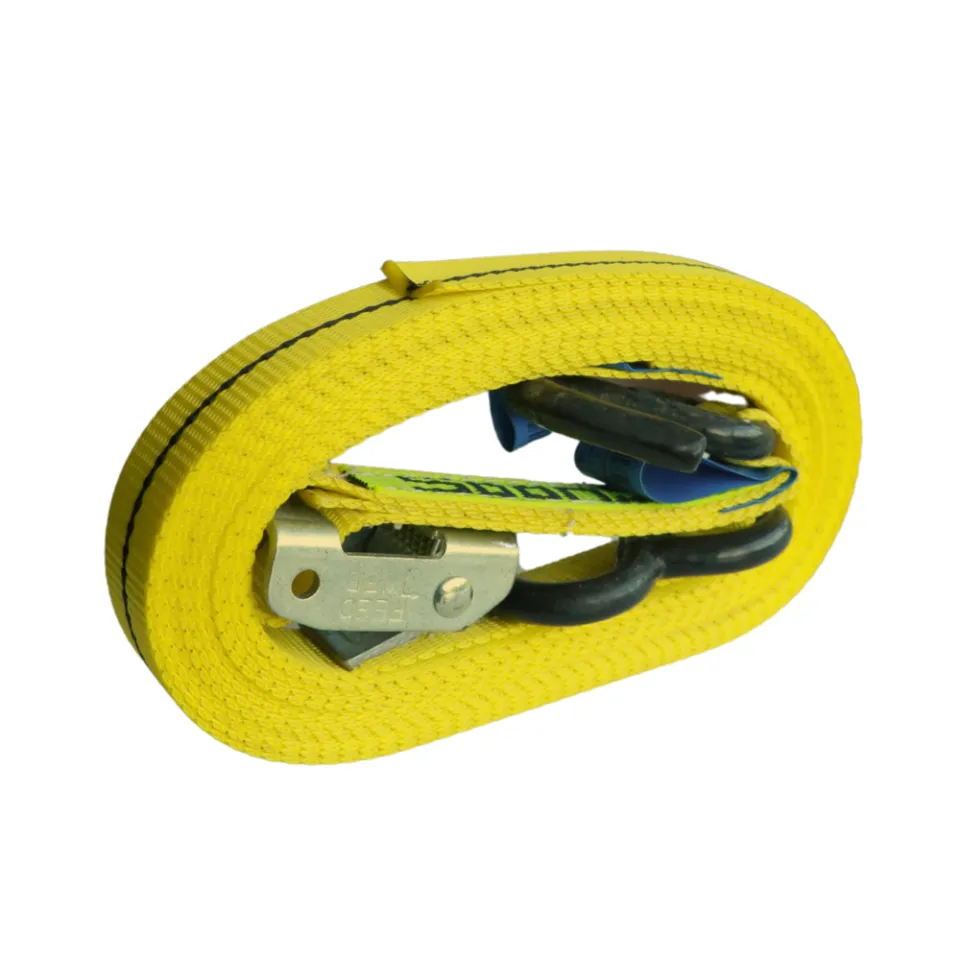

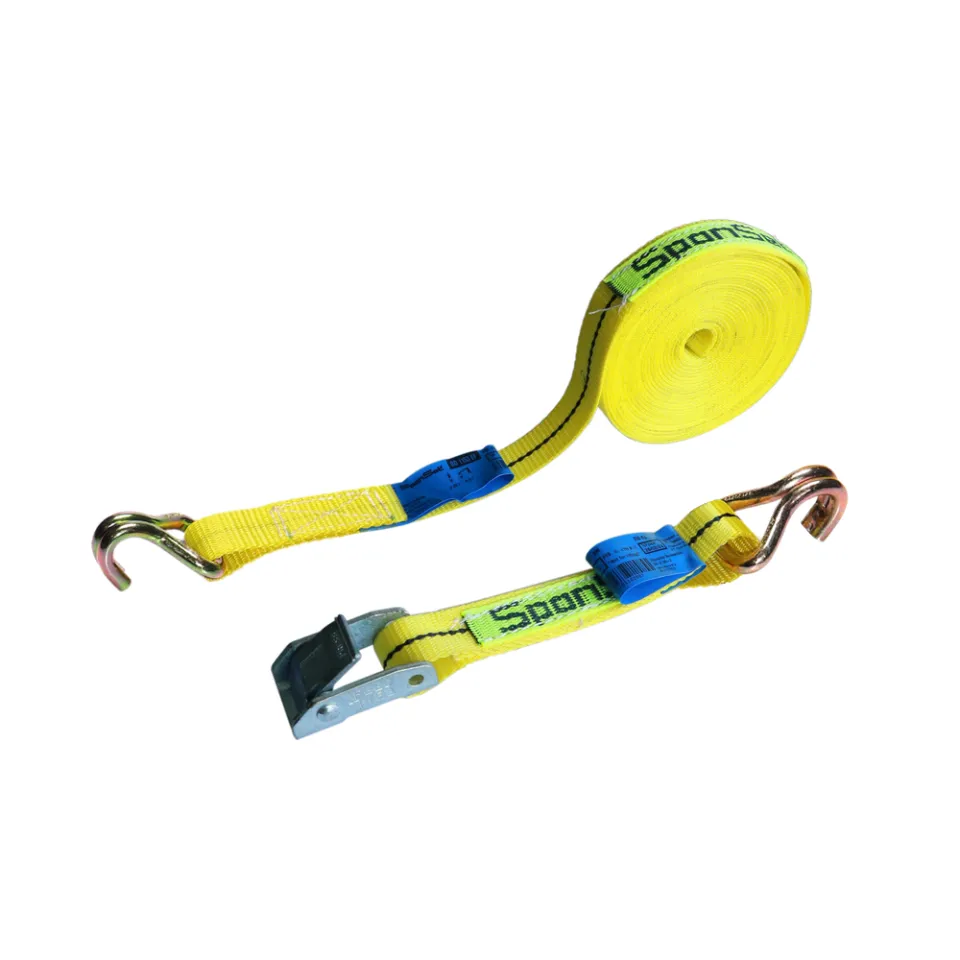

SpanSet Ratchet Lashing 1153 Claw, 2m. Webbing Width 25mm, Color Yellow.
  • Manufactured in accordance to EN 12195-2
  • Made from highest grade material
  • Unique Serial Number on each single product for traceability and inspection record
  • Optional accessories are available to improve load securing application
  • Supplied with Certificate of Conformance, Product Identification Label and User Manual book
  • Available in standard and customized length

Select Model

Please contact customer service for purchase or more information

Product Technical Information

  • Normen: EN 12195-2: 2001
  • Gurtband Breite B: 25
  • Etikettenschutz: Yes
  • Farbe: Orange
  • Gurtband Material: 100% Polyester, thermofixed and low-stretch
  • Hauptmaterial: Polyester
  • Verkaufseinheit (VE): pcs
  • Verpackungseinheit (VPE) Inhalt: 1

Product downloads and manuals

Instruction Manual
(en id)
Download
Instruction Manual_2
(en id)
Download

Technical Drawings

Item Number Item Name Nettogewicht kg Abmessung L1 Verbindungselement (VE)
2027706 1153/2-A-2M-11 1 kg 2 m Claw Hook

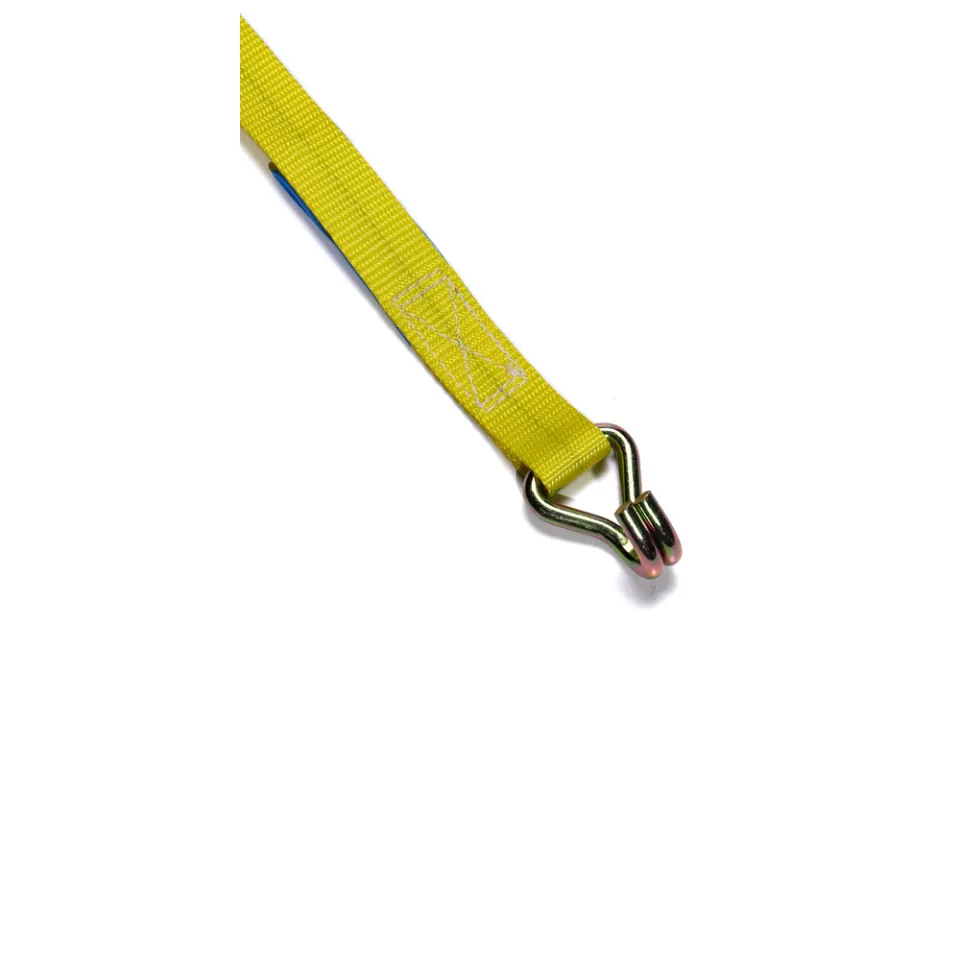

Claw Hook 25mm
2027707 1153/2-A-4M-11 1.1 kg 4 m Claw Hook
Claw Hook 25mm
2027708 1153/2-A-6M-11 1.2 kg 6 m Claw Hook
Claw Hook 25mm
2027709 1153/2-A-8M-11 1.3 kg 8 m Claw Hook
Claw Hook 25mm
2027710 1153/2-A-10M-11 1.4 kg 10 m Claw Hook
Claw Hook 25mm
2027711 1153/2-B-2M-11 1.2 kg 2 m S-Hook

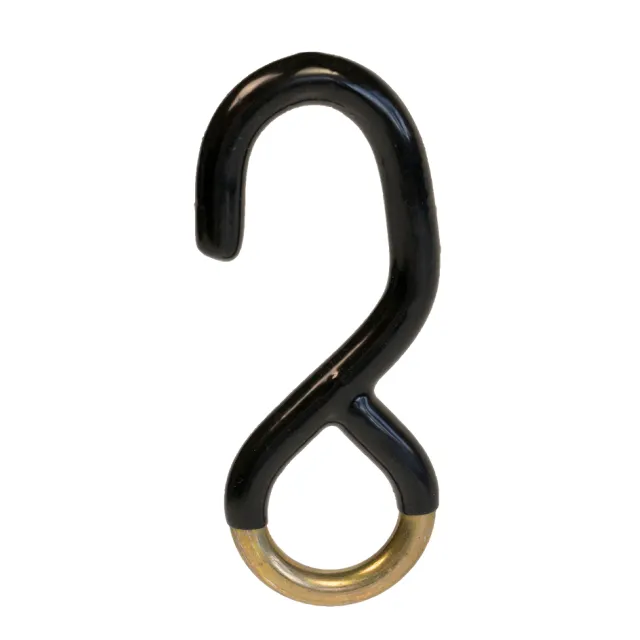

S-Hook 25mm
2027712 1153/2-B-4M-11 1.3 kg 4 m S-Hook
S-Hook 25mm
2027713 1153/2-B-6M-11 1.4 kg 6 m S-Hook
S-Hook 25mm
2027714 1153/2-B-8M-11 1.5 kg 8 m S-Hook
S-Hook 25mm
2027715 1153/2-B-10M-11 1.6 kg 10 m S-Hook
S-Hook 25mm
2027716 1153/2-C-2M-11 1 kg 2 m Delta Ring
D-25
2027717 1153/2-C-4M-11 1.1 kg 4 m Delta Ring
D-25
2027718 1153/2-C-6M-11 1.2 kg 6 m Delta Ring
D-25
2027719 1153/2-C-8M-11 1.3 kg 8 m Delta Ring
D-25
2027720 1153/2-C-10M-11 1.4 kg 10 m Delta Ring
D-25
