SpannFix 5000daN 50mm
Price under request
SpannFix 5000daN 50mm

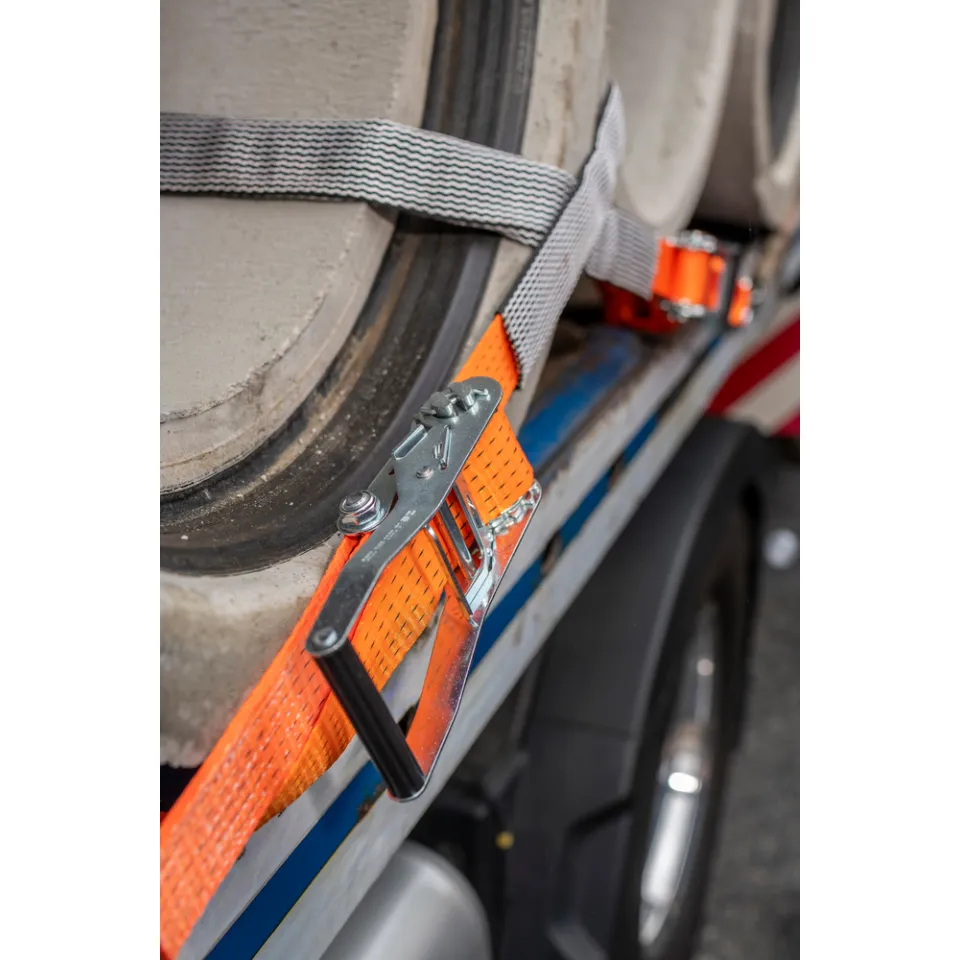

Ideal for use for general haulage applications on flat bed or curtainsided vehicles and trailers
Price under request
- Push-up handle ratchet function with standard tension force 350daN
- Available in a selection of lengths (L1)
- Lashing Capacity 5000daN for 1-part endless assemblies
- Lashing Capacity 2500daN for 2-part assemblies
- 300mm webbing length sewn to the ratchet body (L2)
- Available with a choice of Claw or Rave hook end fittings
- Manufactured to BSEN12195 (2:1 Safety Factor)
Select Model
Price under request
Self-locking ratchet lever
Prevents unintetional opening
The ratchet opening during transportation is thus effectively ruled out - eben when the load is exposed to strong vibrations and shaking.
This economy ratchet lashing range is ideal for use for general haulage applications on flat bed or curtainsided vehicles and trailers.
The robust polyester web and steel ratchet proivde a long service life.
The 300mm webbing length fixed end ensures the handle remains in reach when tensioning ratchet from ground level.
Vehicles fitted with rave rails will require a rave hook end fitting.
When attaching to anchor rings, or directly to the vehicle chassis a claw hook end fitting will be needed.
Endless one-piece lashings are suitable for binding loose cargo together.
Product Technical Information
-
Standard Tension Force
350 daN -
Ratchet Type
Push-up -
Anti Belt Slip (ABS)
No -
Webbing Width B
50 mm -
Tension Force Indicator (TFI)
No -
Surface Coating
Chromated -
Webbing Material
Polyester -
Label Protection
No -
Handle Type
Long Wide -
Packaging Unit (PU)
pcs -
Packaging Unit (PU) Content
1 -
Colour
Orange
Product downloads and manuals
Technical Drawings
Variants information
| Item Number | Item Name | Price | Stock | Purchase | Dimension L1 | Lashing End Fitting Component | Lashing Type | Lashing Capacity | Dimension L2 | Dimension L3 |
|---|---|---|---|---|---|---|---|---|---|---|
| 2024785 | RL01857 2500/50 2pc 9.7m 0.3m DJH |
Price under request |
10 m |
Double J-Hook |
Two-piece | 2500 daN | 0.3 m | 9.7 m | ||
| 2024786 | RL01857 2500/50 2pc 8m DJH |
Price under request |
8 m |
Double J-Hook |
Two-piece | 2500 daN | 0.3 m | 7.7 m | ||
| 2024787 | RL01857 2500/50 2pc 5.7m 0.3m DJH |
Price under request |
6 m |
Double J-Hook |
Two-piece | 2500 daN | 0.3 m | 5.7 m | ||
| 2024790 | RL01857 5000/50 1pc 6m |
Price under request |
6 m |
One-Piece lashing |
One-piece | 5000 daN | ||||
| 2024791 | RL01857 LC5000/50 1pc 8m |
Price under request |
8 m |
One-Piece lashing |
One-piece | 5000 daN | ||||
| 2024792 | RL01857 5000/50 1pc 10m |
Price under request |
10 m |
One-Piece lashing |
One-piece | 5000 daN | ||||
| 2025130 | RL01857 2500/50 2pc 3.7m 0.3m DJH |
Price under request |
4 m |
Double J-Hook |
Two-piece | 2500 daN | 0.3 m | 3.7 m | ||
| 2025389 | RL01857 2500/50 2pc 11.7m 0.3m DJH |
Price under request |
12 m |
Double J-Hook |
Two-piece | 2500 daN | 0.3 m | 11.7 m | ||
| 2025390 | RL01857 2500/50 2pc 4.7m 0.3m DJH |
Price under request |
5 m |
Double J-Hook |
Two-piece | 2500 daN | 0.3 m | 4.7 m | ||
| 2027133 | RL01857 2500/50 2pc 14.7m 0.3m DJH |
Price under request |
15 m |
Double J-Hook |
Two-piece | 2500 daN | 0.3 m | 14.7 m | ||
| 2027153 | RL01857 5000/50 1pc 4m |
Price under request |
4 m |
One-Piece lashing |
One-piece | 5000 daN | ||||
| 2027987 | RL01857 2500/50 2pc 1.7m 0.3m DJH |
Price under request |
2 m |
Double J-Hook |
Two-piece | 2500 daN | 0.3 m | 1.7 m | ||
| 2028317 | RL01857 2500/50 2pc 19.7m 0.3m DJH |
Price under request |
20 m |
Double J-Hook |
Two-piece | 2500 daN | 0.3 m | 19.7 m | ||
| 2029140 | RL01857 2500/50 2pc 0.7m 0.3m DJH |
Price under request |
1 m |
Double J-Hook |
Two-piece | 2500 daN | 0.3 m | 0.7 m |
