Adjustable Length Rope Lanyard

Adjustable Length Rope Lanyard

Adjustable Length Rope Lanyards suitable for work restraint applications.

Item Number: 2002255
WRI 1.5m 1OM1 1CK2

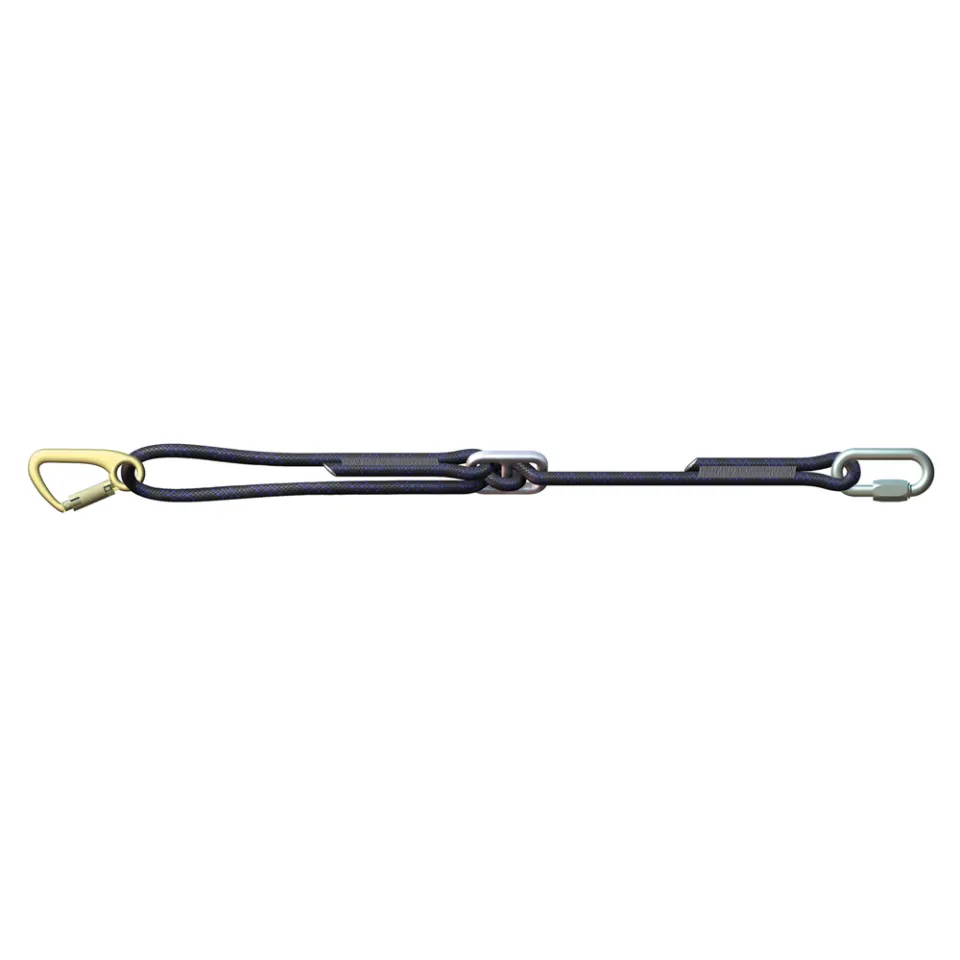

Single Rope Lanyard Adjustable Length 1.5m with Maillon and Karabiners
  • Rope Adjustable Lanyards for Work Restraint Applications.
  • Available with a choice of end fittings and working lengths up to 2m
  • Supplied with clear user instructions
  • Individually serial numbered certification for traceability
  • Pocket Inspection Guide
  • CE approved to EN358:1999

Select Model

SpanSet Rope Lanyard as construcuted from 11mm kernmantle rope to provide durability in the working environment. Sewn terminations mean the lanyard configuration cannot be altered and is easy to inspect for damage. The connector are captivated onto the lanyard terminations to ensure the load correctly in used and cannot be lost. The perminant fixture of the connectors to the lanyard also eliminates the need for separate inspection records for the lanyard and connectors.


Product Technical Information

  • Energy Absorbing
    No
  • Lanyard Leg Type
    Single Adjustable Length
  • Maximum User Weight
    140 kg
  • Fall Equipment Type
    Work Restraint
  • Label Protection
    Yes
  • Main Material
    Polyamide
  • Norms
    EN 358: 2018
  • Packaging Unit (PU)
    pcs
  • Inspection Guide
    Yes
  • Packaging Unit (PU) Content
    1
  • Individually Serial Numbered
    Yes
  • Individual Certificate
    Yes
  • Colour
    Black

Product downloads and manuals

INS_Work_Restraint_Lanyard_2018698_Issue3Rev0
(de en es fr it nl no pl)
Download
Datasheet
Download

Technical Drawings

Item Number Item Name Dimension L Anchor Connector Harness Connector Weight Net EAN Code
2002255 WRI 1.5m 1OM1 1CK2 1.5 m Steel Captive EN Double

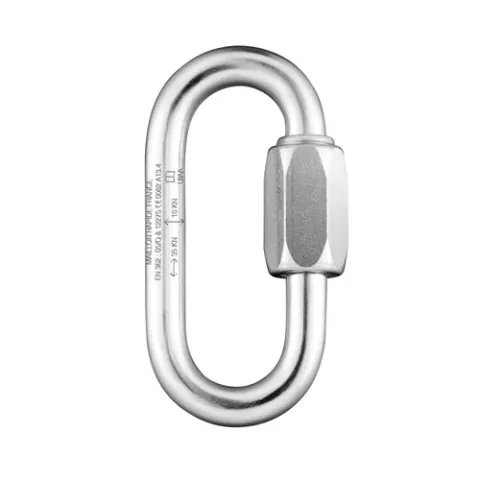

Steel Oval Maillon 10M1
0.6 kg 5056390703347
2003198 WRI 2m 1OM1 1CK2 2 m Steel Captive EN Double
Steel Oval Maillon 10M1
5056390703354

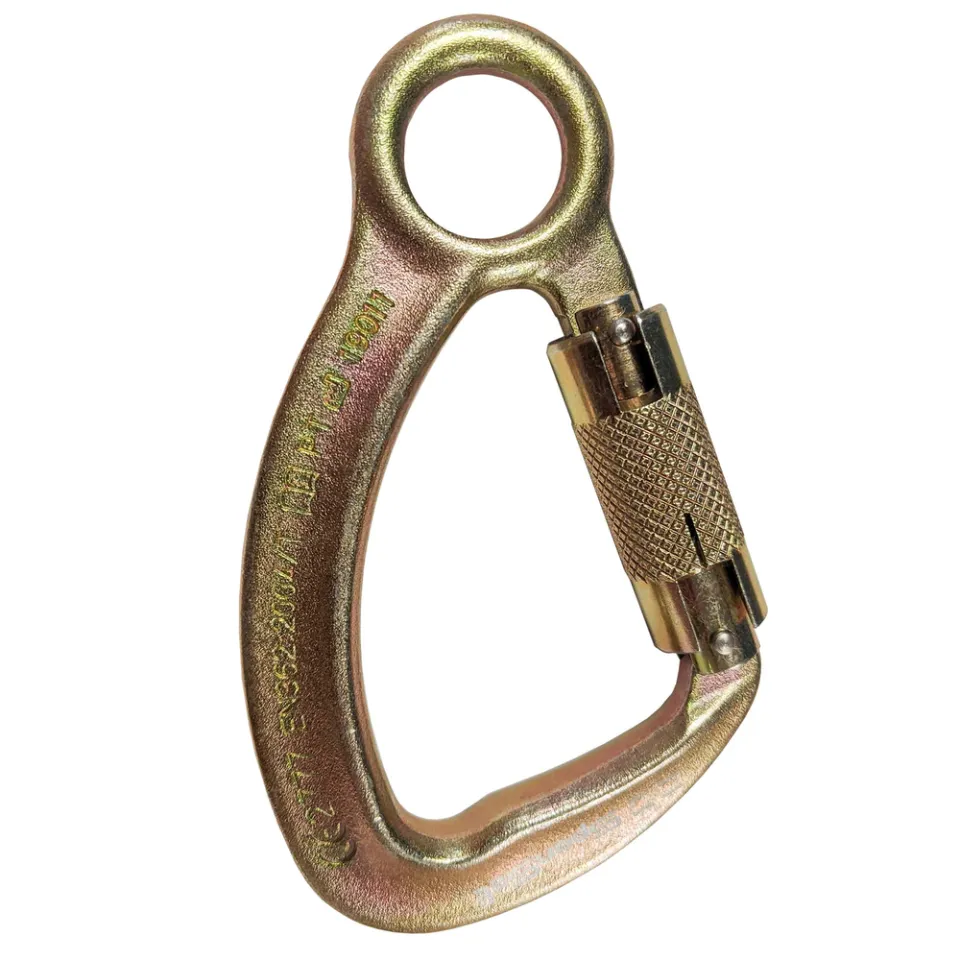

2003692 WRI 2m 1OM1 1RH2 2 m Steel Rebar Hook EN Double
Steel Oval Maillon 10M1
5056390703378
2003693 WRI 2m 1CK2 2 m Steel Captive EN Double
Steel Captive EN Double
5056390703392
2004174 WRI 2m 1CK2 1RH2 2 m Steel Rebar Hook EN Double
Steel Captive EN Double
5056390703415
2004176 WRI 1.5m 1OM1 1RH2 1.5 m Steel Rebar Hook EN Double
Steel Oval Maillon 10M1
5056390703361
2004177 WRI 1.5m 1CK2 1.5 m Steel Captive EN Double
Steel Captive EN Double
5056390703385
2004178 WRI 1.5m 1CK2 1RH2 1.5 m Steel Rebar Hook EN Double
Steel Captive EN Double
5056390703408

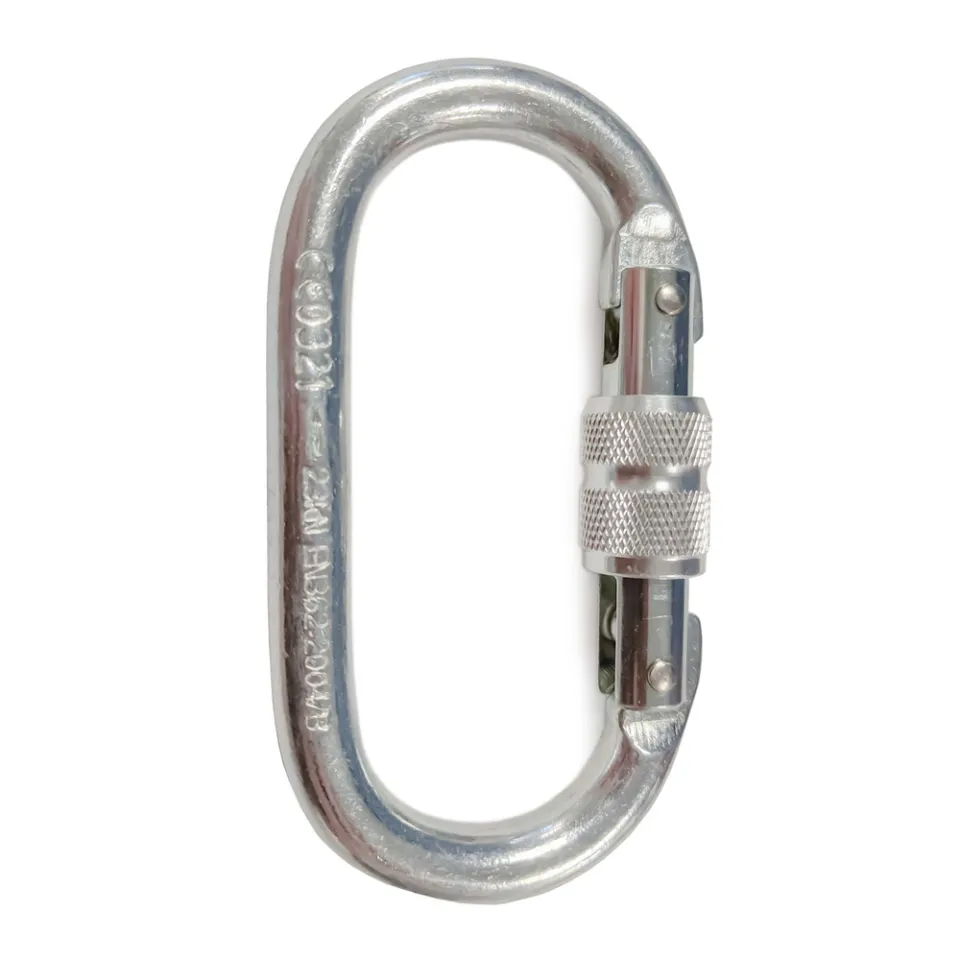

2012576 WRI 1.5m 1OK1 1.5 m Steel Oval EN Screw-gate S/N
Steel Oval EN Screw-gate S/N
5056390703323
2012902 WRI 2m 1OK1 2 m Steel Oval EN Screw-gate S/N
Steel Oval EN Screw-gate S/N
5056390703330

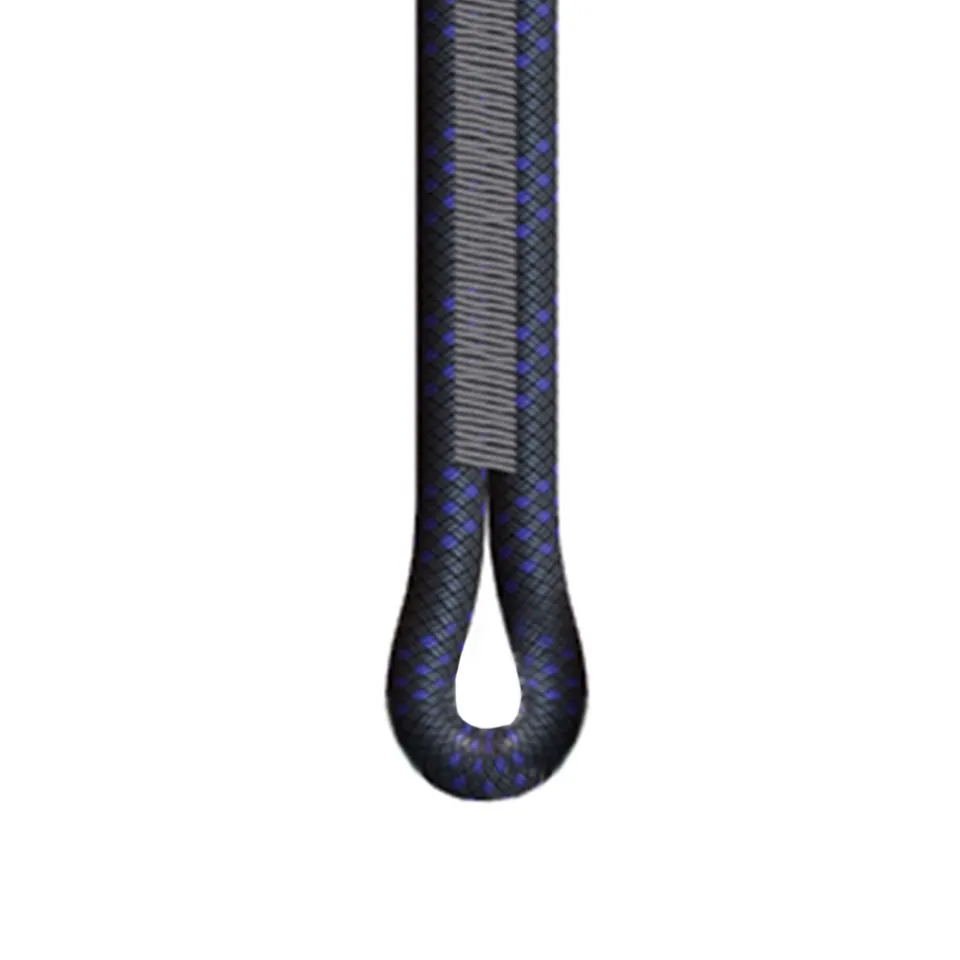

2018429 Foot Loop Lanyard 1.75 m Loop termination
Loop termination
5056390703774
