Robusta 2500dan 50mm
Push Ratchet Strap
Robust ratchet with fine toothing achieve higher pre-tensioning forces with less effort
Robusta 2500dan 50mm
Push Ratchet Strap
Robust ratchet with fine toothing achieve higher pre-tensioning forces with less effort
- Self-locking ratchet, prevents the strap from popping open
- Label protection with film tube and webbing overlap
- Integrated TFI pre-tensioning indicator
- Epoxy ratchet resin coating, guaranteeing a long service life
- Resistant webbing with identification stripes
Select Model
Price under request
- Self-locking ratchet, prevents the strap from popping open
- Label protection with film tube and webbing overlap
- Integrated TFI pre-tensioning indicator
- Epoxy ratchet resin coating, guaranteeing a long service life
- Resistant webbing with identification stripes
Select Model
Price under request
Robusta Ratchet Strap
- Fine toothing - Achieve higher pre-tensioning forces with less effort, which makes handling the tensioning system simple and effortless.
- Self-locking ratchet - Prevents the strap from popping open when the vehicle is in motion, thus ensuring additional safety during use.
- Label protection - Film tube and webbing overlap protects the label from abrasion and thus increases the service life of the product.
- Integrated TFI pre-tensioning indicator - Enables an exact and readable pre-tensioning force of 500 daN, which makes handling easier and increases efficiency.
- Epoxy resin coating - Protects the tensioning system against rust formation, guaranteeing a long service life and flawless operation.
- Resistant webbing with identification stripes is not only durable, but also makes identification easier and ensures additional safety during use.
Product advantages
Tension Force Indicator
Show the pre-tensioning force achieved
With the TFI you can read off the pre-tensioning forces achieved in the lashing system when tying down loads and use this information in load control calculations.
Self-locking ratchet lever
Prevents unintetional opening
The ratchet opening during transportation is thus effectively ruled out - eben when the load is exposed to strong vibrations and shaking.
Protective sleeve label
optimally protected, reinforced with selvedge
In addition to the tear-resistant design with a fabric lining, a robust plastic sleeve perfectly protects the writing from abrasion and dirt. The webbing insert, equipped as standard, also prolongs the service life.
Epoxy resin coating
Maximum ratchet protection
Ratchets are first zinc-plated, then chrome-plated and coated with a shock-resistant epoxy resin coat which additionally protects the ratchets from e.g. rust.
Product Technical Information
-
Standard Tension Force
350 daN -
Ratchet Type
Push-up -
Anti Belt Slip (ABS)
No -
Webbing Width B
50 mm -
Surface Coating
Epoxy -
Webbing Material
Polyester, thermofixed and low-stretch <4% -
Label Protection
Yes -
Standard Tension Force (with TFI)
500 daN -
Norms
EN 12195-2: 2001 -
Handle Type
Standard -
Packaging Unit (PU)
pcs -
Packaging Unit (PU) Content
1 -
Colour
Yellow

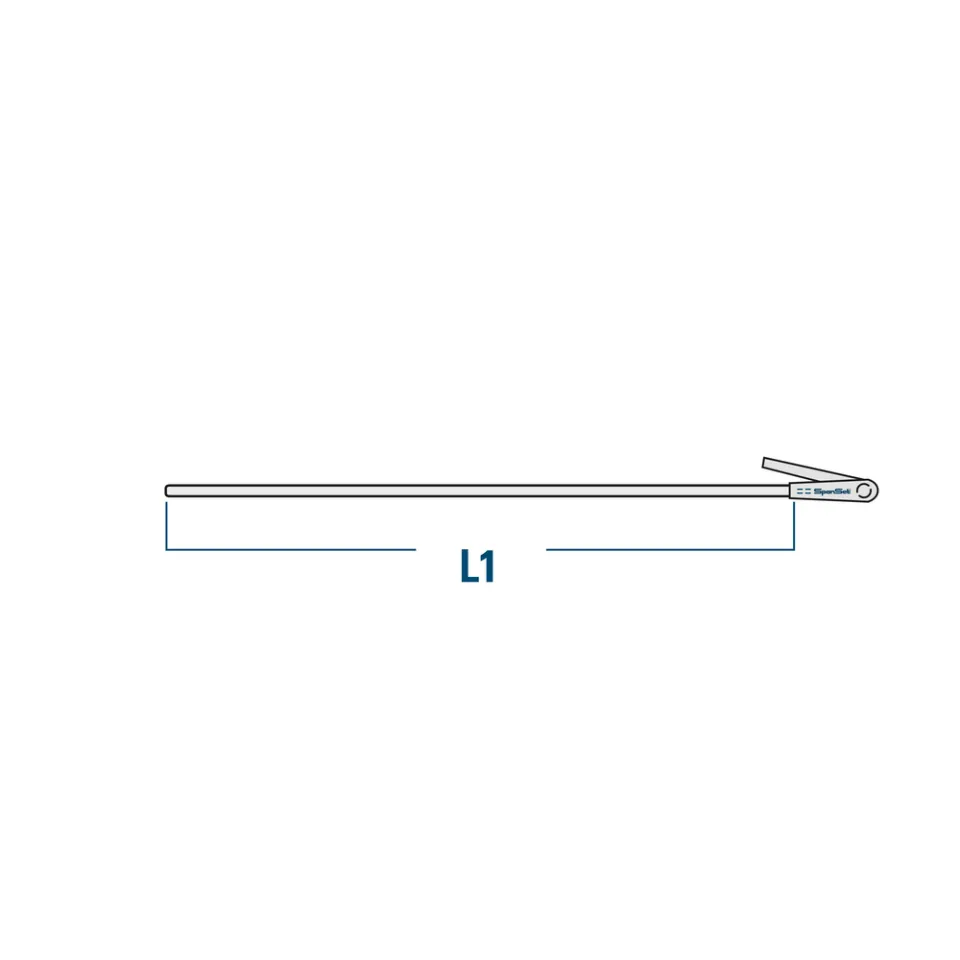

Technical Drawings
Variants information
| Item Number | Item Name | Price | Stock | Purchase | Lashing Type | Lashing End Fitting Component | Dimension L1 | Lashing Capacity |
|---|---|---|---|---|---|---|---|---|
| 2024217 | Robusta 5000/50 1pc 8m |
Price under request |
One-piece |
|
5000 daN | |||
| 2024218 | Robusta 2500/50/STF350 2pc 8m DJHS |
Price under request |
Two-piece |
Double J-Hook Safety Latch |
8 m | 2500 daN | ||
| 2024219 | Robusta 2500/50/STF350 2pc 10m DJHS |
Price under request |
Two-piece |
Double J-Hook Safety Latch |
10 m | 2500 daN | ||
| 2024220 | Robusta 2500/50/STF350 2pc 8m DJH |
Price under request |
Two-piece |
Double J-Hook |
8 m | 2500 daN | ||
| 2024221 | Robusta 2500/50/STF350 2pc 10m DJH |
Price under request |
Two-piece |
Double J-Hook |
10 m | 2500 daN | ||
| 2024222 | Robusta 5000/50 1pc 10m |
Price under request |
One-piece |
|
5000 daN |
