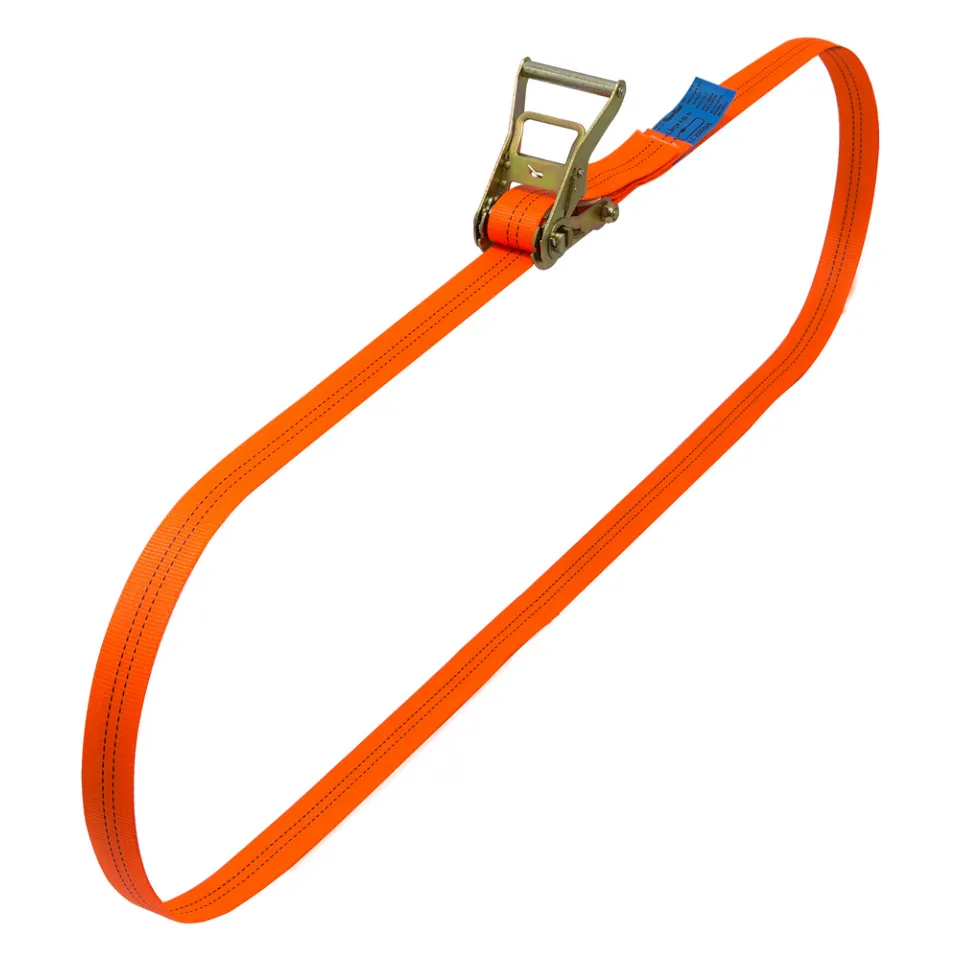

Spannfix 1000daN 35mm
Light-duty Ratchet Strap
Ideal for Panel Vans , Smaller Pick-ups and wrap around applications
Spannfix 1000daN 35mm
Light-duty Ratchet Strap
Ideal for Panel Vans , Smaller Pick-ups and wrap around applications
- Push-up Handle Function with standard tension force 260daN
- Extra-wide ratchet handle for especially good ergonomics
- Lashing Capacity 2000daN for 1-part endless assemblies
- Lashing Capacity 1000daN for 2-part assemblies
- 300mm webbing length sewn to the ratchet body (L2)
- Available with a choice of Claw hook or Snap Hook end fittings
- Manufactured to BSEN12195 (2:1 Safety Factor)
Select Model
RL1804 LC2000/35 1pc 4m
SpanFix pull-up ratchet 2000daN / 35mm Web 1-Part 4m Endless
Item Number: 2003024
Price under request
- Push-up Handle Function with standard tension force 260daN
- Extra-wide ratchet handle for especially good ergonomics
- Lashing Capacity 2000daN for 1-part endless assemblies
- Lashing Capacity 1000daN for 2-part assemblies
- 300mm webbing length sewn to the ratchet body (L2)
- Available with a choice of Claw hook or Snap Hook end fittings
- Manufactured to BSEN12195 (2:1 Safety Factor)
Price under request
Select Model
RL1804 LC2000/35 1pc 4m
SpanFix pull-up ratchet 2000daN / 35mm Web 1-Part 4m Endless
Item Number: 2003024
Price under request
Product advantages
Self-locking ratchet lever
Prevents unintetional opening
The ratchet opening during transportation is thus effectively ruled out - eben when the load is exposed to strong vibrations and shaking.
Folded label
Protect against damage with information sewn inside
Label is made shorter by the fold to protect the information from abrasion and is thus exposed less to wind and shearing forces.
Product Technical Information
-
Dimension L1
4 m -
Standard Tension Force
260 daN -
Ratchet Type
Push-up -
Anti Belt Slip (ABS)
No -
Webbing Width B
35 mm -
Tension Force Indicator (TFI)
No -
Surface Coating
Galvanized -
Webbing Material
Polyester -
Label Protection
Yes -
Norms
EN 12195-2: 2001 -
Handle Type
Short Wide -
Packaging Unit (PU)
pcs -
Packaging Unit (PU) Content
1 -
Colour
Orange
Technical Drawings
Variants information
| Item Number | Item Name | Price | Stock | Purchase | Lashing End Fitting Component | Lashing Type | Lashing Capacity | Dimension L2 | Dimension L3 |
|---|---|---|---|---|---|---|---|---|---|
| 2003024 | RL1804 LC2000/35 1pc 4m |
Price under request |
One-Piece lashing |
One-piece | 2000 daN | ||||
| 2003530 | RL1804 LC1000/35 2pc 4m DJH |
Price under request |
Double J-Hook |
Two-piece | 1000 daN | 0.3 m | 3.7 m | ||
| 2003531 | RL1804 LC1000/35 2pc 4m RH |
Price under request |
Rave Hook |
Two-piece | 1000 daN | 0.3 m | 3.7 m | ||
| 2004047 | RL1804 LC1000/35 2pc 4m SHS |
Price under request |
Snap Hook |
Two-piece | 1000 daN | 0.3 m | 3.7 m |
