MagnumForce
Innovative construction with a high performance polyester fiber and a compact protective cover
Price under request
You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote.
- Up to 50% lighter than conventional roundslings for even better manual handling
- Up to 50% slimmer than conventional roundslings
- Can be used better against narrower edge sides than conventional PES slings
- Shackles and other fasteners are therefore less affected
- Variable load pick-up point for more even wear

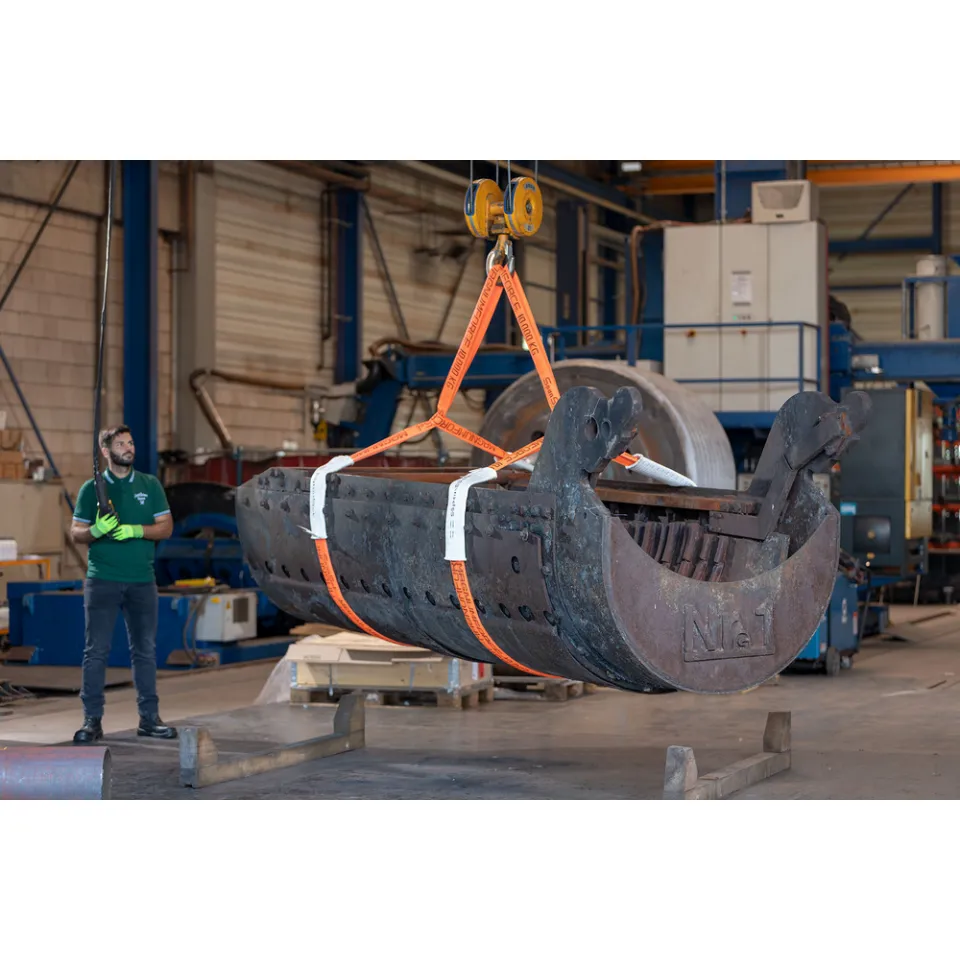

- Ideal for lifting into strangles without folding cylindrical objects
- Ideal for choke lifting cylindrical objects without creasing; Less creasing means less wear; Lifts smooth objects without damage; High strength to weight ratio; Reinforced high performance woven cover; WLL data woven into sleeve for unmistakable capacity identification; Wide range of capacities from 10,000 to 600,000 lb (and larger upon request); Available in lengths up to 98 ft; Roundslings are repairable upon manufacturers inspection
Select Model
Price under request
You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote.
SpanSet MagnumForce Round Sling
- Compact - The innovative construction with a high performance polyester fiber and a compact protective cover partially woven with the same material make the MagnumForce® Roundsling up to 50% slimmer than comparable roundslings with the same load bearing capacity.

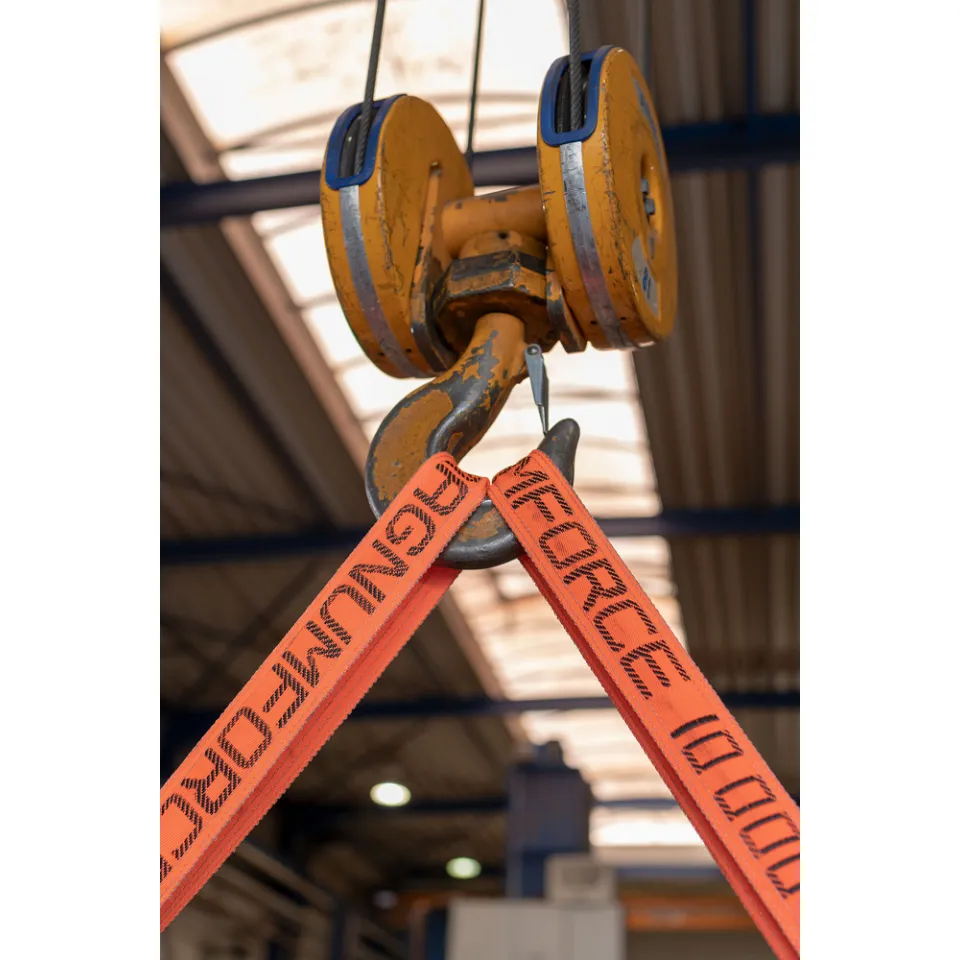

At the same time, it produces greater stiffness within the sling along both axis. The roundsling is not bunched even in smaller crane hooks and attachment points and it is easy to suspend the sling overhead. - Wear Resistant - Outer protective cover is reinforced with an extremely abrasion and tear resistant high performance polyester. In addition, the special design reduces the formation of bunching at the attachment point, which again significantly improves the wear behavior.
MagnumForce® exhibits the greatest reliability and longest durability even under the harshest operating conditions – an economic factor you can count on. - Resilient - The new, high performance fiber has a significantly greater capacity. Consequently, less material is needed in the fabric, which makes MagnumForce® up to 50% lighter than conventional roundslings. With the same load capacity, this high performance roundsling can be laid against tighter edge radii than conventional polyester slings. Work becomes more efficient, quicker and safer.
- Compliant - The MagnumForce® inner load-bearing core is made from the same material as the outer sleeve. This is to ensure any chemical damage indications are consistent with both inner and outer materials. ASME B30.9-2014

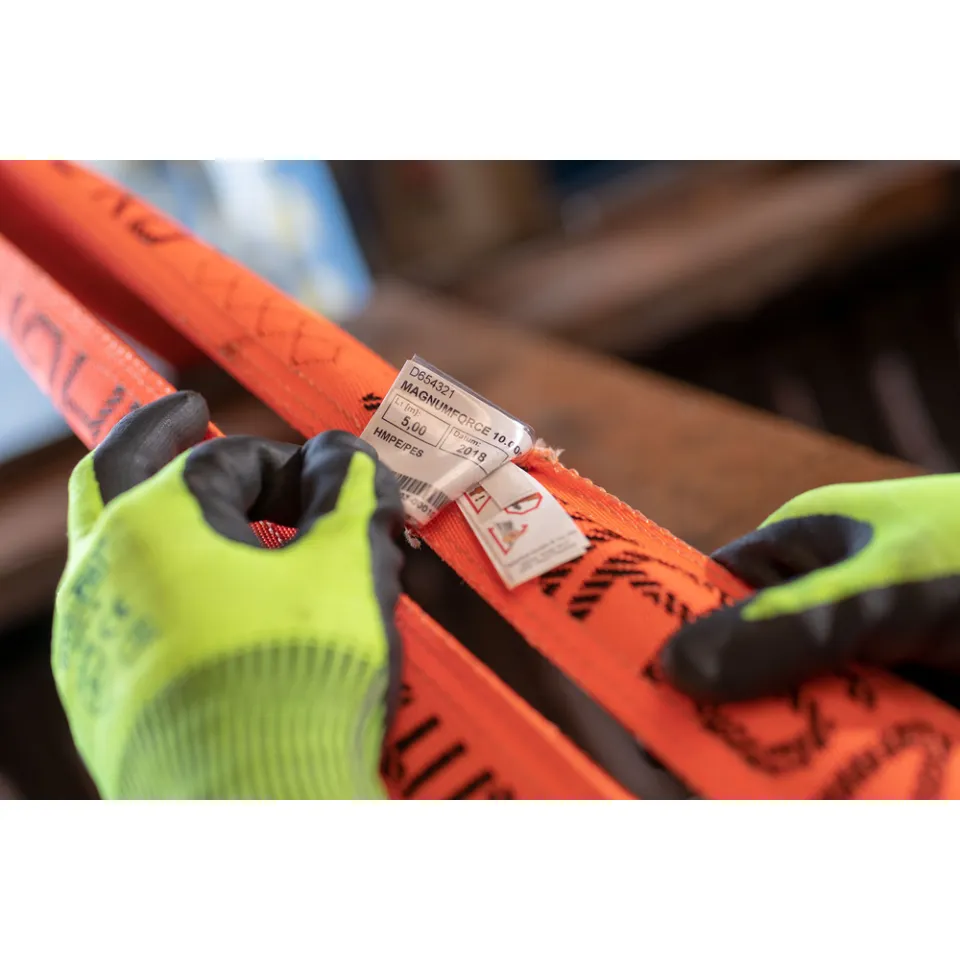

- Identifiable - The MagnumForce® has an extra sleeve with a raised, woven-in load capacity indicator- a safety feature that has proven to be a success. The load capacity is clearly identifiable, even from a distance in the dirtiest conditions, preventing accidents and protecting people and materials.
Product Technical Information
-
Main Material
High-performance polyester -
Packaging Unit (PU)
pcs -
Temperature Range
-40°C bis +100°C -
Packaging Unit (PU) Content
1 -
Color
Orange
Technical Drawings
Product Variants
| GIN | Item Number | Price | Stock | Purchase | Length | WLL Vertical | Weight Net | WLL 45° Basket lbs | WLL 60° Basket lbs | WLL 90° Basket lbs | WLL Choker | Weight per Foot | Approx. Width At Load |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2025025
RCHPE20X10 |
RCHPE20X10 |
Price under request You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote. |
|
10 ft. | 20000 lbs | 6 lbs | 28280 lbs | 34640 lbs | 40000 lbs | 16000 lbs | 0.6 lbs/ft | 1.85 in | |
| 2025026
RCHPE20X20 |
RCHPE20X20 |
Price under request You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote. |
|
20 ft. | 20000 lbs | 12 lbs | 28280 lbs | 34640 lbs | 40000 lbs | 16000 lbs | 0.6 lbs/ft | 1.85 in | |
| 2025027
RCHPE20X30 |
RCHPE20X30 |
Price under request You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote. |
|
30 ft. | 20000 lbs | 18 lbs | 28280 lbs | 34640 lbs | 40000 lbs | 16000 lbs | 0.6 lbs/ft | 1.85 in | |
| 2025028
RCHPE20X40 |
RCHPE20X40 |
Price under request You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote. |
|
40 ft. | 20000 lbs | 24 lbs | 28280 lbs | 34640 lbs | 40000 lbs | 16000 lbs | 0.6 lbs/ft | 1.85 in | |
| 2025029
RCHPE30X10 |
RCHPE30X10 |
Price under request You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote. |
|
10 ft. | 30000 lbs | 8.5 lbs | 42420 lbs | 51690 lbs | 60000 lbs | 24000 lbs | 0.85 lbs/ft | 2.2 in | |
| 2025030
RCHPE30X20 |
RCHPE30X20 |
Price under request You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote. |
|
20 ft. | 30000 lbs | 17 lbs | 42420 lbs | 51690 lbs | 60000 lbs | 24000 lbs | 0.85 lbs/ft | 2.2 in | |
| 2025031
RCHPE30X30 |
RCHPE30X30 |
Price under request You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote. |
|
30 ft. | 30000 lbs | 25.5 lbs | 42420 lbs | 51690 lbs | 60000 lbs | 24000 lbs | 0.85 lbs/ft | 2.2 in | |
| 2025032
RCHPE30X30 |
RCHPE30X30 |
Price under request You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote. |
|
40 ft. | 30000 lbs | 34 lbs | 42420 lbs | 51690 lbs | 60000 lbs | 24000 lbs | 0.85 lbs/ft | 2.2 in | |
| 2025033
RCHPE40X10 |
RCHPE40X10 |
Price under request You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote. |
|
10 ft. | 40000 lbs | 10 lbs | 56560 lbs | 69280 lbs | 80000 lbs | 32000 lbs | 1 lbs/ft | 2.7 in | |
| 2025034
RCHPE40X20 |
RCHPE40X20 |
Price under request You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote. |
|
20 ft. | 40000 lbs | 20 lbs | 56560 lbs | 69280 lbs | 80000 lbs | 32000 lbs | 1 lbs/ft | 2.7 in | |
| 2025035
RCHPE40X30 |
RCHPE40X30 |
Price under request You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote. |
|
30 ft. | 40000 lbs | 30 lbs | 56560 lbs | 69280 lbs | 80000 lbs | 32000 lbs | 1 lbs/ft | 2.7 in | |
| 2025036
RCHPE40X40 |
RCHPE40X40 |
Price under request You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote. |
|
40 ft. | 40000 lbs | 40 lbs | 56560 lbs | 69280 lbs | 80000 lbs | 32000 lbs | 1 lbs/ft | 2.7 in | |
| 2025037
RCHPE50X20 |
RCHPE50X20 |
Price under request You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote. |
|
20 ft. | 50000 lbs | 23 lbs | 70700 lbs | 86600 lbs | 100000 lbs | 40000 lbs | 1.15 lbs/ft | 2.8 in | |
| 2025038
RCHPE60X20 |
RCHPE60X20 |
Price under request You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote. |
|
20 ft. | 60000 lbs | 26 lbs | 84840 lbs | 103920 lbs | 120000 lbs | 48000 lbs | 1.3 lbs/ft | 3 in | |
| 2025039
RCHPE80X20 |
RCHPE80X20 |
Price under request You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote. |
|
20 ft. | 80000 lbs | 32 lbs | 113120 lbs | 138560 lbs | 160000 lbs | 64000 lbs | 1.6 lbs/ft | 3.7 in | |
| 2025040
RCHPE100X20 |
RCHPE100X20 |
Price under request You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote. |
|
20 ft. | 100000 lbs | 36 lbs | 141400 lbs | 173200 lbs | 200000 lbs | 80000 lbs | 1.8 lbs/ft | 4 in | |
| 2025041
RCHPE125X20 |
RCHPE125X20 |
Price under request You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote. |
|
20 ft. | 125000 lbs | 50 lbs | 176750 lbs | 216500 lbs | 250000 lbs | 100000 lbs | 2.5 lbs/ft | 5.1 in | |
| 2025042
RCHPE200X20 |
RCHPE200X20 |
Price under request You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote. |
|
20 ft. | 200000 lbs | 105 lbs | 282800 lbs | 346400 lbs | 400000 lbs | 160000 lbs | 5.25 lbs/ft | 8 in | |
| 2025043
RCHPE250X20 |
RCHPE250X20 |
Price under request You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote. |
|
20 ft. | 250000 lbs | 117 lbs | 353500 lbs | 433000 lbs | 500000 lbs | 200000 lbs | 5.85 lbs/ft | 9.1 in | |
| 2025044
RCHPE300X20 |
RCHPE300X20 |
Price under request You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote. |
|
20 ft. | 300000 lbs | 140 lbs | 424200 lbs | 519600 lbs | 600000 lbs | 240000 lbs | 7 lbs/ft | 10.55 in |
