Twintex
$ 27.48
Sales Tax not included
Twintex
High-tenacity polyester yarn encased in a smooth, double-wall tightly woven cover
$ 27.48
Sales Tax not included
- Most flexible style of sling
- Less rigging weight
- Easy handling
- Wear points can be shifted to extend life
- Color-coded capacity indication
- RED core warning fibers
Select Model
$ 27.48
Sales Tax not included

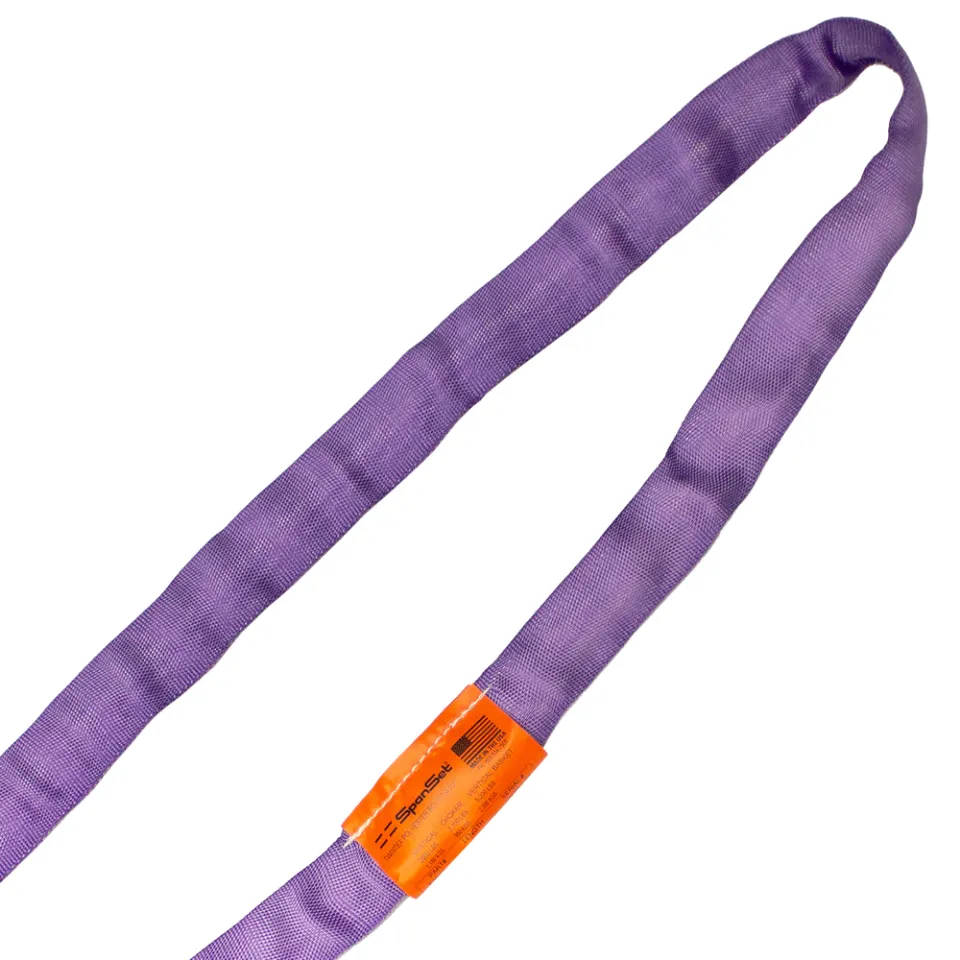

TWINTEX® Roundsling
Developed by SpanSet, Inc. is manufactured from a continuous loop of high-tenacity polyester yarn encased in a smooth, double-wall tightly woven cover without any edge seam.
Most TWINTEX® Roundslings feature a cover made from the same type of yarn as the core, permitting a quick external examination to reveal any possible chemical damage that may have also affected the load-bearing core yarn which might require the slings’ removal from service.
RED core warning fibers; E30 through E180 - Max Length 50’ increased abrasion resistance; E240 and up Max Length 98’
The load-bearing core yarns are encased by the cover, they are protected from cuts, abrasion, and the harmful effects of ultra-violet rays.
Removal from service can be determined if the red-striped white core yarns can be seen through any holes or cuts in the cover.
Product Technical Information
-
Label Protection
No -
Main Material
High-Tenacity Polyester -
Norms
ASME B30.9 -
Packaging Unit (PU)
pcs -
Temperature Range
-40°C bis +100°C -
Packaging Unit (PU) Content
1
Product downloads and manuals
Download
Technical Drawings
Product Variants
| GIN | Item Number | Price | Stock | Purchase | Length | WLL 90° Basket lbs | WLL Vertical | WLL Choker | Weight Net | Weight per Foot | Approx. Width At Load | Approx. Body Diameter Relaxed | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2012577
E30X6 |
E30X6 |
$ 27.48 Sales Tax not included |
|
6 ft. | 5200 lbs | 2600 lbs | 2100 lbs | 1.35 lbs | 0.2 lbs/ft | 1.38 in | 0.5 in | Purple | |
| 2012579
E90X4 |
E90X4 |
$ 28.69 Sales Tax not included |
|
4 ft. | 16800 lbs | 8400 lbs | 6700 lbs | 2 lbs | 0.5 lbs/ft | 1.75 in | 0.87 in | Yellow | |
| 2012581
E150X10 |
E150X10 |
$ 93.53 Sales Tax not included |
|
10 ft. | 26400 lbs | 13200 lbs | 10600 lbs | 7.75 lbs | 0.7 lbs/ft | 2.5 in | 1.25 in | Red | |
| 2012582
E240X10 |
E240X10 |
$ 127.48 Sales Tax not included |
|
10 ft. | 42400 lbs | 21200 lbs | 17000 lbs | 11 lbs | 0.9 lbs/ft | 3.25 in | 1.75 in | Blue | |
| 2012884
E30X4 |
E30X4 |
$ 19.16 Sales Tax not included |
|
4 ft. | 5200 lbs | 2600 lbs | 2100 lbs | 0.95 lbs | 0.2 lbs/ft | 1.38 in | 0.5 in | Purple | |
| 2013976
E60X4 |
E60X4 |
$ 22.91 Sales Tax not included |
|
4 ft. | 10600 lbs | 5300 lbs | 4200 lbs | 1.6 lbs | 0.3 lbs/ft | 1.68 in | 0.62 in | Green | |
| 2013977
E60X6 |
E60x6 |
$ 33.13 Sales Tax not included |
|
6 ft. | 10600 lbs | 5300 lbs | 4200 lbs | 1.95 lbs | 0.3 lbs/ft | 1.68 in | 0.62 in | Green | |
| 2013978
E60X8 |
E60X8 |
$ 43.25 Sales Tax not included |
|
8 ft. | 10600 lbs | 5300 lbs | 4200 lbs | 2.5 lbs | 0.3 lbs/ft | 1.68 in | 0.62 in | Green | |
| 2013979
E60X10 |
E60X10 |
$ 53.57 Sales Tax not included |
|
10 ft. | 10600 lbs | 5300 lbs | 4200 lbs | 3.2 lbs | 0.3 lbs/ft | 1.68 in | 0.62 in | Green | |
| 2013980
E60X12 |
E60X12 |
$ 63.79 Sales Tax not included |
|
12 ft. | 10600 lbs | 5300 lbs | 4200 lbs | 3.85 lbs | 0.3 lbs/ft | 1.68 in | 0.62 in | Green | |
| 2013982
E90X6 |
E90X6 |
$ 41.29 Sales Tax not included |
|
6 ft. | 16800 lbs | 8400 lbs | 6700 lbs | 2.75 lbs | 0.5 lbs/ft | 1.75 in | 0.87 in | Yellow | |
| 2013983
E90X8 |
E90X8 |
$ 53.89 Sales Tax not included |
|
8 ft. | 16800 lbs | 8400 lbs | 6700 lbs | 6.6 lbs | 0.5 lbs/ft | 1.75 in | 0.87 in | Yellow | |
| 2013984
E90X12 |
E90X12 |
$ 79.09 Sales Tax not included |
|
12 ft. | 16800 lbs | 8400 lbs | 6700 lbs | 5.35 lbs | 0.5 lbs/ft | 1.75 in | 0.87 in | Yellow | |
| 2013985
E90X10 |
E90x10 |
$ 66.49 Sales Tax not included |
|
10 ft. | 16800 lbs | 8400 lbs | 6700 lbs | 4.55 lbs | 0.5 lbs/ft | 1.75 in | 0.87 in | Yellow | |
| 2013986
E90X20 |
E90X20 |
$ 129.49 Sales Tax not included |
|
20 ft. | 16800 lbs | 8400 lbs | 6700 lbs | 9.4 lbs | 0.5 lbs/ft | 1.75 in | 0.87 in | Yellow | |
| 2021234
E150X20 |
E150X20 |
$ 179.83 Sales Tax not included |
|
20 ft. | 26400 lbs | 13200 lbs | 10600 lbs | 16 lbs | 0.7 lbs/ft | 2.5 in | 1.25 in | Red | |
| 2022115
E30X8 |
E30X8 |
$ 35.80 Sales Tax not included |
|
8 ft. | 5200 lbs | 2600 lbs | 2100 lbs | 1.85 lbs | 0.2 lbs/ft | 1.38 in | 0.5 in | Purple | |
| 2022122
E30X10 |
E30X10 |
$ 44.12 Sales Tax not included |
|
10 ft. | 5200 lbs | 2600 lbs | 2100 lbs | 2.35 lbs | 0.2 lbs/ft | 1.38 in | 0.5 in | Purple | |
| 2022123
E30X12 |
E30X12 |
$ 52.44 Sales Tax not included |
|
12 ft. | 5200 lbs | 2600 lbs | 2100 lbs | 2.65 lbs | 0.2 lbs/ft | 1.38 in | 0.5 in | Purple | |
| 2022124
E30X20 |
E30X20 |
$ 85.72 Sales Tax not included |
|
20 ft. | 5200 lbs | 2600 lbs | 2100 lbs | 3 lbs | 0.2 lbs/ft | 1.38 in | 0.5 in | Purple | |
| 2022125
E60X20 |
E60X20 |
$ 104.67 Sales Tax not included |
|
20 ft. | 10600 lbs | 5300 lbs | 4200 lbs | 6.55 lbs | 0.3 lbs/ft | 1.68 in | 0.62 in | Green | |
| 2022126
E120X4 |
E120X4 |
$ 36.20 Sales Tax not included |
|
4 ft. | 21200 lbs | 10600 lbs | 8500 lbs | 2.95 lbs | 0.6 lbs/ft | 2 in | 1.12 in | Tan | |
| 2022127
E120X6 |
E120X6 |
$ 51.10 Sales Tax not included |
|
6 ft. | 21200 lbs | 10600 lbs | 8500 lbs | 3.82 lbs | 0.6 lbs/ft | 2 in | 1.12 in | Tan | |
| 2022128
E120X8 |
E120X8 |
$ 65.86 Sales Tax not included |
|
8 ft. | 21200 lbs | 10600 lbs | 8500 lbs | 5.1 lbs | 0.6 lbs/ft | 2 in | 1.12 in | Tan | |
| 2022129
E120X10 |
E120X10 |
$ 80.63 Sales Tax not included |
|
10 ft. | 21200 lbs | 10600 lbs | 8500 lbs | 6.37 lbs | 0.6 lbs/ft | 2 in | 1.12 in | Tan | |
| 2022130
E120X12 |
E120X12 |
$ 95.39 Sales Tax not included |
|
12 ft. | 21200 lbs | 10600 lbs | 8500 lbs | 7.65 lbs | 0.6 lbs/ft | 2 in | 1.12 in | Tan | |
| 2022131
E120X20 |
E120X20 |
$ 154.45 Sales Tax not included |
|
20 ft. | 21200 lbs | 10600 lbs | 8500 lbs | 12.75 lbs | 0.6 lbs/ft | 2 in | 1.12 in | Tan | |
| 2022132
E150X6 |
E150X6 |
$ 59.01 Sales Tax not included |
|
6 ft. | 26400 lbs | 13200 lbs | 10600 lbs | 4.65 lbs | 0.7 lbs/ft | 2.5 in | 1.25 in | Red | |
| 2022133
E150X8 |
E150X8 |
$ 75.27 Sales Tax not included |
|
8 ft. | 26400 lbs | 13200 lbs | 10600 lbs | 6.55 lbs | 0.7 lbs/ft | 2.5 in | 1.25 in | Red | |
| 2022134
E150X12 |
E150X12 |
$ 110.79 Sales Tax not included |
|
12 ft. | 26400 lbs | 13200 lbs | 10600 lbs | 9.35 lbs | 0.7 lbs/ft | 2.5 in | 1.25 in | Red | |
| 2022145
E180X4 |
E180X4 |
$ 45.04 Sales Tax not included |
|
4 ft. | 33600 lbs | 16800 lbs | 13400 lbs | 3.72 lbs | 0.9 lbs/ft | 2.75 in | 1.5 in | White | |
| 2022146
E180X6 |
E180X6 |
$ 62.46 Sales Tax not included |
|
6 ft. | 33600 lbs | 16800 lbs | 13400 lbs | 5.58 lbs | 0.9 lbs/ft | 2.75 in | 1.5 in | White | |
| 2022147
E180X8 |
E180X8 |
$ 80.61 Sales Tax not included |
|
8 ft. | 33600 lbs | 16800 lbs | 13400 lbs | 7.44 lbs | 0.9 lbs/ft | 2.75 in | 1.5 in | White | |
| 2022148
E180X10 |
E180X10 |
$ 98.44 Sales Tax not included |
|
10 ft. | 33600 lbs | 16800 lbs | 13400 lbs | 9.3 lbs | 0.9 lbs/ft | 2.75 in | 1.5 in | White | |
| 2022149
E180X12 |
E180X12 |
$ 116.24 Sales Tax not included |
|
12 ft. | 33600 lbs | 16800 lbs | 13400 lbs | 11.16 lbs | 0.9 lbs/ft | 2.75 in | 1.5 in | White | |
| 2022150
E180X20 |
E180X20 |
$ 187.44 Sales Tax not included |
|
20 ft. | 33600 lbs | 16800 lbs | 13400 lbs | 16.6 lbs | 0.9 lbs/ft | 2.75 in | 1.5 in | White | |
| 2022151
E240X4 |
E240X4 |
$ 60.58 Sales Tax not included |
|
4 ft. | 42400 lbs | 21200 lbs | 17000 lbs | 3.9 lbs | 0.9 lbs/ft | 3.25 in | 1.75 in | Blue | |
| 2022152
E240X6 |
E240X6 |
$ 82.88 Sales Tax not included |
|
6 ft. | 42400 lbs | 21200 lbs | 17000 lbs | 5.85 lbs | 0.9 lbs/ft | 3.25 in | 1.75 in | Blue | |
| 2022153
E240X8 |
E240X8 |
$ 105.18 Sales Tax not included |
|
8 ft. | 42400 lbs | 21200 lbs | 17000 lbs | 8.8 lbs | 0.9 lbs/ft | 3.25 in | 1.75 in | Blue | |
| 2022154
E240X12 |
E240X12 |
$ 149.78 Sales Tax not included |
|
12 ft. | 42400 lbs | 21200 lbs | 17000 lbs | 12.95 lbs | 0.9 lbs/ft | 3.25 in | 1.75 in | Blue | |
| 2022155
E240X20 |
E240X20 |
$ 238.98 Sales Tax not included |
|
20 ft. | 42400 lbs | 21200 lbs | 17000 lbs | 19.5 lbs | 0.9 lbs/ft | 3.25 in | 1.75 in | Blue | |
| 2022156
E360X4 |
E360X4 |
$ 85.15 Sales Tax not included |
|
4 ft. | 62000 lbs | 31000 lbs | 24800 lbs | 7.53 lbs | 1.5 lbs/ft | 4 in | 2.32 in | Grey | |
| 2022157
E360X6 |
E360X6 |
$ 112.95 Sales Tax not included |
|
6 ft. | 62000 lbs | 31000 lbs | 24800 lbs | 11.3 lbs | 1.5 lbs/ft | 4 in | 2.32 in | Grey | |
| 2022158
E360X8 |
E360X8 |
$ 140.75 Sales Tax not included |
|
8 ft. | 62000 lbs | 31000 lbs | 24800 lbs | 15.04 lbs | 1.5 lbs/ft | 4 in | 2.32 in | Grey | |
| 2022159
E360X10 |
E360X10 |
$ 168.55 Sales Tax not included |
|
10 ft. | 62000 lbs | 31000 lbs | 24800 lbs | 13.71 lbs | 1.5 lbs/ft | 4 in | 2.32 in | Grey | |
| 2022160
E360X12 |
E360X12 |
$ 196.35 Sales Tax not included |
|
12 ft. | 62000 lbs | 31000 lbs | 24800 lbs | 16.45 lbs | 1.5 lbs/ft | 4 in | 2.32 in | Grey | |
| 2022161
E360X20 |
E360X20 |
$ 307.55 Sales Tax not included |
|
20 ft. | 62000 lbs | 31000 lbs | 24800 lbs | 27.42 lbs | 1.5 lbs/ft | 4 in | 2.32 in | Grey | |
| 2022162
E480X4 |
E480X4 |
$ 138.84 Sales Tax not included |
|
4 ft. | 80000 lbs | 40000 lbs | 32000 lbs | 9.04 lbs | 2 lbs/ft | 4.25 in | 2.5 in | Maroon | |
| 2022163
E480X6 |
E480X6 |
$ 173.54 Sales Tax not included |
|
6 ft. | 80000 lbs | 40000 lbs | 32000 lbs | 13.56 lbs | 2 lbs/ft | 4.25 in | 2.5 in | Maroon | |
| 2022164
E480X8 |
E480X8 |
$ 208.24 Sales Tax not included |
|
8 ft. | 80000 lbs | 40000 lbs | 32000 lbs | 18.08 lbs | 2 lbs/ft | 4.25 in | 2.5 in | Maroon | |
| 2022165
E480X10 |
E480X10 |
$ 242.03 Sales Tax not included |
|
10 ft. | 80000 lbs | 40000 lbs | 32000 lbs | 22.6 lbs | 2 lbs/ft | 4.25 in | 2.5 in | Maroon | |
| 2022166
E480X12 |
E480X12 |
$ 277.64 Sales Tax not included |
|
12 ft. | 80000 lbs | 40000 lbs | 32000 lbs | 27.12 lbs | 2 lbs/ft | 4.25 in | 2.5 in | Maroon | |
| 2022167
E480X20 |
E480X20 |
$ 416.44 Sales Tax not included |
|
20 ft. | 80000 lbs | 40000 lbs | 32000 lbs | 45.2 lbs | 2 lbs/ft | 4.25 in | 2.5 in | Maroon | |
| 2024066
E150X4 |
E150X4 |
$ 41.75 Sales Tax not included |
|
4 ft. | 26400 lbs | 13200 lbs | 10600 lbs | 3.3 lbs | 0.7 lbs/ft | 2.5 in | 1.25 in | Red | |
| 2030190
E600X8 |
E600X8 |
$ 247.18 Sales Tax not included |
|
8 ft. | 106000 lbs | 53000 lbs | 42000 lbs | 22 lbs | 2.75 lbs/ft | 4.62 in | 2.75 in | Brown | |
| 2030191
E600X10 |
E600X10 |
$ 301.84 Sales Tax not included |
|
10 ft. | 106000 lbs | 53000 lbs | 42000 lbs | 27.5 lbs | 2.75 lbs/ft | 4.62 in | 2.75 in | Brown | |
| 2030192 | E600X12 |
$ 356.50 Sales Tax not included |
|
12 ft. | 106000 lbs | 53000 lbs | 42000 lbs | 33 lbs | 2.75 lbs/ft | 4.62 in | 2.75 in | Brown | |
| 2030193
E600X20 |
E600X20 |
$ 575.14 Sales Tax not included |
|
20 ft. | 106000 lbs | 53000 lbs | 42000 lbs | 55 lbs | 2.75 lbs/ft | 4.62 in | 2.75 in | Brown | |
| 2030194
E800x8 |
E800X8 |
$ 303.32 Sales Tax not included |
|
8 ft. | 132000 lbs | 66000 lbs | 72000 lbs | 24.8 lbs | 3.1 lbs/ft | 5.25 in | 3 in | Olive | |
| 2030195
E800X10 |
E800X10 |
$ 362.76 Sales Tax not included |
|
10 ft. | 132000 lbs | 66000 lbs | 72000 lbs | 31 lbs | 3.1 lbs/ft | 5.25 in | 3 in | Olive | |
| 2030196
E800X12 |
E800X12 |
$ 422.20 Sales Tax not included |
|
12 ft. | 132000 lbs | 66000 lbs | 72000 lbs | 37.2 lbs | 3.1 lbs/ft | 5.25 in | 3 in | Olive | |
| 2030197
E800X20 |
E800X20 |
$ 659.69 Sales Tax not included |
|
20 ft. | 132000 lbs | 66000 lbs | 72000 lbs | 62 lbs | 3.1 lbs/ft | 5.25 in | 3 in | Olive | |
| 2030198
E1000X8 |
E1000X8 |
$ 405.28 Sales Tax not included |
|
8 ft. | 180000 lbs | 90000 lbs | 72000 lbs | 35.2 lbs | 4.4 lbs/ft | 6 in | 3.62 in | Black | |
| 2030199
E1000X10 |
E1000X10 |
$ 483.78 Sales Tax not included |
|
10 ft. | 180000 lbs | 90000 lbs | 72000 lbs | 44 lbs | 4.4 lbs/ft | 6 in | 3.62 in | Black | |
| 2030200
E1000X12 |
E1000X12 |
$ 561.28 Sales Tax not included |
|
12 ft. | 180000 lbs | 90000 lbs | 72000 lbs | 52.8 lbs | 4.4 lbs/ft | 6 in | 3.62 in | Black | |
| 2030201
E1000X20 |
E1000X20 |
$ 871.28 Sales Tax not included |
|
20 ft. | 180000 lbs | 90000 lbs | 72000 lbs | 88 lbs | 4.4 lbs/ft | 6 in | 3.62 in | Black |
