Exoset Grade 10

Exoset Chain lashing systems

Safe transport of construction machinery and heavy loads

Their high durability and lashing capacity make these lashing systems perfect allies for the lashing and securing of heavy equipment for construction and industrial use.

Chain lashing capacity

In order to select the lashing equipment we must always know the necessary LC (Lashing Capacity ) according to the calculations of the norm EN 12195-3.

Chain Ø - 8 mm

5000 daN

Chain Ø - 10 mm

8000 daN

Chain Ø - 13 mm

13400 daN

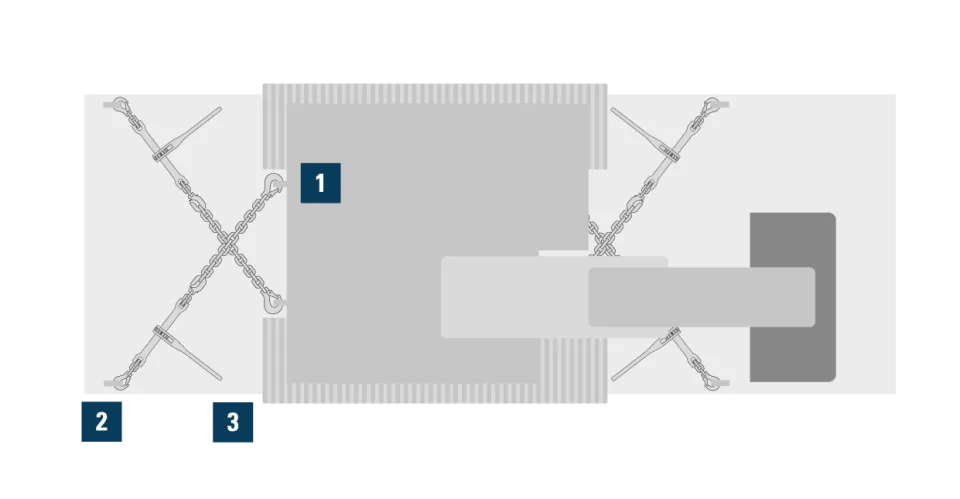

How to lash loads with a chain tensioner

  Safety Check   Inspect the chain kit and make sure that it is free of any defects or damage.
  1   Attach the 1st hook of the chain kit to the item to be attached so that it cannot come loose.
  2   Attach the 2nd hook to the truck bed.
*If you have excess chain, before attaching the 2nd hook, use the chain shortening device to manually adjust the excess chain.
  3   Adjust the ratchet with the lever to its maximum tension.

Ensure proper clamping, check the tension of the chain kit after about 5 to 10 minutes of travel.

Advantages of Exoset equipment

Preventing unintentional release

According to EN 12195-3 connecting parts like sling hooks and shortening parts like grab hooks must have a device preventing them from unintentional release. Our ExoSet® grab hooks for lashing got a safety pin for that reason. Please do not use regular grab hooks without a safety pin for chain lashing.

Build your own Ratchet Chain Load Binder

You can use our ExoSet® Clevis Ratchet Load Binder to create your own version according to your needs. For example, on one side with a sling hook and on the other side with a grab hook .

Main picture Ratchet tensioner EXOSET® with shortening hook G100
Ratchet tensioner EXOSET® with shortening hook G100
Lashing chains
Ratchet tensioner with shortening hook and unscrewing lock
Main picture Ratchet tensioner EXOSET® with clevis G100
Ratchet tensioner EXOSET® with clevis G100
Lashing chains
Ratchet tensioner with clevis and safety against unscrewing
Main picture Ratchet tensioner EXOSET® with parallel hook and lifting hook
Ratchet tensioner EXOSET® with parallel hook and lifting hook
Lashing chains
Ratchet tensioner with parallel hook and lifting hook and safety against unscrewing

Configurable products - Available On-line



Main picture Ratchet tensioner EXOSET® with shortening hook G100
Ratchet tensioner EXOSET® with shortening hook G100
Lashing chains
Ratchet tensioner with shortening hook and unscrewing lock
Main picture Ratchet tensioner EXOSET® with parallel hook and lifting hook
Ratchet tensioner EXOSET® with parallel hook and lifting hook
Lashing chains
Ratchet tensioner with parallel hook and lifting hook and safety against unscrewing
Main picture Ratchet tensioner EXOSET® with clevis G100
Ratchet tensioner EXOSET® with clevis G100
Lashing chains
Ratchet tensioner with clevis and safety against unscrewing
Main picture Lashing chain EXOSET® with ratchet tensioner G100
Lashing chain EXOSET® with ratchet tensioner G100
Lashing chains
Lashing chain with ratchet tensioner lifting hooks and shortening hook
Main picture ABS 5000daN 75mm
ABS 5000daN 75mm
Heavy-duty Ratchet Strap
Heavy-Duty Ratchet strap with progressive release, for safe release of tension and no load tipping.
Main picture MaXafe 10000daN 55mm
MaXafe 10000daN 55mm
Heavy-duty Ratchet Strap
High resistant webbing lashing strap, ideal for transverse and diagonal lashing of heavy vehicles and machines

EXOSET Catalog

Check all the measures, load capacities and tips necessary for the best configuration of your Exoser working equipment.
