Protetor de bueiro com mastro integrado
Portable Davit Arm
Davit arm for regular surfaces in transit areas where access must be restricted
Protetor de bueiro com mastro integrado
Portable Davit Arm
Davit arm for regular surfaces in transit areas where access must be restricted
- Facilitate your access to underground chambers or any other type of confined space
- Stabililizer needed for "V" configurations when using a retractable lifeline longer than 15m.
- Capacity of 191kg (safety factor 10:1)
- Meets or exceeds AS5532, CSA, ANSI, OSHA, CSST and CE Standards
Selecionar modelo
Price under request
- Facilitate your access to underground chambers or any other type of confined space
- Stabililizer needed for "V" configurations when using a retractable lifeline longer than 15m.
- Capacity of 191kg (safety factor 10:1)
- Meets or exceeds AS5532, CSA, ANSI, OSHA, CSST and CE Standards
Selecionar modelo
Price under request

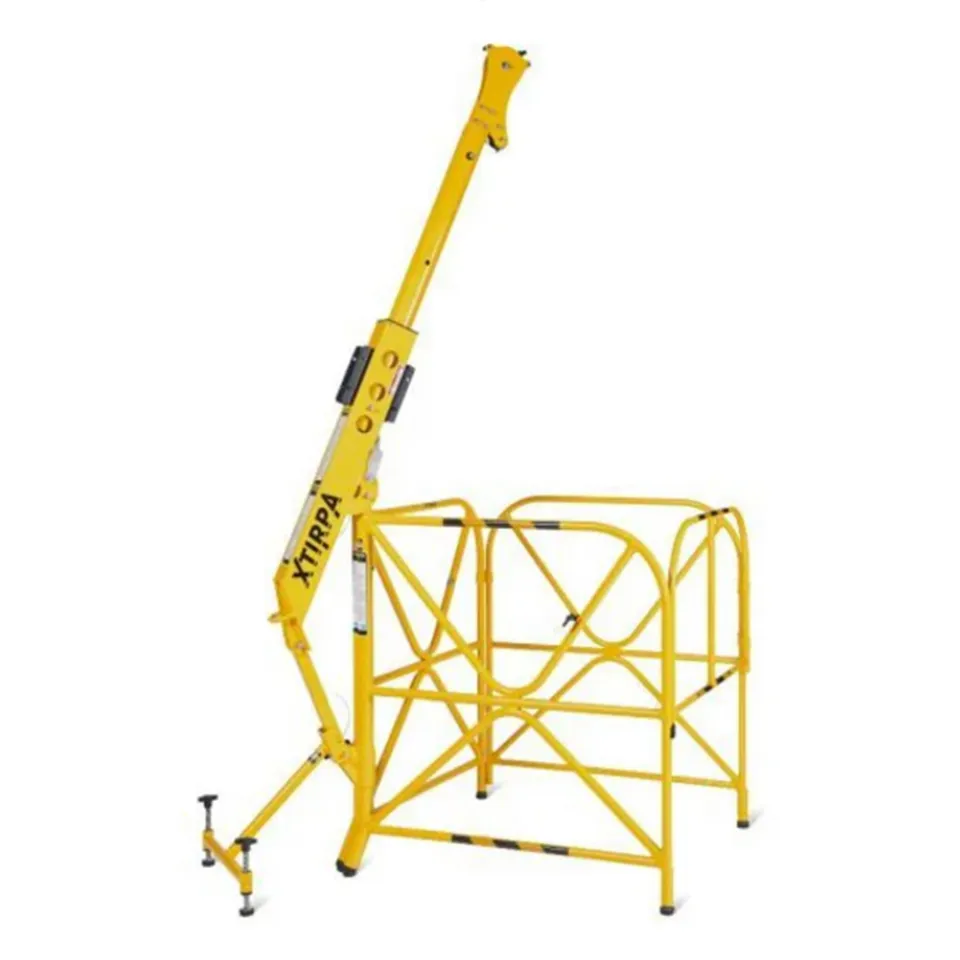

Manhole Guard System
Facilitate your access to underground chambers or any other type of confined space where a portable manhole guard is needed.
The surrounding guards can be added to to give unique flexibility, allowing the protection of even the largest openings as well as odd shaped and corner applications. All SpanSet Xtirpa davits come with device attachment brackets in 3 locations.
Main Components
- XTIN2210 - 610mm (24") davit arm
Equipped with brackets for self-retracting lifeline and winch to ease access to confined spaces. To be used with mast XTIN2003 and an appropriate base or with the self-supporting integrated mast barricade XTIN2108 or XTIN2324. Extendable from 381mm to 610mm. Equipped with a 22 kN anchor point.- Material: aluminum
- Dimensions: L 1436-1896mm x W 148mm x H 286mm
- Weight: 15kg
- XTIN2108 - Manhole Guard
Used in combination with davit arm XTIN2210.- Material: aluminum
- Dimensions: L 992mm x W 947mm x H 1133mm
- Weight: 15kg
Stabilizers - Increase the system stability!
To be used in open "V" configurations of the manhole guard or when using a retractable lifeline longer than 15m.
XTA2108-18 Stabiliser (Optional)
Material: aluminum
Dimensions: L 521mm x W 374mm x H 395mm
Weight: 2kg- XTA2108-20 Stabilizer with wheels (Optional)
The wheels ensure easier handling of the device and allow it to be moved without the need to take it apart.
Material: aluminum
Dimensions: L 559mm x W 1377mm x H 1440mm
Weight: 6kg
Informações Técnicas do Produto
-
Arm Reach
381-610 mm -
Base
Barricade with integrated Mast
-
Davit arm
610mm Davit Arm
-
Load Capacity (kg)
191 kg -
Working angle
0 ° -
Fator de segurança
10:1 -
Material principal
Alumínio -
Normas
EN 795: 2012 AS/NZS 5532 -
Unidade de embalagem (PU)
pcs -
Unidade de embalagem (PU) Conteúdo
1 -
Cor
Amarelo
Informações variadas
| Número de item | Nome do item | Preço | Estoque | Purchase | Accessories |
|---|---|---|---|---|---|
| 2029782 | XT-2-ST |
Price under request |
Barricade Stabilizer |
||
| 2029908 | XT-2-STW |
Price under request |
Barricade Stabilizer with wheels |
