ABS 12500daN 75mm
Heavy-duty Ratchet Strap

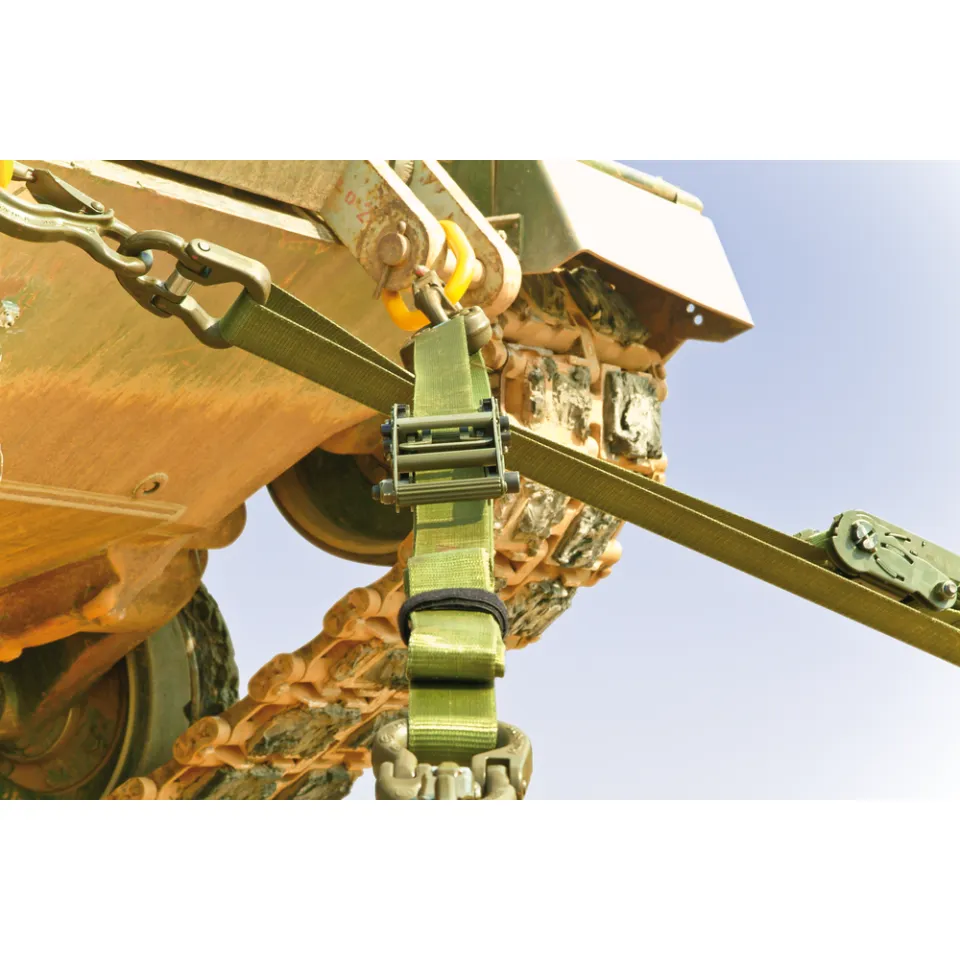

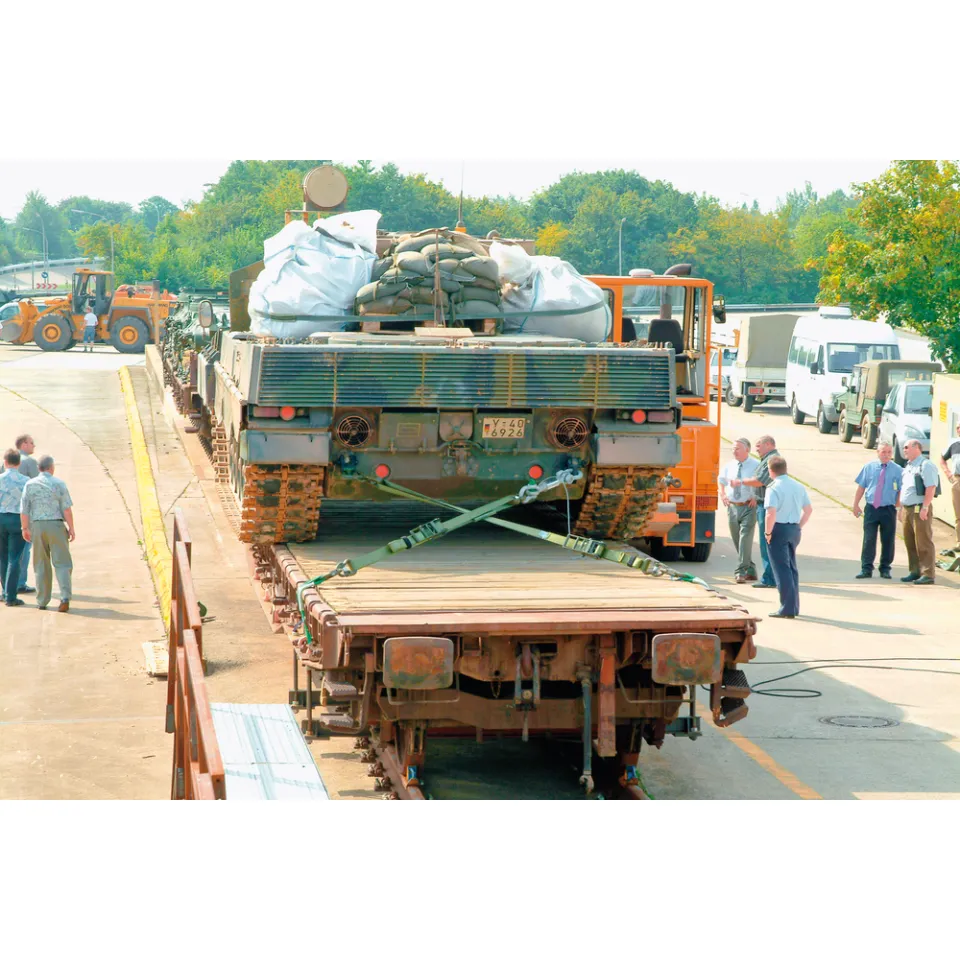

Ideal for diagonal lashing of heavy-duty vehicles and machinery
ABS 12500daN 75mm
Heavy-duty Ratchet Strap
Ideal for diagonal lashing of heavy-duty vehicles and machinery
- Tensioning device can be released gradually, self-locking and equipped with double slider
- Epoxy resin-coated tensioning device made from hardened material and with reinforced bars
- With TFI as standard
- Reliable lashing force of up to 12,500 daN
Select Model
VAT not included
- Tensioning device can be released gradually, self-locking and equipped with double slider
- Epoxy resin-coated tensioning device made from hardened material and with reinforced bars
- With TFI as standard
- Reliable lashing force of up to 12,500 daN
742,20 €
VAT not included
Select Model
VAT not included
Reinforced bar
This high-performance ratchet is further reinforced by a double bar, meaning that the load is distributed between three points rather than just two. This results in extremely high loading capacity and stability.
Tension Force Indicator (TFI)
The standard TFI in this high-performance lashing serves as a safety element against unintentional overtensioning; i.e. optimum tension in relation to the lashing force (LC).
"Anti-Belt-Slip" procedure
This gives you full control even when releasing. With the ABS system you can release the pre-tensioning force in small steps. Loads that are in danger of tipping over and lean into the belt can thus be straightened in time with the truck. This helps to prevent damage and accidents.
Product advantages
Double Slider
Safe in the intermediate phase when tensing
Secures in the intermediate stage when tensioning the webbing. Two sliders engage in an existing sprocket in "smaller steps".
Tension Force Indicator
Show the pre-tensioning force achieved
With the TFI you can read off the pre-tensioning forces achieved in the lashing system when tying down loads and use this information in load control calculations.
"Anti-Belt-Slip" procedure
Controlled tension liberation
The ABS system was developed for loads with a risk of tipping and allows the user to release the pretension in small steps. The lashing can also be opened completely.
Self-locking ratchet lever
Prevents unintetional opening
The ratchet opening during transportation is thus effectively ruled out - eben when the load is exposed to strong vibrations and shaking.
Epoxy resin coating
Maximum ratchet protection
Ratchets are first zinc-plated, then chrome-plated and coated with a shock-resistant epoxy resin coat which additionally protects the ratchets from e.g. rust.
Product Technical Information
-
Lashing Type
Carlash -
Lashing Capacity
12500 daN -
Dimension L2
0.7 m -
Ratchet Type
Push-up -
Anti Belt Slip (ABS)
Yes -
Tension Force Indicator (TFI)
Yes -
Webbing Width B
75 mm -
Surface Coating
Epoxy -

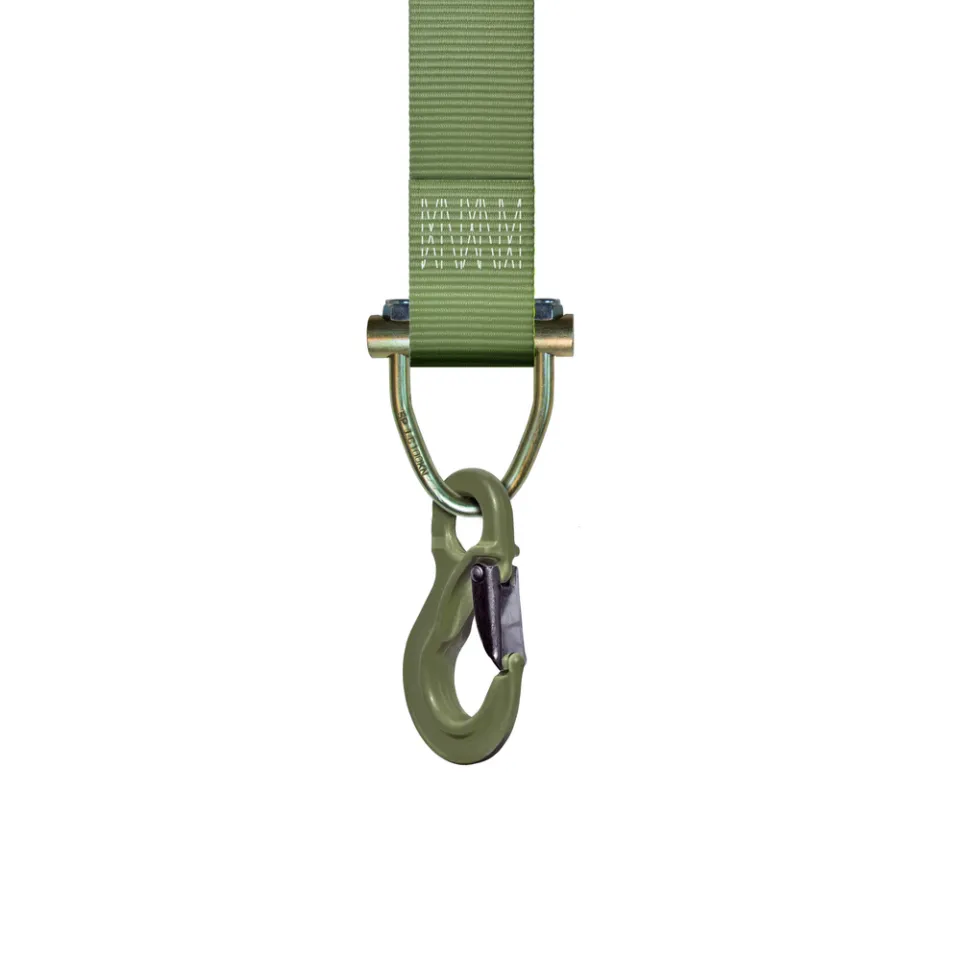

Lashing End Fitting Component
Delta and Hook
-
Webbing Material
Polyester, thermofixed and low-stretch <4% -
Label Protection
Yes -
Norms
EN 12195-2: 2001 -
Handle Type
Standard -
Packaging Unit (PU)
pcs -
Packaging Unit (PU) Content
1 -
Colour
NATO Green
Technical Drawings
Variants information
| Item Number | Item Name | Price | Stock | Purchase | Dimension L1 | Dimension L3 | Weight Net |
|---|---|---|---|---|---|---|---|
| 2003004
D012776 |
ABS LC12500/75 carlash 4m DH |
VAT not included |
Available within 10-15 Days
|
|
4 m | 3.3 m | 16.5 kg |
| 2003498
D012777 |
ABS LC12500/75 carlash 6m DH |
VAT not included |
Available within 10-15 Days
|
|
6 m | 5.3 m | 17.5 kg |
