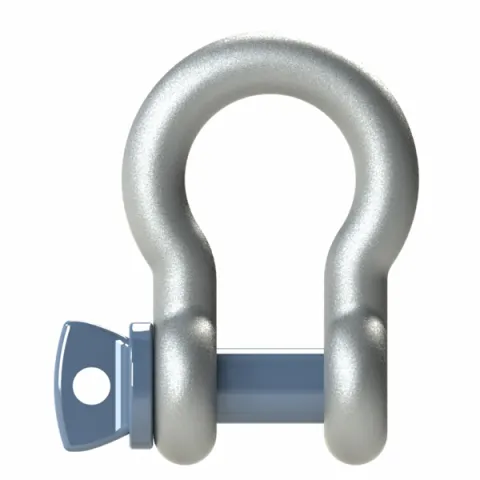

Exoset Bow Shackle with Screw Collar Pin
Exoset Bow Shackle with Screw Collar Pin
Screw pin for quick (dis)assembly
- Screw pin for quick (dis)assembly
- Galvanisation ensures long-term durability
- Suitable for single and multi-strand systems
- Suitable for lifting and lashing
- Grade 50
Select Model
SpanSet has tested the ExoSet shackles in combination with the SpanSet round slings in extensive test series. This made it possible to assign the optimum shackle to each round sling. This was achieved through the perfect matching of the contact surface in the shackle bow, whereby shackles and round slings of the same load capacity were tested. The ExoSet shackles also offer a consistently high manufacturing quality with low tolerances as well as the deburring and polishing of the contact surfaces.
Tested safety

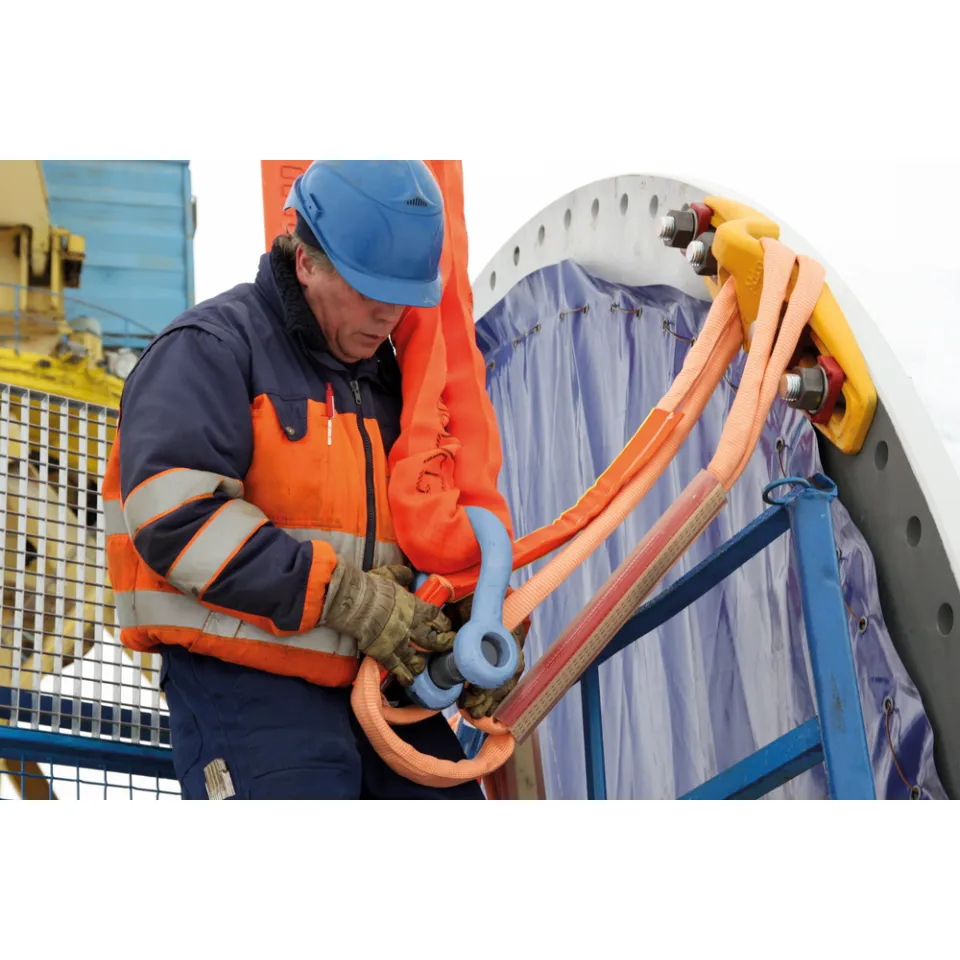

The combinations of round sling and shackle have been tested and approved by SpanSet in cooperation with the DGUV (German Social Accident Insurance). With the Exoset round sling shackles, for the first time you have perfectly matched shackles and round slings with the greatest possible safety.
Product Technical Information
-
Shackle Bolt
screw collar pin -
Grade
50 -
Shackle Type
bow shackle -
Safety Factor
5:1 -
Main Material
Steel -
Norms
EN 13889 -
Packaging Unit (PU)
pcs -
Temperature Range
0° C to + 200° C -
Packaging Unit (PU) Content
1

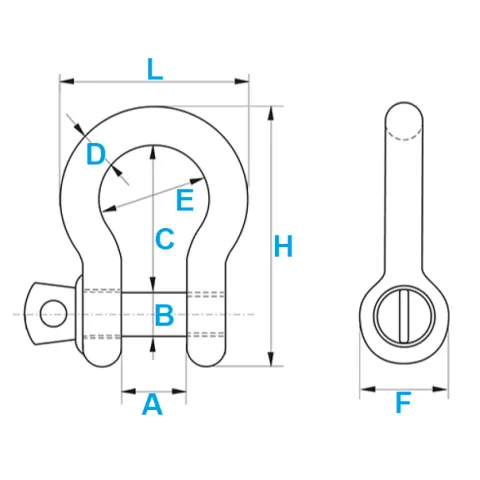

Technical Drawings
Variants information
| Item Number | Item Name | WLL t | WLL kg | Dimension A | Dimension B | Dimension C | Dimension D | Dimension E | Dimension F | Dimension H | Dimension M | Weight Net |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2000774 | BluePin B SCP 4.75t | 4.75 t | 4750 kg | 31.8 mm | 22 mm | 71 mm | 19 mm | 51 mm | 47 mm | 125 mm | 22 mm | 1 kg |
| 2000776 | BluePin B SCP 9.5t | 9.5 t | 9500 kg | 46 mm | 33 mm | 108 mm | 28 mm | 74 mm | 66 mm | 185 mm | 33 mm | 3.2 kg |
| 2000777 | BluePin B SCP 12t | 12 t | 12000 kg | 51.5 mm | 36 mm | 119 mm | 32 mm | 82 mm | 76 mm | 208 mm | 36 mm | 4.3 kg |
| 2000779 | BluePin B SCP 17t | 17 t | 17000 kg | 60.5 mm | 42 mm | 148 mm | 38 mm | 98 mm | 92 mm | 254 mm | 42 mm | 7.4 kg |
