Name: PowerStar 2ply
Brand: SpanSet
SKU: 2002956
Price: 87.82 EUR
Availability: OutOfStock

Measurable load capacity

With these flat slings it is possible to ‘measure’ the load capacity.

The weaving pattern of the strap changes every 30 mm, and each „strip“ indicates a nominal carrying capacity of 0.5 t per layer, e. g.: 2-ply flat sling, 90 mm wide = 3 x 30 mm x 2 layers = 3 t load capacity.

RFID optional

Attachment strap for retrofitting

All SpanSet gear can be fitted with an RFID transponder for asset management with IDXpert.

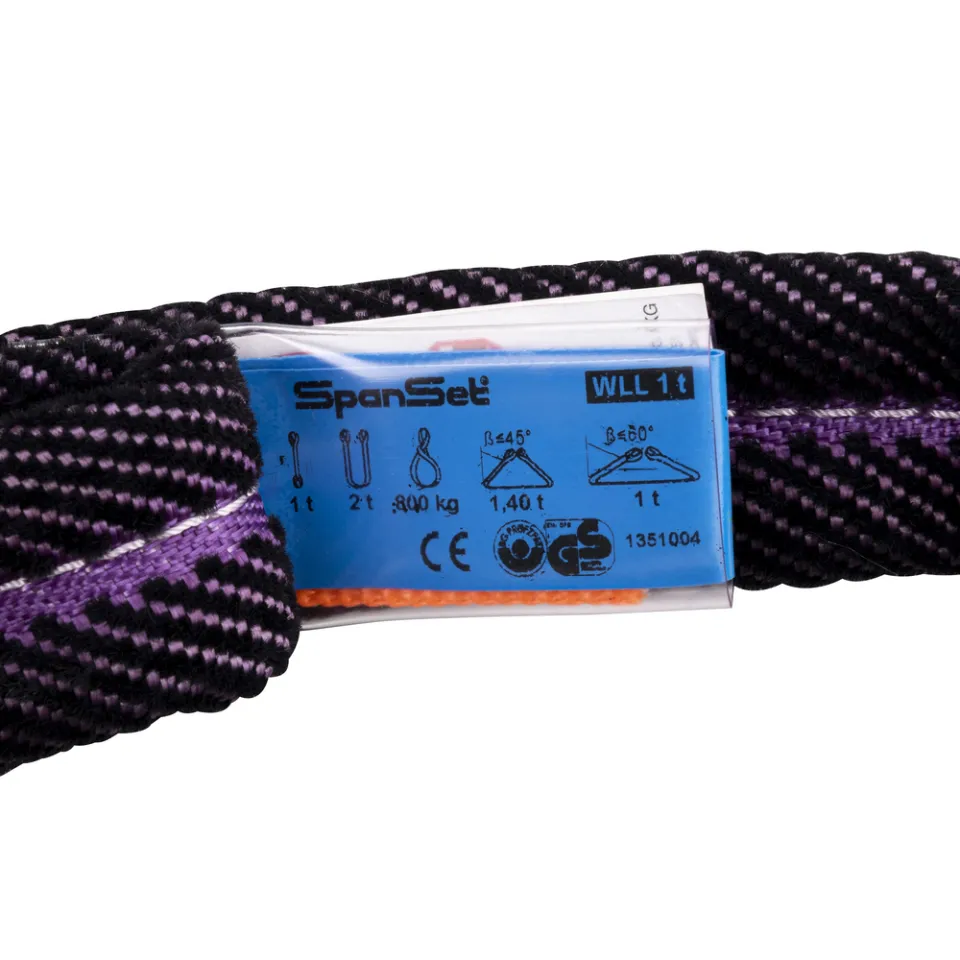

Protective sleeve label

Optimally protected, reinforced with a lining

In addition to the tear-resistant design with a fabric lining, a robust plastic sleeve perfectly protects the writing from abrasion and dirt. In lifting gear fitted with an RFID transponder, the transponder is integrated into the protective sleeve and is tear-resistant.

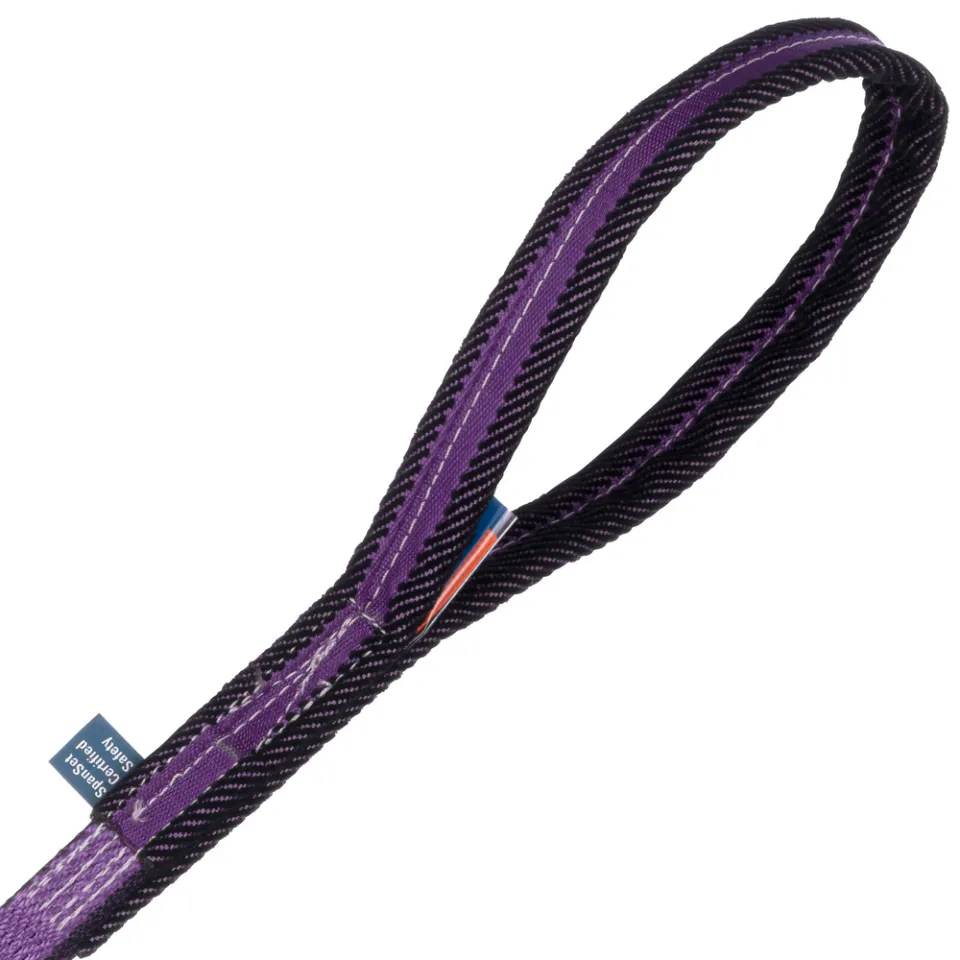

Flat sling loop reinforcement

Added protection against abrasion

Loops have to withstand a great deal of stress during lifting, hooking in and hook- ing out. The solution: loop reinforcement made of high-performance fibres. Thanks to the robust fibre layer, the load-carrying fabric is much more resistant to abrasion, thus prolonging its service life.

Reinforced edges

Resistant to wear and abrasion

Extremely hard-wearing high-tech black spun yarn is woven into the edges of the slings. They provide an easily recognisable protection against chafing on the edge of the strap. Your benefit: longer service life and lower costs!

Woven load capacity indicator

Easy to read even when dirty

Speed is often of the essence in everyday work. To make sure you always use the right round sling, the load capacity indicator is firmly woven into the sleeve and can be read even when the sling is very dirty.

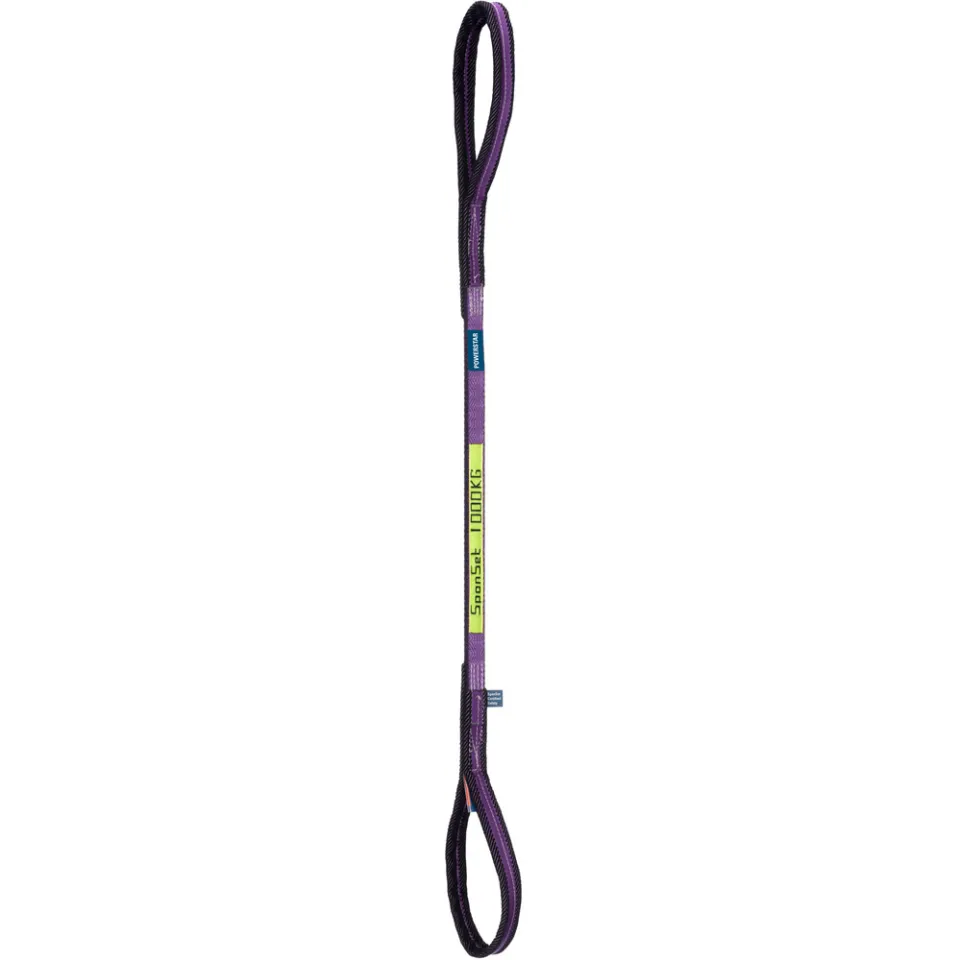

PowerStar Lifting Flat Sling

Made of high-strength polyester yarns with transparent polyurethane coating offers up to 3-fold increased protection against abrasion and wear.

Integrated edge protection makes the lifting belts more durable.
In our high-performance products, enormously abrasion-resistant high-tech yarns made of spun black yarn are woven into the outer area of the belts. They form a clearly visible additional protection against chafing at the belt edge.
Reinforced Loops
The loops of a lifting sling are subjected to heavy loads. When lifting, attaching and detaching, the material rubs against the crane hook every time. The solution: a loop reinforcement made from high-performance yarns.
Load capacity information is sewn onto the belt.
This means that the load capacity is still legible even if the sling is heavily soiled.
Protected, tear-resistant label, with protective tube.

Product Technical Information

Safety Factor
7:1
Belt Layers
2
Label Protection
Yes
Main Material
Polyester
Norms
EN 1492-1: 2000
Packaging Unit (PU)
pcs
Temperature Range
-40° C to + 100° C
Packaging Unit (PU) Content
1

Product downloads and manuals

Datasheet
Download

Technical Drawings

Variants information

Item Number	Item Name	WLL kg	Dimension L1	WLL t	Webbing Width B	Weight for 1m	Dimension L1 min	Loop Width	Loop Length	Webbing Thickness	Weight Net	Weight per Meter	EAN Code	Colour
2015118	PowerStar 2ply 1000 1m	1000 kg	1 m	1 t	30 mm	0.3 kg	1 m	30 mm	300 mm	5.6 mm	0.4 kg	0.2 kg/m		Purple
2002956	PowerStar 2ply 1000 2m	1000 kg	2 m	1 t	30 mm	0.3 kg	1 m	30 mm	300 mm	5.6 mm	0.6 kg	0.2 kg/m	7610726101337	Purple
2003410	PowerStar 2ply 1000 3m	1000 kg	3 m	1 t	30 mm	0.3 kg	1 m	30 mm	300 mm	5.6 mm	0.8 kg	0.2 kg/m	7610726101344	Purple
2003411	PowerStar 2ply 1000 4m	1000 kg	4 m	1 t	30 mm	0.3 kg	1 m	30 mm	300 mm	5.6 mm	1 kg	0.2 kg/m	7610726101351	Purple
2003893	PowerStar 2ply 1000 5m	1000 kg	5 m	1 t	30 mm	0.3 kg	1 m	30 mm	300 mm	5.6 mm	1.2 kg	0.2 kg/m	7610726101368	Purple
2003894	PowerStar 2ply 1000 6m	1000 kg	6 m	1 t	30 mm	0.3 kg	1 m	30 mm	300 mm	5.6 mm	1.4 kg	0.2 kg/m		Purple
2003895	PowerStar 2ply 1000 8m	1000 kg	8 m	1 t	30 mm	0.3 kg	1 m	30 mm	300 mm	5.6 mm	1.8 kg	0.2 kg/m		Purple
2002964	PowerStar 2ply 10000 3m	10000 kg	3 m	10 t	300 mm	4.1 kg	2.6 m	160 mm	1000 mm	7.6 mm	10.4 kg	2.2 kg/m		Orange
2003426	PowerStar 2ply 10000 4m	10000 kg	4 m	10 t	300 mm	4.1 kg	2.6 m	160 mm	1000 mm	7.6 mm	12.6 kg	2.2 kg/m		Orange
2003427	PowerStar 2ply 10000 5m	10000 kg	5 m	10 t	300 mm	4.1 kg	2.6 m	160 mm	1000 mm	7.6 mm	14.8 kg	2.2 kg/m		Orange
2003916	PowerStar 2ply 10000 6m	10000 kg	6 m	10 t	300 mm	4.1 kg	2.6 m	160 mm	1000 mm	7.6 mm	17 kg	2.2 kg/m		Orange
2003917	PowerStar 2ply 10000 8m	10000 kg	8 m	10 t	300 mm	4.1 kg	2.6 m	160 mm	1000 mm	7.6 mm	21.4 kg	2.2 kg/m		Orange
2002958	PowerStar 2-laags 2000 2m	2000 kg	2 m	2 t	60 mm	0.6 kg	1 m	35 mm	300 mm	5.6 mm	1.2 kg	0.4 kg/m	7610726101375	Green
2003414	PowerStar 2ply 2000 3m	2000 kg	3 m	2 t	60 mm	0.6 kg	1 m	35 mm	300 mm	5.6 mm	1.6 kg	0.4 kg/m	7610726101382	Green
2003415	PowerStar 2ply 2000 4m	2000 kg	4 m	2 t	60 mm	0.6 kg	1 m	35 mm	300 mm	5.6 mm	2 kg	0.4 kg/m	7610726101399	Green
2003899	PowerStar 2ply 2000 5m	2000 kg	5 m	2 t	60 mm	0.6 kg	1 m	35 mm	300 mm	5.6 mm	2.4 kg	0.4 kg/m	7610726101405	Green
2003900	PowerStar 2ply 2000 6m	2000 kg	6 m	2 t	60 mm	0.6 kg	1 m	35 mm	300 mm	5.6 mm	2.8 kg	0.4 kg/m	7610726101412	Green
2003901	PowerStar 2ply 2000 8m	2000 kg	8 m	2 t	60 mm	0.6 kg	1 m	35 mm	300 mm	5.6 mm	3.6 kg	0.4 kg/m		Green
2002959	PowerStar 2ply 3000 2m	3000 kg	2 m	3 t	90 mm	1 kg	1.3 m	50 mm	400 mm	6 mm	2 kg	0.6 kg/m	7610726101443	Yellow
2003416	PowerStar 2ply 3000 3m	3000 kg	3 m	3 t	90 mm	1 kg	1.3 m	50 mm	400 mm	6 mm	2.6 kg	0.6 kg/m	7610726101450	Yellow
2003417	PowerStar 2ply 3000 4m	3000 kg	4 m	3 t	90 mm	1 kg	1.3 m	50 mm	400 mm	6 mm	3.2 kg	0.6 kg/m	7610726101467	Yellow
2003902	PowerStar 2ply 3000 5m	3000 kg	5 m	3 t	90 mm	1 kg	1.3 m	50 mm	400 mm	6 mm	3.8 kg	0.6 kg/m	7610726101474	Yellow
2003903	PowerStar 2ply 3000 6m	3000 kg	6 m	3 t	90 mm	1 kg	1.3 m	50 mm	400 mm	6 mm	4.4 kg	0.6 kg/m	7610726101481	Yellow
2003904	PowerStar 2ply 3000 8m	3000 kg	8 m	3 t	90 mm	1 kg	1.3 m	50 mm	400 mm	6 mm	5.6 kg	0.6 kg/m		Yellow
2002960	PowerStar 2ply 4000 2m	4000 kg	2 m	4 t	120 mm	1.4 kg	1.3 m	65 mm	400 mm	6.2 mm	2.8 kg	0.8 kg/m		Grey
2003418	PowerStar 2ply 4000 3m	4000 kg	3 m	4 t	120 mm	1.4 kg	1.3 m	65 mm	400 mm	6.2 mm	3.6 kg	0.8 kg/m		Grey
2003419	PowerStar 2ply 4000 4m	4000 kg	4 m	4 t	120 mm	1.4 kg	1.3 m	65 mm	400 mm	6.2 mm	4.4 kg	0.8 kg/m		Grey
2003905	PowerStar 2ply 4000 5m	4000 kg	5 m	4 t	120 mm	1.4 kg	1.3 m	65 mm	400 mm	6.2 mm	5.2 kg	0.8 kg/m		Grey
2003906	PowerStar 2ply 4000 6m	4000 kg	6 m	4 t	120 mm	1.4 kg	1.3 m	65 mm	400 mm	6.2 mm	6 kg	0.8 kg/m		Grey
2003907	PowerStar 2ply 4000 8m	4000 kg	8 m	4 t	120 mm	1.4 kg	1.3 m	65 mm	400 mm	6.2 mm	7.6 kg	0.8 kg/m		Grey
2002961	PowerStar 2ply 5000 2m	5000 kg	2 m	5 t	150 mm	1.7 kg	1.5 m	80 mm	500 mm	6.4 mm	3.4 kg	1 kg/m		Red
2003420	PowerStar 2ply 5000 3m	5000 kg	3 m	5 t	150 mm	1.7 kg	1.5 m	80 mm	500 mm	6.4 mm	4.4 kg	1 kg/m		Red
2003421	PowerStar 2ply 5000 4m	5000 kg	4 m	5 t	150 mm	1.7 kg	1.5 m	80 mm	500 mm	6.4 mm	5.4 kg	1 kg/m		Red
2003908	PowerStar 2ply 5000 5m	5000 kg	5 m	5 t	150 mm	1.7 kg	1.5 m	80 mm	500 mm	6.4 mm	6.4 kg	1 kg/m		Red
2003909	PowerStar 2ply 5000 6m	5000 kg	6 m	5 t	150 mm	1.7 kg	1.5 m	80 mm	500 mm	6.4 mm	7.4 kg	1 kg/m		Red
2003910	PowerStar 2ply 5000 8m	5000 kg	8 m	5 t	150 mm	1.7 kg	1.5 m	80 mm	500 mm	6.4 mm	9.4 kg	1 kg/m		Red
2002962	PowerStar 2ply 6000 2m	6000 kg	2 m	6 t	180 mm	2.2 kg	1.9 m	70 mm	700 mm	7.6 mm	4.4 kg	1.2 kg/m		Brown
2003422	PowerStar 2ply 6000 3m	6000 kg	3 m	6 t	180 mm	2.2 kg	1.9 m	70 mm	700 mm	7.6 mm	5.6 kg	1.2 kg/m		Brown
2003423	PowerStar 2ply 6000 4m	6000 kg	4 m	6 t	180 mm	2.2 kg	1.9 m	70 mm	700 mm	7.6 mm	6.8 kg	1.2 kg/m		Brown
2003911	PowerStar 2ply 6000 5m	6000 kg	5 m	6 t	180 mm	2.2 kg	1.9 m	70 mm	700 mm	7.6 mm	8 kg	1.2 kg/m		Brown
2003912	PowerStar 2ply 6000 6m	6000 kg	6 m	6 t	180 mm	2.2 kg	1.9 m	70 mm	700 mm	7.6 mm	9.2 kg	1.2 kg/m		Brown
2003913	PowerStar 2ply 6000 8m	6000 kg	8 m	6 t	180 mm	2.2 kg	1.9 m	70 mm	700 mm	7.6 mm	11.6 kg	1.2 kg/m		Brown
2002963	PowerStar 2ply 8000 3m	8000 kg	3 m	8 t	240 mm	2.9 kg	2.2 m	90 mm	800 mm	7.6 mm	7.4 kg	1.6 kg/m		Blue
2003424	PowerStar 2ply 8000 4m	8000 kg	4 m	8 t	240 mm	2.9 kg	2.2 m	90 mm	800 mm	7.6 mm	9 kg	1.6 kg/m		Blue
2003425	PowerStar 2ply 8000 5m	8000 kg	5 m	8 t	240 mm	2.9 kg	2.2 m	90 mm	800 mm	7.6 mm	10.6 kg	1.6 kg/m		Blue
2003914	PowerStar 2ply 8000 6m	8000 kg	6 m	8 t	240 mm	2.9 kg	2.2 m	90 mm	800 mm	7.6 mm	12.2 kg	1.6 kg/m		Blue
2003915	PowerStar 2ply 8000 8m	8000 kg	8 m	8 t	240 mm	2.9 kg	2.2 m	90 mm	800 mm	7.6 mm	15.4 kg	1.6 kg/m		Blue
