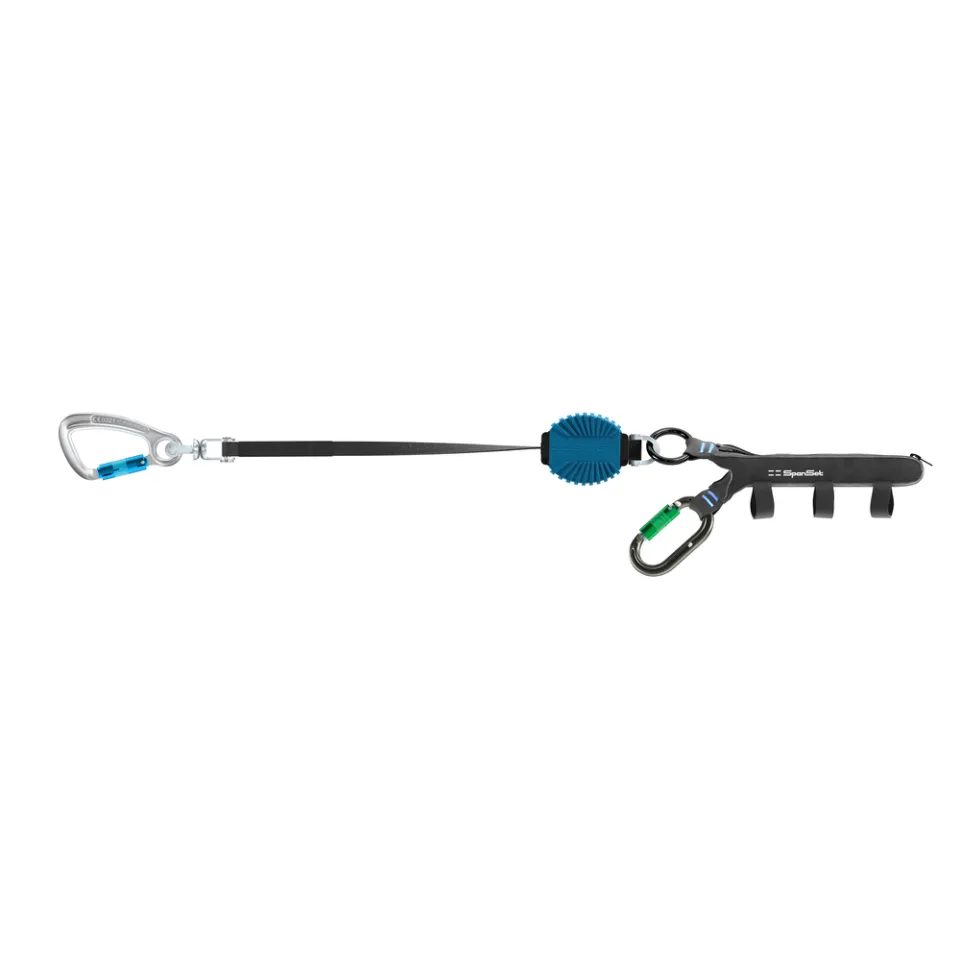

Single Dynamic Self-Retracting Lanyard
Anchorage from +2m above to -2m below the harness attachment point
Innovative Hybrid Lanyard Technology reducing clearance heights for workers
Single Dynamic Self-Retracting Lanyard
Anchorage from +2m above to -2m below the harness attachment point
Innovative Hybrid Lanyard Technology reducing clearance heights for workers
- Can be used in exactly the same way as an EN355 energy absorbing lanyard
- Retracting lanyard leg significantly reduces fall distance
- Improves clearance high by 50% when compared with a traditional EN355 energy absorbing lanyard
- Max-Span: Lanyard configuration ensures maximum possible traversing span
- Independently tested for use with a below foot level anchor point
- Notified body approval for user weight up to 140kg
- Compact and unobtrusive shock absorber design allows freedom of movement Reduced length while stowed prevents entanglement
Select Model
Price under request
- Can be used in exactly the same way as an EN355 energy absorbing lanyard
- Retracting lanyard leg significantly reduces fall distance
- Improves clearance high by 50% when compared with a traditional EN355 energy absorbing lanyard
- Max-Span: Lanyard configuration ensures maximum possible traversing span
- Independently tested for use with a below foot level anchor point
- Notified body approval for user weight up to 140kg
- Compact and unobtrusive shock absorber design allows freedom of movement Reduced length while stowed prevents entanglement
Select Model
Price under request
This is an innovative solution combining the benefits of energy absorbing lanyards and self-retracting lifelines. Two small self-retracting lifeline units are combined with an energy absorbing pack to create a “double legged” lanyard. This device is CE certified to EN360 and the dynamic requirements of EN355. The Double Self-Retracting Lanyard is used as the connecting element between your full body harness and anchor point.
What can it be used for?
The Double Self-retracting Lanyard has been designed and tested to absorb the forces of a fall; this means that it is intended to be used as part of a Fall Arrest System for climbing and accessing unprotected structures. The energy absorbing unit allows attachment to low level anchors up to 2m below you. Double legged lanyard construction allows you to move safely between anchor points and around structures. By including self-retracting units the lanyards will also react as you fall to help limit any free fall distance before the energy absorber activates.
Product advantages
Integrated ring
Lanyard leg can be clipped back to the shock absorbing pack
Keep the lanyard tucked away without obstructing the fall absorber.
Dynamic Self Retracting Lanyard
Reduces fall distance & reduces tangles/trip hazards
Achieve the lowest stopping height for places with little space for fall arrest.
Anchored at or below floor level
Maximum lanyard working applications
Safe application even below foor level, allows the user to secure himself at height without compromising his safety.
Published clearance height data
For 80kg, 100kg, 120kg and 140kg workers
Knowing the clearance height allows the user to know the required fall distance for maximum safety.
Product Technical Information
-
Energy Absorbing
Yes -
Maximum User Weight
140 kg -
Harness Connector
Aluminium D-Shaped Triple
-
Dimension L
2 m -
Label Protection
Yes -
Main Material
High-performance polyester -
Norms
EN 360: 2002 -
Packaging Unit (PU)
pcs -
Inspection Guide
Yes -
Packaging Unit (PU) Content
1 -
Individual Certificate
Yes -
Individually Serial Numbered
Yes -
Colour
Black
Variants information
| Item Number | Item Name | Declarations of Conformity | Price | Stock | Purchase | Anchor Connector | EAN Code |
|---|---|---|---|---|---|---|---|
| 2003160
D068726X |
DSL2 S HL 2m 3CK2 |
Price under request |
Aluminium Captive EN Double |
5056390701428 | |||
| 2003654
D069388X |
DSL2 S HL 2m 1RH2 |
Price under request |
Steel Lite Rebar Hook EN Double |
5056390703170 |
Product guide
-
What is it?
This is an innovative solution combining the benefits of energy absorbing lanyards and self-retracting lifelines. Two small self-retracting lifeline units are combined with an energy absorbing pack to create a “double legged” lanyard. This device is CE certified to EN360 and the dynamic requirements of EN355. The Double Self-Retracting Lanyard is used as the connecting element between your full body harness and anchor point.
-
What can it be used for?
The Double Self-retracting Lanyard has been designed and tested to absorb the forces of a fall; this means that it is intended to be used as part of a Fall Arrest System for climbing and accessing unprotected structures. The energy absorbing unit allows attachment to low level anchors up to 2m below you. Double legged lanyard construction allows you to move safely between anchor points and around structures. By including self-retracting units the lanyards will also react as you fall to help limit any free fall distance before the energy absorber activates.
-
Who can use it?
(Competence, Size and Adjustment)
Work at height can be a high risk activity. It is therefore essential that all Users are competent in the pre use inspection, fitting / adjustment and use of this item. The Dynamic Self-Retracting Lanyard has a maximum working length of 2m when fully extended by the worker. The working length is automatically reduced to its minimum as you change your position in relation to the anchor point. The Dynamic Self-Retracting Lanyard has been design and tested for workers up to 140kg in body weight.
-
How has it been tested?
(Relevant Standard and Quality Assurance)
The Dynamic Self-Retracting Lanyard is CE marked under the Personal Protective Equipment Directive. The CE marking process includes independent testing to: EN360:2002 – Personal protective equipment against falls from a height. Retractable type fall arresters In addition to this the notified test house have conducted test in accordance with dynamic performance requirements of: EN355:2002 – Personal protective equipment against falls from a height. Energy absorbers The SpanSet manufacturing process is quality controlled and audited by the British Standards Institute to the international standard for quality management ISO9001:2008.
-
What is it made from and why?
(Specification and Materials)
17mm Polyester coated Vectran Web Lifeline
High Abrasion resistance
High Temperature resistance
High Strength to weight ratio
Rated over an edge > 0.5mm
Two compact retracting units
Limits free fall distance, reducing clearance height requirement
Unique Construction of Energy Absorbing Unit stores discreetly on rear of harness
Does not affect the working length or mobility of the lanyards
Ensures impact forces below 6kN for workers up to 140kg
Aluminium Triple action karabiner to harness
Robust Steel Scaffold Hook for anchorage
Connected via a swivel to the lanyard, preventing twists
Captivated onto lanyard to prevent loss
