Ratchet Lashing ABS 50mm, LC 25kN

Ratchet Lashing ABS 50mm, LC 25kN

Item Number: 2018053
SSID ERP Code: 20020/2-A-4M-07
20020/2-A-4M-07

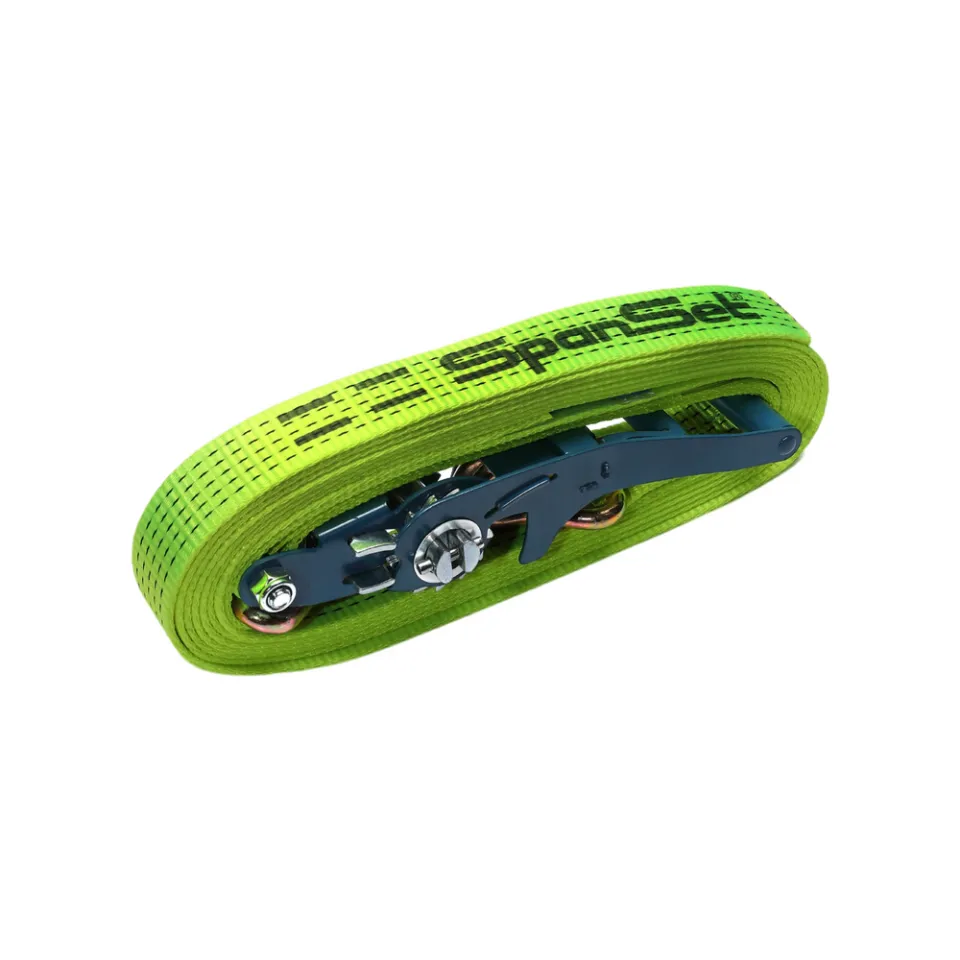

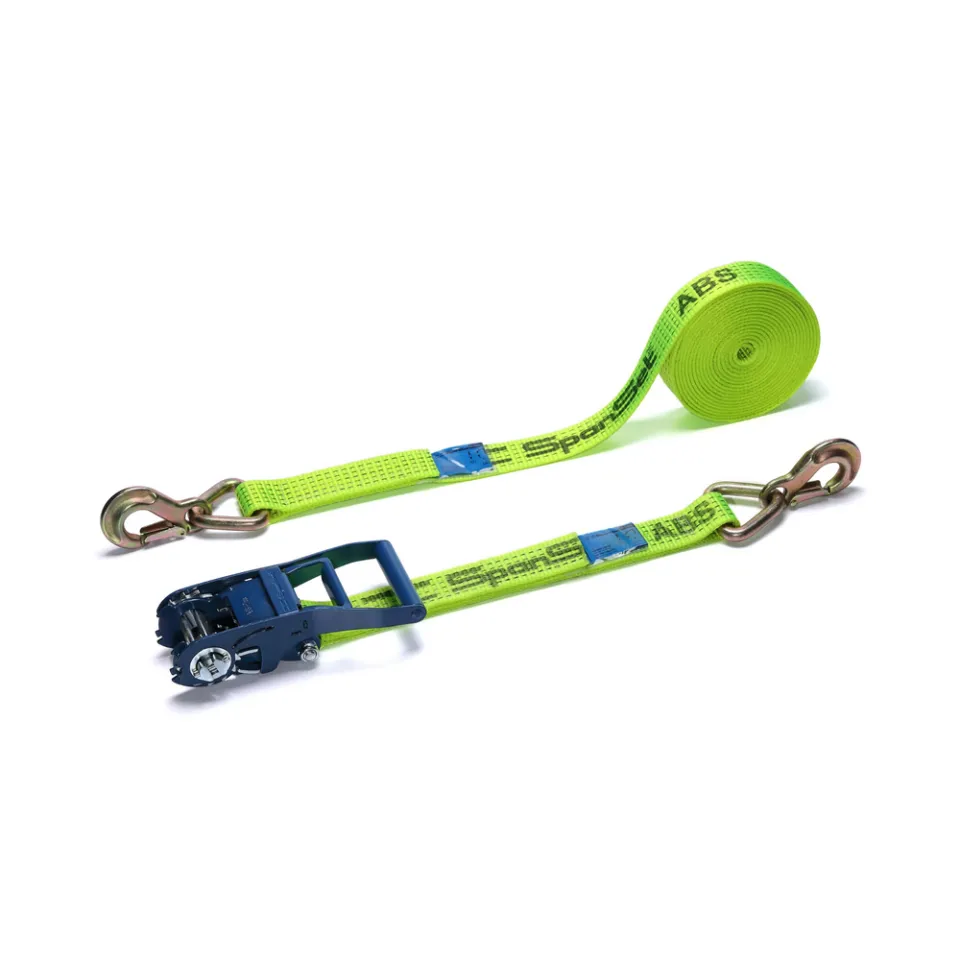

SpanSet Ratchet Lashing 20020 Triangle, 4m. Webbing Width 50mm, Color Flavin
  • Manufactured in accordance to EN 12195-2
  • Made from highest grade material
  • Unique Serial Number on each single product for traceability and inspection record
  • Optional accessories are available to improve load securing application
  • Supplied with Certificate of Conformance, Product Identification Label and User Manual book
  • Available in standard and customized length

Select Model

...

Indikator Gaya Ketegangan

Menunjukkan gaya pra-tarik yang dicapai

Dengan TFI Anda dapat membaca gaya pra-tarik yang dicapai dalam sistem pengikatan saat mengikat beban dan menggunakan informasi ini dalam perhitungan kontrol beban.

...

Prosedur "Sabuk-Anti-Selip"

Pembebasan ketegangan yang terkendali

Sistem ABS yang dikembangkan untuk beban dengan risiko terjungkal dan memungkinkan pengguna melepaskan tekanan dalam langkah kecil. Tali pengikatnya juga bisa dibuka seluruhnya.

...

Label selongsong pelindung

Dilindungi secara optimal, diperkuat dengan lapisan

Selain desain tahan sobek dengan lapisan kain, selongsong plastik kokoh melindungi tulisan dengan sempurna dari abrasi dan kotoran. Pada alat pengangkat yang dilengkapi dengan transponder RFID, transponder diintegrasikan ke dalam selongsong pelindung dan tahan sobek.

...

Lapisan resin epoksi

Perlindungan ratchet yang maksimal

Ratchet pertama-tama dilapisi seng, kemudian dilapisi krom dan dilapisi dengan lapisan resin epoksi tahan guncangan yang juga melindungi ratchet dari misalnya. karat.

Product Technical Information

  • Standard Tension Force: 450 daN
  • Norms: EN 12195-2: 2001
  • Webbing Width B: 50
  • Label Protection: Yes
  • Colour: Yellow
  • Webbing Material: 100% Polyester, thermofixed and low-stretch
  • Main Material: Polyester
  • Ratchet Type: Push-up
  • Tension Force Indicator (TFI): Yes
  • Lashing Type: Two-piece
  • Packaging Unit (PU): pcs
  • Packaging Unit (PU) Content: 1
  • Lashing Capacity: 2500 daN

Product downloads and manuals

Instruction Manual
(en id)
Download
Instruction Manual_2
(en id)
Download

Technical Drawings

Item Number Item Name Weight Net Dimension L1 Lashing End Fitting Component
2018053
SSID ERP Code: 20020/2-A-4M-07

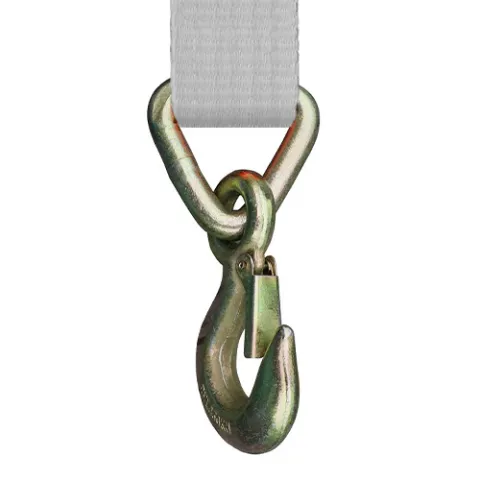

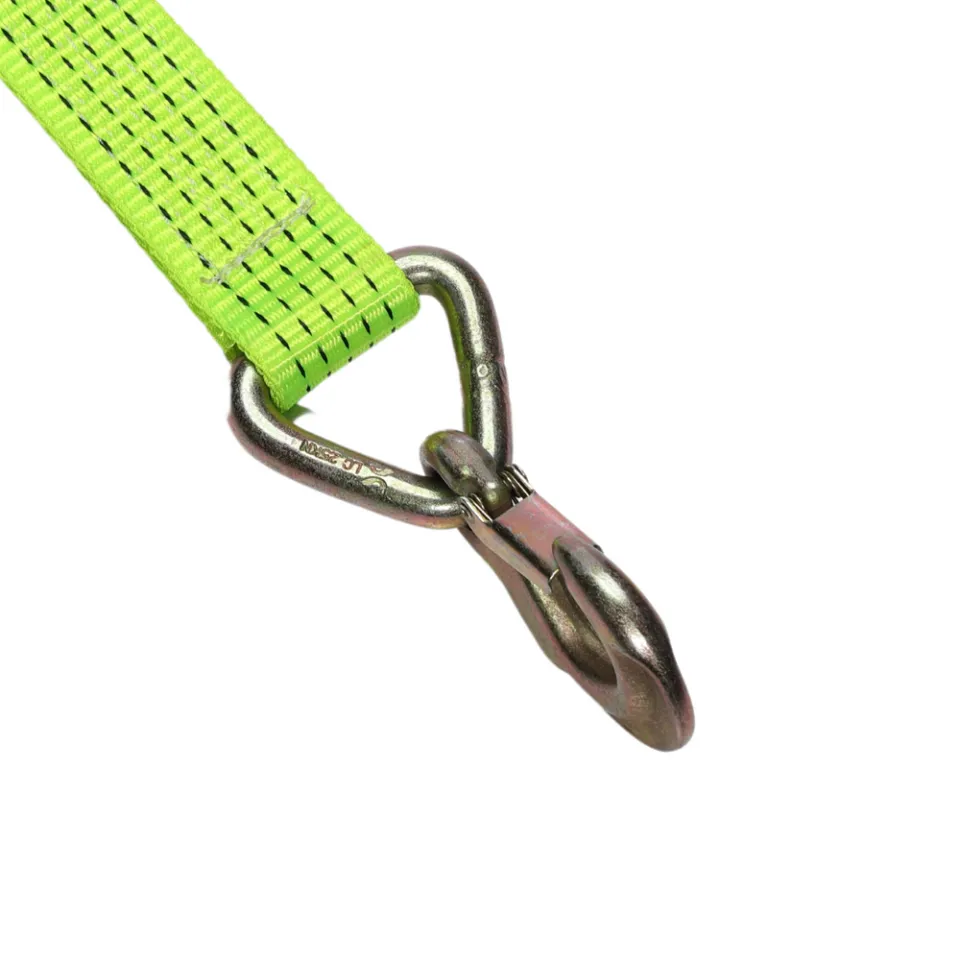

20020/2-A-4M-07 4 kg 4 m Triangle Snap Hook
TSH-50
2018054
SSID ERP Code: 20020/2-A-10M-07
20020/2-A-10M-07 4.5 kg 10 m Triangle Snap Hook
TSH-50
2018055
SSID ERP Code: 20020/2-B-8M-07
20020/2-B-8M-07 3.8 kg 8 m Claw Hook
Claw Hook 50mm
2018056
SSID ERP Code: 20020/2-B-10M-07
20020/2-B-10M-07 4 kg 10 m Claw Hook
Claw Hook 50mm
2018057
SSID ERP Code: 20020/2-C-8M-07

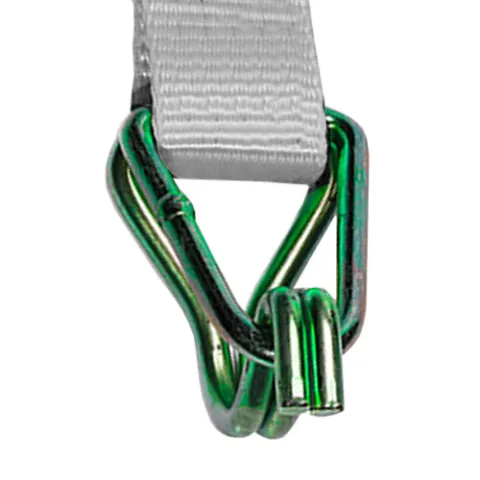

20020/2-C-8M-07 4.1 kg 8 m Claw Keep
CK-50
2018058
SSID ERP Code: 20020/2-C-10M-07
20020/2-C-10M-07 4.3 kg 10 m Claw Keep
CK-50
2018059
SSID ERP Code: 20020/2-D-8M-07
20020/2-D-8M-07 3.6 kg 8 m Delta Ring
D-50
2018060
SSID ERP Code: 20020/2-D-10M-07
20020/2-D-10M-07 3.8 kg 10 m Delta Ring
D-50
2022049
SSID ERP Code: 20020/2-A-6M-07
20020/2-A-6M-07 4.1 kg 6 m Triangle Snap Hook
TSH-50
2022050
SSID ERP Code: 20020/2-A-8M-07
20020/2-A-8M-07 4.3 kg 8 m Triangle Snap Hook
TSH-50
2022051
SSID ERP Code: 20020/2-A-12M-07
20020/2-A-12M-07 4.7 kg 12 m Triangle Snap Hook
TSH-50
2022052
SSID ERP Code: 20020/2-B-4M-07
20020/2-B-4M-07 3.4 kg 4 m Claw Hook
Claw Hook 50mm
2022053
SSID ERP Code: 20020/2-B-6M-07
20020/2-B-6M-07 3.6 kg 6 m Claw Hook
Claw Hook 50mm
2022054
SSID ERP Code: 20020/2-B-12M-07
20020/2-B-12M-07 4.2 kg 12 m Claw Hook
Claw Hook 50mm
2022055
SSID ERP Code: 20020/2-C-4M-07
20020/2-C-4M-07 3.7 kg 4 m Claw Keep
CK-50
2022056
SSID ERP Code: 20020/2-C-6M-07
20020/2-C-6M-07 3.9 kg 6 m Claw Keep
CK-50
2022057
SSID ERP Code: 20020/2-C-12M-07
20020/2-C-12M-07 4.5 kg 12 m Claw Keep
CK-50
2022058
SSID ERP Code: 20020/2-D-4M-07
20020/2-D-4M-07 3.2 kg 4 m Delta Ring
D-50
2022059
SSID ERP Code: 20020/2-D-6M-07
20020/2-D-6M-07 3.4 kg 6 m Delta Ring
D-50
2022060
SSID ERP Code: 20020/2-D-12M-07
20020/2-D-12M-07 4 kg 12 m Delta Ring
D-50
