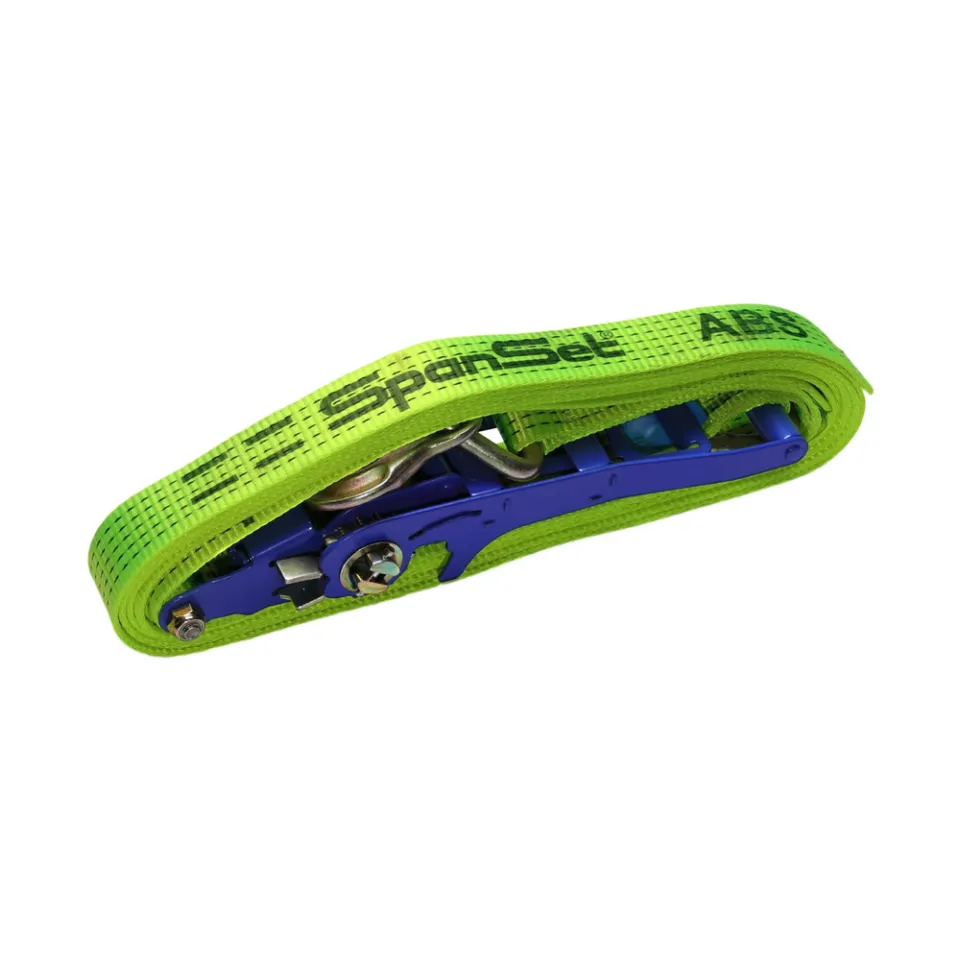

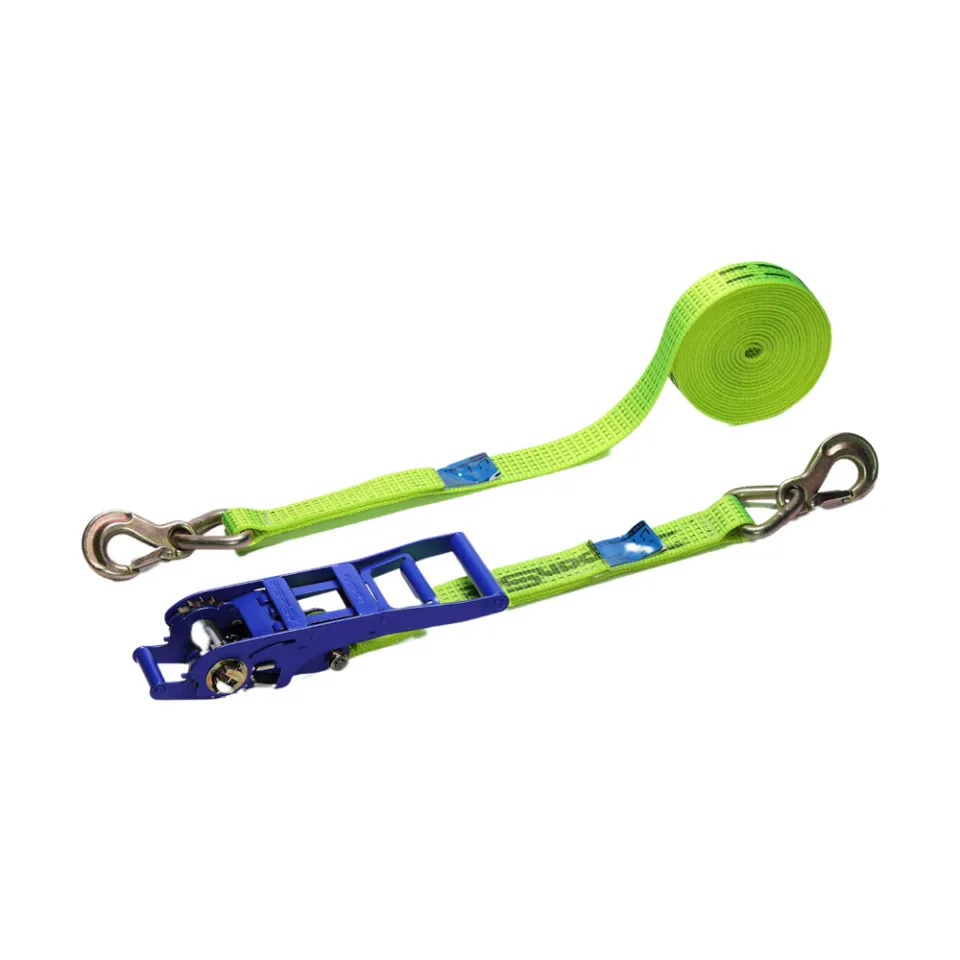

Ratchet Lashing Ergo ABS 50mm, LC 25kN
Ratchet Lashing Ergo ABS 50mm, LC 25kN
- Manufactured in according to EN 12195-2
- Tensioning device equipped with Anti Belt Slip (ABS) feature that make the ratchet released gradually
- Tensioning Device coated with epoxy resin that effectively protects the ratchet from the effect of weather, prevent rust and ensures a long service life
- Tensioning Device equipped with double slider for optimal power generation due to tensioning in small step
- Tensioning Device equipped with self-locking feature that prevents unintentional opening while being transported and thereby increases the safety of all road users
- Webbing equipped with edge protection to protect from wear, UV protection and webbing has maximum stretching 4%

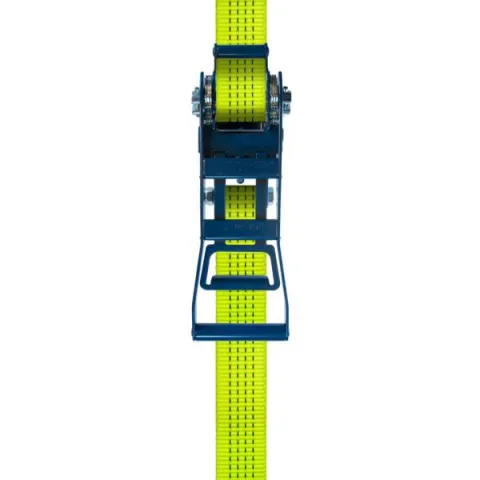

- Tensioning Device design with extra-long lever for high pre load force is ergonomically attainable
Select Model
Indikator Gaya Ketegangan
Menunjukkan gaya pra-tarik yang dicapai
Dengan TFI Anda dapat membaca gaya pra-tarik yang dicapai dalam sistem pengikatan saat mengikat beban dan menggunakan informasi ini dalam perhitungan kontrol beban.
Prosedur "Sabuk-Anti-Selip"
Pembebasan ketegangan yang terkendali
Sistem ABS yang dikembangkan untuk beban dengan risiko terjungkal dan memungkinkan pengguna melepaskan tekanan dalam langkah kecil. Tali pengikatnya juga bisa dibuka seluruhnya.
Label selongsong pelindung
Dilindungi secara optimal, diperkuat dengan lapisan
Selain desain tahan sobek dengan lapisan kain, selongsong plastik kokoh melindungi tulisan dengan sempurna dari abrasi dan kotoran. Pada alat pengangkat yang dilengkapi dengan transponder RFID, transponder diintegrasikan ke dalam selongsong pelindung dan tahan sobek.
Lapisan resin epoksi
Perlindungan ratchet yang maksimal
Ratchet pertama-tama dilapisi seng, kemudian dilapisi krom dan dilapisi dengan lapisan resin epoksi tahan guncangan yang juga melindungi ratchet dari misalnya. karat.
Product Technical Information
-
Standard Tension Force:
500 daN
-
Norms:
EN 12195-2: 2001
-
Webbing Width B:
50
-
Label Protection:
Yes
-
Colour:
Yellow
-
Webbing Material:
100% Polyester, thermofixed and low-stretch
-
Main Material:
Polyester
-
Ratchet Type:
Pull-down
-
Tension Force Indicator (TFI):
Yes
-
Lashing Type:
Two-piece
-
Packaging Unit (PU):
pcs
-
Packaging Unit (PU) Content:
1
-
Lashing Capacity:
2500 daN
Technical Drawings
Variants information
| Item Number | Item Name | Weight Net | Dimension L1 | Lashing End Fitting Component |
|---|---|---|---|---|
| 2018045
SSID ERP Code: 20050/2-A-4M-07 |
20050/2-A-4M-07 | 4.4 kg | 4 m |

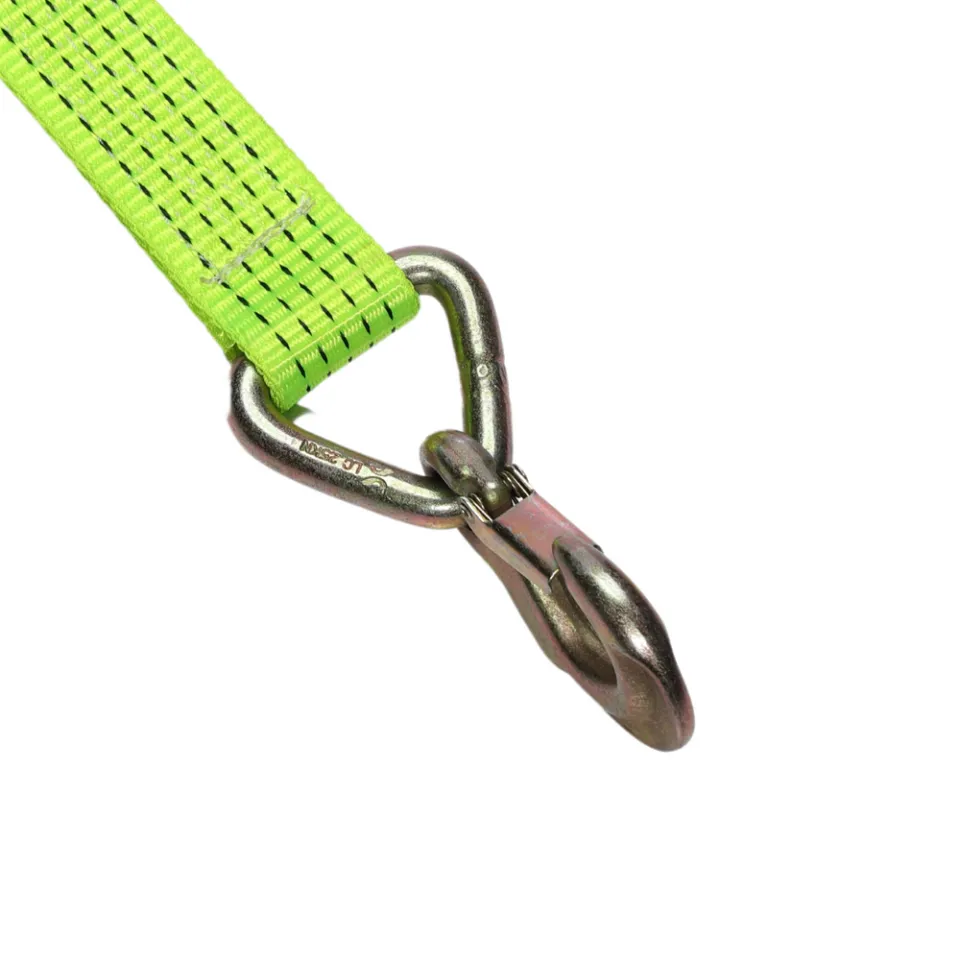

Triangle Snap Hook TSH-50 |
| 2018046
SSID ERP Code: 20050/2-A-6M-07 |
20050/2-A-6M-07 | 4.6 kg | 6 m |
Triangle Snap Hook TSH-50 |
| 2018047
SSID ERP Code: 20050/2-B-4M-07 |
20050/2-B-4M-07 | 3.7 kg | 4 m |
Claw Hook Claw Hook 50mm |
| 2020395
SSID ERP Code: 20050/2-A-8M-07 |
20050/2-A-8M-07 | 4.8 kg | 8 m |
Triangle Snap Hook TSH-50 |
| 2020427
SSID ERP Code: 20050/2-A-10M-07 |
20050/2-A-10M-07 | 5 kg | 10 m |
Triangle Snap Hook TSH-50 |
| 2020428
SSID ERP Code: 20050/2-A-12M-07 |
20050/2-A-12M-07 | 5.2 kg | 12 m |
Triangle Snap Hook TSH-50 |
| 2028122
SSID ERP Code: 20050/2-B-6M-07 |
20050/2-B-6M-07 | 3.9 kg | 6 m |
Claw Hook Claw Hook 50mm |
| 2028123
SSID ERP Code: 20050/2-B-8M-07 |
20050/2-B-8M-07 | 4.1 kg | 8 m |
Claw Hook Claw Hook 50mm |
| 2028124
SSID ERP Code: 20050/2-B-12M-07 |
20050/2-B-12M-07 | 4.5 kg | 12 m |
Claw Hook Claw Hook 50mm |
| 2028126
SSID ERP Code: 20050/2-C-4M-07 |
20050/2-C-4M-07 | 4 kg | 4 m |
Claw Keep CK-50 |
| 2028127
SSID ERP Code: 20050/2-C-6M-07 |
20050/2-C-6M-07 | 4.2 kg | 6 m |
Claw Keep CK-50 |
| 2028128
SSID ERP Code: 20050/2-C-12M-07 |
20050/2-C-12M-07 | 4.8 kg | 12 m |
Claw Keep CK-50 |
| 2028130
SSID ERP Code: 20050/2-D-4M-07 |
20050/2-D-4M-07 | 3.6 kg | 4 m |
Delta Ring D-50 |
| 2028131
SSID ERP Code: 20050/2-D-6M-07 |
20050/2-D-6M-07 | 3.8 kg | 6 m |
Delta Ring D-50 |
| 2028132
SSID ERP Code: 20050/2-D-12M-07 |
20050/2-D-12M-07 | 4.4 kg | 12 m |
Delta Ring D-50 |
