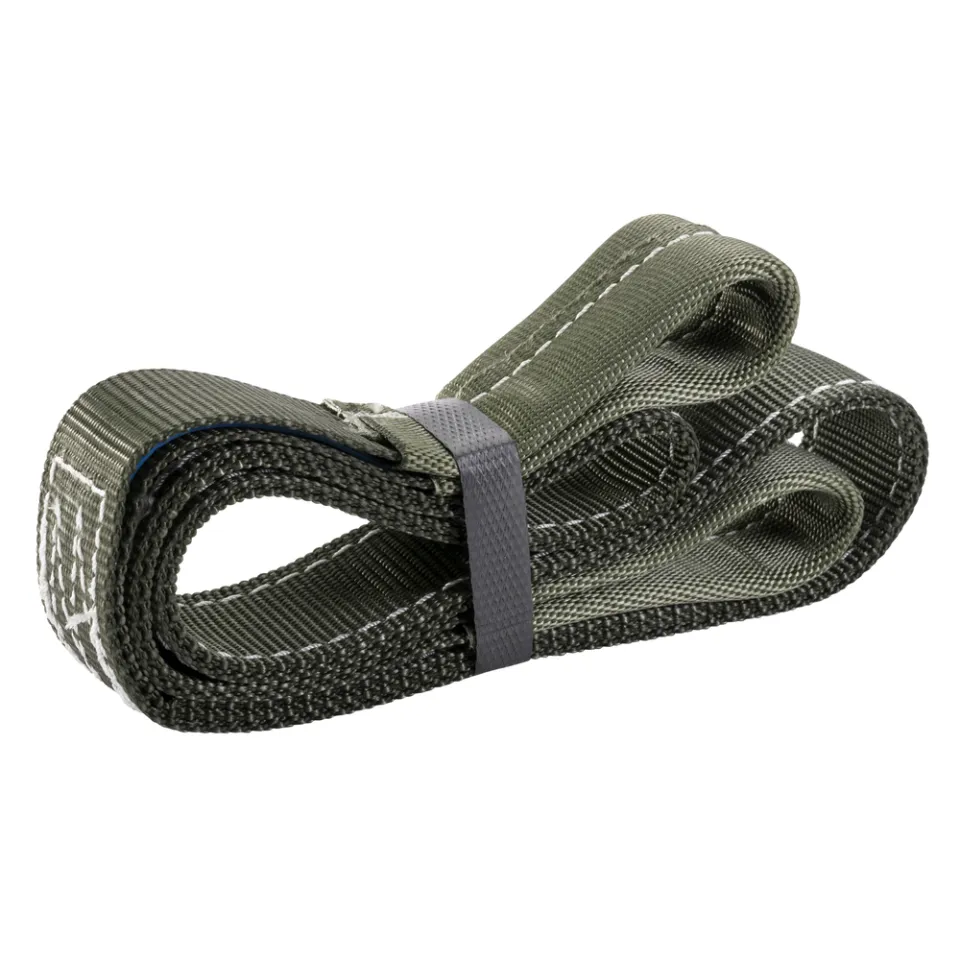

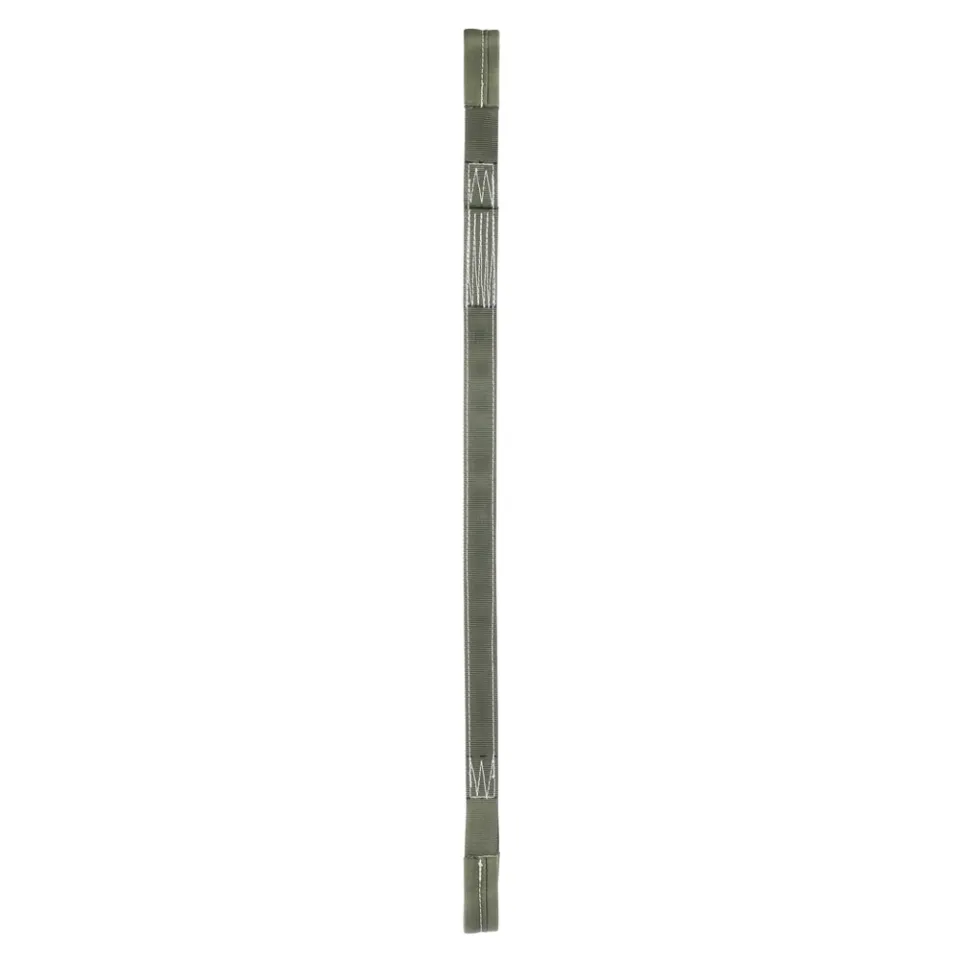

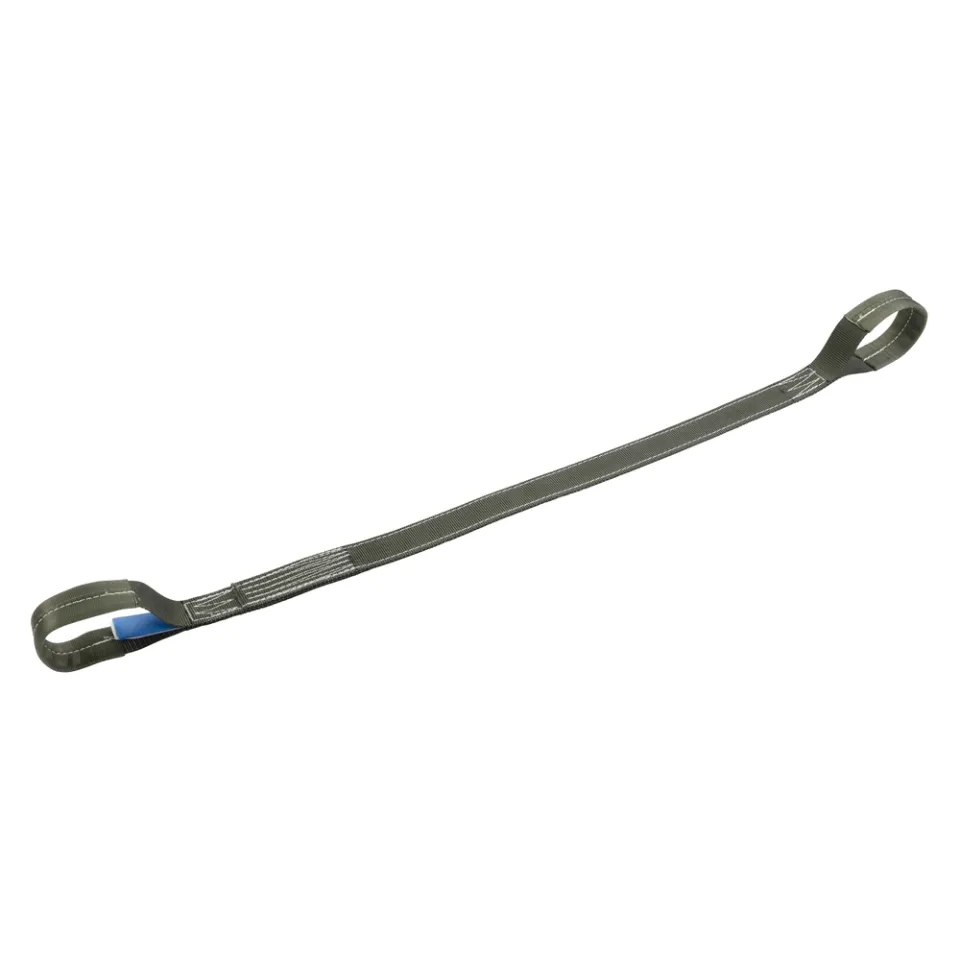

Flat Sling 2ply Eco
Flat Sling 2ply Eco
Standard Flat sling for rough working conditions
Item Number: 2002924
WS 2ply 500 2m
- Robust and Reliable
- Optional fitting with a RFID transporter
- For low-compromised loads and manoeuvres
Select Model
Product Technical Information
-
Main Material
Polyester -
Packaging Unit (PU)
pcs -
Temperature Range
-40°C to +100°C -
Packaging Unit (PU) Content
1
Technical Drawings
Variants information
| Item Number | Item Name | WLL kg | Dimension L1 | WLL t | Webbing Width B | Weight for 1m | Dimension L1 min | Loop Length | Loop Width | Webbing Thickness | Colour |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2002926 | WS 2ply 1000 2m | 1000 kg | 2 m | 1 t | 30 mm | 0.2 m | 300 mm | 30 mm | 5.2 mm | Purple | |
| 2002927 | WS 2ply 1000 3m | 1000 kg | 3 m | 1 t | 30 mm | 0.2 m | 300 mm | 30 mm | 5.2 mm | Purple | |
| 2003386 | WS 2ply 1000 4m | 1000 kg | 4 m | 1 t | 30 mm | 0.2 m | 300 mm | 30 mm | 5.2 mm | Purple | |
| 2003843 | WS 2ply 1000 5m | 1000 kg | 5 m | 1 t | 30 mm | 0.2 m | 300 mm | 30 mm | 5.2 mm | Purple | |
| 2003844 | WS 2ply 1000 6m | 1000 kg | 6 m | 1 t | 30 mm | 0.2 m | 300 mm | 30 mm | 5.2 mm | Purple | |
| 2003845 | WS 2ply 1000 8m | 1000 kg | 8 m | 1 t | 30 mm | 0.2 m | 300 mm | 30 mm | 5.2 mm | Purple | |
| 2002943 | WS 2ply 10000 3m | 10000 kg | 3 m | 10 t | 300 mm | 2.4 kg | 2.6 m | 1000 mm | 160 mm | 7.4 mm | Orange |
| 2003394 | WS 2ply 10000 4m | 10000 kg | 4 m | 10 t | 300 mm | 2.4 kg | 2.6 m | 1000 mm | 160 mm | 7.4 mm | Orange |
| 2003867 | WS 2ply 10000 5m | 10000 kg | 5 m | 10 t | 300 mm | 2.4 kg | 2.6 m | 1000 mm | 160 mm | 7.4 mm | Orange |
| 2003868 | WS 2ply 10000 6m | 10000 kg | 6 m | 10 t | 300 mm | 2.4 kg | 2.6 m | 1000 mm | 160 mm | 7.4 mm | Orange |
| 2003869 | WS 2ply 10000 8m | 10000 kg | 8 m | 10 t | 300 mm | 2.4 kg | 2.6 m | 1000 mm | 160 mm | 7.4 mm | Orange |
| 2002928 | WS 2ply 1500 2m | 1500 kg | 2 m | 1.5 t | 50 mm | 0.4 kg | 1 m | 300 mm | 35 mm | 6.8 mm | Olive |
| 2002929 | WS 2ply 1500 3m | 1500 kg | 3 m | 1.5 t | 50 mm | 0.4 kg | 1 m | 300 mm | 35 mm | 6.8 mm | Olive |
| 2003387 | WS 2ply 1500 4m | 1500 kg | 4 m | 1.5 t | 50 mm | 0.4 kg | 1 m | 300 mm | 35 mm | 6.8 mm | Olive |
| 2003846 | WS 2ply 1500 5m | 1500 kg | 5 m | 1.5 t | 50 mm | 0.4 kg | 1 m | 300 mm | 35 mm | 6.8 mm | Olive |
| 2003847 | WS 2ply 1500 6m | 1500 kg | 6 m | 1.5 t | 50 mm | 0.4 kg | 1 m | 300 mm | 35 mm | 6.8 mm | Olive |
| 2003848 | WS 2ply 1500 8m | 1500 kg | 8 m | 1.5 t | 50 mm | 0.4 kg | 1 m | 300 mm | 35 mm | 6.8 mm | Olive |
| 2002930 | WS 2ply 2000 2m | 2000 kg | 2 m | 2 t | 60 mm | 0.6 kg | 0 m | 300 mm | 40 mm | 5 mm | Green |
| 2002931 | WS 2ply 2000 3m | 2000 kg | 3 m | 2 t | 60 mm | 0.6 kg | 0 m | 300 mm | 40 mm | 5 mm | Green |
| 2003388 | WS 2ply 2000 4m | 2000 kg | 4 m | 2 t | 60 mm | 0.6 kg | 0 m | 300 mm | 40 mm | 5 mm | Green |
| 2003849 | WS 2ply 2000 5m | 2000 kg | 5 m | 2 t | 60 mm | 0.6 kg | 0 m | 300 mm | 40 mm | 5 mm | Green |
| 2003850 | WS 2ply 2000 6m | 2000 kg | 6 m | 2 t | 60 mm | 0.6 kg | 0 m | 300 mm | 40 mm | 5 mm | Green |
| 2003851 | WS 2ply 2000 8m | 2000 kg | 8 m | 2 t | 60 mm | 0.6 kg | 0 m | 300 mm | 40 mm | 5 mm | Green |
| 2002932 | WS 2ply 3000 2m | 3000 kg | 2 m | 3 t | 90 mm | 0.6 kg | 1.5 m | 400 mm | 50 mm | 5 mm | Yellow |
| 2002933 | WS 2ply 3000 3m | 3000 kg | 3 m | 3 t | 90 mm | 0.6 kg | 1.5 m | 400 mm | 50 mm | 5 mm | Yellow |
| 2003389 | WS 2ply 3000 4m | 3000 kg | 4 m | 3 t | 90 mm | 0.6 kg | 1.5 m | 400 mm | 50 mm | 5 mm | Yellow |
| 2003852 | WS 2ply 3000 5m | 3000 kg | 5 m | 3 t | 90 mm | 0.6 kg | 1.5 m | 400 mm | 50 mm | 5 mm | Yellow |
| 2003853 | WS 2ply 3000 6m | 3000 kg | 6 m | 3 t | 90 mm | 0.6 kg | 1.5 m | 400 mm | 50 mm | 5 mm | Yellow |
| 2003854 | WS 2ply 3000 8m | 3000 kg | 8 m | 3 t | 90 mm | 0.6 kg | 1.5 m | 400 mm | 50 mm | 5 mm | Yellow |
| 2002934 | WS 2ply 4000 2m | 4000 kg | 2 m | 4 t | 120 mm | 0.9 kg | 1.5 m | 400 mm | 70 mm | 6.8 mm | Grey |
| 2002935 | WS 2ply 4000 3m | 4000 kg | 3 m | 4 t | 120 mm | 0.9 kg | 1.5 m | 400 mm | 70 mm | 6.8 mm | Grey |
| 2003390 | WS 2ply 4000 4m | 4000 kg | 4 m | 4 t | 120 mm | 0.9 kg | 1.5 m | 400 mm | 70 mm | 6.8 mm | Grey |
| 2003855 | WS 2ply 4000 5m | 4000 kg | 5 m | 4 t | 120 mm | 0.9 kg | 1.5 m | 400 mm | 70 mm | 6.8 mm | Grey |
| 2003856 | WS 2ply 4000 6m | 4000 kg | 6 m | 4 t | 120 mm | 0.9 kg | 1.5 m | 400 mm | 70 mm | 6.8 mm | Grey |
| 2003857 | WS 2ply 4000 8m | 4000 kg | 8 m | 4 t | 120 mm | 0.9 kg | 1.5 m | 400 mm | 70 mm | 6.8 mm | Grey |
| 2002924 | WS 2ply 500 2m | 500 kg | 2 m | 0.5 t | 36 mm | 0.2 kg | 1 m | 150 mm | 36 mm | 3 mm | |
| 2002925 | WS 2ply 500 3m | 500 kg | 3 m | 0.5 t | 36 mm | 0.2 kg | 1 m | 150 mm | 36 mm | 3 mm | |
| 2003385 | WS 2ply 500 4m | 500 kg | 4 m | 0.5 t | 36 mm | 0.2 kg | 1 m | 150 mm | 36 mm | 3 mm | |
| 2003840 | WS 2ply 500 5m | 500 kg | 5 m | 0.5 t | 36 mm | 0.2 kg | 1 m | 150 mm | 36 mm | 3 mm | |
| 2003841 | WS 2ply 500 6m | 500 kg | 6 m | 0.5 t | 36 mm | 0.2 kg | 1 m | 150 mm | 36 mm | 3 mm | |
| 2003842 | WS 2ply 500 8m | 500 kg | 8 m | 0.5 t | 36 mm | 0.2 kg | 1 m | 150 mm | 36 mm | 3 mm | |
| 2002936 | WS 2ply 5000 2m | 5000 kg | 2 m | 5 t | 150 mm | 1.2 kg | 1.7 m | 500 mm | 80 mm | 6.6 mm | Red |
| 2002937 | WS 2ply 5000 3m | 5000 kg | 3 m | 5 t | 150 mm | 1.2 kg | 1.7 m | 500 mm | 80 mm | 6.6 mm | Red |
| 2003391 | WS 2ply 5000 4m | 5000 kg | 4 m | 5 t | 150 mm | 1.2 kg | 1.7 m | 500 mm | 80 mm | 6.6 mm | Red |
| 2003858 | WS 2ply 5000 5m | 5000 kg | 5 m | 5 t | 150 mm | 1.2 kg | 1.7 m | 500 mm | 80 mm | 6.6 mm | Red |
| 2003859 | WS 2ply 5000 6m | 5000 kg | 6 m | 5 t | 150 mm | 1.2 kg | 1.7 m | 500 mm | 80 mm | 6.6 mm | Red |
| 2003860 | WS 2ply 5000 8m | 5000 kg | 8 m | 5 t | 150 mm | 1.2 kg | 1.7 m | 500 mm | 80 mm | 6.6 mm | Red |
| 2002938 | WS 2ply 6000 2m | 6000 kg | 2 m | 6 t | 180 mm | 1.4 kg | 2.1 m | 700 mm | 100 mm | 7.2 mm | Grey |
| 2002939 | WS 2ply 6000 3m | 6000 kg | 3 m | 6 t | 180 mm | 1.4 kg | 2.1 m | 700 mm | 100 mm | 7.2 mm | Grey |
| 2003392 | WS 2ply 6000 4m | 6000 kg | 4 m | 6 t | 180 mm | 1.4 kg | 2.1 m | 700 mm | 100 mm | 7.2 mm | Grey |
| 2003861 | WS 2ply 6000 5m | 6000 kg | 5 m | 6 t | 180 mm | 1.4 kg | 2.1 m | 700 mm | 100 mm | 7.2 mm | Grey |
| 2003862 | WS 2ply 6000 6m | 6000 kg | 6 m | 6 t | 180 mm | 1.4 kg | 2.1 m | 700 mm | 100 mm | 7.2 mm | Grey |
| 2003863 | WS 2ply 6000 8m | 6000 kg | 8 m | 6 t | 180 mm | 1.4 kg | 2.1 m | 700 mm | 100 mm | 7.2 mm | Grey |
| 2002940 | WS 2ply 8000 2m | 8000 kg | 2 m | 8 t | 240 mm | 1.8 kg | 2.3 m | 800 mm | 130 mm | 7.2 mm | Blue |
| 2002941 | WS 2ply 8000 3m | 8000 kg | 3 m | 8 t | 240 mm | 1.8 kg | 2.3 m | 800 mm | 130 mm | 7.2 mm | Blue |
| 2003393 | WS 2ply 8000 4m | 8000 kg | 4 m | 8 t | 240 mm | 1.8 kg | 2.3 m | 800 mm | 130 mm | 7.2 mm | Blue |
| 2003864 | WS 2ply 8000 5m | 8000 kg | 5 m | 8 t | 240 mm | 1.8 kg | 2.3 m | 800 mm | 130 mm | 7.2 mm | Blue |
| 2003865 | WS 2ply 8000 6m | 8000 kg | 6 m | 8 t | 240 mm | 1.8 kg | 2.3 m | 800 mm | 130 mm | 7.2 mm | Blue |
| 2003866 | WS 2ply 8000 8m | 8000 kg | 8 m | 8 t | 240 mm | 1.8 kg | 2.3 m | 800 mm | 130 mm | 7.2 mm | Blue |
