Name: PowerStar 4ply
Brand: SpanSet Nederland B.V.
SKU: 2002944
Availability: OutOfStock

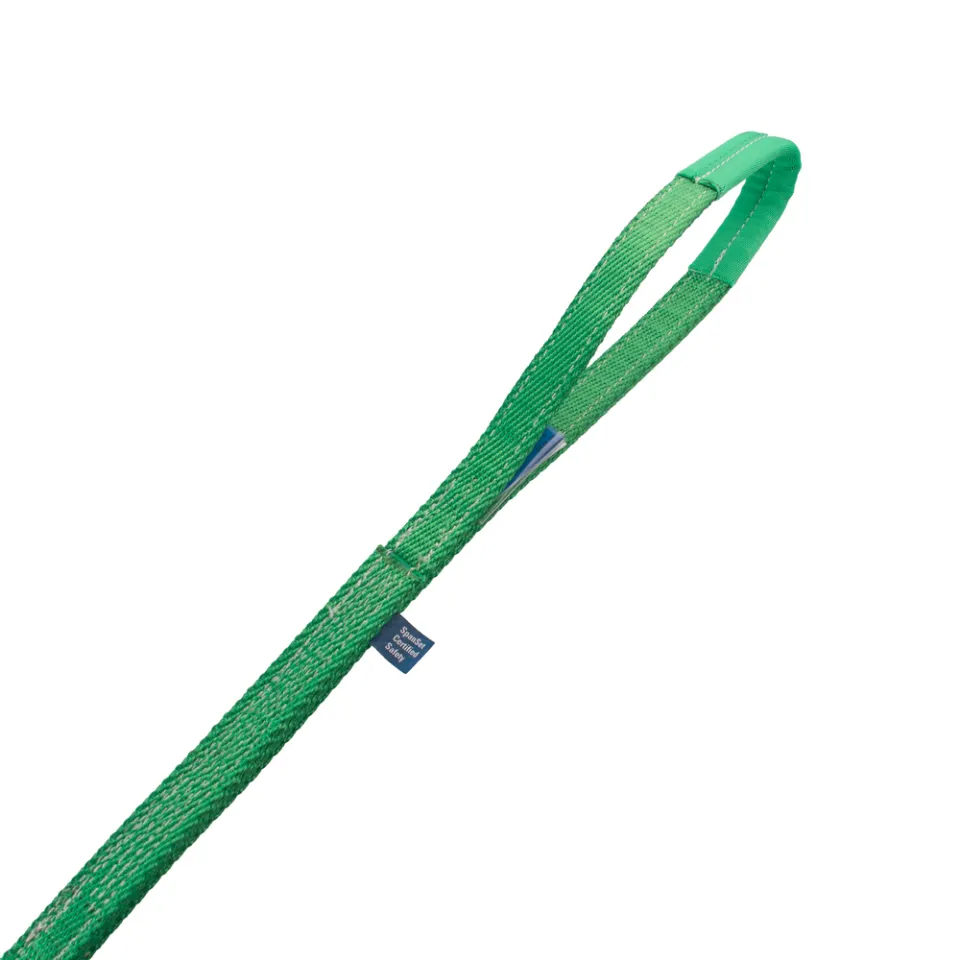

PowerStar 4ply

Heavy-duty flat sling, which is sewn in four layers, is a true powerhouse!

Higher load capacity than one- or two-ply flat slings, all with a narrow strap width.
Ideal for heavy load applications that require the use of a narrow strap – for example, to feed under the load or if only a narrow contact area is available.
Narrow contact areas or lack of space for attaching the lifting gear are by no means uncommon.
Versions with D1- and D2-links make the sling even easier to use, e.g. when hooking the sling into load lifting gear or crane hooks.
Protective sleeve label - tear-resistant design with a fabric lining, a robust plastic sleeve perfectly protects the writing from abrasion and dirt.
Optional fitting with an RFID chip facilitates the regular inspections.

Product advantages

Measurable load capacity

With these flat slings it is possible to ‘measure’ the load capacity.

The weaving pattern of the strap changes every 30 mm, and each „strip“ indicates a nominal carrying capacity of 0.5 t per layer, e. g.: 2-ply flat sling, 90 mm wide = 3 x 30 mm x 2 layers = 3 t load capacity.

RFID optional

Attachment strap for retrofitting

All SpanSet gear can be fitted with an RFID transponder for asset management with IDXpert.

Protective sleeve label

Optimally protected, reinforced with a lining

In addition to the tear-resistant design with a fabric lining, a robust plastic sleeve perfectly protects the writing from abrasion and dirt. In lifting gear fitted with an RFID transponder, the transponder is integrated into the protective sleeve and is tear-resistant.

Woven load capacity indicator

Easy to read even when dirty

Speed is often of the essence in everyday work. To make sure you always use the right round sling, the load capacity indicator is firmly woven into the sleeve and can be read even when the sling is very dirty.

Product Technical Information

Safety Factor
7:1
Belt Layers
4
Label Protection
Yes
Main Material
Polyester
Norms
EN 1492-1: 2000
Packaging Unit (PU)
pcs
Temperature Range
-40°C / +100°C
Packaging Unit (PU) Content
1

Variants information

Item Number	Item Name	Price	Dimension L1	WLL kg	WLL t	Bolt Diameter	Dimension L1 min	Webbing Width B	Webbing Thickness	Loop Length	Loop Width	Weight Net	Weight for 1m	Weight per Meter
2002944	PowerStar 4ply 2000 2m	Price under request	2 m	2000 kg	2 t	0 mm	1.1 m	30 mm	11.2 mm	350 mm	30 mm	1 kg	0.5 kg	0.4 kg/m
2002945	PowerStar 4ply 2000 3m	Price under request	3 m	2000 kg	2 t	0 mm	1.1 m	30 mm	11.2 mm	350 mm	30 mm	1.4 kg	0.5 kg	0.4 kg/m
2002948	PowerStar 4ply 4000 2m	Price under request	2 m	4000 kg	4 t	0 mm	1.3 m	60 mm	11.2 mm	400 mm	60 mm	2 kg	1 kg	0.8 kg/m
2002949	PowerStar 4ply 4000 3m	Price under request	3 m	4000 kg	4 t	0 mm	1.3 m	60 mm	11.2 mm	400 mm	60 mm	2.8 kg	1 kg	0.8 kg/m
2002950	PowerStar 4ply 6000 2m	Price under request	2 m	6000 kg	6 t	0 mm	1.7 m	90 mm	12 mm	600 mm	50 mm	3 kg	1.5 kg	1.2 kg/m
2002951	PowerStar 4ply 8000 3m	Price under request	3 m	8000 kg	8 t	0 mm	2.2 m	120 mm	12.4 mm	800 mm	65 mm	6 kg	2.2 kg	1.6 kg/m
2002952	PowerStar 4ply 10000 3m	Price under request	3 m	10000 kg	10 t	0 mm	2.4 m	150 mm	12.8 mm	900 mm	80 mm	7.8 kg	2.9 kg	2 kg/m
2002953	PowerStar PCS 4ply 12000 3m	Price under request	3 m	12000 kg	12 t	0 mm	2.8 m	180 mm	15.2 mm	1100 mm	95 mm	9.6 kg	3.6 kg	2.4 kg/m
2002954	PowerStar 4ply 16000 3m	Price under request	3 m	16000 kg	16 t	0 mm	3 m	240 mm	15.2 mm	1200 mm	125 mm	11.2 kg	4 kg	3.2 kg/m
2002955	PowerStar 4ply 20000 4m	Price under request	4 m	20000 kg	20 t	0 mm	3.4 m	300 mm	15.2 mm	1400 mm	155 mm	22.8 kg	7 kg	4.4 kg/m
2003395	PowerStar 4ply 2000 4m	Price under request	4 m	2000 kg	2 t	0 mm	1.1 m	30 mm	11.2 mm	350 mm	30 mm	1.8 kg	0.5 kg	0.4 kg/m
2003397	PowerStar 4ply 4000 4m	Price under request	4 m	4000 kg	4 t	0 mm	1.3 m	60 mm	11.2 mm	400 mm	60 mm	3.6 kg	1 kg	0.8 kg/m
2003398	PowerStar 4ply 6000 3m	Price under request	3 m	6000 kg	6 t	0 mm	1.7 m	90 mm	12 mm	600 mm	50 mm	4.2 kg	1.5 kg	1.2 kg/m
2003399	PowerStar 4ply 6000 4m	Price under request	4 m	6000 kg	6 t	0 mm	1.7 m	90 mm	12 mm	600 mm	50 mm	5.4 kg	1.5 kg	1.2 kg/m
2003400	PowerStar 4ply 8000 4m	Price under request	4 m	8000 kg	8 t	0 mm	2.2 m	120 mm	12.4 mm	800 mm	65 mm	7.6 kg	2.2 kg	1.6 kg/m
2003401	PowerStar 4ply 8000 5m	Price under request	5 m	8000 kg	8 t	0 mm	2.2 m	120 mm	12.4 mm	800 mm	65 mm	9.2 kg	2.2 kg	1.6 kg/m
2003402	PowerStar 4ply 10000 4m	Price under request	4 m	10000 kg	10 t	0 mm	2.4 m	150 mm	12.8 mm	900 mm	80 mm	9.8 kg	2.9 kg	2 kg/m
2003403	PowerStar 4ply 10000 5m	Price under request	5 m	10000 kg	10 t	0 mm	2.4 m	150 mm	12.8 mm	900 mm	80 mm	11.8 kg	2.9 kg	2 kg/m
2003404	PowerStar PCS 4ply 12000 4m	Price under request	4 m	12000 kg	12 t	0 mm	2.8 m	180 mm	15.2 mm	1100 mm	95 mm	12 kg	3.6 kg	2.4 kg/m
2003405	PowerStar PCS 4ply 12000 5m	Price under request	5 m	12000 kg	12 t	0 mm	2.8 m	180 mm	15.2 mm	1100 mm	95 mm	14.4 kg	3.6 kg	2.4 kg/m
2003406	PowerStar 4ply 16000 4m	Price under request	4 m	16000 kg	16 t	0 mm	3 m	240 mm	15.2 mm	1200 mm	125 mm	14.4 kg	4 kg	3.2 kg/m
2003407	PowerStar 4ply 16000 5m	Price under request	5 m	16000 kg	16 t	0 mm	3 m	240 mm	15.2 mm	1200 mm	125 mm	17.6 kg	4 kg	3.2 kg/m
2003408	PowerStar 4ply 20000 5m	Price under request	5 m	20000 kg	20 t	0 mm	3.4 m	300 mm	15.2 mm	1400 mm	155 mm	27.2 kg	7 kg	4.4 kg/m
2003409	PowerStar 4ply 20000 6m	Price under request	6 m	20000 kg	20 t	0 mm	3.4 m	300 mm	15.2 mm	1400 mm	155 mm	31.6 kg	7 kg	4.4 kg/m
2003870	PowerStar 4ply 2000 5m	Price under request	5 m	2000 kg	2 t	0 mm	1.1 m	30 mm	11.2 mm	350 mm	30 mm	2.2 kg	0.5 kg	0.4 kg/m
2003871	PowerStar 4ply 2000 6m	Price under request	6 m	2000 kg	2 t	0 mm	1.1 m	30 mm	11.2 mm	350 mm	30 mm	2.6 kg	0.5 kg	0.4 kg/m
2003872	PowerStar 4ply 2000 8m	Price under request	8 m	2000 kg	2 t	0 mm	1.1 m	30 mm	11.2 mm	350 mm	30 mm	3.4 kg	0.5 kg	0.4 kg/m
2003876	PowerStar 4ply 4000 5m	Price under request	5 m	4000 kg	4 t	0 mm	1.3 m	60 mm	11.2 mm	400 mm	60 mm	4.4 kg	1 kg	0.8 kg/m
2003877	PowerStar 4ply 4000 6m	Price under request	6 m	4000 kg	4 t	0 mm	1.3 m	60 mm	11.2 mm	400 mm	60 mm	5.2 kg	1 kg	0.8 kg/m
2003878	PowerStar 4ply 4000 8m	Price under request	8 m	4000 kg	4 t	0 mm	1.3 m	60 mm	11.2 mm	400 mm	60 mm	6.8 kg	1 kg	0.8 kg/m
2003881	PowerStar 4ply 6000 5m	Price under request	5 m	6000 kg	6 t	0 mm	1.7 m	90 mm	12 mm	600 mm	50 mm	6.6 kg	1.5 kg	1.2 kg/m
2003882	PowerStar 4ply 6000 6m	Price under request	6 m	6000 kg	6 t	0 mm	1.7 m	90 mm	12 mm	600 mm	50 mm	7.8 kg	1.5 kg	1.2 kg/m
2003883	PowerStar 4ply 6000 8m	Price under request	8 m	6000 kg	6 t	0 mm	1.7 m	90 mm	12 mm	600 mm	50 mm	10.2 kg	1.5 kg	1.2 kg/m
2003884	PowerStar 4ply 8000 6m	Price under request	6 m	8000 kg	8 t	0 mm	2.2 m	120 mm	12.4 mm	800 mm	65 mm	10.8 kg	2.2 kg	1.6 kg/m
2003885	PowerStar 4ply 8000 8m	Price under request	8 m	8000 kg	8 t	0 mm	2.2 m	120 mm	12.4 mm	800 mm	65 mm	14 kg	2.2 kg	1.6 kg/m
2003886	PowerStar 4ply 10000 6m	Price under request	6 m	10000 kg	10 t	0 mm	2.4 m	150 mm	12.8 mm	900 mm	80 mm	13.8 kg	2.9 kg	2 kg/m
2003887	PowerStar 4ply 10000 8m	Price under request	8 m	10000 kg	10 t	0 mm	2.4 m	150 mm	12.8 mm	900 mm	80 mm	17.8 kg	2.9 kg	2 kg/m
2003888	PowerStar PCS 4ply 12000 6m	Price under request	6 m	12000 kg	12 t	0 mm	2.8 m	180 mm	15.2 mm	1100 mm	95 mm	16.8 kg	3.6 kg	2.4 kg/m
2003889	PowerStar PCS 4ply 12000 8m	Price under request	8 m	12000 kg	12 t	0 mm	2.8 m	180 mm	15.2 mm	1100 mm	95 mm	21.6 kg	3.6 kg	2.4 kg/m
2003890	PowerStar 4ply 16000 6m	Price under request	6 m	16000 kg	16 t	0 mm	3 m	240 mm	15.2 mm	1200 mm	125 mm	20.8 kg	4 kg	3.2 kg/m
2003891	PowerStar 4ply 16000 8m	Price under request	8 m	16000 kg	16 t		3 m	240 mm	15.2 mm	1200 mm	125 mm	27.2 kg	4 kg	3.2 kg/m
2003892	PowerStar 4ply 20000 8m	Price under request	8 m	20000 kg	20 t		3.4 m	300 mm	15.2 mm	1400 mm	155 mm	40.4 kg	7 kg	4.4 kg/m
