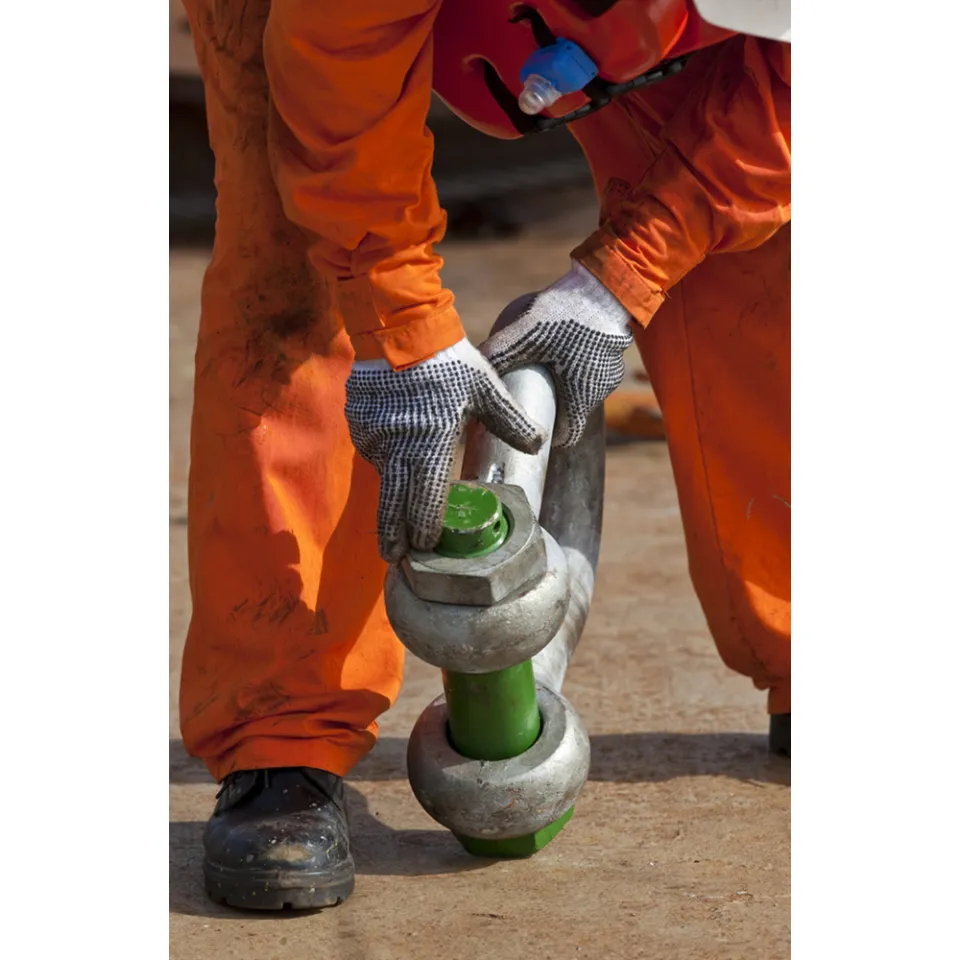

Green Pin Dee Straight Shackle with safety pin

Green Pin Dee Straight Shackle with safety pin

Double safety with split pin and safety bolt) which prevents accidental unscrewing of the pin

Item Number: 2009188
GreenPin D SB 2t
  • Double safety (cotter pin & safety bolt)
  • Galvanization assures long-term durability
  • Suitable for one-leg systems only
  • Conforms to wide range of certifications (e.g. DNV GL)
  • With embossed WLL
  • Grade 60

Select Model

...

Steel Grade 60

Made from steel grade 60, ensuring exceptional strength and fatigue resistance, even under heavy loads.

...

Galvanised

Galvanisation ensures a long service life.

...

Double safety

Double safety assured with cotter pin & safety bolt

...

Quenched and tempered steel

Made from quenched and tempered steel for maximum strength and reliability, even in the most demanding conditions.

The Green Pin® Dee Shackle BN is a dee shackle with a safety bolt. The shackle offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. Its long-term durability is assured due to galvanization. Particularly important for use offshore, the shackle conforms to a wide range of certifications from class societies such as DNV GL. The Green Pin® Dee Shackle BN is suitable for one-leg lifting systems only and is available in a range with a working load limit from 2 up to 85 ton. Grade 6.

Product Technical Information

  • Main Material
    Steel
  • Norms
    EN 13889
  • Packaging Unit (PU)
    pcs
  • Temperature Range
    -20° C to + 200° C
  • Packaging Unit (PU) Content
    1

Technical Drawings

Item Number Item Name WLL t WLL kg Grade Diameter in Inch Dimension A Dimension B Dimension C Dimension D Safety Factor Dimension F Dimension H Dimension M Weight Net Colour
2009188 GreenPin D SB 2t 2 t 2000 kg 60 0.5 in 22 mm 16 mm 43 mm 13.5 mm 6:1 34 mm 81 mm 13 mm 0.38 kg
2009189 GreenPin D SB 3.25t 3.25 t 3250 kg 60 0.625 in 27 mm 19 mm 51 mm 16 mm 6:1 40 mm 97 mm 17 mm 0.7 kg
2009190 GreenPin D SB 4.75t 4.75 t 4750 kg 60 0.75 in 31 mm 22 mm 59 mm 19 mm 6:1 46 mm 112 mm 19 mm 1 kg
2009191 GreenPin D SB 6.5t 6.5 t 6500 kg 60 0.875 in 36 mm 25 mm 73 mm 22 mm 6:1 52 mm 134 mm 22 mm 1.7 kg
2009192 GreenPin D SB 8.5t 8.5 t 8500 kg 60 1 in 43 mm 28 mm 85 mm 25 mm 6:1 59 mm 154 mm 25 mm 2.6 kg
2009193 GreenPin D SB 9.5t 9.5 t 9500 kg 60 1.125 in 47 mm 32 mm 90 mm 28 mm 6:1 66 mm 167 mm 27 mm 3.8 kg
2009194 GreenPin D SB 12t 12 t 12000 kg 60 1.25 in 51 mm 35 mm 94 mm 32 mm 6:1 72 mm 180 mm 30 mm 4.8 kg
2009195 GreenPin D SB 13.5t 13.5 t 13500 kg 60 1.375 in 57 mm 38 mm 115 mm 35 mm 6:1 80 mm 209 mm 33 mm 7 kg
2009196 GreenPin D SB 17t 17 t 17000 kg 60 1.5 in 60 mm 42 mm 127 mm 38 mm 6:1 88 mm 230 mm 19 mm 8.5 kg
2009197 GreenPin D SB 25t 25 t 25000 kg 60 1.375 in 74 mm 50 mm 149 mm 45 mm 6:1 103 mm 271 mm 23 mm 16 kg
2009198 GreenPin D SB 35t 35 t 35000 kg 60 2 in 83 mm 57 mm 171 mm 50 mm 6:1 111 mm 305 mm 26 mm 21 kg
2009199 GreenPin D SB 42.5t 42.5 t 42500 kg 60 2.25 in 95 mm 65 mm 190 mm 57 mm 6:1 130 mm 345 mm 29 mm 24.61 kg
2009200 GreenPin D SB 55t 55 t 55000 kg 60 2.5 in 105 mm 70 mm 203 mm 65 mm 6:1 145 mm 376 mm 32 mm 42 kg
2009201 GreenPin D SB 85t 85 t 85000 kg 60 3 in 127 mm 83 mm 229 mm 75 mm 6:1 162 mm 427 mm 39 mm 69 kg
2009202 GreenPin D SB 120t 120 t 120000 kg 80 3.5 in 146 mm 95 mm 267 mm 89 mm 5:1 208 mm 508 mm 120 kg Silver
