NoCut® Sleeve
NoCut® Sleeve
The flexible all-round protection
- Easy handling due to low weight
- Freely positioned on the sling
- Certified cut resistance
- Requisite for lifting and rotating sharp-edged
Select Model
Optimised process technology
Increase service life and safety
Improved cut protection, simplified handing and stronger material stability.
Flexible sleeve construction
Easy positioning
The flexible fabric construction can be positioned easily and attaches to the edge.
Free positioning
Protection at exactly place
Can be freely positioned over the lifting sling and offers protection at exact place where the sharp edge is connected.
Lightweight
Simpler and Ergonomic
The lightweight construction makes for simple and ergonomic handling.
Certified safety
A high level of operational safety based on defined edge radii – DEKRA certified.
Label
with handling instructions
NoCut products are marked with a label containing the handling instructions and the general product information.

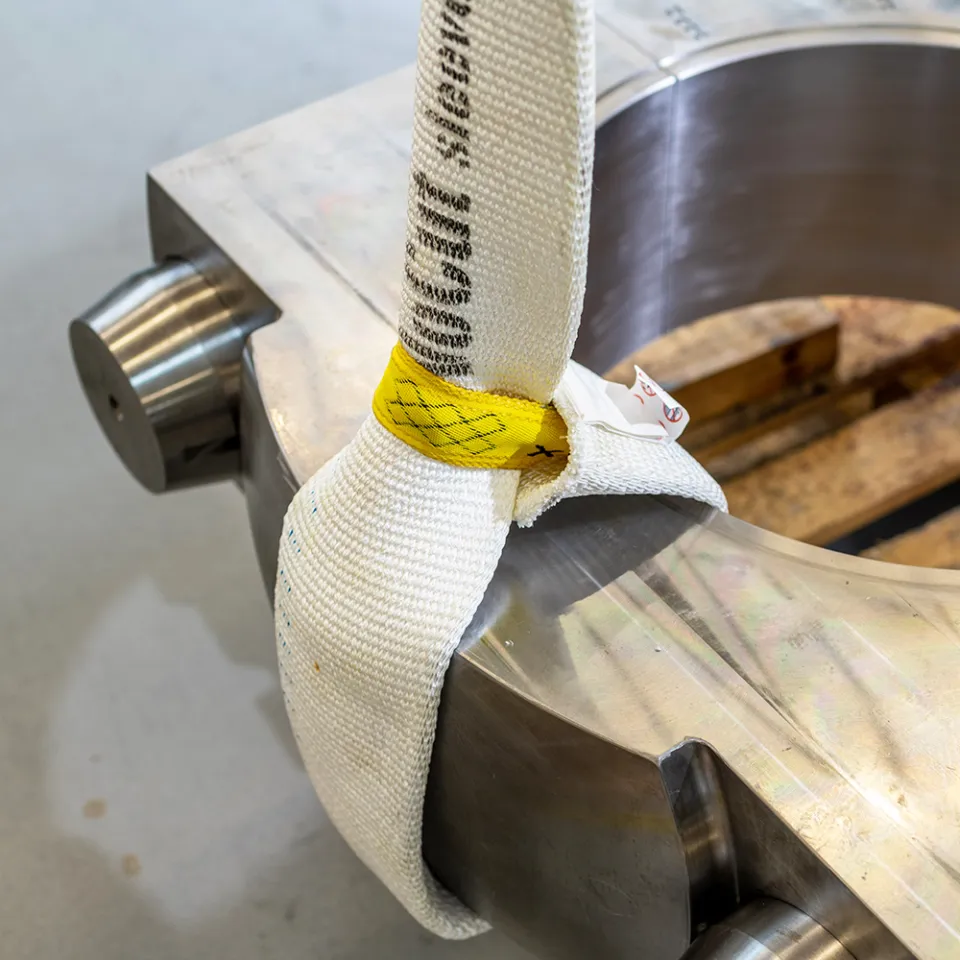

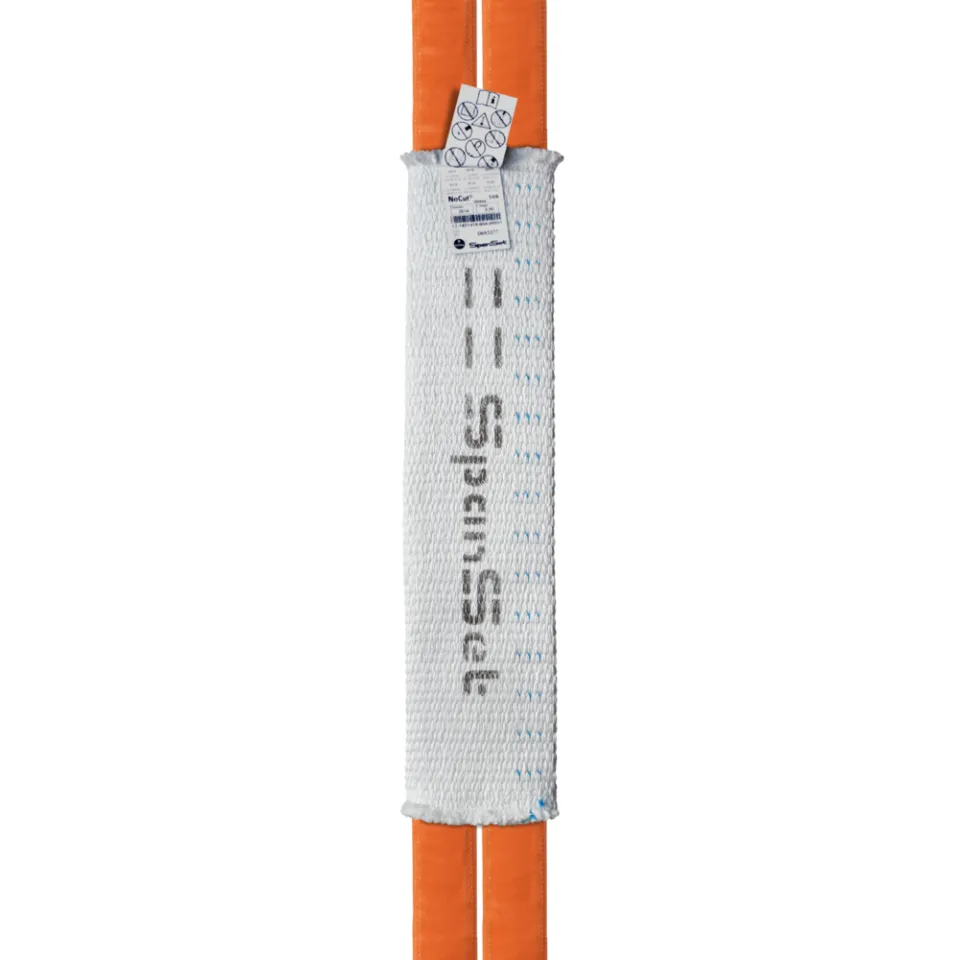

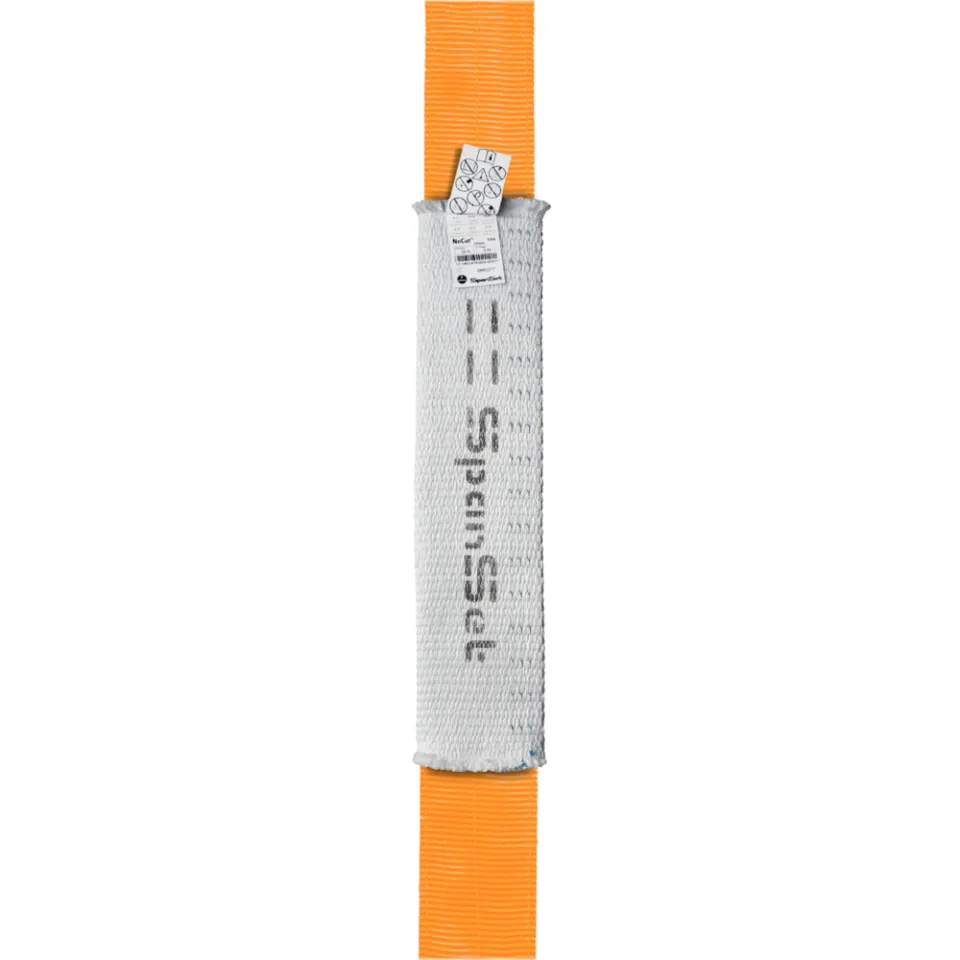

NoCut®sleeve is a woven protective sleeve for webslings and round slings.
- Made of HMPE is simply pulled onto the sling and is placed against the sharp edge of the load to protect the sling.
- Hose construction with the same high cut resistance all around allows a long service life due to the use of both sides and at the same time offers highest operational safety as misuse is excluded. The label sewn to the NoCut®sleeve with handling instructions and clear identification also contributes to this.
- Designed with a fabric grooves on both sides. On the outside, the grooved construction increases the resistance to cuts and on the inside it facilitates the sliding of the sling in the sleeve, which makes it possible to turn and turn sharp-edged loads.
- Available in lengths in 250 mm steps and widths from 55 mm to 315 mm.
Product Technical Information
-
Number of layers
1 -
Fastener Type
38267 -
Tube Thickness
13 mm -
Label Protection
No -
Main Material
High molecular weight polyethylene (HMPE) -
Packaging Unit (PU)
pcs -
Temperature Range
-40° C to + 60° C -
Packaging Unit (PU) Content
1 -
Colour
White

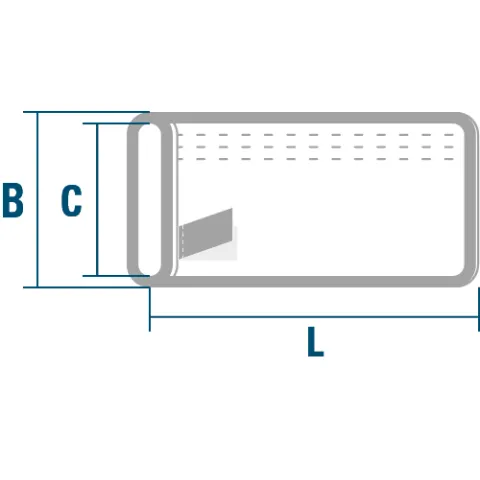

Technical Drawings
Variants information
| Item Number | Item Name | Length | Width Inside | Width Outside | Weight Net | Weight per Meter |
|---|---|---|---|---|---|---|
| 2003475 | NoCut sleeve, 55mm, 1.0m | 1 m | 55 mm | 65 mm | 0.4 kg | 0.4 kg/m |
| 2003477 | NoCut sleeve, 75mm, 1.0m | 1 m | 75 mm | 85 mm | 0.6 kg | 0.6 kg/m |
| 2003479 | NoCut sleeve, 105mm, 1.0m | 1 m | 105 mm | 115 mm | 0.8 kg | 0.8 kg/m |
| 2003481 | NoCut sleeve, 135mm, 1.0m | 1 m | 135 mm | 145 mm | 1.1 kg | 1.1 kg/m |
| 2003483 | NoCut sleeve, 165mm, 1.0m | 1 m | 165 mm | 175 mm | 1.4 kg | 1.4 kg/m |
| 2003485 | NoCut sleeve, 195mm, 1.0m | 1 m | 195 mm | 205 mm | 1.6 kg | 1.6 kg/m |
| 2003487 | NoCut sleeve, 255mm, 1.0m | 1 m | 255 mm | 265 mm | 2 kg | 2 kg/m |
| 2024576 | NoCut sleeve 55mm 0.5m | 0.5 m | 55 mm | 65 mm | 0.2 kg | 0.4 kg/m |
| 2024577 | NoCut sleeve 75mm 0.5m | 0.5 m | 75 mm | 85 mm | 0.3 kg | 0.6 kg/m |
| 2026625 | NoCut sleeve 75mm 1.5m | 1.5 m | 75 mm | 85 mm | 0.9 kg | 0.6 kg/m |
| 2026626 | NoCut sleeve 75mm 2.0m | 2 m | 75 mm | 85 mm | 1.2 kg | 0.6 kg/m |
| 2026627 | NoCut sleeve 105mm 1.5m | 1.5 m | 105 mm | 115 mm | 1.2 kg | 0.8 kg/m |
| 2026628 | NoCut sleeve 105mm 2.0m | 2 m | 105 mm | 115 mm | 1.6 kg | 0.8 kg/m |
| 2026629 | NoCut sleeve 135mm 1.5m | 1.5 m | 135 mm | 145 mm | 1.65 kg | 1.1 kg/m |
| 2026630 | NoCut sleeve 135mm 2.0m | 2 m | 135 mm | 145 mm | 2.2 kg | 1.1 kg/m |
| 2026631 | NoCut sleeve 165mm 1.5m | 1.5 m | 165 mm | 175 mm | 2.1 kg | 1.4 kg/m |
| 2026632 | NoCut sleeve 165mm 2.0m | 2 m | 165 mm | 175 mm | 2.8 kg | 1.4 kg/m |
| 2026633 | NoCut sleeve 195mm 1.5m | 1.5 m | 195 mm | 205 mm | 2.4 kg | 1.6 kg/m |
| 2026634 | NoCut sleeve 195mm 2.0m | 2 m | 195 mm | 205 mm | 3.2 kg | 1.6 kg/m |
| 2026635 | NoCut sleeve 255mm 1.5m | 1.5 m | 255 mm | 265 mm | 3 kg | 2 kg/m |
| 2026636 | NoCut sleeve 255mm 2.0m | 2 m | 255 mm | 265 mm | 4 kg | 2 kg/m |
