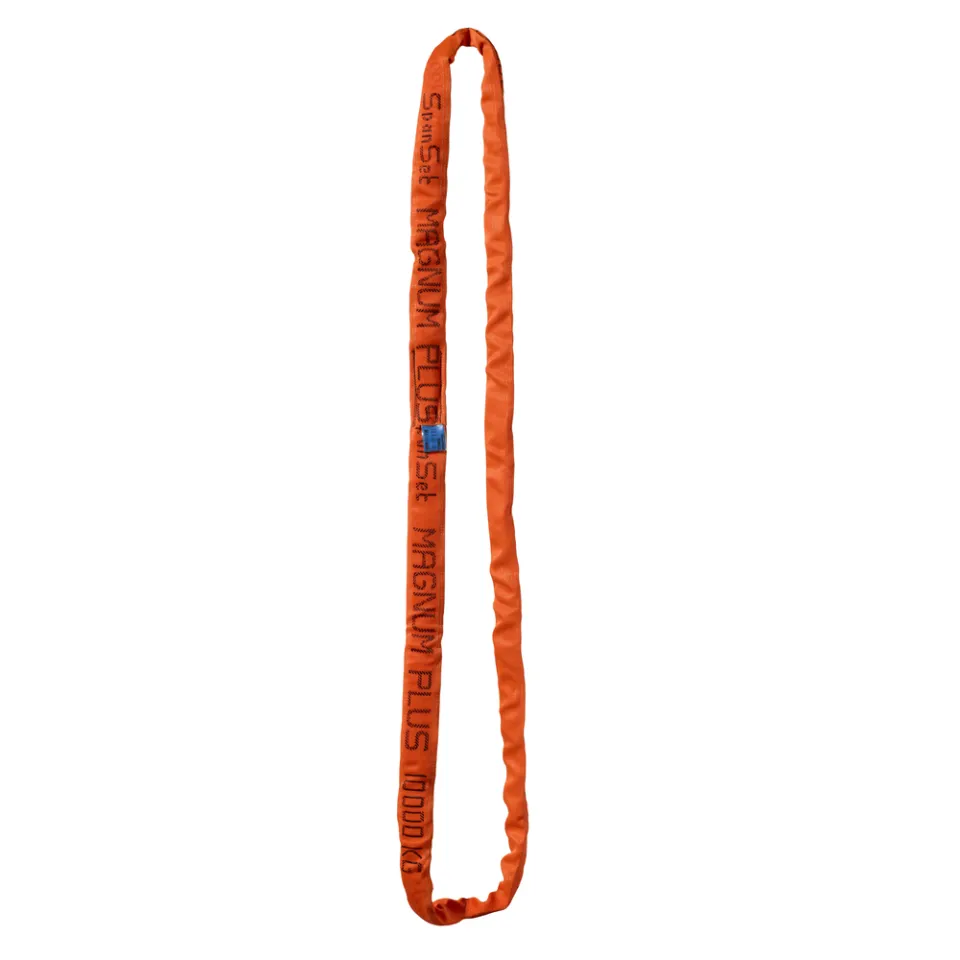

Name: MagnumPlus
Brand: SpanSet
SKU: 2002743
Availability: OutOfStock

RFID transponder

Elect. test documentation and management system

The SpanSet premium heavy-duty round slings are fitted with an RFID transponder that is firmly integrated into the label, which – together with IDXpert – makes it easy for you to plan, carry out and document the regular inspections of work equipment.

Protective sleeve label

Optimally protected, reinforced with a lining

In addition to the tear-resistant design with a fabric lining, a robust plastic sleeve perfectly protects the writing from abrasion and dirt. In lifting gear fitted with an RFID transponder, the transponder is integrated into the protective sleeve and is tear-resistant.

Woven load capacity indicator

Easy to read even when dirty

Speed is often of the essence in everyday work. To make sure you always use the right round sling, the load capacity indicator is firmly woven into the sleeve and can be read even when the sling is very dirty.

Matching of the sleeve/core

Minim. the formation of creases, even at high load capacities

The sleeve and core are perfectly adapted to one another. The outer sleeve is designed to fit tightly around the edge of the sling – this makes the round sling more compact, lighter and reduces creasing in the longitudinal direction.

Textile fibre reinforcement

Longer service life

The textile filament woven into the outer sleeve offers reliable protection against tearing, reduces creasing and prevents further rupturing.

300 t load capacity in straight pull

The SpanSet MagnumPlus round sling, made from high-performance fibres, offers everything a textile round sling needs for use with the heaviest loads: reliable hold, optimal handling and high wear resistance. A single MagnumPlus round sling can withstand up to 300 tonnes in direct pull during lifting, which only (much heavier) wire rope slings could do before.

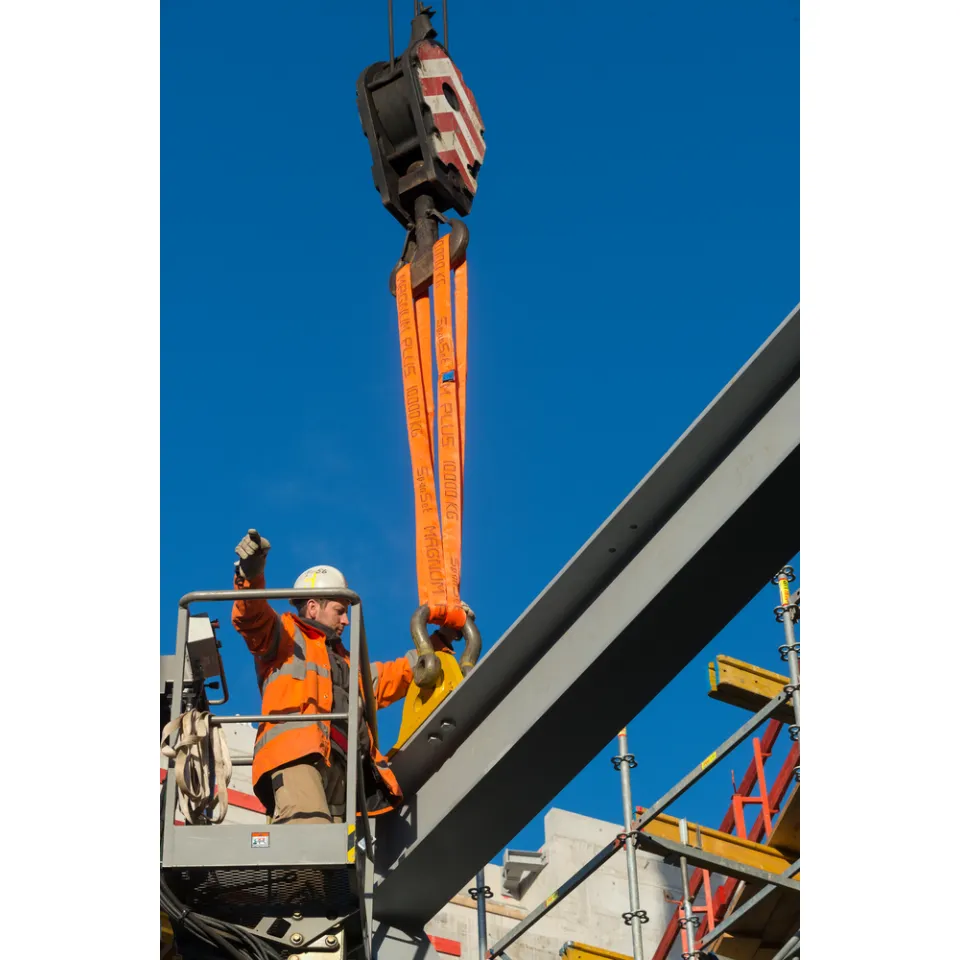

Safety for the heaviest loads
The MagnumPlus has proven itself in a wide variety of situations, even under the heaviest loads. The fabric hose of the round sling, for example, is made to fit snugly at the sides, minimising kinks even under heavy loads. An interwoven textile thread protects the hose fabric from tearing.

Safe even under maximum stress
The MagnumPlus has proven itself in a variety of situations, even under maximum stress. The fabric hose of the round sling is manufactured e. g. with a close-fitting design on the side, which minimises the formation of creases even at high load capacities, and a textile filament woven into the sleeve protects the fabric from tearing.

Product Technical Information

Dimension L1 max
30 m
Safety Factor
7:1
Label Protection
Yes
Main Material
Polyester
Norms
EN 1492-2: 2000
Packaging Unit (PU)
pcs
Temperature Range
- 40 bis + 100°C
Packaging Unit (PU) Content
1

Product downloads and manuals

Roundslings - Instruction manual
(de en es it nl fr_FR fr)
Download

Datasheet
Download

Technical Drawings

Variants information

Item Number	Item Name	WLL kg	Dimension L1	WLL t	Dimension L1 min	Contact Thickness Under Load	Weight Net	Weight per Meter	Contact Width Under Load
2002743	MagnumPlus 10000 4m	10000 kg	4 m	10 t	1 m	12 mm	9.3 kg	2.2 kg/m	93 mm
2002744	MagnumPlus 10000 5m	10000 kg	5 m	10 t	1 m	12 mm	11.5 kg	2.2 kg/m	93 mm
2003231	MagnumPlus 10000 6m	10000 kg	6 m	10 t	1 m	12 mm	13.7 kg	2.2 kg/m	93 mm
2003232	MagnumPlus 10000 7m	10000 kg	7 m	10 t	1 m	12 mm	15.9 kg	2.2 kg/m	93 mm
2003728	MagnumPlus 10000 8m	10000 kg	8 m	10 t	1 m	12 mm	18.1 kg	2.2 kg/m	93 mm
2002761	MagnumPlus 100000 4,0m	100000 kg	4 m	100 t	3 m	49 mm	104.5 kg	24.3 kg/m	294 mm
2002762	MagnumPlus 100000 5,0m	100000 kg	5 m	100 t	3 m	49 mm	130.5 kg	24.3 kg/m	294 mm
2003249	MagnumPlus 100000 6,0m	100000 kg	6 m	100 t	3 m	49 mm	156.5 kg	24.3 kg/m	294 mm
2003250	MagnumPlus 100000 7,0m	100000 kg	7 m	100 t	3 m	49 mm	182.5 kg	24.3 kg/m	294 mm
2003737	MagnumPlus 100000 8,0m	100000 kg	8 m	100 t	3 m	49 mm	208.5 kg	24.3 kg/m	294 mm
2002745	MagnumPlus 15000 4m	15000 kg	4 m	15 t	1 m	16 mm	13.3 kg	2.7 kg/m	120 mm
2002746	MagnumPlus 15000 5m	15000 kg	5 m	15 t	1 m	16 mm	16.5 kg	2.7 kg/m	120 mm
2003233	MagnumPlus 15000 6m	15000 kg	6 m	15 t	1 m	16 mm	19.7 kg	2.7 kg/m	120 mm
2003234	MagnumPlus 15000 7,0m	15000 kg	7 m	15 t	1 m	16 mm	22.9 kg	2.7 kg/m	120 mm
2003729	MagnumPlus 15000 8m	15000 kg	8 m	15 t	1 m	16 mm	26.1 kg	2.7 kg/m	120 mm
2002747	MagnumPlus 20000 4m	20000 kg	4 m	20 t	1.3 m	18 mm	18.1 kg	4 kg/m	140 mm
2002748	MagnumPlus 20000 5m	20000 kg	5 m	20 t	1.3 m	18 mm	22.5 kg	4 kg/m	140 mm
2003235	MagnumPlus 20000 6m	20000 kg	6 m	20 t	1.3 m	18 mm	26.9 kg	4 kg/m	140 mm
2003236	MagnumPlus 20000 7m	20000 kg	7 m	20 t	1.3 m	18 mm	31.3 kg	4 kg/m	140 mm
2003730	MagnumPlus 20000 8,0m	20000 kg	8 m	20 t	1.3 m	18 mm	35.7 kg	4 kg/m	140 mm
2002749	MagnumPlus 25000 4m	25000 kg	4 m	25 t	1.3 m	25 mm	22.9 kg	5 kg/m	153 mm
2002750	MagnumPlus 25000 5m	25000 kg	5 m	25 t	1.3 m	25 mm	28.5 kg	5 kg/m	153 mm
2003237	MagnumPlus 25000 6m	25000 kg	6 m	25 t	1.3 m	25 mm	34.1 kg	5 kg/m	153 mm
2003238	MagnumPlus 25000 7m	25000 kg	7 m	25 t	1.3 m	25 mm	39.7 kg	5 kg/m	153 mm
2003731	MagnumPlus 25000 8m	25000 kg	8 m	25 t	1.3 m	25 mm	45.3 kg	5 kg/m	153 mm
2002751	MagnumPlus 30000 4m	30000 kg	4 m	30 t	1.3 m	19 mm	30.1 kg	6.5 kg/m	165 mm
2002752	MagnumPlus 30000 5m	30000 kg	5 m	30 t	1.3 m	19 mm	37.5 kg	6.5 kg/m	165 mm
2003239	MagnumPlus 30000 6m	30000 kg	6 m	30 t	1.3 m	19 mm	44.9 kg	6.5 kg/m	165 mm
2003240	MagnumPlus 30000 7m	30000 kg	7 m	30 t	1.3 m	19 mm	52.3 kg	6.5 kg/m	165 mm
2003732	MagnumPlus 30000 8m	30000 kg	8 m	30 t	1.3 m	19 mm	59.7 kg	6.5 kg/m	165 mm
2002753	MagnumPlus 40000 4m	40000 kg	4 m	40 t	3 m	22 mm	40.5 kg	9.7 kg/m	180 mm
2002754	MagnumPlus 40000 5m	40000 kg	5 m	40 t	3 m	22 mm	50.5 kg	9.7 kg/m	180 mm
2003241	MagnumPlus 40000 6m	40000 kg	6 m	40 t	3 m	22 mm	60.5 kg	9.7 kg/m	180 mm
2003242	MagnumPlus 40000 7m	40000 kg	7 m	40 t	3 m	22 mm	70.5 kg	9.7 kg/m	180 mm
2003733	MagnumPlus 40000 8m	40000 kg	8 m	40 t	3 m	22 mm	80.5 kg	9.7 kg/m	180 mm
2002755	MagnumPlus 50000 4m	50000 kg	4 m	50 t	3 m	24 mm	52.5 kg	12.5 kg/m	208 mm
2002756	MagnumPlus 50000 5m	50000 kg	5 m	50 t	3 m	24 mm	65.5 kg	12.5 kg/m	208 mm
2003243	MagnumPlus 50000 6m	50000 kg	6 m	50 t	3 m	24 mm	78.5 kg	12.5 kg/m	208 mm
2003244	MagnumPlus 50000 7m	50000 kg	7 m	50 t	3 m	24 mm	91.5 kg	12.5 kg/m	208 mm
2003734	MagnumPlus 50000 8m	50000 kg	8 m	50 t	3 m	24 mm	104.5 kg	12.5 kg/m	208 mm
2002757	MagnumPlus 60000 4m	60000 kg	4 m	60 t	3 m	27 mm	59.7 kg	16.6 kg/m	244 mm
2002758	MagnumPlus 60000 5m	60000 kg	5 m	60 t	3 m	27 mm	74.5 kg	16.6 kg/m	244 mm
2003245	MagnumPlus 60000 6m	60000 kg	6 m	60 t	3 m	27 mm	89.3 kg	16.6 kg/m	244 mm
2003246	MagnumPlus 60000 7m	60000 kg	7 m	60 t	3 m	27 mm	104.1 kg	16.6 kg/m	244 mm
2003735	MagnumPlus 60000 8m	60000 kg	8 m	60 t	3 m	27 mm	118.9 kg	16.6 kg/m	244 mm
2002759	MagnumPlus 80000 4,0m	80000 kg	4 m	80 t	3 m	47 mm	80.5 kg	20.8 kg/m	279 mm
2002760	MagnumPlus 80000 5,0m	80000 kg	5 m	80 t	3 m	47 mm	100.5 kg	20.8 kg/m	279 mm
2003247	MagnumPlus 80000 6,0m	80000 kg	6 m	80 t	3 m	47 mm	120.5 kg	20.8 kg/m	279 mm
2003248	MagnumPlus 80000 7,0m	80000 kg	7 m	80 t	3 m	47 mm	140.5 kg	20.8 kg/m	279 mm
2003736	MagnumPlus 80000 8,0m	80000 kg	8 m	80 t	3 m	47 mm	160.5 kg	20.8 kg/m	279 mm
