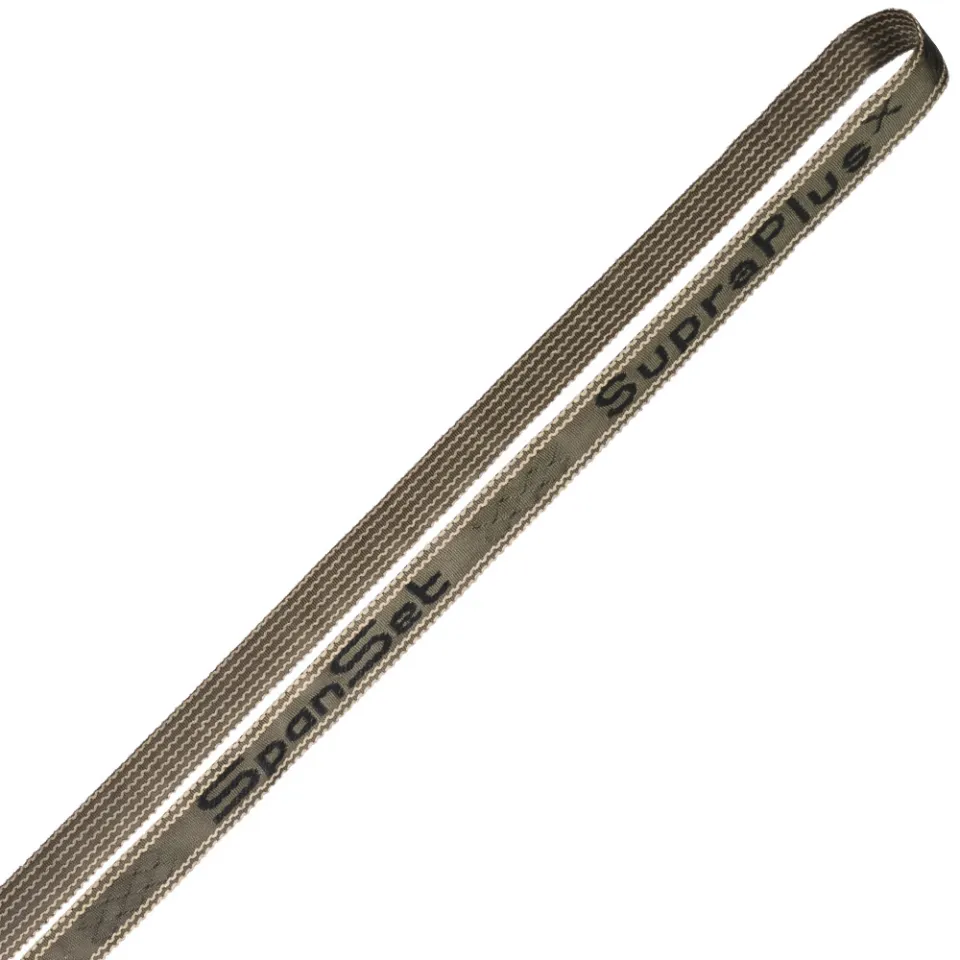

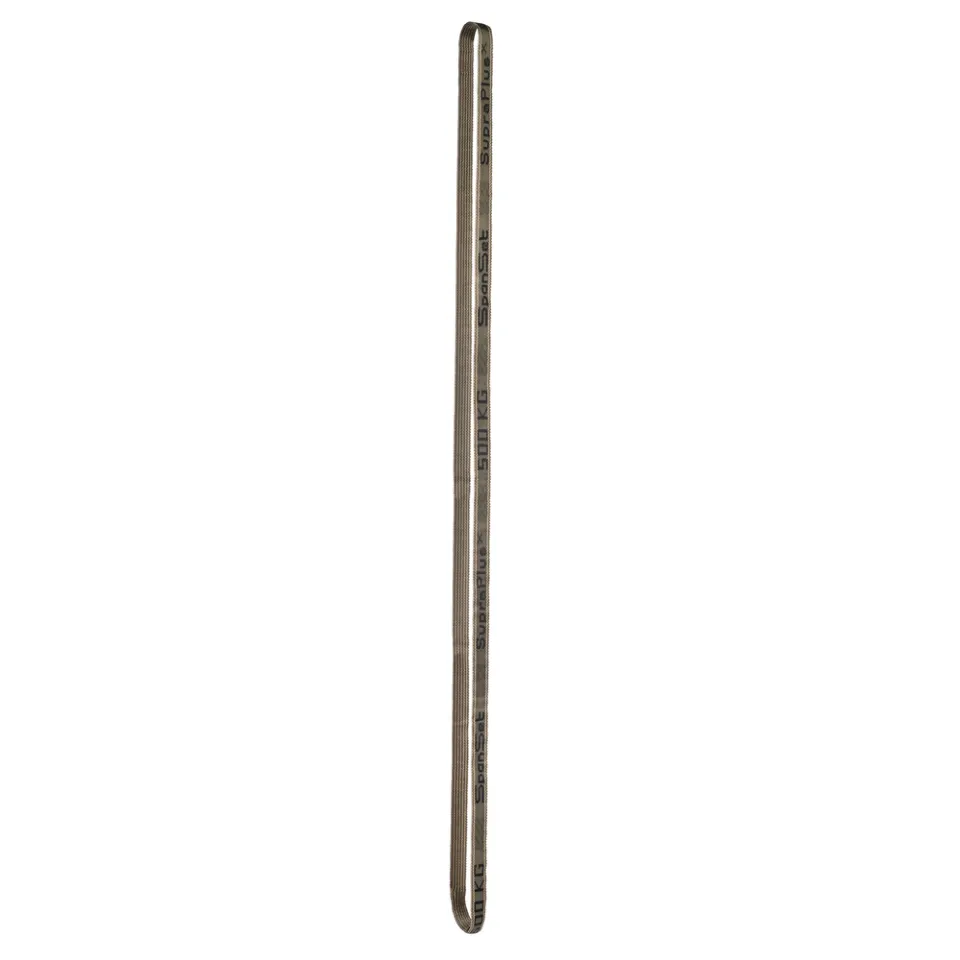

SupraPlus-X
Round Sling 500kg-8t
Durable and compact design lifting sling with protected label ensures reliable performance and extended service life
SupraPlus-X
Round Sling 500kg-8t
Durable and compact design lifting sling with protected label ensures reliable performance and extended service life
- Compact design by reducing tube width
- High-performance fibre doubled in rib reinforcement
- Textile wire reinforcement in the hose cover
- Raised weave of the load capacity indication

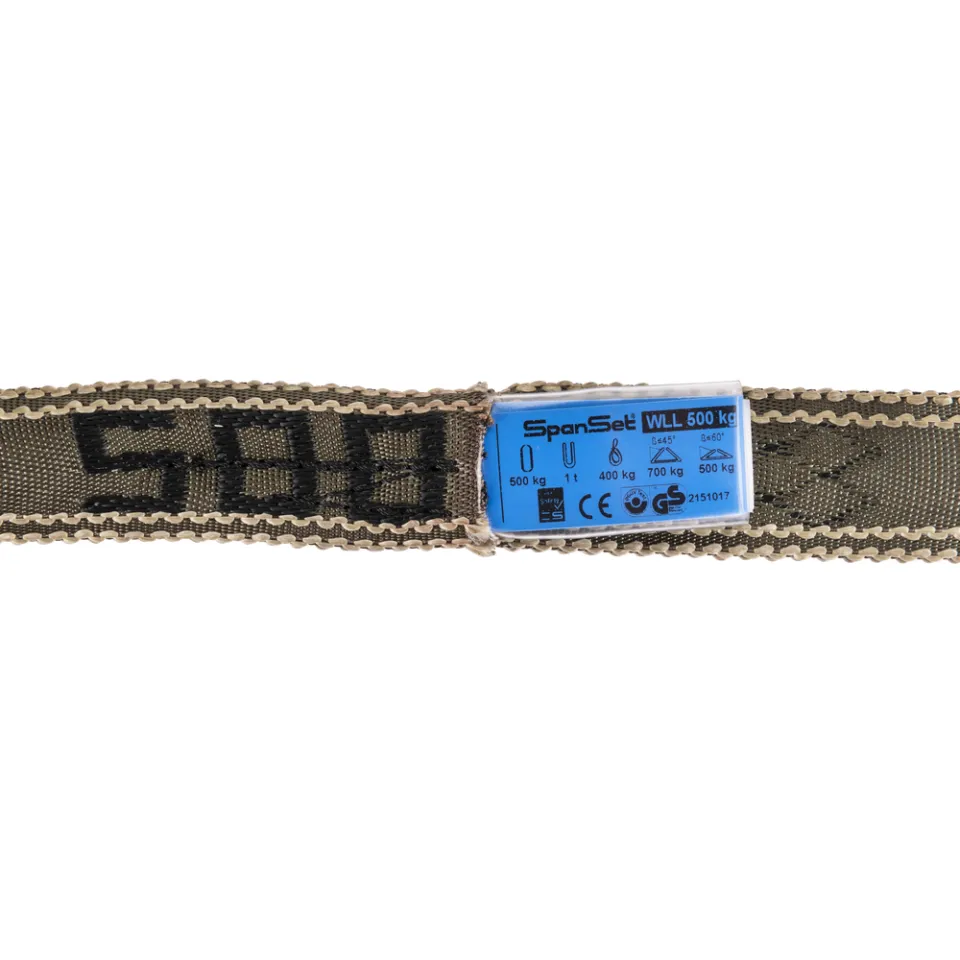

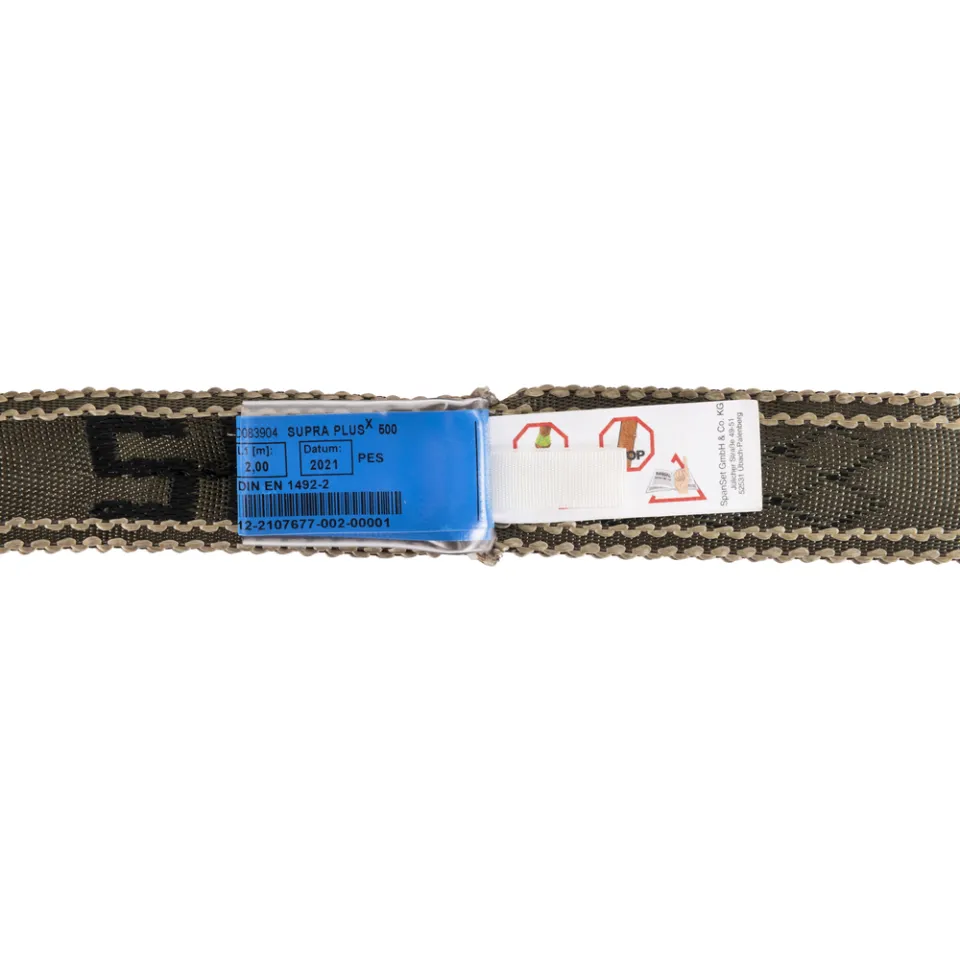

- Unique label - tear-resistant and protected
Select Model
Price under request
- Compact design by reducing tube width
- High-performance fibre doubled in rib reinforcement
- Textile wire reinforcement in the hose cover
- Raised weave of the load capacity indication
- Unique label - tear-resistant and protected
Select Model
Price under request
De Premium Rondstrop van SpanSet
Veilig, duurzaam, licht en gemakkelijk in gebruik: de premium SupraPlus-X
Ontworpen om nog robuuster en compacter te zijn dan zijn voorganger:
9% smallere mantelbreedte
50% hogere scheurweerstand
Textielversterking met draad in de mantelhoes
Product advantages
Textile fibre reinforcement
Longer service life
The textile filament woven into the outer sleeve offers reliable protection against tearing, reduces creasing and prevents further rupturing.
50 % increased tear resistance
Less wear, even under the toughest conditions.
The double proportion of high-performance fibre in the rib reinforcement offers improved abrasion and tear resistance.
Reduced hose width
Easy to handle and also fits into smaller hooks
Without any loss of load capacity. Overlapping of the slings is also effectively avoided due to the smaller width.
Safe, durable, light and easy to handle, the premium SupraPlus-X
Designed to be even more robust and compact than its predecessor,
+ 9 % reduced hose width
+ 50 % increased tear resistance
+ Textile wire reinforcement in the hose cover
And the SupraPlusX is not only GS-approved, but also meets the strict SpanSet factory standard. DNV was the godfather in the development of the factory standard and ensures its further development and internationalisation in annual audits for SpanSet's worldwide operations.
Product Technical Information
-
Dimension L1 max
30 m -
Safety Factor
7:1 -
Label Protection
Yes -
Main Material
Polyester -
Norms
EN 1492-2: 2000 -
Packaging Unit (PU)
pcs -
Temperature Range
- 40° / +100°C -
Packaging Unit (PU) Content
1
Technical Drawings
Variants information
| Item Number | Item Name | Price | Stock | Purchase | WLL kg | Dimension L1 | WLL t | Dimension L1 min | Contact Thickness Under Load | Weight Net | Weight per Meter | Contact Width Under Load | Colour |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2019184 | SupraPlus-X 0.5t 0.5m |
Price under request |
500 kg | 0.5 m | 0.5 t | 0.5 m | 4 mm | 0.1 kg | 0.2 kg/m | 38 mm | Olive | ||
| 2019185 | SupraPlus-X 0.5t 0.75m |
Price under request |
500 kg | 0.75 m | 0.5 t | 0.5 m | 4 mm | 0.15 kg | 0.2 kg/m | 38 mm | Olive | ||
| 2019186 | SupraPlus-X 0.5t 1m |
Price under request |
500 kg | 1 m | 0.5 t | 0.5 m | 4 mm | 0.2 kg | 0.2 kg/m | 38 mm | Olive | ||
| 2019187 | SupraPlus-X 0.5t 1.5m |
Price under request |
500 kg | 1.5 m | 0.5 t | 0.5 m | 4 mm | 0.3 kg | 0.2 kg/m | 38 mm | Olive | ||
| 2019188 | SupraPlus-X 0.5t 2.0m |
Price under request |
500 kg | 2 m | 0.5 t | 0.5 m | 4 mm | 0.4 kg | 0.2 kg/m | 38 mm | Olive | ||
| 2019189 | SupraPlus-X 1t 0.5m |
Price under request |
1000 kg | 0.5 m | 1 t | 0.5 m | 4 mm | 0.15 kg | 0.3 kg/m | 39 mm | Purple | ||
| 2019190 | SupraPlus-X 1t 0.75m |
Price under request |
1000 kg | 0.75 m | 1 t | 0.5 m | 4 mm | 0.22 kg | 0.3 kg/m | 39 mm | Purple | ||
| 2019191 | SupraPlus-X 1t 1m |
Price under request |
1000 kg | 1 m | 1 t | 0.5 m | 4 mm | 0.3 kg | 0.3 kg/m | 39 mm | Purple | ||
| 2019192 | SupraPlus-X 1t 1.5m |
Price under request |
1000 kg | 1.5 m | 1 t | 0.5 m | 4 mm | 0.45 kg | 0.3 kg/m | 39 mm | Purple | ||
| 2019193 | SupraPlus-X 1t 2m |
Price under request |
1000 kg | 2 m | 1 t | 0.5 m | 4 mm | 0.6 kg | 0.3 kg/m | 39 mm | Purple | ||
| 2019194 | SupraPlus-X 1t 2.5m |
Price under request |
1000 kg | 2.5 m | 1 t | 0.5 m | 4 mm | 0.75 kg | 0.3 kg/m | 39 mm | Purple | ||
| 2019195 | SupraPlus-X 1t 3m |
Price under request |
1000 kg | 3 m | 1 t | 0.5 m | 4 mm | 0.9 kg | 0.3 kg/m | 39 mm | Purple | ||
| 2019196 | SupraPlus-X 1t 4m |
Price under request |
1000 kg | 4 m | 1 t | 0.5 m | 4 mm | 1.2 kg | 0.3 kg/m | 39 mm | Purple | ||
| 2019197 | SupraPlus-X 1t 5m |
Price under request |
1000 kg | 5 m | 1 t | 0.5 m | 4 mm | 1.5 kg | 0.3 kg/m | 39 mm | Purple | ||
| 2019198 | SupraPlus-X 2t 0.5m |
Price under request |
2000 kg | 0.5 m | 2 t | 0.5 m | 8 mm | 0.25 kg | 0.5 kg/m | 40 mm | Green | ||
| 2019199 | SupraPlus-X 2t 0.75m |
Price under request |
2000 kg | 0.75 m | 2 t | 0.5 m | 8 mm | 0.37 kg | 0.5 kg/m | 40 mm | Green | ||
| 2019200 | SupraPlus-X 2t 1m |
Price under request |
2000 kg | 1 m | 2 t | 0.5 m | 8 mm | 0.5 kg | 0.5 kg/m | 40 mm | Green | ||
| 2019201 | SupraPlus-X 2t 1.5m |
Price under request |
2000 kg | 1.5 m | 2 t | 0.5 m | 8 mm | 0.75 kg | 0.5 kg/m | 40 mm | Green | ||
| 2019202 | SupraPlus-X 2t 2m |
Price under request |
2000 kg | 2 m | 2 t | 0.5 m | 8 mm | 1 kg | 0.5 kg/m | 40 mm | Green | ||
| 2019203 | SupraPlus-X 2t 2.5m |
Price under request |
2000 kg | 2.5 m | 2 t | 0.5 m | 8 mm | 1.25 kg | 0.5 kg/m | 40 mm | Green | ||
| 2019204 | SupraPlus-X 2t 3m |
Price under request |
2000 kg | 3 m | 2 t | 0.5 m | 8 mm | 1.5 kg | 0.5 kg/m | 40 mm | Green | ||
| 2019205 | SupraPlus-X 2t 4m |
Price under request |
2000 kg | 4 m | 2 t | 0.5 m | 8 mm | 2 kg | 0.5 kg/m | 40 mm | Green | ||
| 2019206 | SupraPlus-X 2t 5m |
Price under request |
2000 kg | 5 m | 2 t | 0.5 m | 8 mm | 2.5 kg | 0.5 kg/m | 40 mm | Green | ||
| 2019207 | SupraPlus-X 2t 6m |
Price under request |
2000 kg | 6 m | 2 t | 0.5 m | 8 mm | 3 kg | 0.5 kg/m | 40 mm | Green | ||
| 2019208 | SupraPlus-X 3t 1m |
Price under request |
3000 kg | 1 m | 3 t | 0.5 m | 8 mm | 0.6 kg | 0.6 kg/m | 48 mm | Yellow | ||
| 2019209 | SupraPlus-X 3t 1.5m |
Price under request |
3000 kg | 1.5 m | 3 t | 0.5 m | 8 mm | 0.9 kg | 0.6 kg/m | 48 mm | Yellow | ||
| 2019210 | SupraPlus-X 3t 2m |
Price under request |
3000 kg | 2 m | 3 t | 0.5 m | 8 mm | 1.2 kg | 0.6 kg/m | 48 mm | Yellow | ||
| 2019211 | SupraPlus-X 3t 2.5m |
Price under request |
3000 kg | 2.5 m | 3 t | 0.5 m | 8 mm | 1.5 kg | 0.6 kg/m | 48 mm | Yellow | ||
| 2019212 | SupraPlus-X 3t 3m |
Price under request |
3000 kg | 3 m | 3 t | 0.5 m | 8 mm | 1.8 kg | 0.6 kg/m | 48 mm | Yellow | ||
| 2019213 | SupraPlus-X 3t 4m |
Price under request |
3000 kg | 4 m | 3 t | 0.5 m | 8 mm | 2.4 kg | 0.6 kg/m | 48 mm | Yellow | ||
| 2019214 | SupraPlus-X 3t 5m |
Price under request |
3000 kg | 5 m | 3 t | 0.5 m | 8 mm | 3 kg | 0.6 kg/m | 48 mm | Yellow | ||
| 2019215 | SupraPlus-X 3t 6m |
Price under request |
3000 kg | 6 m | 3 t | 0.5 m | 8 mm | 3.6 kg | 0.6 kg/m | 48 mm | Yellow | ||
| 2019216 | SupraPlus-X 4t 2m |
Price under request |
4000 kg | 2 m | 4 t | 0.75 m | 9 mm | 1.6 kg | 0.8 kg/m | 55 mm | Grey | ||
| 2019217 | SupraPlus-X 4t 2.5m |
Price under request |
4000 kg | 2.5 m | 4 t | 0.75 m | 9 mm | 2 kg | 0.8 kg/m | 55 mm | Grey | ||
| 2019218 | SupraPlus-X 4t 3m |
Price under request |
4000 kg | 3 m | 4 t | 0.75 m | 9 mm | 2.4 kg | 0.8 kg/m | 55 mm | Grey | ||
| 2019219 | SupraPlus-X 4t 4m |
Price under request |
4000 kg | 4 m | 4 t | 0.75 m | 9 mm | 3.2 kg | 0.8 kg/m | 55 mm | Grey | ||
| 2019220 | SupraPlus-X 4t 5m |
Price under request |
4000 kg | 5 m | 4 t | 0.75 m | 9 mm | 4 kg | 0.8 kg/m | 55 mm | Grey | ||
| 2019221 | SupraPlus-X 4t 6m |
Price under request |
4000 kg | 6 m | 4 t | 0.75 m | 9 mm | 4.8 kg | 0.8 kg/m | 55 mm | Grey | ||
| 2019222 | SupraPlus-X 5t 2m |
Price under request |
5000 kg | 2 m | 5 t | 0.75 m | 11 mm | 2 kg | 1 kg/m | 59 mm | Red | ||
| 2019223 | SupraPlus-X 5t 3m |
Price under request |
5000 kg | 3 m | 5 t | 0.75 m | 11 mm | 3 kg | 1 kg/m | 59 mm | Red | ||
| 2019224 | SupraPlus-X 5t 4m |
Price under request |
5000 kg | 4 m | 5 t | 0.75 m | 11 mm | 4 kg | 1 kg/m | 59 mm | Red | ||
| 2019225 | SupraPlus-X 5t 5m |
Price under request |
5000 kg | 5 m | 5 t | 0.75 m | 11 mm | 5 kg | 1 kg/m | 59 mm | Red | ||
| 2019226 | SupraPlus-X 5t 6m |
Price under request |
5000 kg | 6 m | 5 t | 0.75 m | 11 mm | 6 kg | 1 kg/m | 59 mm | Red | ||
| 2022135 | SupraPlus-X 6t 2m |
Price under request |
6000 kg | 2 m | 6 t | 0.75 m | 11 mm | 2.4 kg | 1.2 kg/m | 73 mm | Brown | ||
| 2022136 | SupraPlus-X 6t 3m |
Price under request |
6000 kg | 3 m | 6 t | 0.75 m | 11 mm | 3.6 kg | 1.2 kg/m | 73 mm | Brown | ||
| 2022137 | SupraPlus-X 6t 4m |
Price under request |
6000 kg | 4 m | 6 t | 0.75 m | 11 mm | 4.8 kg | 1.2 kg/m | 73 mm | Brown | ||
| 2022138 | SupraPlus-X 6t 5m |
Price under request |
6000 kg | 5 m | 6 t | 0.75 m | 11 mm | 6 kg | 1.2 kg/m | 73 mm | Brown | ||
| 2022139 | SupraPlus-X 6t 6m |
Price under request |
6000 kg | 6 m | 6 t | 0.75 m | 11 mm | 7.2 kg | 1.2 kg/m | 73 mm | Brown | ||
| 2022140 | SupraPlus-X 8t 2m |
Price under request |
8000 kg | 2 m | 8 t | 0.75 m | 13 mm | 3.2 kg | 1.6 kg/m | 77 mm | Blue | ||
| 2022141 | SupraPlus-X 8t 3m |
Price under request |
8000 kg | 3 m | 8 t | 0.75 m | 13 mm | 4.8 kg | 1.6 kg/m | 77 mm | Blue | ||
| 2022142 | SupraPlus-X 8t 4m |
Price under request |
8000 kg | 4 m | 8 t | 0.75 m | 13 mm | 6.4 kg | 1.6 kg/m | 77 mm | Blue | ||
| 2022143 | SupraPlus-X 8t 5m |
Price under request |
8000 kg | 5 m | 8 t | 0.75 m | 13 mm | 8 kg | 1.6 kg/m | 77 mm | Blue | ||
| 2022144 | SupraPlus-X 8t 6m |
Price under request |
8000 kg | 6 m | 8 t | 0.75 m | 13 mm | 9.6 kg | 1.6 kg/m | 77 mm | Blue | ||
| 2024570 | SupraPlus-X 4t 1m |
Price under request |
4000 kg | 1 m | 4 t | 0.75 m | 9 mm | 0.8 kg | 0.8 kg/m | 55 mm | Grey | ||
| 2024571 | SupraPlus-X 6t 1m |
Price under request |
6000 kg | 1 m | 6 t | 0.75 m | 11 mm | 1.2 kg | 1.2 kg/m | 73 mm | Brown | ||
| 2024660 | SupraPlus-X 1t 6m |
Price under request |
1000 kg | 6 m | 1 t | 0.5 m | 4 mm | 2.4 kg | 0.3 kg/m | 39 mm | Purple | ||
| 2024663 | SupraPlus-X 2t 7m |
Price under request |
2000 kg | 7 m | 2 t | 0.5 m | 8 mm | 0.5 kg/m | 40 mm | Green | |||
| 2024664 | Supra-Plus-X 2t 8m |
Price under request |
2000 kg | 8 m | 2 t | 0.5 m | 8 mm | 0.5 kg/m | 40 mm | Green | |||
| 2024665 | SupraPlus-X 3t 7m |
Price under request |
3000 kg | 7 m | 3 t | 0.5 m | 8 mm | 0.6 kg/m | 48 mm | Yellow | |||
| 2024666 | SupraPlus-X 3t 8m |
Price under request |
3000 kg | 8 m | 3 t | 0.5 m | 8 mm | 0.6 kg/m | 48 mm | Yellow | |||
| 2024667 | SupraPlus-X 4t 7m |
Price under request |
4000 kg | 7 m | 4 t | 0.75 m | 9 mm | 0.8 kg/m | 55 mm | Grey | |||
| 2024668 | SupraPlus-X 4t 8m |
Price under request |
4000 kg | 8 m | 4 t | 0.75 m | 9 mm | 0.8 kg/m | 55 mm | Grey | |||
| 2024669 | SupraPlus-X 4t 1.5m |
Price under request |
4000 kg | 1.5 m | 4 t | 0.75 m | 9 mm | 1.2 kg | 0.8 kg/m | 55 mm | Grey | ||
| 2024670 | SupraPlus-X 5t 7m |
Price under request |
5000 kg | 7 m | 5 t | 0.75 m | 11 mm | 1 kg/m | 59 mm | Red | |||
| 2024672 | SupraPlus-X 6t 7m |
Price under request |
6000 kg | 7 m | 6 t | 0.75 m | 11 mm | 8.4 kg | 1.2 kg/m | 73 mm | Brown | ||
| 2024673 | SupraPlus-X 6t 8m |
Price under request |
6000 kg | 8 m | 6 t | 0.75 m | 11 mm | 9.6 kg | 1.2 kg/m | 73 mm | Brown | ||
| 2024811 | SupraPlus-X 5t 1m |
Price under request |
5000 kg | 1 m | 5 t | 0.75 m | 11 mm | 1 kg | 1 kg/m | 59 mm | Red | ||
| 2024812 | SupraPlus-X 5t 1.5m |
Price under request |
5000 kg | 1.5 m | 5 t | 0.75 m | 11 mm | 1.5 kg | 1 kg/m | 59 mm | Red | ||
| 2024813 | SupraPlus-X 5t 2.5m |
Price under request |
5000 kg | 2.5 m | 5 t | 0.75 m | 11 mm | 2.5 kg | 1 kg/m | 59 mm | Red | ||
| 2024814 | SupraPlus-X 6t 1.5m |
Price under request |
6000 kg | 1.5 m | 6 t | 0.75 m | 11 mm | 1.8 kg | 1.2 kg/m | 73 mm | Brown | ||
| 2024815 | SupraPlus-X 6t 2.5m |
Price under request |
6000 kg | 2.5 m | 6 t | 0.75 m | 11 mm | 3 kg | 1.2 kg/m | 73 mm | Brown | ||
| 2024816 | SupraPlus-X 8t 1m |
Price under request |
8000 kg | 1 m | 8 t | 0.75 m | 13 mm | 1.6 kg | 1.6 kg/m | 77 mm | Blue | ||
| 2024817 | SupraPlus-X 8t 1.5m |
Price under request |
8000 kg | 1.5 m | 8 t | 0.75 m | 13 mm | 2.4 kg | 1.6 kg/m | 77 mm | Blue | ||
| 2024818 | SupraPlus-X 8t 2.5m |
Price under request |
8000 kg | 2.5 m | 8 t | 0.75 m | 13 mm | 4 kg | 1.6 kg/m | 77 mm | Blue | ||
| 2024819 | SupraPlus-X 8t 7m |
Price under request |
8000 kg | 7 m | 8 t | 0.75 m | 13 mm | 10.6 kg | 1.6 kg/m | 77 mm | Blue | ||
| 2024820 | SupraPlus-X 8t 8m |
Price under request |
8000 kg | 8 m | 8 t | 0.75 m | 13 mm | 12 kg | 1.6 kg/m | 77 mm | Blue | ||
| 2027105 | SupraPlus-X 5t 0.5m |
Price under request |
5000 kg | 0.5 m | 5 t | 0.75 m | 11 mm | 2 kg | 1 kg/m | 59 mm | Red |
