MagnumForce
MagnumForce

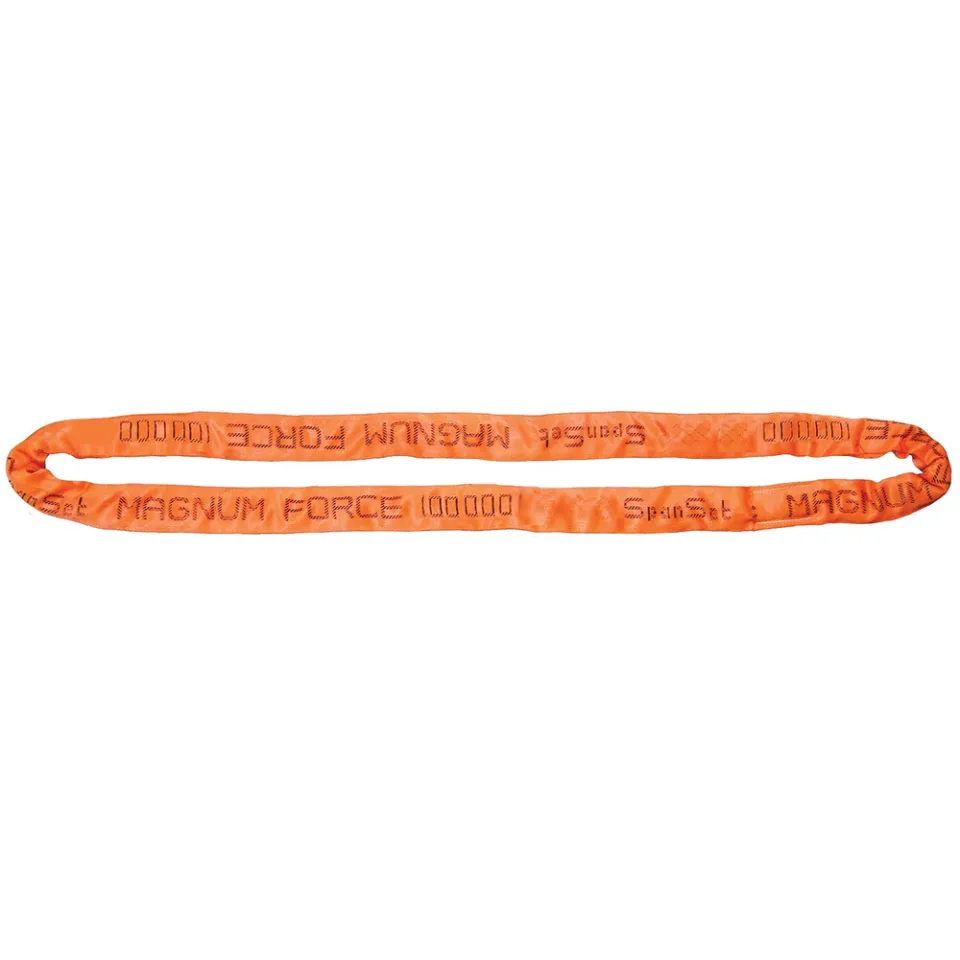

HMPE Sling reinforced with high-performance fibres reduces wear and improves cut resistance
- Low weight.
- Particularly low elongation (less than 2%).
- High tensile strength.
- With RFID-Chip for saving product data.
Select Model
Reduced hose width
Easy to handle and also fits into smaller hooks
Without any loss of load capacity. Overlapping of the slings is also effectively avoided due to the smaller width.
Sewn-in load capacity indicator
Easy to read even when dirty
For more application safety, the load capacity indication is sewn firmly onto the strap. The load capacity remains clearly legible even when the lifting gear is very dirty.
Low Weight
Handling and transport easy
SpanSet has been setting standards in the field of lifting technology for many years.
Current example: the new MagnumForce heavy-duty roundsling, which was developed following intensive discussions with customers and takes into consideration the various requirements of the most diverse industry sectors. Proven design features with innovative high-performance materials have been optimised and combined here.
The result: maximum safety and optimum handling for virtually any area of application. Instead of there being a large number of different roundslings, the MagnumForce covers the entire range of applications and therefore also offers the user considerable benefits in terms of efficiency and costs.
Instead of many different round slings, the MagnumForce covers the entire range of applications and thus also offers considerable efficiency and cost advantages for the user.
Product Technical Information
-
Dimension L1 max
60 m -
Safety Factor
7:1 -
Main Material
High molecular weight polyethylene (HMPE) -
Packaging Unit (PU)
pcs -
Temperature Range
- 40 bis + 100°C -
Packaging Unit (PU) Content
1 -
Colour
Orange
Technical Drawings
Variants information
| Item Number | Item Name | WLL kg | Dimension L1 | WLL t | Dimension L1 min | Contact Thickness Under Load | Weight Net | Weight per Meter | Contact Width Under Load |
|---|---|---|---|---|---|---|---|---|---|
| 2002539 | MagnumForce 10000 4m | 10000 kg | 4 m | 10 t | 2 m | 7 mm | 3.2 kg | 0.8 kg/m | 70 mm |
| 2002540 | MagnumForce 10000 5m | 10000 kg | 5 m | 10 t | 2 m | 7 mm | 4 kg | 0.8 kg/m | 70 mm |
| 2002541 | MagnumForce 10000 6m | 10000 kg | 6 m | 10 t | 2 m | 7 mm | 4.8 kg | 0.8 kg/m | 70 mm |
| 2002542 | MagnumForce 10000 7m | 10000 kg | 7 m | 10 t | 2 m | 7 mm | 5.6 kg | 0.8 kg/m | 70 mm |
| 2002543 | MagnumForce 10000 8m | 10000 kg | 8 m | 10 t | 2 m | 7 mm | 6.4 kg | 0.8 kg/m | 70 mm |
| 2002544 | MagnumForce 20000 4m | 20000 kg | 4 m | 20 t | 2 m | 18 mm | 6.4 kg | 1.6 kg/m | 91 mm |
| 2002545 | MagnumForce 20000 5m | 20000 kg | 5 m | 20 t | 2 m | 18 mm | 8 kg | 1.6 kg/m | 91 mm |
| 2002546 | MagnumForce 20000 6m | 20000 kg | 6 m | 20 t | 2 m | 18 mm | 9.6 kg | 1.6 kg/m | 91 mm |
| 2002547 | MagnumForce 20000 7m | 20000 kg | 7 m | 20 t | 2 m | 18 mm | 11.2 kg | 1.6 kg/m | 91 mm |
| 2002548 | MagnumForce 20000 8m | 20000 kg | 8 m | 20 t | 2 m | 18 mm | 12.8 kg | 1.6 kg/m | 91 mm |
| 2002549 | MagnumForce 30000 4m | 30000 kg | 4 m | 30 t | 3 m | 20 mm | 10.4 kg | 2.6 kg/m | 115 mm |
| 2002550 | MagnumForce 30000 5m | 30000 kg | 5 m | 30 t | 3 m | 20 mm | 13 kg | 2.6 kg/m | 115 mm |
| 2002551 | MagnumForce 30000 6m | 30000 kg | 6 m | 30 t | 3 m | 20 mm | 15.6 kg | 2.6 kg/m | 115 mm |
| 2002552 | MagnumForce 30000 7m | 30000 kg | 7 m | 30 t | 3 m | 20 mm | 18.2 kg | 2.6 kg/m | 115 mm |
| 2002553 | MagnumForce 30000 8m | 30000 kg | 8 m | 30 t | 3 m | 20 mm | 20.8 kg | 2.6 kg/m | 115 mm |
| 2002554 | MagnumForce 40000 4m | 40000 kg | 4 m | 40 t | 3 m | 22 mm | 13.6 kg | 3.4 kg/m | 135 mm |
| 2002555 | MagnumForce 40000 5m | 40000 kg | 5 m | 40 t | 3 m | 22 mm | 17 kg | 3.4 kg/m | 135 mm |
| 2002556 | MagnumForce 40000 6m | 40000 kg | 6 m | 40 t | 3 m | 22 mm | 20.4 kg | 3.4 kg/m | 135 mm |
| 2002557 | MagnumForce 40000 7m | 40000 kg | 7 m | 40 t | 3 m | 22 mm | 23.8 kg | 3.4 kg/m | 135 mm |
| 2002558 | MagnumForce 40000 8m | 40000 kg | 8 m | 40 t | 3 m | 22 mm | 27.2 kg | 3.4 kg/m | 135 mm |
| 2002559 | MagnumForce 50000 4m | 50000 kg | 4 m | 50 t | 3 m | 23 mm | 16.8 kg | 4.2 kg/m | 152 mm |
| 2002560 | MagnumForce 50000 5m | 50000 kg | 5 m | 50 t | 3 m | 23 mm | 21 kg | 4.2 kg/m | 152 mm |
| 2002561 | MagnumForce 50000 6m | 50000 kg | 6 m | 50 t | 3 m | 23 mm | 25.2 kg | 4.2 kg/m | 152 mm |
| 2002562 | MagnumForce 50000 7m | 50000 kg | 7 m | 50 t | 3 m | 23 mm | 29.4 kg | 4.2 kg/m | 152 mm |
| 2002563 | MagnumForce 50000 8m | 50000 kg | 8 m | 50 t | 3 m | 23 mm | 33.6 kg | 4.2 kg/m | 152 mm |
| 2008377 | MagnumForce 60000 4m | 60000 kg | 4 m | 60 t | 3 m | 23 mm | 20 kg | 5 kg/m | 165 mm |
| 2008378 | MagnumForce 60000 5m | 60000 kg | 5 m | 60 t | 3 m | 23 mm | 25 kg | 5 kg/m | 165 mm |
| 2008379 | MagnumForce 60000 6m | 60000 kg | 6 m | 60 t | 3 m | 23 mm | 30 kg | 5 kg/m | 165 mm |
| 2008380 | MagnumForce 60000 7m | 60000 kg | 7 m | 60 t | 3 m | 23 mm | 35 kg | 5 kg/m | 165 mm |
| 2008381 | MagnumForce 60000 8m | 60000 kg | 8 m | 60 t | 3 m | 23 mm | 40 kg | 5 kg/m | 165 mm |
| 2008382 | MagnumForce 80000 4m | 80000 kg | 4 m | 80 t | 3 m | 27 mm | 24.4 kg | 6.1 kg/m | 200 mm |
| 2008383 | MagnumForce 80000 5m | 80000 kg | 5 m | 80 t | 3 m | 27 mm | 30.5 kg | 6.1 kg/m | 200 mm |
| 2008384 | MagnumForce 80000 6m | 80000 kg | 6 m | 80 t | 3 m | 27 mm | 36.6 kg | 6.1 kg/m | 200 mm |
| 2008385 | MagnumForce 80000 7m | 80000 kg | 7 m | 80 t | 3 m | 27 mm | 42.7 kg | 6.1 kg/m | 200 mm |
| 2008386 | MagnumForce 80000 8m | 80000 kg | 8 m | 80 t | 3 m | 27 mm | 48.8 kg | 6.1 kg/m | 200 mm |
| 2008387 | MagnumForce 100000 4m | 100000 kg | 4 m | 100 t | 3 m | 35 mm | 28.4 kg | 7.1 kg/m | 190 mm |
| 2008388 | MagnumForce 100000 5m | 100000 kg | 5 m | 100 t | 3 m | 35 mm | 35.5 kg | 7.1 kg/m | 190 mm |
| 2008389 | MagnumForce 100000 6m | 100000 kg | 6 m | 100 t | 3 m | 35 mm | 42.6 kg | 7.1 kg/m | 190 mm |
| 2008390 | MagnumForce 100000 7m | 100000 kg | 7 m | 100 t | 3 m | 35 mm | 49.7 kg | 7.1 kg/m | 190 mm |
| 2008391 | MagnumForce 100000 8m | 100000 kg | 8 m | 100 t | 3 m | 35 mm | 56.8 kg | 7.1 kg/m | 190 mm |
| 2026518 | MagnumForce 10000 3m | 10000 kg | 3 m | 10 t | 2 m | 7 mm | 2.4 kg | 0.8 kg/m | 70 mm |
| 2026519 | MagnumForce 10000 2m | 10000 kg | 2 m | 10 t | 2 m | 7 mm | 1.6 kg | 0.8 kg/m | 70 mm |
| 2026520 | MagnumForce 20000 2m | 20000 kg | 2 m | 20 t | 2 m | 18 mm | 3.2 kg | 1.6 kg/m | 91 mm |
| 2026521 | MagnumForce 20000 3m | 20000 kg | 3 m | 20 t | 2 m | 18 mm | 4.8 kg | 1.6 kg/m | 91 mm |
