Exoset 3-leg
Exoset 3-leg

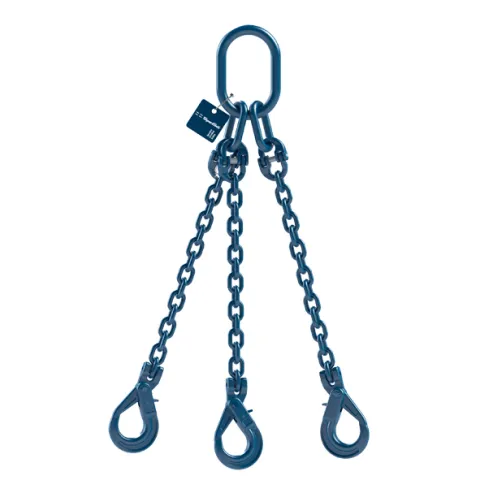

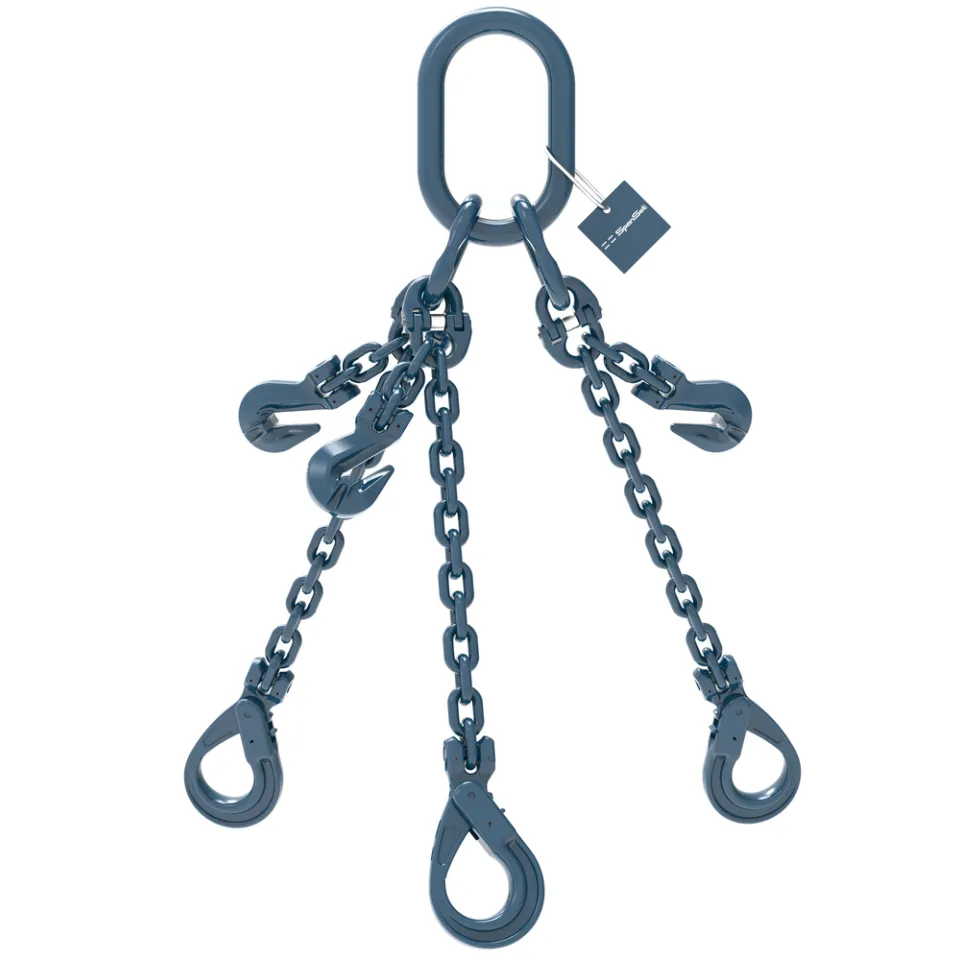

3 Leg Chain sling Grade 100 with oval ring and self-closing safety hook or with lifting hook having a safety device
Item Number: 2009086
3-Exoset CRFX 6
- Grade 100 with 25% higher load capacity than grade 80
- Tag fixed with 3mm thik wire rope
Select Model
+ 25% higher load capacity
Steel grade 100
Made from steel grade 100 for enhanced strength and increased performance under extreme conditions.
RFID optional
Attachment strap for retrofitting
All SpanSet gear can be fitted with an RFID transponder for asset management with IDXpert.
The solution for particularly heavy loads that are lifted at an angle of inclination with three attachment points. Standardised with a large, three-part suspension ring. We manufacture this lightweight chain assembly according to your length specifications. Use our configurator and our load capacity calculator to calculate the angle of inclination.
Product Technical Information
-
Dimension L max
100 m -
Grade
100 -
Chain Component
17663 -
Safety Factor
4:1 -
Main Material
Steel -
Packaging Unit (PU)
pcs -
Temperature Range
-40° C to + 200° C -
Packaging Unit (PU) Content
1 -
Colour
Niebieski
Product downloads and manuals
Datasheet
Download
Download
Technical Drawings
Variants information
| Item Number | Item Name | Chain Diameter | WLL t Angle 0°- 45° | Hook Component | Coupling Item One | Dimension L min | Master Link | WLL kg | WLL kg Angle 45°- 60° | WLL t | WLL kg Angle 0°- 45° | WLL t Angle 45°- 60° | Weight for 1m | Weight per Meter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2009086 | 3-Exoset CRFX 6 | 6 mm | 2.9 t |
Exoset safety hook |
Exoset connector |
0.328 m |
Exoset three part Masterlink |
2900 kg | 2100 kg | 2.9 t | 2900 kg | 2.1 t | ||
| 2009087 | 3-Exoset CBX 6 | 6 mm | 2.9 t |
Exoset load hook |
Exoset connector |
0.303 m |
Exoset three part Masterlink |
2900 kg | 2100 kg | 2.9 t | 2900 kg | 2.1 t | ||
| 2009088 | 3-Exoset CRFX 8 | 8 mm | 5.2 t |
Exoset safety hook |
Exoset connector |
0.412 m |
Exoset three part Masterlink |
5200 kg | 3700 kg | 5.2 t | 5200 kg | 3.7 t | ||
| 2009089 | 3 -Exoset CBX 8 | 8 mm | 5.2 t |
Exoset load hook |
Exoset connector |
0.384 m |
Exoset three part Masterlink |
5200 kg | 3700 kg | 5.2 t | 5200 kg | 3.7 t | ||
| 2009090 | 3-Exoset CRFX 10 | 10 mm | 8.4 t |
Exoset safety hook |
Exoset connector |
0.478 m |
Exoset three part Masterlink |
8400 kg | 6000 kg | 8.4 t | 8400 kg | 6 t | ||
| 2009091 | 3-Exoset CBX 10 | 10 mm | 8.4 t |
Exoset load hook |
Exoset connector |
0.445 m |
Exoset three part Masterlink |
8400 kg | 6000 kg | 8.4 t | 8400 kg | 6 t | ||
| 2009092 | 3- Exoset CRFX 13 | 13 mm | 13.6 t |
Exoset safety hook |
Exoset connector |
0.637 m |
Exoset three part Masterlink |
13600 kg | 9700 kg | 13.6 t | 13600 kg | 9.7 t | ||
| 2009093 | 3-Exoset CBX 13 | 13 mm | 13.6 t |
Exoset load hook |
Exoset connector |
0.593 m |
Exoset three part Masterlink |
13600 kg | 9700 kg | 13.6 t | 13600 kg | 9.7 t | ||
| 2009094 | 3-Exoset CRFX 16 | 16 mm | 21 t |
Exoset safety hook |
Exoset connector |
0.704 m |
Exoset three part Masterlink |
21000 kg | 15000 kg | 21 t | 21000 kg | 15 t | ||
| 2009095 | 3-Exoset CBX 16 | 16 mm | 21 t |
Exoset load hook |
Exoset connector |
0.644 m |
Exoset three part Masterlink |
21000 kg | 15000 kg | 21 t | 21000 kg | 15 t | ||
| 2026145 | 3-Exoset CSHC 6 | 6 mm | 2.9 t |
Load hook EXOSET® with fork and safety latch G100 |
Coupling link G100 |
0.303 m |
Exoset oval ring, in 3-pieces |
2900 kg | 2100 kg | 2.9 t | 2900 kg | 2.1 t | 5.3 kg | 2.7 kg/m |
| 2026146 | 3-Exoset CSHC 8 | 8 mm | 5.2 t |
Load hook EXOSET® with fork and safety latch G100 |
Coupling link G100 |
0.384 m |
Exoset oval ring, in 3-pieces |
5200 kg | 3700 kg | 5.2 t | 5200 kg | 3.7 t | 6.5 kg | 4.8 kg/m |
| 2026147 | 3-Exoset CSHC 10 | 10 mm | 8.4 t |
Load hook EXOSET® with fork and safety latch G100 |
Coupling link G100 |
0.445 m |
Exoset oval ring, in 3-pieces |
8400 kg | 6000 kg | 8.4 t | 8400 kg | 6 t | 13.6 kg | 7.5 kg/m |
| 2026148 | 3-Exoset CSHC 13 | 13 mm | 14 t |
Load hook EXOSET® with fork and safety latch G100 |
Coupling link G100 |
0.593 m |
Exoset oval ring, in 3-pieces |
14000 kg | 10000 kg | 14 t | 14000 kg | 10 t | 24.2 kg | 12.9 kg/m |
| 2026149 | 3-Exoset CSHC 16 | 16 mm | 21 t |
Load hook EXOSET® with fork and safety latch G100 |
Coupling link G100 |
0.644 m |
Exoset oval ring, in 3-pieces |
21000 kg | 15000 kg | 21 t | 21000 kg | 15 t | 39.3 kg | 19.5 kg/m |
| 2026150 | 3-Exoset CSLH 6 | 6 mm | 2.9 t |
Self-closing safety hook EXOSET® with fork |
Coupling link G100 |
0.328 m |
Exoset oval ring, in 3-pieces |
2900 kg | 2100 kg | 2.9 t | 2900 kg | 2.1 t | 5.3 kg | 2.7 kg/m |
| 2026151 | 3-Exoset CSLH 8 | 8 mm | 5.2 t |
Self-closing safety hook EXOSET® with fork |
Coupling link G100 |
0.412 m |
Exoset oval ring, in 3-pieces |
5200 kg | 3700 kg | 5.2 t | 5200 kg | 3.7 t | 6.5 kg | 4.8 kg/m |
| 2026152 | 3-Exoset CSLH 10 | 10 mm | 8.4 t |
Self-closing safety hook EXOSET® with fork |
Coupling link G100 |
0.478 m |
Exoset oval ring, in 3-pieces |
8400 kg | 6000 kg | 8.4 t | 8400 kg | 6 t | 13.6 kg | 7.5 kg/m |
| 2026153 | 3 -Exoset CSLH 13 | 13 mm | 14 t |
Self-closing safety hook EXOSET® with fork |
Coupling link G100 |
0.637 m |
Exoset oval ring, in 3-pieces |
14000 kg | 10000 kg | 14 t | 14000 kg | 10 t | 24.2 kg | 12.9 kg/m |
| 2026154 | 3-Exoset CSLH 16 | 16 mm | 21 t |
Self-closing safety hook EXOSET® with fork |
Coupling link G100 |
0.704 m |
Exoset oval ring, in 3-pieces |
21000 kg | 15000 kg | 21 t | 21000 kg | 15 t | 39.3 kg | 19.5 kg/m |
