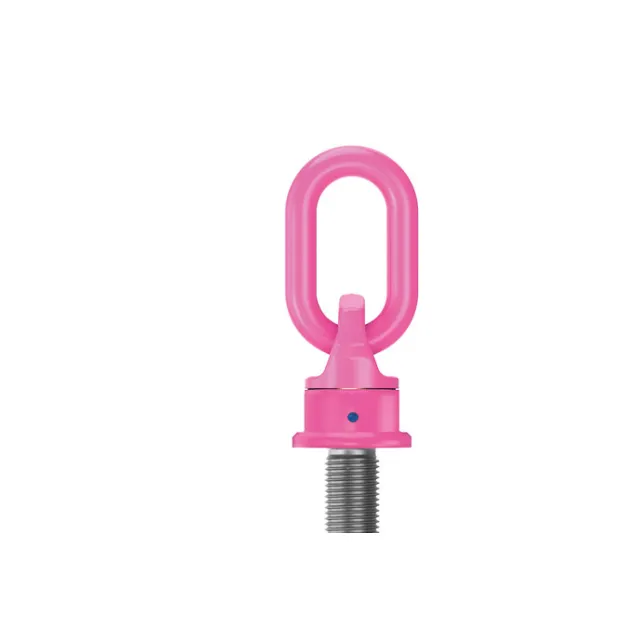

Eyebolt with ring VARIO

Eyebolt with ring VARIO

Optical markings to better recognize wear and stop angle

Item Number: 2020879
VWBG-V 0.3 VARIO
  • 360° rotatable and 230° pivotable
  • Ball bearing

Select Model

360° rotatable and loadable. With 4-fold safety. Ball bearing mounted. Swivel bracket thread with other thread lengths as well as for heavy loads from 8-40 t (M90) on request.

Product Technical Information

  • Grade
    120
  • Safety Factor
    4:1
  • Colour
    Pink
  • Main Material
    Steel
  • Norms
    ISO 12100 EN 1677-4
  • Packaging Unit (PU)
    pcs
  • Temperature Range
    -40°C bis +100°C
  • Packaging Unit (PU) Content
    1

Product downloads and manuals

...
Datasheet
Download

Technical Drawings

Item Number Item Name WLL t Angle 0° Dimension F WLL kg Angle 0° WLL kg Angle 90° WLL t Angle 90° Dimension A Dimension B Dimension C Dimension D Dimension E Dimension G Dimension M Dimension T Weight Net
2020879 VWBG-V 0.3 VARIO 0.6 t 8-102 mm 600 kg 300 kg 0.3 t 8 mm 31 mm 29 mm 30 mm 28 mm 36 mm 8 mm 76 mm 0.25 kg
2020880 VWBG-V 0.45 VARIO 0.9 t 10-122 mm 900 kg 450 kg 0.45 t 8 mm 31 mm 29 mm 36 mm 30 mm 38 mm 10 mm 78 mm 0.3 kg
2020881 VWBG-V 0.6 VARIO 1.2 t 12-140 mm 1200 kg 600 kg 0.6 t 10 mm 49 mm 35 mm 42 mm 36 mm 47 mm 12 mm 107 mm 0.5 kg
2020882 VWBG-V 1.3 VARIO 2.6 t 16-180 mm 2600 kg 1300 kg 1.3 t 13 mm 46 mm 38 mm 48 mm 41 mm 56 mm 16 mm 114 mm 0.6 kg
2020883 VWBG-V 2.0 4 t 20-223 mm 4000 kg 2000 kg 2 t 13 mm 54 mm 35 mm 62 mm 55 mm 67 mm 20 mm 137 mm 1.1 kg
2020884 VWBG-V 3.5 VARIO 7 t 24-255 mm 7000 kg 3500 kg 3.5 t 18 mm 66 mm 40 mm 81 mm 70 mm 88 mm 24 mm 173 mm 2.7 kg
2020885 VWBG-V 5.0 VARIO 10 t 30-330 mm 10000 kg 5000 kg 5 t 22 mm 90 mm 50 mm 99 mm 85 mm 106 mm 30 mm 221 mm 5.5 kg
