Item Number: 2020870

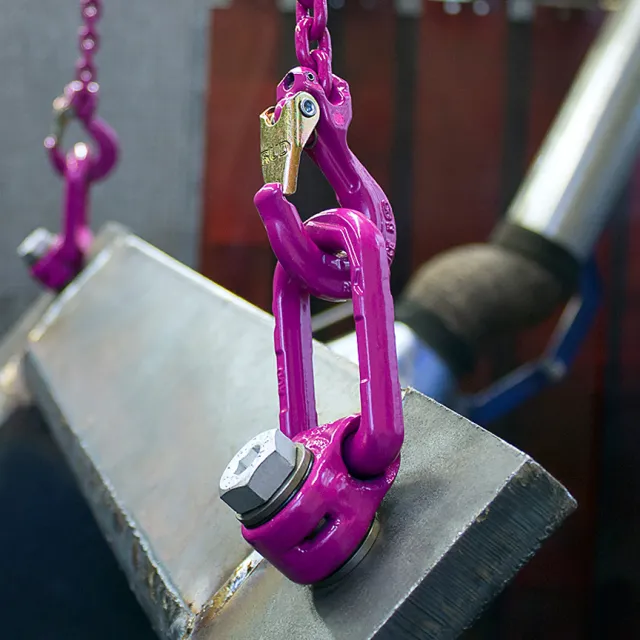

VLBG+M10 VARIO
  • Optimised load capacity through captive but replaceable ICE bolt
  • Bracket adjustable in force direction

Select Model

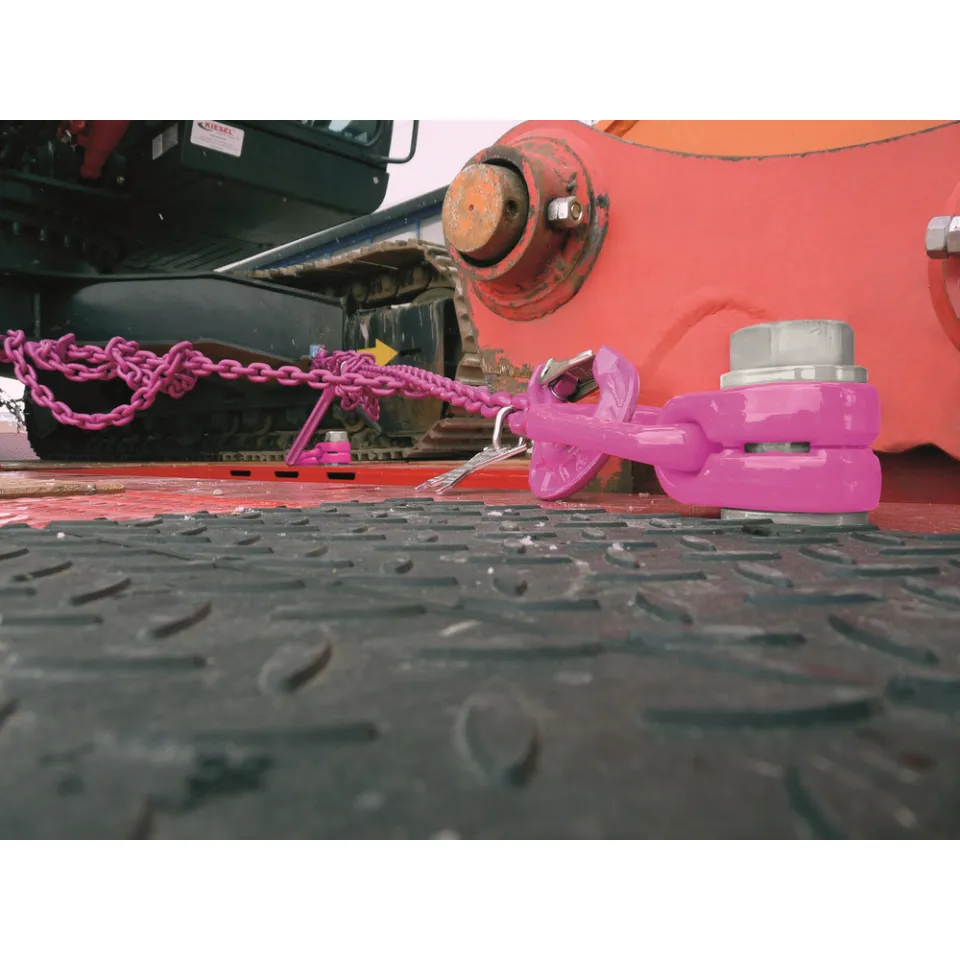

360° rotatable, adjustable in pull direction. With 4-fold safety. Folding load bar, full load capacity in all load directions, surface powder coated in pink.

Product Technical Information

  • Grade
    120
  • Safety Factor
    4:1
  • Colour
    Pink
  • Main Material
    Steel
  • Norms
    EN 1677-4 ISO 12100
  • Packaging Unit (PU)
    pcs
  • Temperature Range
    -40°C bis +100°C
  • Packaging Unit (PU) Content
    1

Product downloads and manuals

...
Datasheet
Download

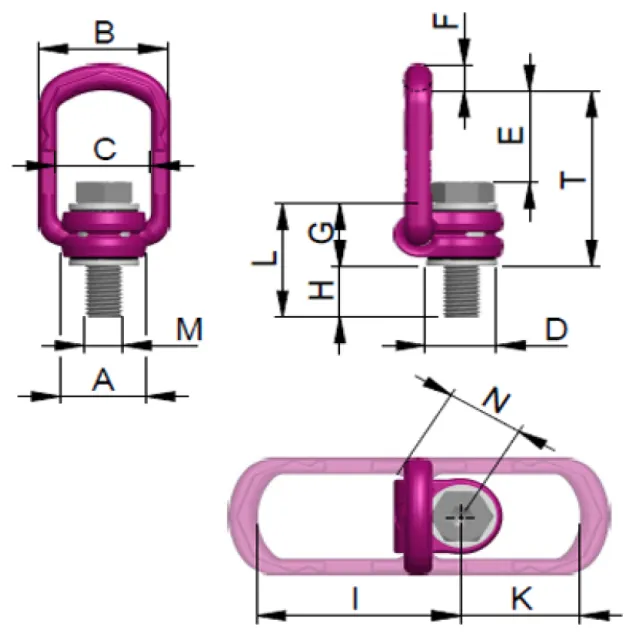

Technical Drawings

Item Number Item Name WLL t Angle 0° Dimension H WLL kg Angle 0° WLL kg Angle 90° WLL t Angle 90° Dimension A Dimension B Dimension C Dimension D Dimension E Dimension F Dimension G Dimension I Dimension K Dimension L Dimension M Dimension N Dimension T Weight Net
2020870 VLBG+M10 VARIO 0.9 t 10-96 mm 900 kg 900 kg 0.9 t 30 mm 54 mm 34 mm 24 mm 39 mm 10 mm 29 mm 75 mm 45 mm 39-125 mm 10 mm 32 mm 75 mm 0.32 kg
2020871 VLBG+M12 VARIO 1.35 t 12-116 mm 1350 kg 1350 kg 1.35 t 32 mm 54 mm 34 mm 26 mm 38 mm 10 mm 29 mm 75 mm 45 mm 41-145 mm 12 mm 32 mm 75 mm 0.33 kg
2020872 VLBG+M16 VARIO 2 t 16-149 mm 2000 kg 2000 kg 2 t 33 mm 56 mm 36 mm 30 mm 39 mm 13.5 mm 36 mm 86 mm 47 mm 50-158 mm 16 mm 38 mm 85 mm 0.55 kg
2020873 VLBG+M20 VARIO 3.5 t 20-185 mm 3500 kg 3500 kg 3.5 t 50 mm 82 mm 54 mm 45 mm 55 mm 16.5 mm 43 mm 113 mm 64 mm 65-230 mm 20 mm 48 mm 110 mm 1.3 kg
2020874 VLBG+M24 VARIO 4.5 t 24-220 mm 4500 kg 4500 kg 4.5 t 50 mm 82 mm 54 mm 45 mm 67 mm 18 mm 43 mm 130 mm 78 mm 69-265 mm 24 mm 48 mm 125 mm 1.5 kg
2020875 VLBG+M30 6.7 t 30-279 mm 6700 kg 6700 kg 6.7 t 60 mm 103 mm 65 mm 60 mm 67 mm 22.5 mm 61 mm 151 mm 80 mm 90-340 mm 30 mm 67 mm 147 mm 3.3 kg
2020878 VLBG+M8 VARIO 0.63 t 8-76 mm 630 kg 630 kg 0.63 t 30 mm 54 mm 34 mm 24 mm 40 mm 10 mm 29 mm 75 mm 45 mm 37-105 mm 8 mm 32 mm 75 mm 0.3 kg
