SP140 Single Elasticated Energy Absorbing Lanyard

SP140 Single Elasticated Energy Absorbing Lanyard

High Performance Energy Absorbing Lanyard for workers up to 140kg

Item Number: 2002246
SP140 S EL 2m 1RH2

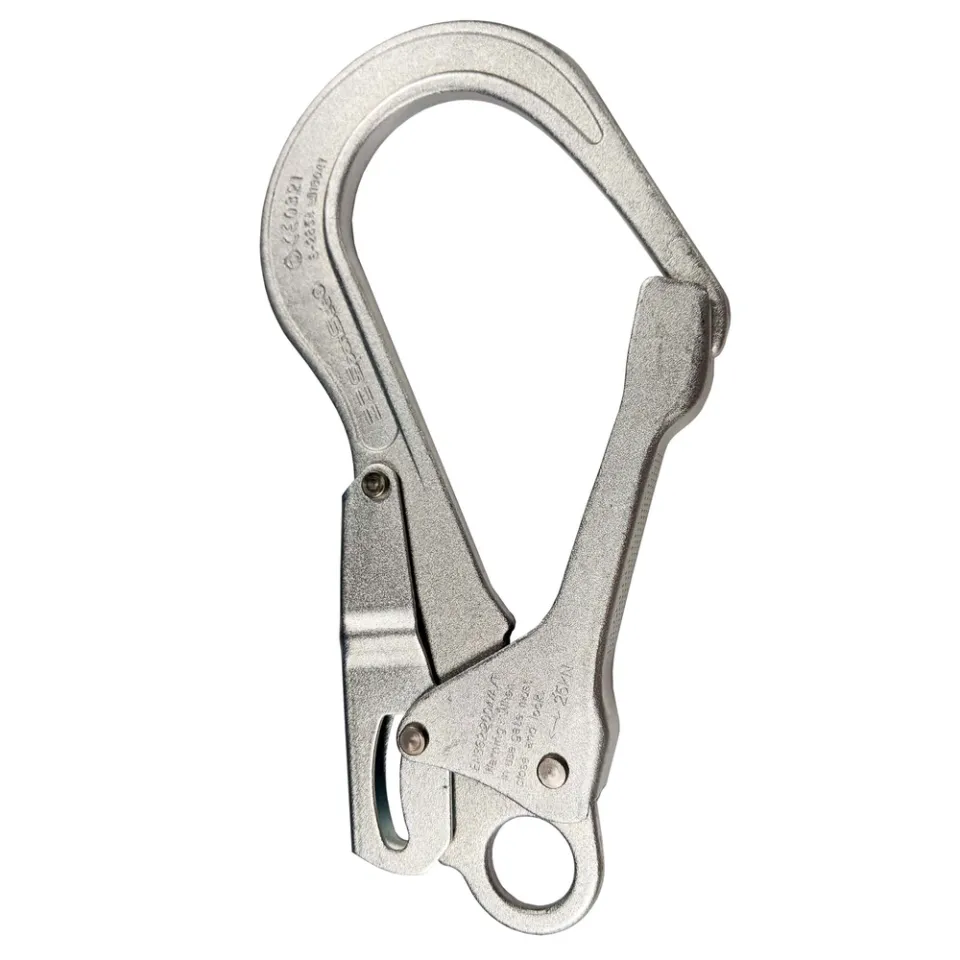

Elasticated Energy-Absorbing Lanyard with Lightweight Scaffold Hook
  • Independently tested by EU Notified Body with 140kg body mass
  • Clearance height data published for 80kg, 100kg, 120kg, 140kg
  • Clearance height calculation App available for smart phones
  • Compact Energy Absorbing Pack for ease of movement in confined environments

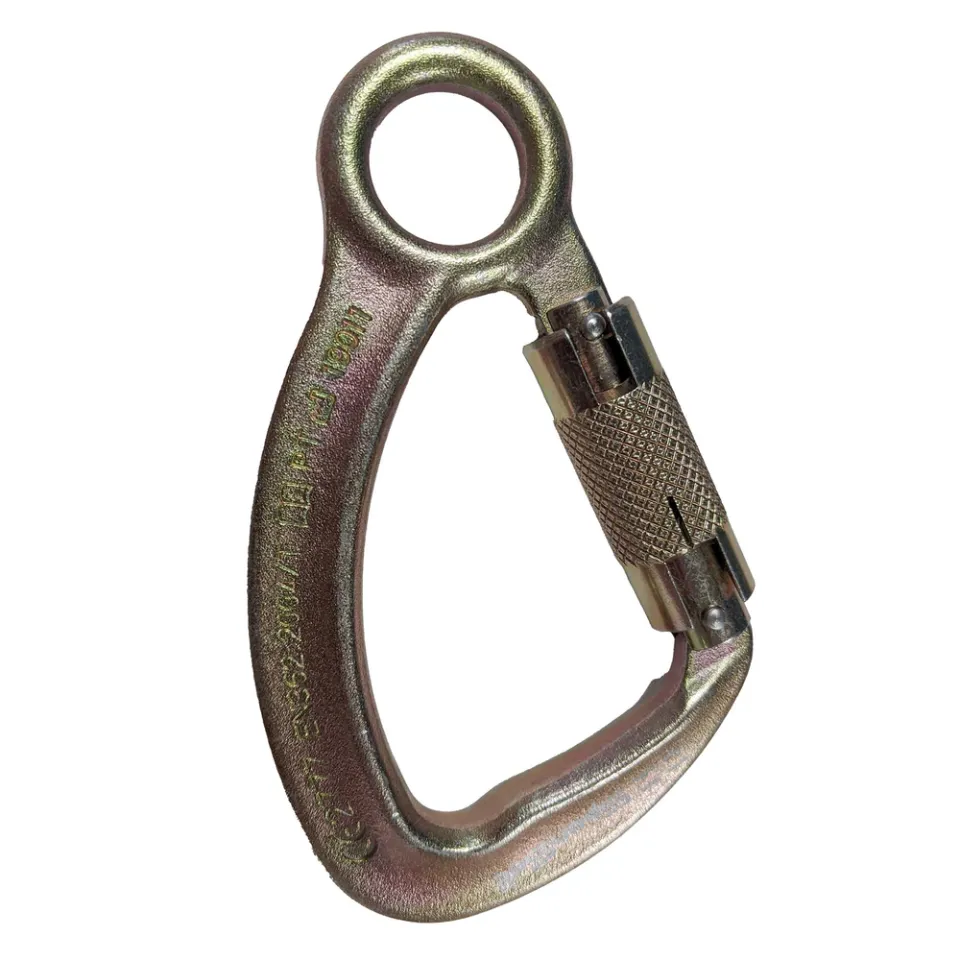

  • Steel Ring provides a “clip-back” point for lanyard connectors
  • Fabric energy absorber cover with Velcro fastener for improved protection and ease of inspection
  • Max-Span = Reduced effective length of energy absorber maximises the available working length of the lanyard legs when traversing

Select Model

...

Elasticated webbing

Reduces risk of entanglement

Elastic webbing is automatically retracted so as not to interfere with the user.

...

Integrated ring

Lanyard leg can be clipped back to the shock absorbing pack

Keep the lanyard tucked away without obstructing the fall absorber.

...

Anchored at or below floor level

Maximum lanyard working applications

Safe application even below foor level, allows the user to secure himself at height without compromising his safety.

...

Published clearance height data

For 80kg, 100kg, 120kg and 140kg workers

Knowing the clearance height allows the user to know the required fall distance for maximum safety.

Compact high performance energy absorbing lanyards providing fall protection for workers up to 140kg, while also reducing overall fall distance by minimising deployment.

Product Technical Information

  • Weight Net: 1.35 kg
  • Harness Connector: 29451 1DK2
  • Norms: EN 355: 2002
  • Lifespan: 10 yr.
  • Energy Absorbing: Yes
  • Lanyard Leg Type: Single Leg Elasticated
  • Maximum User Weight: 140 kg
  • Label Protection: Yes
  • Colour: Czarny
  • Main Material: High-performance polyester
  • Individually Serial Numbered: Yes
  • Individual Certificate: Yes
  • Multilingual User Instruction Manual: Yes
  • Inspection Guide: Yes
  • Packaging Unit (PU): pcs
  • Packaging Unit (PU) Content: 1
  • Dimension L: 2 m
  • Stretched Length: 2 m
  • Relieved Length: 1.1 m

Product downloads and manuals

SP140 Lanyard User Manual
(de de_CH en en_US es fr it nl no pl)
Download

Technical Drawings

Item Number Item Name Anchor Connector
2002246 SP140 S EL 2m 1RH2 Steel Lite Rebar Hook EN Double
1RH2 Lite
2009969 SP140 S EL 2m 1CK2 Steel Captive EN Double
1CK2
