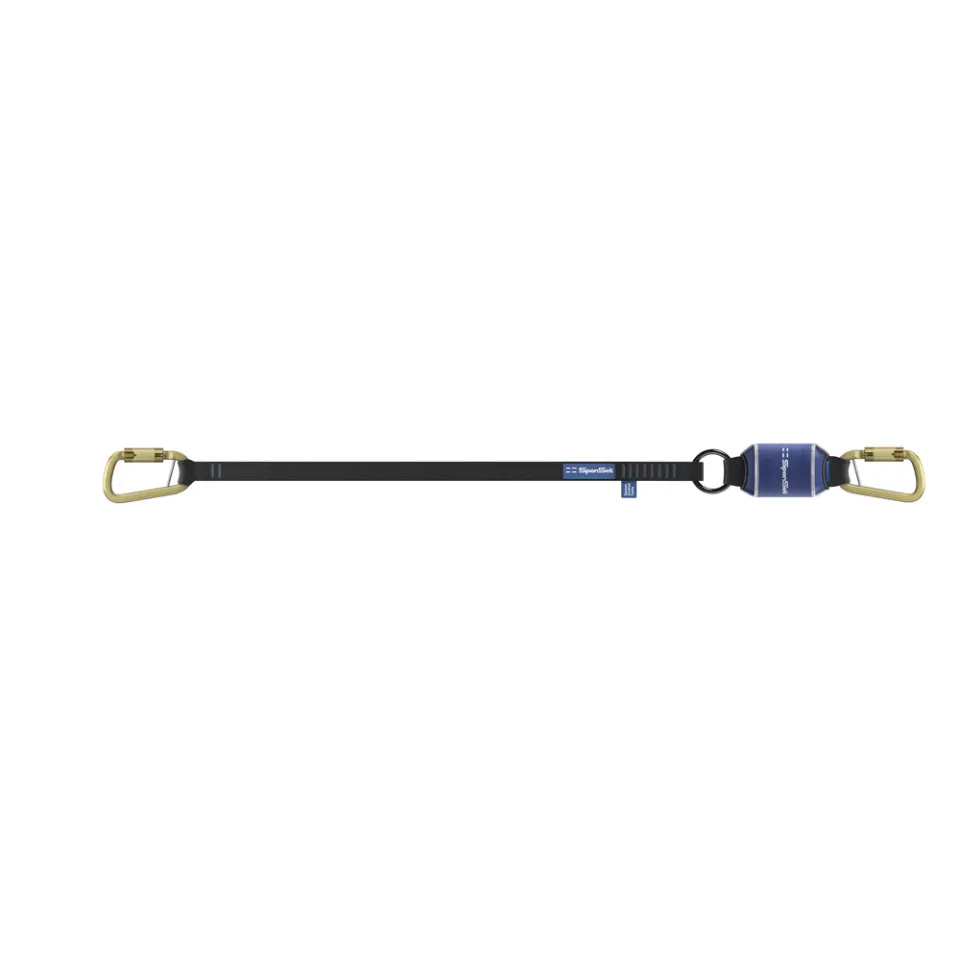

SP140 Single Fixed Length Energy Absorbing Lanyard

SP140 Single Fixed Length Energy Absorbing Lanyard

High Performance Energy Absorbing Lanyard for workers up to 140kg

Item Number: 2009963
SP140 S FW 2m 1DK2
Single Fixed Web Energy-Absorbing Lanyard 2m with Karabiner
  • Independently tested by EU Notified Body with 140kg body mass
  • Clearance height data published for 80kg, 100kg, 120kg, 140kg
  • Clearance height calculation App available for smart phones
  • Compact Energy Absorbing Pack for ease of movement in confined environments
  • Steel Ring provides a “clip-back” point for lanyard connectors
  • Fabric energy absorber cover with Velcro fastener for improved protection and ease of inspection
  • Duplex web construction leg for increased edge resistance during a fall

Select Model

...

Reducing fall distance

Reduce the risk of injury from colliding into nearby hazards

The shorter the fall distance, the lower the acceleration and kinetic energy of the fall.

...

Integrated ring

Lanyard leg can be clipped back to the shock absorbing pack

Keep the lanyard tucked away without obstructing the fall absorber.

...

Published clearance height data

For 80kg, 100kg, 120kg and 140kg workers

Knowing the clearance height allows the user to know the required fall distance for maximum safety.

Compact high performance energy absorbing lanyards providing fall protection for workers up to 140kg, while also reducing overall fall distance by minimising deployment.

Product Technical Information

  • Harness Connector: 29451 1DK2
  • Norms: EN 355: 2002
  • Lifespan: 10 yr.
  • Energy Absorbing: Yes
  • Maximum User Weight: 140 kg
  • Label Protection: Yes
  • Colour: Czarny
  • Main Material: High-performance polyester
  • Individually Serial Numbered: Yes
  • Individual Certificate: Yes
  • Multilingual User Instruction Manual: Yes
  • Inspection Guide: Yes
  • Packaging Unit (PU): pcs
  • Packaging Unit (PU) Content: 1
  • Dimension L: 2 m

Product downloads and manuals

SP140 Lanyard User Manual
(de de_CH en en_US es fr it nl no pl)
Download

Technical Drawings

Item Number Item Name Anchor Connector
2009963 SP140 S FW 2m 1DK2 Twistlock Carabiner
1DK2

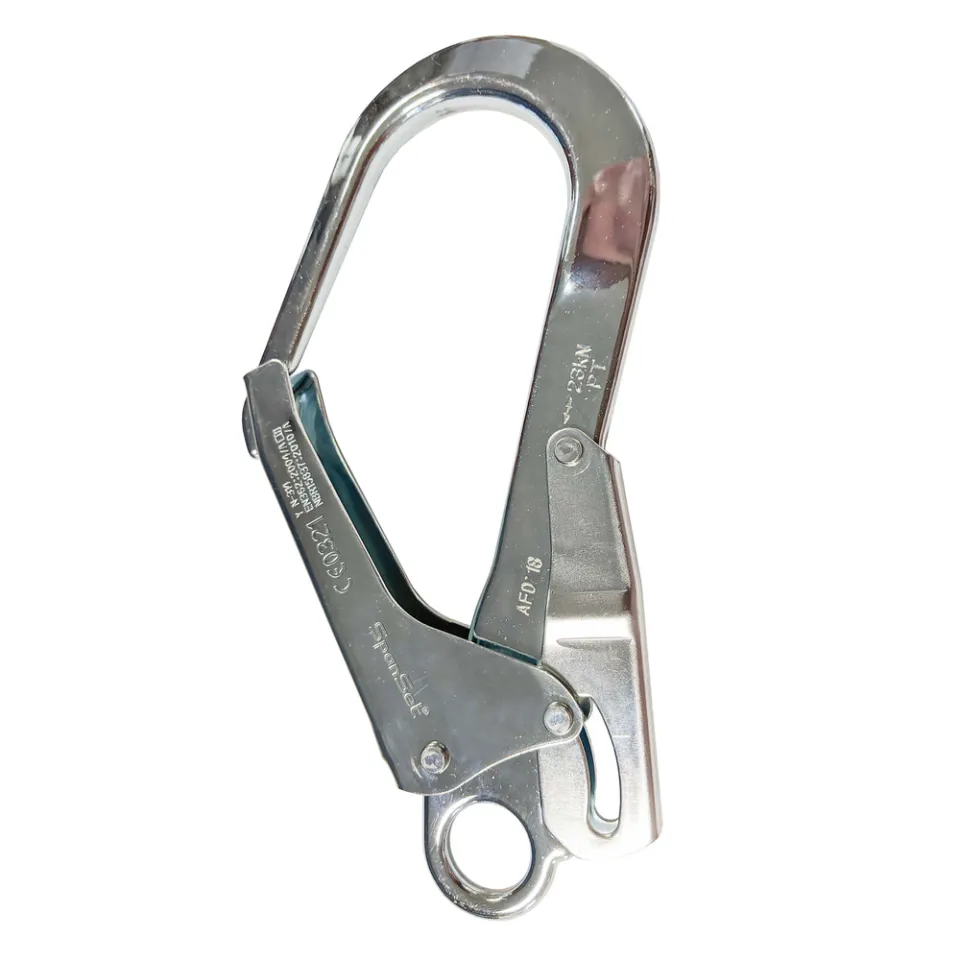

2009964 SP140 S FW 2m 1RH2 Steel Rebar Hook EN Double
1RH2
