ABS 2 Inch Ratchet Strap
Lashing Straps
Controlled Release Ratchet Tiedown System
ABS 2 Inch Ratchet Strap
Lashing Straps
Controlled Release Ratchet Tiedown System
- Controlled Release Ratchet Tiedown System.
- Blue epoxy finish for surface protection.
- Double locking mechanism for load transport security.
- Dual control release system.
- Double latch ratchet system.
Select Model
Sales Tax not included
- Controlled Release Ratchet Tiedown System.
- Blue epoxy finish for surface protection.
- Double locking mechanism for load transport security.
- Dual control release system.
- Double latch ratchet system.
$ 44.64
Sales Tax not included
Select Model
Sales Tax not included

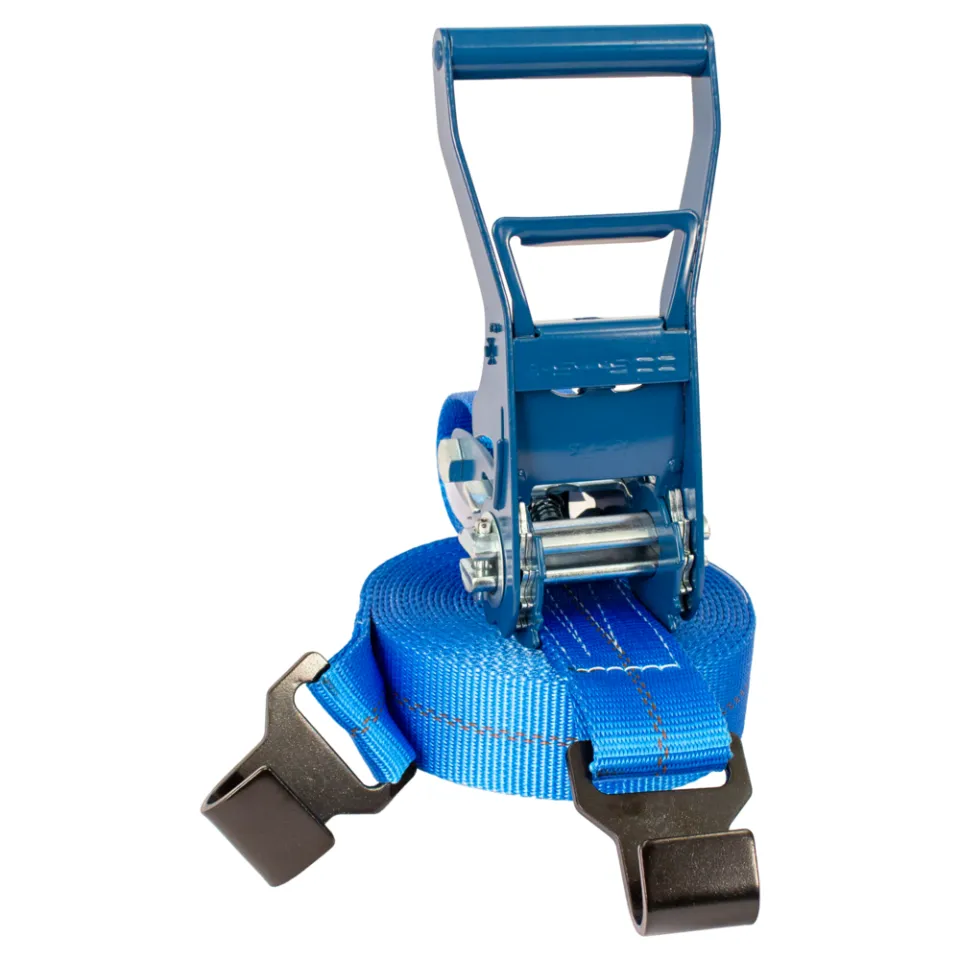

SpanSet ABS 2 Inch - Ratchet Strap
ABS Controlled Release Ratchet Tiedown System gives the operator total control of the load both during load securement and release.
- Dual control release system allows release of the pre-tension step by step, one “notch” at a time, to ensure stability of the load prior to final release.
- Self-locking handle and equipped with double slider mechanism
- Double latch ratchet system allows much higher pre-tension to be applied during initial load securement, allowing a fine adjustment for greater pre-tension.
- Blue epoxy finish for surface protection and a double locking mechanism for load transport security.
Product advantages
Double Slider
Safe in the intermediate phase when tensing
Secures in the intermediate stage when tensioning the webbing. Two sliders engage in an existing sprocket in "smaller steps".
"Anti-Belt-Slip" procedure
Controlled tension liberation
The ABS system was developed for loads with a risk of tipping and allows the user to release the pretension in small steps. The lashing can also be opened completely.
Self-locking ratchet lever
Prevents unintetional opening
The ratchet opening during transportation is thus effectively ruled out - eben when the load is exposed to strong vibrations and shaking.
Epoxy resin coating
Maximum ratchet protection
Ratchets are first zinc-plated, then chrome-plated and coated with a shock-resistant epoxy resin coat which additionally protects the ratchets from e.g. rust.
Product Technical Information
-
Length
27 ft. -
Assembly Type
Two-piece -
Webbing Width B
2 in -
Ratchet Type
Push-up -
Anti Belt Slip (ABS)
Yes -
Surface Coating
Yes -
Webbing Material
Polyester, thermofixed and low-stretch <4% -
Handle Type
Standard -
Packaging Unit (PU)
pcs -
Temperature Range
-40° TO + 194° -
Packaging Unit (PU) Content
1 -
Color
Blue
Product Variants
| GIN | Item Number | Price | Stock | Purchase | Lashing Capacity | End Fitting Component | Weight Net |
|---|---|---|---|---|---|---|---|
| 2014383
6RA27FHB |
6RA27FHB |
Sales Tax not included |
|
2000 lbs |

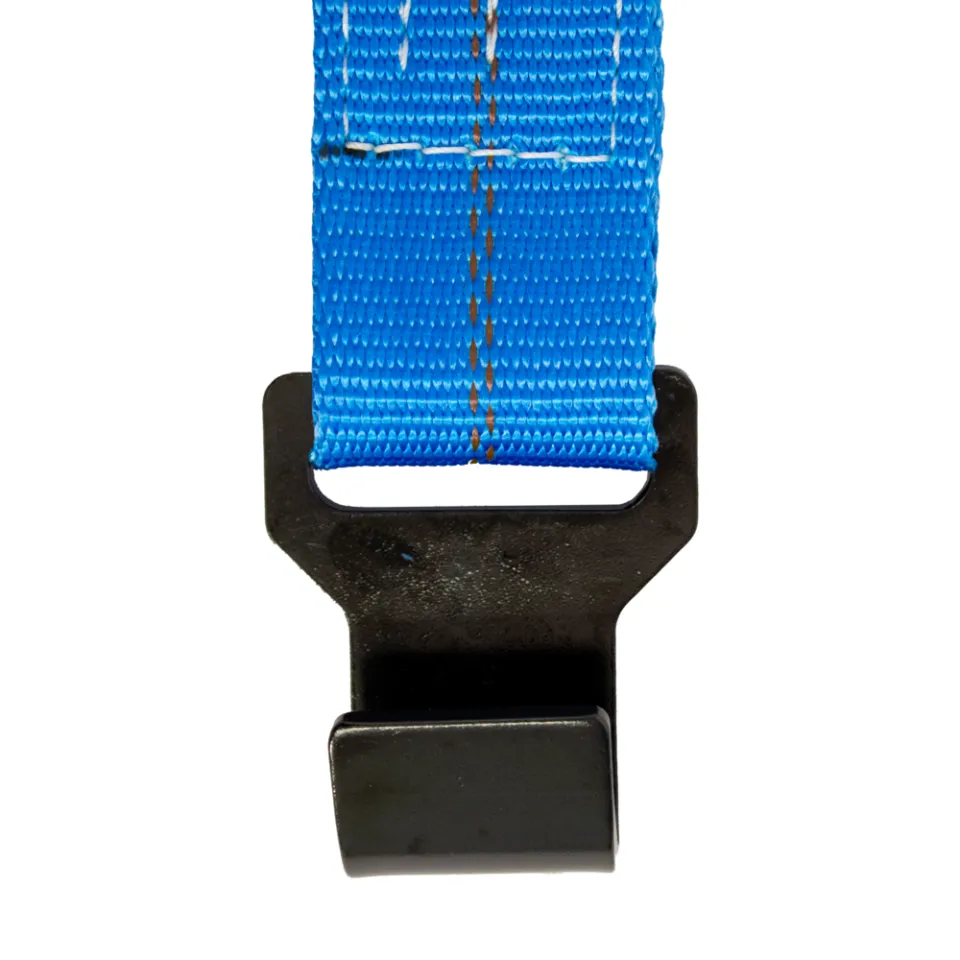

Flat Hook |
5 lbs | |
| 2014384
10RA27FHB |
10RA27FHB |
Sales Tax not included |
|
3335 lbs |
Flat Hook |
5.45 lbs | |
| 2014390
10RA27DRB |
10RA27DRB |
Sales Tax not included |
|
3335 lbs |
Delta Ring |
5.45 lbs |
Product downloads and manuals
Download
