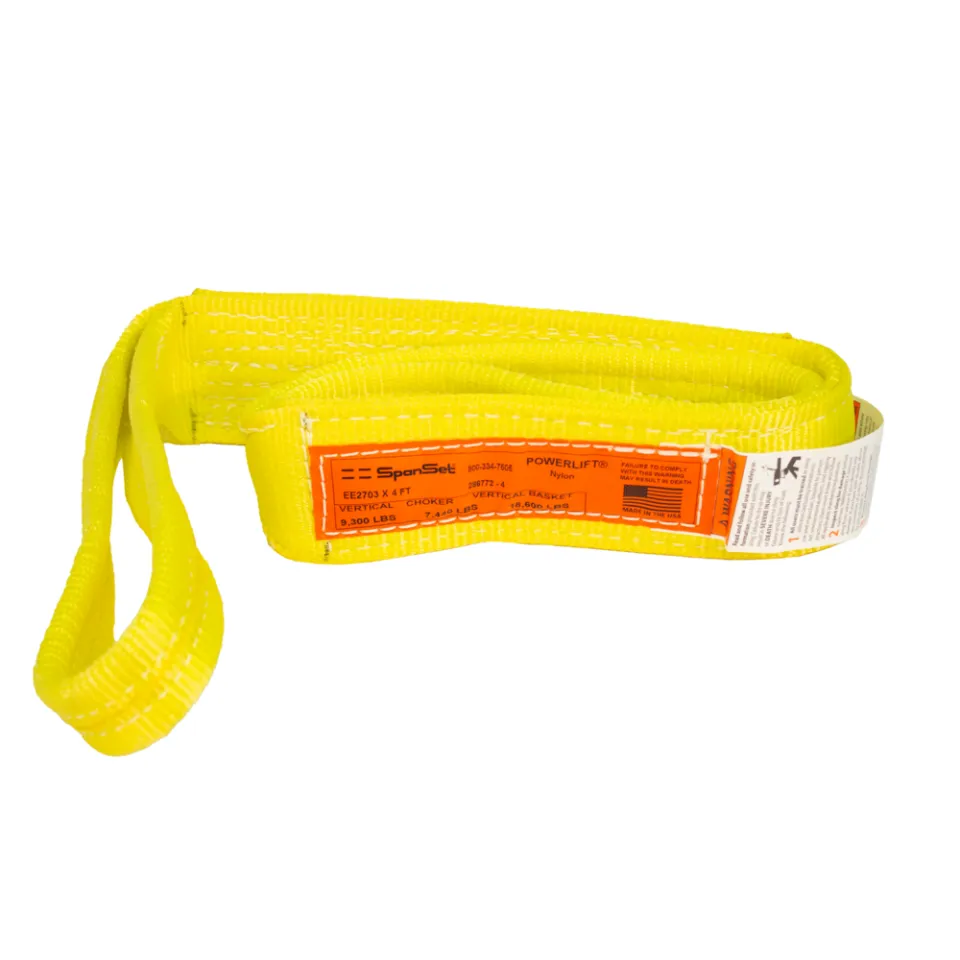

PowerLift™ flat eye slings - Safe. Strong. Soft on Surfaces.

PowerLift slings are very popular and are designed with a flat eye on each end which make them very versatile for use in vertical hitch, chocker hitch, or basket hitch.

  • It is easier to remove from beneath a load than sling Type 1, 2, and 4.
  • Custom-built for your lift: Lengths, widths, plys, and end fittings made to order
    • Add-ons: WearGard™ edge protection, color-coded tags.
  • RFID tag option: Track sling location and inspection history
  • Meets industry standards
    • ASME B30.9
    • OSHA 1910.184
    • WSTDA standards

Sling Inspection – Remove from service if:

  • ID tag is missing or unreadable
  • Red core warning yarn is showing
  • Webbing shows cuts, tears, snags, or holes
  • End fittings are cracked, corroded, or deformed
  • Sling is stiff, melted, burned, or chemically damaged
  • Stitching is broken or worn
  • Any other sign of damage or doubt about safety

Environmental Notes:

  • Avoid temperatures above 194°F
  • UV exposure (sunlight, arc welding) weakens webbing
  • Do not use with chemicals unless verified safe
  • Disintegrates in concentrated sulfuric acid
  • Degrades in strong alkalis at high temps

Frequently Asked Questions:

  • What is the working load limit (WLL)?
    • Depends on the sling width and number of plys. Contact SpanSet for specific ratings.
  • Can these slings damage my load?
    • No—PowerLift slings are made of soft, non-marring synthetic materials.
  • Are the slings heat or chemical resistant?
    • Operating temp: –40 °F to +200 °F
    • Avoid high heat, UV exposure, and harsh chemicals
    • Nylon: Avoid acids
    • Polyester: Avoid strong alkalis
  • What’s the best material for my environment?
    • Polyester: Best all-around (except alkalis)
    • Nylon: Good for most use (except acids/bleach)

Product Technical Information

  • Packaging Unit (PU)
    pcs
  • Temperature Range
    -40°C bis +100°C
  • Packaging Unit (PU) Content
    1
  • Color
    Yellow

Product Variants

GIN Item Number Price Stock Purchase Length WLL Vertical Main Material Weight Net WLL 90° Basket lbs WLL Choker Belt Layers Width
2024490
EE1701X3 		EE1701X3
$ 11.06
Sales Tax not included

3 ft. 1600 lbs Nylon 0.6 lbs 3200 lbs 1280 lbs 1 in
2024491
EE1701X4 		EE1701X4
$ 11.68
Sales Tax not included

4 ft. 1600 lbs Nylon 0.73 lbs 3200 lbs 1280 lbs 1 in
2024492
EE1701X6 		EE1701X6
$ 12.92
Sales Tax not included

6 ft. 1600 lbs Nylon 0.85 lbs 3200 lbs 1280 lbs 1 in
2024493
EE1701X10 		EE1701X10
$ 15.40
Sales Tax not included

10 ft. 1600 lbs Nylon 0.98 lbs 3200 lbs 1280 lbs 1 in
2024511
EE1702X3 		EE1702X3
$ 15.15
Sales Tax not included

3 ft. 3200 lbs Nylon 0.65 lbs 6400 lbs 2560 lbs 2 in
2024512
EE1702X4 		EE1702X4
$ 16.29
Sales Tax not included

4 ft. 3200 lbs Nylon 0.78 lbs 6400 lbs 2560 lbs 2 in
2024513
EE1702X6 		EE1702X6
$ 18.57
Sales Tax not included

6 ft. 3200 lbs Nylon 0.9 lbs 6400 lbs 2560 lbs 2 in
2024514
EE1702X10 		EE1702X10
$ 23.13
Sales Tax not included

10 ft. 3200 lbs Nylon 1.35 lbs 6400 lbs 2560 lbs 2 in
2024515
EE2701X3 		EE2701X3
$ 14.08
Sales Tax not included

3 ft. 3100 lbs Nylon 0.4 lbs 6200 lbs 2480 lbs 2 1 in
2024516
EE2701X6 		EE2701X6
$ 18.91
Sales Tax not included

6 ft. 3100 lbs Nylon 0.8 lbs 6200 lbs 2480 lbs 2 1 in
2024517
EE2701X10 		EE2701X10
$ 25.35
Sales Tax not included

10 ft. 3100 lbs Nylon 1.35 lbs 6200 lbs 2480 lbs 2 1 in
2024518
EE2702X3 		EE2702X3
$ 17.58
Sales Tax not included

3 ft. 6400 lbs Nylon 0.86 lbs 12800 lbs 5120 lbs 2 in
2024519
EE2702X6 		EE2702X6
$ 26.52
Sales Tax not included

6 ft. 6400 lbs Nylon 1.55 lbs 12800 lbs 5120 lbs 2 in
2024521
EE2702X12 		EE2702X12

Price under request

You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote.

12 ft. 6400 lbs Nylon 2.9 lbs 12800 lbs 5120 lbs 2 in
2024522
EE2702X6P 		EE2702X6P
$ 19.98
Sales Tax not included

6 ft. 6400 lbs Polyester 1.38 lbs 12800 lbs 5120 lbs 2 2 in
2024523
EE2702X10P 		EE2702X10P
$ 29.04
Sales Tax not included

10 ft. 6400 lbs Polyester 2.5 lbs 12800 lbs 5120 lbs 2 2 in
2024524
EE2702X12P 		EE2702X12P
$ 33.57
Sales Tax not included

12 ft. 6400 lbs Polyester 2.9 lbs 12800 lbs 5120 lbs 2 2 in
2024525
EE2704X6 		EE2704X6
$ 67.71
Sales Tax not included

6 ft. 11500 lbs Nylon 2.65 lbs 23000 lbs 9200 lbs 4 in
2024526
EE2704X10 		EE2704X10
$ 85.74
Sales Tax not included

10 ft. 11500 lbs Nylon 3.65 lbs 23000 lbs 9200 lbs 4 in
2024675
EE2702X3P 		EE2702X3P
$ 13.19
Sales Tax not included

3 ft. 6400 lbs Polyester 0.86 lbs 12800 lbs 5120 lbs 2 2 in
2027457
EE2701X4P 		EE2701X4P

Price under request

You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote.

4 ft. 3100 lbs Polyester 0.33 lbs 6200 lbs 2480 lbs 2 1 in
2027458
EE2701X6P 		EE2701X6P

Price under request

You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote.

6 ft. 3100 lbs Polyester 0.48 lbs 6200 lbs 2480 lbs 2 1 in
2027459
EE2701X8P 		EE2701X8P

Price under request

You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote.

8 ft. 3100 lbs Polyester 0.65 lbs 6200 lbs 2480 lbs 2 1 in
2027460
EE2702X16P 		EE2702X16P

Price under request

You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote.

16 ft. 6400 lbs Polyester 3.68 lbs 12800 lbs 5120 lbs 2 2 in
2027461
EE2702X20P 		EE2702X20P

Price under request

You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote.

20 ft. 6400 lbs Polyester 4.5 lbs 12800 lbs 5120 lbs 2 2 in
2027462
EE2702X4P 		EE2702X4P

Price under request

You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote.

4 ft. 6400 lbs Polyester 0.94 lbs 12800 lbs 5120 lbs 2 2 in
2027463
EE2702X8P 		EE2702X8P

Price under request

You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote.

8 ft. 6400 lbs Polyester 1.84 lbs 12800 lbs 5120 lbs 2 2 in
2027464
EE2703X4P 		EE2703X4P

Price under request

You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote.

4 ft. 9300 lbs Polyester 1.92 lbs 18600 lbs 7400 lbs 2 3 in
2027465
EE2703X6P 		EE2703X6P

Price under request

You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote.

6 ft. 9300 lbs Polyester 2.88 lbs 18600 lbs 7400 lbs 2 3 in
2027466
EE2703X8P 		EE2703X8P

Price under request

You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote.

8 ft. 9300 lbs Polyester 3.84 lbs 18600 lbs 7400 lbs 2 3 in
2027467
EE2703X10P 		EE2703X10P

Price under request

You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote.

10 ft. 9300 lbs Polyester 4.8 lbs 18600 lbs 7400 lbs 2 3 in
2027468
EE2703X12P 		EE2703X12P

Price under request

You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote.

12 ft. 9300 lbs Polyester 5.76 lbs 18600 lbs 7400 lbs 2 3 in
2027469
EE2703X16P 		EE2703X16P

Price under request

You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote.

16 ft. 9300 lbs Polyester 7.68 lbs 18600 lbs 7400 lbs 2 3 in
2027470
EE2703X20P 		EE2703X20P

Price under request

You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote.

20 ft. 9300 lbs Polyester 9.6 lbs 18600 lbs 7400 lbs 2 3 in
2027471
EE2704X4P 		EE2704X4P

Price under request

You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote.

4 ft. 11500 lbs Polyester 1.88 lbs 23000 lbs 9200 lbs 2 4 in
2027472
EE2704X6P 		EE2704X6P

Price under request

You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote.

6 ft. 11500 lbs Polyester 2.82 lbs 23000 lbs 9200 lbs 2 4 in
2027473
EE2704X10P 		EE2704X10P

Price under request

You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote.

10 ft. 11500 lbs Polyester 4.7 lbs 23000 lbs 9200 lbs 2 4 in
2027474
EE2704X12P 		EE2704X12P

Price under request

You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote.

12 ft. 11500 lbs Polyester 5.64 lbs 23000 lbs 9200 lbs 2 4 in
2027475
EE2704X20P 		EE2704X20P

Price under request

You can request a quote by adding the item to the shopcart. Lead times may vary depending on the availability and may be included in the quote.

20 ft. 11500 lbs Polyester 9.4 lbs 23000 lbs 9200 lbs 2 4 in
