Name: Secutex - SF1 single-sided
Brand: SpanSet Germany
SKU: 2015303
Availability: OutOfStock

With polyurethane coating, for lifting and turning sharp-edged loads

Coated on one side and therefore more flexible compared to a coating on both sides. Extremely resistant and minimizes the build-up of wrinkles in the textile.

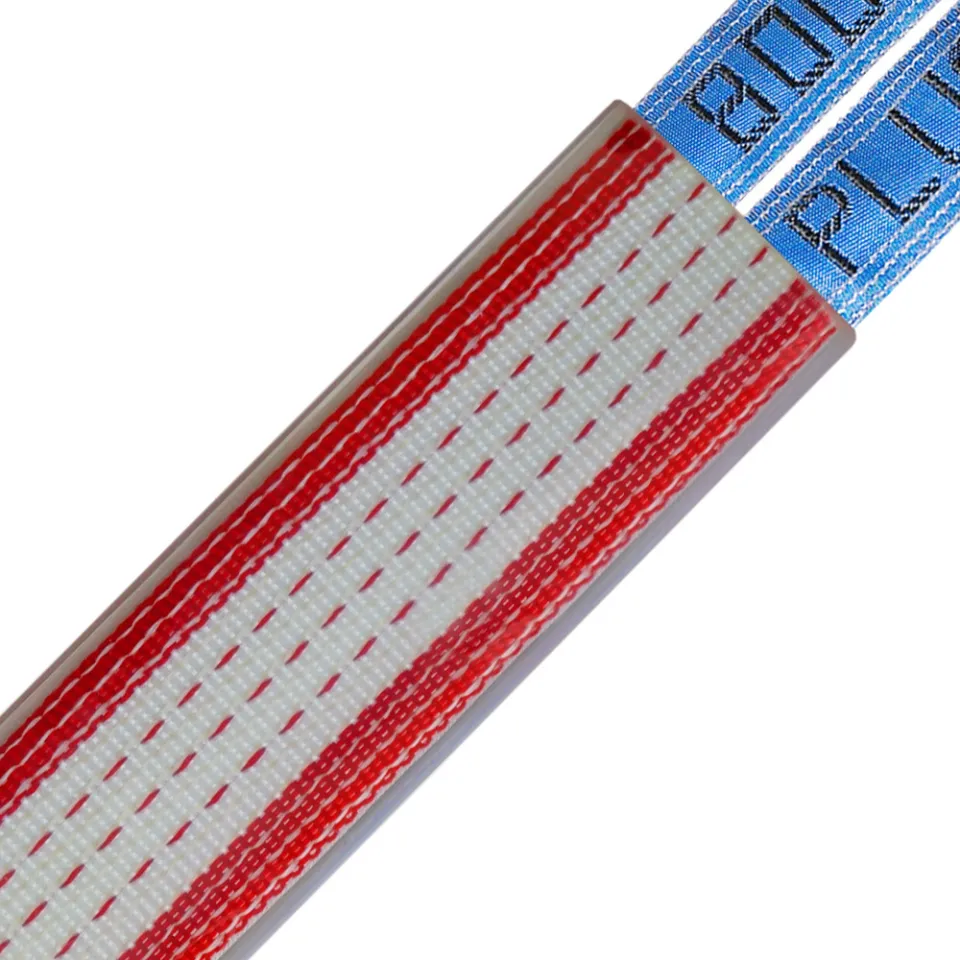

The secutex protective sleeve with single-sided coating can be easily pushed over lifting equipment and protects against damage caused by “sharp edges” and the rough edges of the lifting equipment and the load at the same time.

*SpanSet sling widths are included in the attached documents.

Product Technical Information

Main Material
Polyurethane
Packaging Unit (PU)
pcs
Packaging Unit (PU) Content
1

Technical Drawings

Variants information

Item Number	Item Name	Price	Length	Width Inside	Height Inside	Width Outside	For Lifting Equipment	Height Outside	Weight per Meter
2015303	SF1 50/3 1m	Price under request	1 m	55 mm	10 mm	70 mm	Round Sling	25 mm	0.9 kg/m
2015306	SF1 65/3 1m	Price under request	1 m	75 mm	10 mm	80 mm	Round Sling	25 mm	1.1 kg/m
2015307	SF1 75/3 1m	Price under request	1 m	80 mm	10 mm	95 mm	Round Sling	25 mm	1.3 kg/m
2015308	SF1 100/3 1m	Price under request	1 m	105 mm	10 mm	125 mm	Round Sling	25 mm	1.5 kg/m
2015309	SF1 125/3 1m	Price under request	1 m	120 mm	10 mm	145 mm	Round Sling	25 mm	1.9 kg/m
2015310	SF1 150/3 1m	Price under request	1 m	125 mm	25 mm	145 mm	Round Sling	40 mm	2.1 kg/m
2015311	SF1-30 1m	Price under request	1 m	38 mm	15 mm	55 mm	Flat Sling	28 mm	0.6 kg/m
2015312	SF1 200-20/3 1m	Price under request	1 m	145 mm	20 mm	165 mm	Round Sling	35 mm	2.4 kg/m
2015313	SF1 250-25/3 1m	Price under request	1 m	185 mm	30 mm	205 mm	Round Sling	45 mm	4.6 kg/m
2015314	SF1-60 1m	Price under request	1 m	65 mm	15 mm	85 mm	Flat Sling	28 mm	1 kg/m
2015315	SF1 300-30/3 1m	Price under request	1 m	245 mm	30 mm	265 mm	Round Sling	45 mm	3.7 kg/m
2015316	SF1 300-35/3 1m	Price under request	1 m	245 mm	30 mm	265 mm	Round Sling	45 mm	4 kg/m
2015317	SF1-90 1m	Price under request	1 m	95 mm	10 mm	115 mm	Flat Sling	25 mm	1.5 kg/m
2015318	SF1 300-40/3 1m	Price under request	1 m	310 mm	20 mm	340 mm	Round Sling	40 mm	4.6 kg/m
2015319	SF1-120 1m	Price under request	1 m	120 mm	10 mm	145 mm	Flat Sling	25 mm	2 kg/m
2015320	SF1 350-50/3 1m	Price under request	1 m	340 mm	40 mm	365 mm	Round Sling	60 mm	4.9 kg/m
2015321	SF1-150 1m	Price under request	1 m	150 mm	10 mm	175 mm	Flat Sling	25 mm	2.3 kg/m
2015322	SF1-180 1m	Price under request	1 m	180 mm	15 mm	210 mm	Flat Sling	30 mm	2.9 kg/m
2015323	SF1-240 1m	Price under request	1 m	240 mm	20 mm	270 mm	Flat Sling	35 mm	3.7 kg/m
2015324	SF1-300 1m	Price under request	1 m	310 mm	20 mm	340 mm	Flat Sling	35 mm	4.6 kg/m
2027561	SF1-30 0.5m	Price under request	0.5 m	38 mm	15 mm	55 mm	Flat Sling	28 mm	0.6 kg/m
2027562	SF1-30 1.5m	Price under request	1.5 m	38 mm	15 mm	55 mm	Flat Sling	28 mm	0.6 kg/m
2027563	SF1-30 2m	Price under request	2 m	38 mm	15 mm	55 mm	Flat Sling	28 mm	0.6 kg/m
2027564	SF1-60 0.5m	Price under request	0.5 m	65 mm	15 mm	85 mm	Flat Sling	28 mm	1 kg/m
2027565	SF1-60 1.5m	Price under request	1.5 m	65 mm	15 mm	85 mm	Flat Sling	28 mm	1 kg/m
2027566	SF1-60 2m	Price under request	2 m	65 mm	15 mm	85 mm	Flat Sling	28 mm	1 kg/m
2027567	SF1-90 0.5m	Price under request	0.5 m	95 mm	10 mm	115 mm	Flat Sling	25 mm	1.5 kg/m
2027568	SF1-90 1.5m	Price under request	1.5 m	95 mm	10 mm	115 mm	Flat Sling	25 mm	1.5 kg/m
2027569	SF1-90 2m	Price under request	2 m	95 mm	10 mm	115 mm	Flat Sling	25 mm	1.5 kg/m
2027570	SF1-120 0.5m	Price under request	0.5 m	120 mm	10 mm	145 mm	Flat Sling	25 mm	2 kg/m
2027571	SF1-120 1.5m	Price under request	1.5 m	120 mm	10 mm	145 mm	Flat Sling	25 mm	2 kg/m
2027572	SF1-120 2m	Price under request	2 m	120 mm	10 mm	145 mm	Flat Sling	25 mm	2 kg/m
2027573	SF1-150 0.5m	Price under request	0.5 m	150 mm	10 mm	175 mm	Flat Sling	25 mm	2.3 kg/m
2027574	SF1-150 1.5m	Price under request	1.5 m	150 mm	10 mm	175 mm	Flat Sling	25 mm	2.3 kg/m
2027575	SF1-150 2m	Price under request	2 m	150 mm	10 mm	175 mm	Flat Sling	25 mm	2.3 kg/m
2027576	SF1-180 0.5m	Price under request	0.5 m	180 mm	15 mm	210 mm	Flat Sling	30 mm	2.9 kg/m
2027577	SF1-180 1.5m	Price under request	1.5 m	180 mm	15 mm	210 mm	Flat Sling	30 mm	2.9 kg/m
2027578	SF1-180 2m	Price under request	2 m	180 mm	15 mm	210 mm	Flat Sling	30 mm	2.9 kg/m
2027579	SF1-240 0.5m	Price under request	0.5 m	240 mm	20 mm	270 mm	Flat Sling	35 mm	3.7 kg/m
2027580	SF1-240 1.5m	Price under request	1.5 m	240 mm	20 mm	270 mm	Flat Sling	35 mm	3.7 kg/m
2027581	SF1-240 2m	Price under request	2 m	240 mm	20 mm	270 mm	Flat Sling	35 mm	3.7 kg/m
2027582	SF1-300 0.5m	Price under request	0.5 m	310 mm	20 mm	335 mm	Flat Sling	35 mm	4.6 kg/m
2027583	SF1-300 1.5m	Price under request	1.5 m	310 mm	20 mm	335 mm	Flat Sling	35 mm	4.6 kg/m
2027584	SF1-300 2m	Price under request	2 m	310 mm	20 mm	335 mm	Flat Sling	35 mm	4.6 kg/m
2027585	SF1 50/3 0.5m	Price under request	0.5 m	55 mm	10 mm	70 mm	Round Sling	25 mm	0.9 kg/m
2027586	SF1 50/3 1.5m	Price under request	1.5 m	55 mm	10 mm	70 mm	Round Sling	25 mm	0.9 kg/m
2027587	SF1 50/3 2m	Price under request	2 m	55 mm	10 mm	70 mm	Round Sling	25 mm	0.9 kg/m
2027588	SF1 65/3 0.5m	Price under request	0.5 m	75 mm	10 mm	80 mm	Round Sling	25 mm	1.1 kg/m
2027589	SF1 65/3 1.5m	Price under request	1.5 m	75 mm	10 mm	80 mm	Round Sling	25 mm	1.1 kg/m
2027590	SF1 65/3 2m	Price under request	2 m	75 mm	10 mm	80 mm	Round Sling	25 mm	1.1 kg/m
2027591	SF1 75/3 0.5m	Price under request	0.5 m	80 mm	10 mm	95 mm	Round Sling	25 mm	1.3 kg/m
2027592	SF1 75/3 1.5m	Price under request	1.5 m	80 mm	10 mm	95 mm	Round Sling	25 mm	1.3 kg/m
2027593	SF1 75/3 2m	Price under request	2 m	80 mm	10 mm	95 mm	Round Sling	25 mm	1.3 kg/m
2027594	SF1 100/3 0.5m	Price under request	0.5 m	105 mm	10 mm	125 mm	Round Sling	25 mm	1.5 kg/m
2027595	SF1 100/3 1.5m	Price under request	1.5 m	105 mm	10 mm	125 mm	Round Sling	25 mm	1.5 kg/m
2027596	SF1 100/3 2m	Price under request	2 m	105 mm	10 mm	125 mm	Round Sling	25 mm	1.5 kg/m
2027597	SF1 125/3 0.5m	Price under request	0.5 m	120 mm	10 mm	145 mm	Round Sling	25 mm	1.9 kg/m
2027598	SF1 125/3 1.5m	Price under request	1.5 m	120 mm	10 mm	145 mm	Round Sling	25 mm	1.9 kg/m
2027599	SF1 125/3 2m	Price under request	2 m	120 mm	10 mm	145 mm	Round Sling	25 mm	1.9 kg/m
2027600	SF1 150/3 0.5m	Price under request	0.5 m	125 mm	25 mm	145 mm	Round Sling	40 mm	2.1 kg/m
2027601	SF1 150/3 1.5m	Price under request	1.5 m	125 mm	25 mm	145 mm	Round Sling	40 mm	2.1 kg/m
2027602	SF1 150/3 2m	Price under request	2 m	125 mm	25 mm	145 mm	Round Sling	40 mm	2.1 kg/m
2028466	SF1 200-20/3 0.5m	Price under request	0.5 m	145 mm	20 mm	165 mm	Round Sling	35 mm	2.4 kg/m
2028467	SF1 200-20/3 1.5m	Price under request	1.5 m	145 mm	20 mm	165 mm	Round Sling	35 mm	2.4 kg/m
2028468	SF1 200-20/3 2m	Price under request	2 m	145 mm	20 mm	165 mm	Round Sling	35 mm	2.4 kg/m
2028469	SF1 250-25/3 0.5m	Price under request	0.5 m	185 mm	30 mm	205 mm	Round Sling	45 mm	4.6 kg/m
2028470	SF1 250-25/3 1.5m	Price under request	1.5 m	185 mm	30 mm	205 mm	Round Sling	45 mm	4.6 kg/m
2028471	SF1 250-25/3 2m	Price under request	2 m	185 mm	30 mm	205 mm	Round Sling	45 mm	4.6 kg/m
2028529	SF1 300-30/3 0.5m	Price under request	0.5 m	245 mm	30 mm	265 mm	Round Sling	45 mm	3.7 kg/m
2028530	SF1 300-30/3 1.5m	Price under request	1.5 m	245 mm	30 mm	265 mm	Round Sling	45 mm	3.7 kg/m
2028531	SF1 300-30/3 2m	Price under request	2 m	245 mm	30 mm	265 mm	Round Sling	45 mm	3.7 kg/m
2028532	SF1 300-35/3 0.5m	Price under request	0.5 m	245 mm	30 mm	265 mm	Round Sling	45 mm	4 kg/m
2028533	SF1 300-35/3 1.5m	Price under request	1.5 m	245 mm	30 mm	265 mm	Round Sling	45 mm	4 kg/m
2028534	SF1 300-35/3 2m	Price under request	2 m	245 mm	30 mm	265 mm	Round Sling	45 mm	4 kg/m
2028535	SF1 300-40/3 0.5m	Price under request	0.5 m	310 mm	20 mm	340 mm	Round Sling	40 mm	4.6 kg/m
2028536	SF1 300-40/3 1.5m	Price under request	1.5 m	310 mm	20 mm	340 mm	Round Sling	40 mm	4.6 kg/m
2028537	SF1 300-40/3 2m	Price under request	2 m	310 mm	20 mm	340 mm	Round Sling	40 mm	4.6 kg/m
2028538	SF1 350-50/3 0.5m	Price under request	0.5 m	340 mm	40 mm	365 mm	Round Sling	60 mm	4.9 kg/m
2028539	SF1 350-50/3 1.5m	Price under request	1.5 m	340 mm	40 mm	365 mm	Round Sling	60 mm	4.9 kg/m
2028540	SF1 350-50/3 2m	Price under request	2 m	340 mm	40 mm	365 mm	Round Sling	60 mm	4.9 kg/m
