Twintex®
EUR 48,50
VAT not included

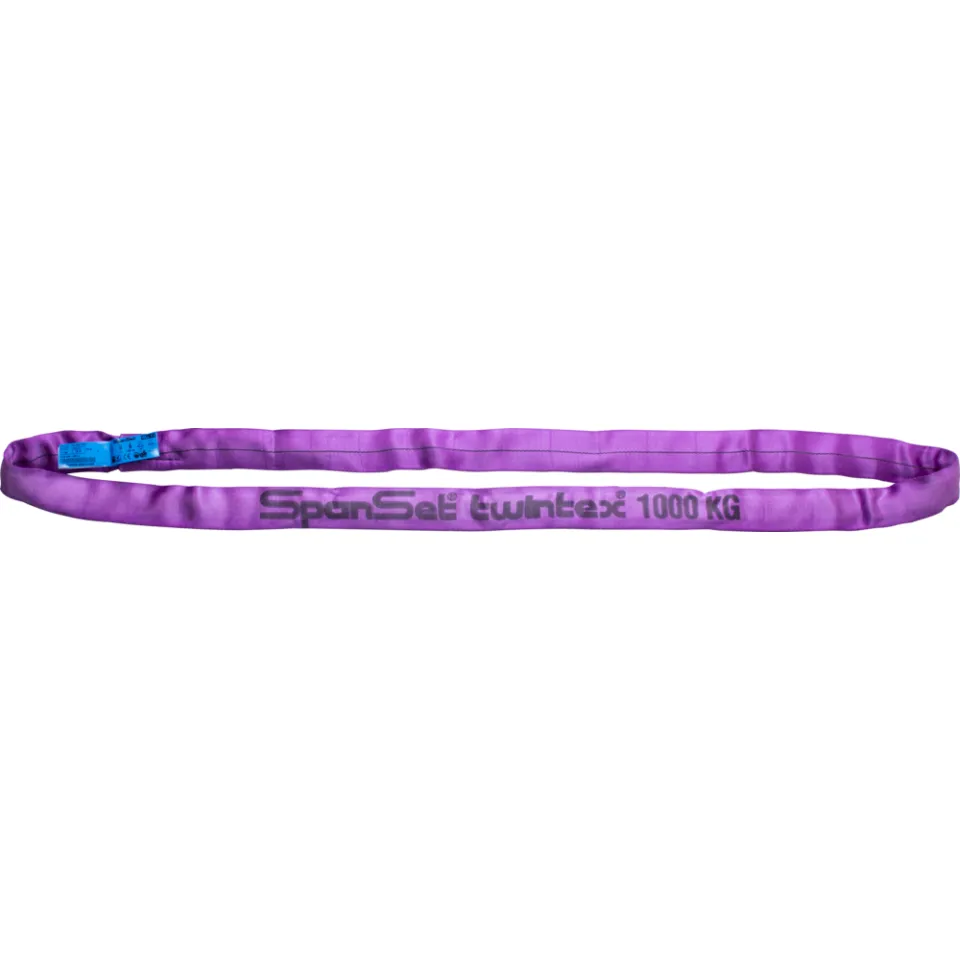

Twintex®
Lifting round sling with safety chambers that make it more difficult for foreign matter and dirt particles to penetrate the fabric
EUR 48,50
VAT not included
Available within 10-15 Days
- Double sleeve with safety chamber makes it more difficult for foreign matter to penetrate the material if the outer sleeve if damaged.
- Load capacity indication printed on.
- Optional fitting with an RFID transponder.
- 2-ply, tear-resistant label.
Select Model
EUR 48,50
VAT not included
Available within 10-15 Days

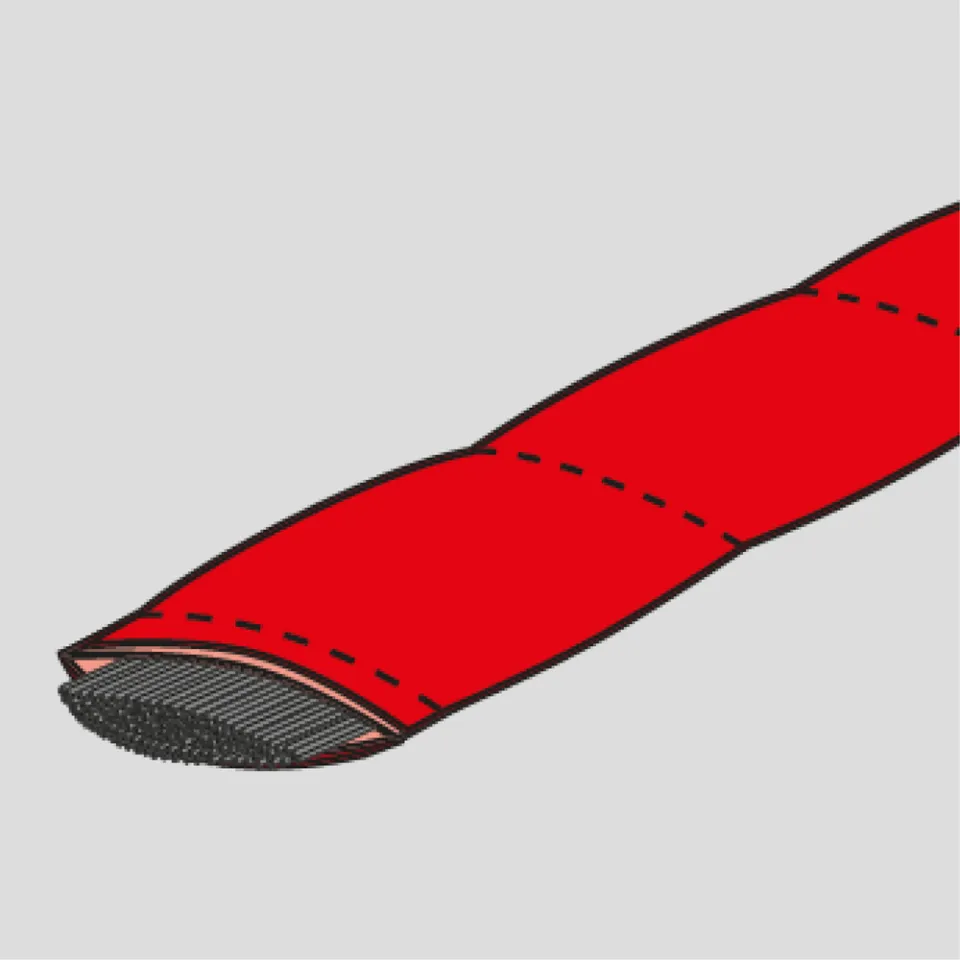

Safety chambers
Protects against ingress of dirt and foreign matter
The layers are woven into one another in sections in the double sleeve. This creates „chambers“ that make it more difficult for foreign matter and dirt particles to penetrate the fabric in the presence of damage on the outer sleeve.

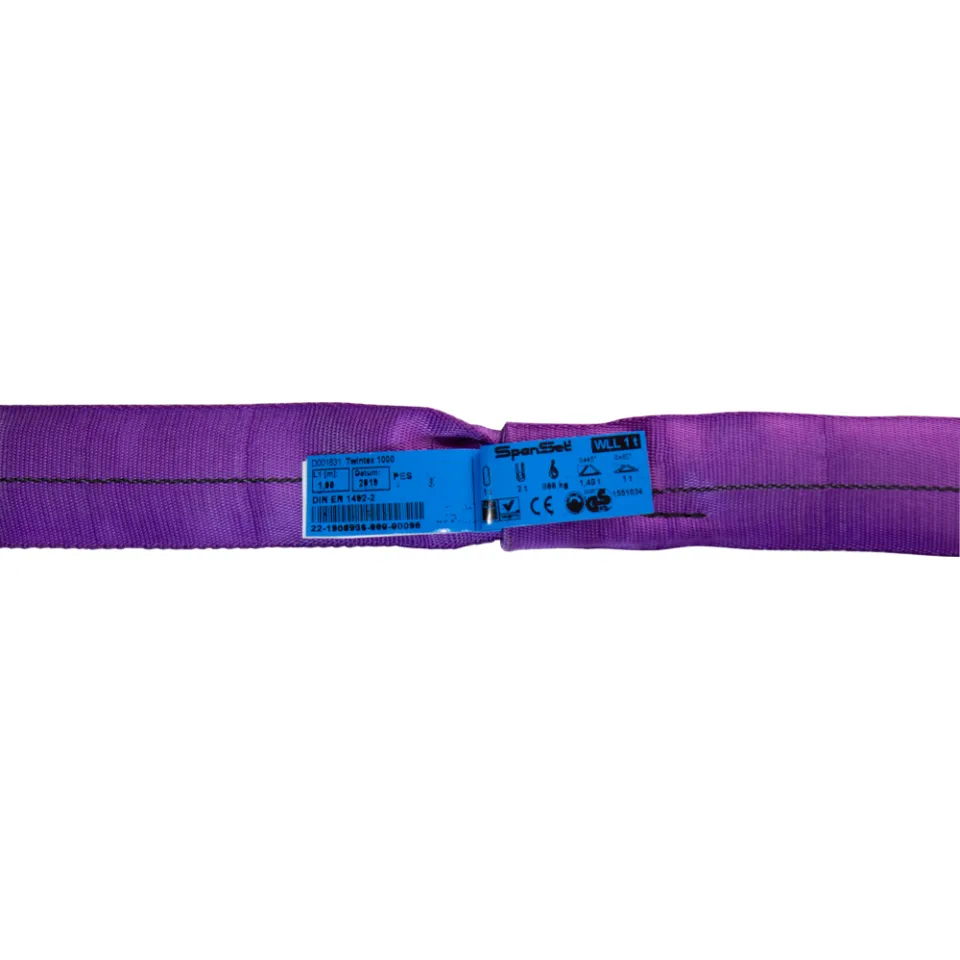

Folded label
Protection against damage
The label is also shorter because of a fold in the middle for more tear-resistant. In addition, the writing on the inside is protected against abrasion.
RFID optional
Attachment strap for retrofitting
All SpanSet gear can be fitted with an RFID transponder for asset management with IDXpert.
Tested quality
Twintex round slings with load capacities of 1 to 8 t meet all the requirements stipulated in DIN EN 1492-2. The GS-tested round slings are colour-coded in accordance with the Euro standard and have a 2-ply, permanently interwoven identification label. Furthermore, interwoven ton markings and printing on the sling indicate the maximum load capacity to help you quickly and reliably select the correct sling for your loads.
Dual chamber system
To protect against damage, Twintex roundslings are enveloped by a double hose layers are interweaved with one another section by section . This creates „chambers“ that make it more difficult for foreign matter and dirt particles to penetrate the fabric in the presence of damage on the outer sleeve.
Useful accessories
Different protective sleeves to protect against sharp edges are available for Twintex. Furthermore, the round sling can also be fitted with an RFID chip to facilitate electronic asset management.
Product Technical Information
-
Safety Factor
7:1 -
Norms
EN 1492-2: 2000 -
Temperature Range
- 40 bis + 100°C -
Dimension L1 max
30 m -
Label Protection
No -
Tubing Type
Double chamber -
Main Material
Polyester -
Packaging Unit (PU)
pcs -
Packaging Unit (PU) Content
1
Product downloads and manuals
Technical Drawings
Variants information
| Item Number | Item Name | WLL kg | Dimension L1 | Weight per Meter | Contact Thickness Under Load | WLL t | Dimension L1 min | Weight Net |
|---|---|---|---|---|---|---|---|---|
| 2002729 | Twintex 1000 5m | 1000 kg | 5 m | 0.3 kg/m | 4 mm | 1 t | 0.38 m | 1.5 kg |
| 2002730 | Twintex 1000 4m | 1000 kg | 4 m | 0.3 kg/m | 4 mm | 1 t | 0.38 m | 1.2 kg |
| 2002731 | Twintex 2000 5m | 2000 kg | 5 m | 0.5 kg/m | 6 mm | 2 t | 0.38 m | 2.5 kg |
| 2002732 | Twintex 2000 4m | 2000 kg | 4 m | 0.5 kg/m | 6 mm | 2 t | 0.38 m | 2 kg |
| 2002733 | Twintex 3000 5m | 3000 kg | 5 m | 0.6 kg/m | 7 mm | 3 t | 0.38 m | 3 kg |
| 2002734 | Twintex 3000 4m | 3000 kg | 4 m | 0.6 kg/m | 7 mm | 3 t | 0.38 m | 2.4 kg |
| 2002735 | Twintex 4000 5m | 4000 kg | 5 m | 0.8 kg/m | 8 mm | 4 t | 0.5 m | 4 kg |
| 2002736 | Twintex 4000 4m | 4000 kg | 4 m | 0.8 kg/m | 8 mm | 4 t | 0.5 m | 3.2 kg |
| 2002737 | Twintex 5000 5m | 5000 kg | 5 m | 1 kg/m | 9 mm | 5 t | 0.5 m | 5 kg |
| 2002738 | Twintex 5000 4m | 5000 kg | 4 m | 1 kg/m | 9 mm | 5 t | 0.5 m | 4 kg |
| 2002739 | Twintex 6000 5m | 6000 kg | 5 m | 1.3 kg/m | 12 mm | 6 t | 0.75 m | 6.5 kg |
| 2002740 | Twintex 6000 4m | 6000 kg | 4 m | 1.3 kg/m | 12 mm | 6 t | 0.75 m | 5.2 kg |
| 2002741 | Twintex 8000 5m | 8000 kg | 5 m | 1.8 kg/m | 13 mm | 8 t | 0.75 m | 9 kg |
| 2002742 | Twintex 8000 4m | 8000 kg | 4 m | 1.8 kg/m | 13 mm | 8 t | 0.75 m | 7.2 kg |
| 2003217 | Twintex 1000 3m | 1000 kg | 3 m | 0.3 kg/m | 4 mm | 1 t | 0.38 m | 0.9 kg |
| 2003218 | Twintex 1000 2m | 1000 kg | 2 m | 0.3 kg/m | 4 mm | 1 t | 0.38 m | 0.6 kg |
| 2003219 | Twintex 2000 3m | 2000 kg | 3 m | 0.5 kg/m | 6 mm | 2 t | 0.38 m | 1.5 kg |
| 2003220 | Twintex 2000 2m | 2000 kg | 2 m | 0.5 kg/m | 6 mm | 2 t | 0.38 m | 1 kg |
| 2003221 | Twintex 3000 3m | 3000 kg | 3 m | 0.6 kg/m | 7 mm | 3 t | 0.38 m | 1.8 kg |
| 2003222 | Twintex 3000 2m | 3000 kg | 2 m | 0.6 kg/m | 7 mm | 3 t | 0.38 m | 1.2 kg |
| 2003223 | Twintex 4000 3m | 4000 kg | 3 m | 0.8 kg/m | 8 mm | 4 t | 0.5 m | 2.4 kg |
| 2003224 | Twintex 4000 2m | 4000 kg | 2 m | 0.8 kg/m | 8 mm | 4 t | 0.5 m | 1.6 kg |
| 2003225 | Twintex 5000 3m | 5000 kg | 3 m | 1 kg/m | 9 mm | 5 t | 0.5 m | 3 kg |
| 2003226 | Twintex 5000 2m | 5000 kg | 2 m | 1 kg/m | 9 mm | 5 t | 0.5 m | 2 kg |
| 2003227 | Twintex 6000 3m | 6000 kg | 3 m | 1.3 kg/m | 12 mm | 6 t | 0.75 m | 3.9 kg |
| 2003228 | Twintex 6000 2m | 6000 kg | 2 m | 1.3 kg/m | 12 mm | 6 t | 0.75 m | 2.6 kg |
| 2003229 | Twintex 8000 3m | 8000 kg | 3 m | 1.8 kg/m | 13 mm | 8 t | 0.75 m | 5.4 kg |
| 2003230 | Twintex 8000 2m | 8000 kg | 2 m | 1.8 kg/m | 13 mm | 8 t | 0.75 m | 3.6 kg |
| 2003714 | Twintex 1000 1m | 1000 kg | 1 m | 0.3 kg/m | 4 mm | 1 t | 0.38 m | 0.3 kg |
| 2003715 | Twintex 1000 1,5m | 1000 kg | 1.5 m | 0.3 kg/m | 4 mm | 1 t | 0.38 m | 0.45 kg |
| 2003716 | Twintex 2000 1m | 2000 kg | 1 m | 0.5 kg/m | 6 mm | 2 t | 0.38 m | 0.5 kg |
| 2003717 | Twintex 2000 1,5m | 2000 kg | 1.5 m | 0.5 kg/m | 6 mm | 2 t | 0.38 m | 0.75 kg |
| 2003718 | Twintex 3000 1m | 3000 kg | 1 m | 0.6 kg/m | 7 mm | 3 t | 0.38 m | 0.6 kg |
| 2003719 | Twintex 3000 1,5 | 3000 kg | 1.5 m | 0.6 kg/m | 7 mm | 3 t | 0.38 m | 0.9 kg |
| 2003720 | Twintex 4000 1m | 4000 kg | 1 m | 0.8 kg/m | 8 mm | 4 t | 0.5 m | 0.8 kg |
| 2003721 | Twintex 4000 1,5m | 4000 kg | 1.5 m | 0.8 kg/m | 8 mm | 4 t | 0.5 m | 1.2 kg |
| 2003722 | Twintex 5000 1m | 5000 kg | 1 m | 1 kg/m | 9 mm | 5 t | 0.5 m | 1 kg |
| 2003723 | Twintex 5000 1,5m | 5000 kg | 1.5 m | 1 kg/m | 9 mm | 5 t | 0.5 m | 1.5 kg |
| 2003724 | Twintex 6000 1m | 6000 kg | 1 m | 1.3 kg/m | 12 mm | 6 t | 0.75 m | 1.3 kg |
| 2003725 | Twintex 6000 1,5m | 6000 kg | 1.5 m | 1.3 kg/m | 12 mm | 6 t | 0.75 m | 1.95 kg |
| 2003726 | Twintex 8000 1m | 8000 kg | 1 m | 1.8 kg/m | 13 mm | 8 t | 0.75 m | 1.8 kg |
| 2003727 | Twitnex 8000 1,5m | 8000 kg | 1.5 m | 1.8 kg/m | 13 mm | 8 t | 0.75 m | 2.7 kg |
