MagnumForce – Strong, safe and sustainable
With the MagnumForce Green, SpanSet is setting new standards in lifting technology in terms of safety and environmental awareness. Through the processing of bio-based fibers in the core, the heavy-duty round sling generates a significantly lower CO2 footprint.
Strong, safe and sustainable

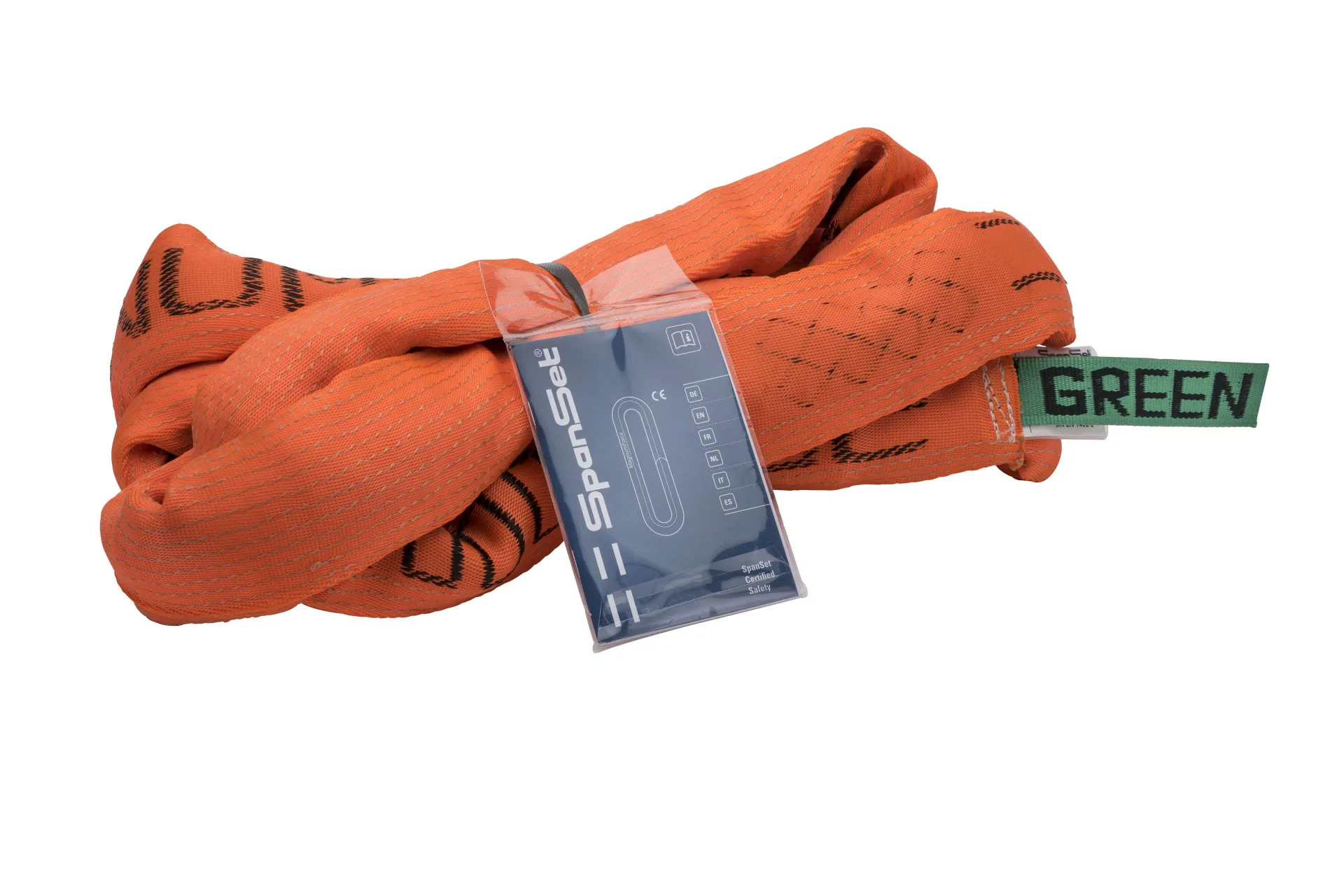

With the MagnumForce Green, SpanSet is setting new standards in lifting technology in terms of safety and environmental awareness. Through the processing of bio-based fibers in the core, the heavy-duty round sling generates a significantly lower CO2 footprint. In addition, the MagnumForce Green optimally meets the diverse requirements of a wide range of industries and covers the entire spectrum of applications.
Proven SpanSet design features and innovative high-performance materials have been optimally matched and recombined in the round sling. The result: Maximum safety and perfect handling complemented by conscious sustainability in every lifting operation.
Benefits in terms of efficiency and costs
High Modulus Polyethylene
More compact and lightweight.
HMPE increased strength in comparison with polyester, less material is required for slings of the same load-bearing capacity.

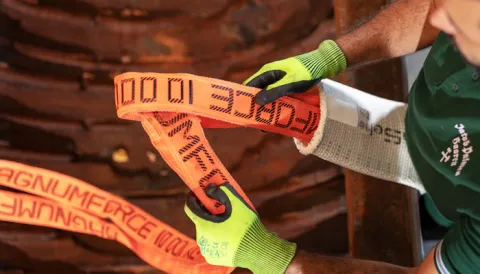

A 50 % lower sling thickness
Makes it possible to use slings on smaller radii. The benefit: No time-consuming fitting of protective sleeves, wider areas of application, lower incidence of mis-use in applications.

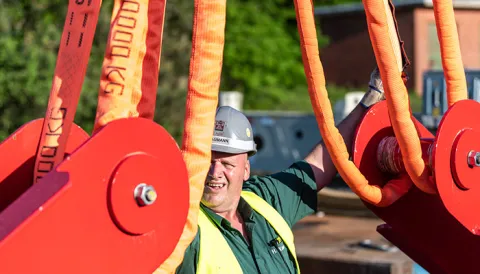

60 % lighter than conventional slings
This makes handling and transport easier. Industrial trucks are not required. Processes are accelerated, and you save time and money.

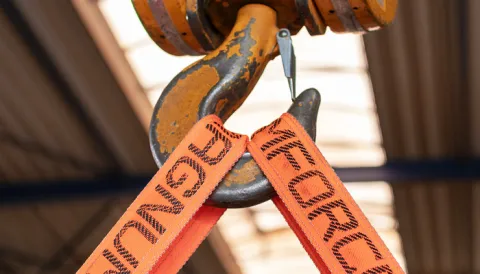

Fit on smaller
crane hooks
Will even fit on smaller crane hooks without being constricted.

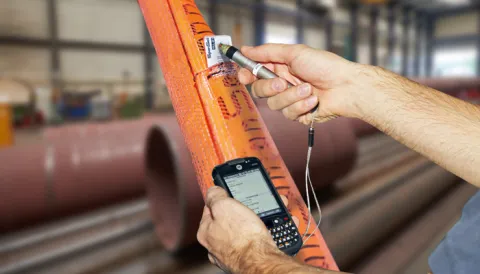

RFID
transponder
Label makes it possible to digitally retrieve the certification documentation. This is a simple task in conjunction with IDXpert, the asset management software that we use within our company.

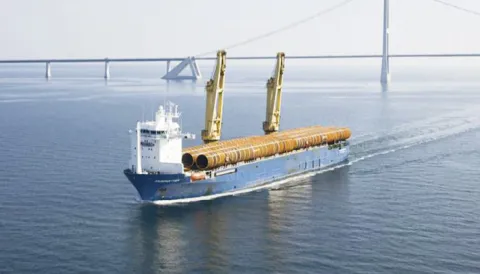

Great
buoyancy
Makes it ideal for offshore operation: It can be easily retrieved from the surface of the water.

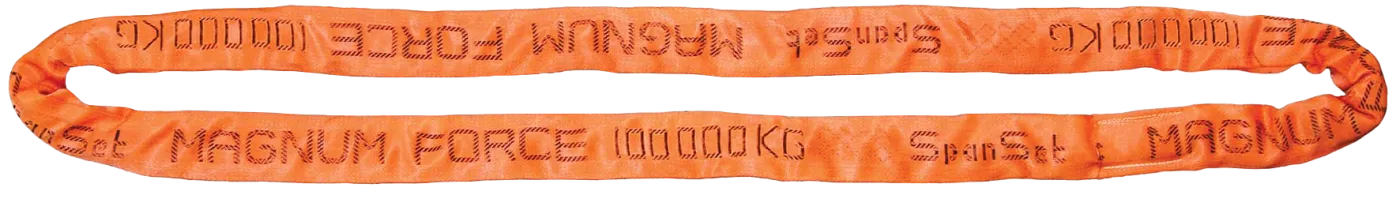

Load-bearing capacities
(WLL - Working Load Limit)
| WLL [kg] | approx. sling thickness under load [mm] |
approx. sling width under load [mm] |
approx. weight running m [kg] |
|
| MagnumForce Green 10000 | 10.000 | 7 | 70 | 0,8 |
| MagnumForce Green 20000 | 20.000 | 18 | 91 | 1,6 |
| MagnumForce Green 30000 | 30.000 | 20 | 115 | 2,6 |
| MagnumForce Green 40000 | 40.000 | 22 | 140 | 3,4 |
| MagnumForce Green 50000 | 50.000 | 23 | 152 | 4,2 |
| MagnumForce Green 60000 | 60.000 | 23 | 165 | 5,0 |
| MagnumForce Green 80000 | 80.000 | 27 | 200 | 6,1 |
| MagnumForce Green 100000 | 100.000 | 35 | 190 | 7,1 |
The combination of shackles
and MagnumForce with the same load-bearing capacity also increases safety. We have tested this in co-operation with the BGHM (Berufsgenossenschaft Holz und Metall) [Trade Association for Wood and Metal].
Downloads
Operating instructions
Multilingual operating instructions: German, English, French, Dutch, Italian and Spanish.
For the sake of the environment, we refrain from distributing the operating instructions in printed form.
For this reason, each product has the option of scanning the QR code to retrieve the current operating instructions.
MagnumForce – Certified Safety
We do not leave your safety to chance. Every new product is therefore subjected to extensive tests and inspections. The MagnumForce has passed all of these tests with distinction.
In the fatigue test, the MagnumForce was subjected to 20,000 load cycles up to its load-bearing capacity, whereby the optimal fabric design was verified. An indication of the sling’s long service life and therefore
high economic efficiency.
We tested and proved the combination of MagnumForce with Exoset shackles of the same load-bearing capacity in co-operation with the BGHM (Berufsgenossenschaft Holz und Metall) [Trade Association for Wood and Metal]. The successful tests have allowed us to define the new state of the art and fulfil our customers’ desire for greater safety during use.
