Hyflex 35P
Wire Ropes
Rotation Resistant & Low Rotation Conventional Multi Strands Products
Hyflex 35P
Wire Ropes
Rotation Resistant & Low Rotation Conventional Multi Strands Products
- Giving advantage for crane application which requires the resistant to rotation.
- Low Rotation.
- Very Flexible.
- High Strength.

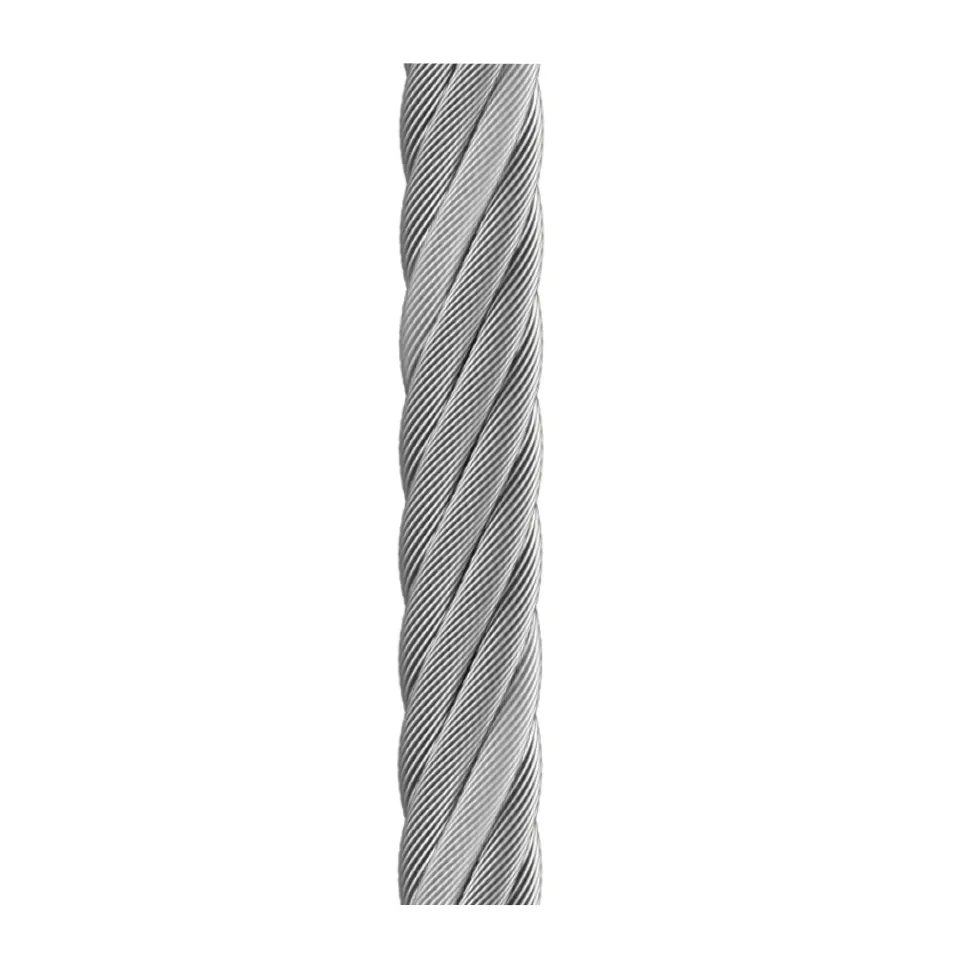

- RHLL - Righ Hand Lang's Lay.
Select Model
HYFLEX 35X7 13MM Pi
Item Number: 2023273
| SSID ERP Code: UM35X7OP-WSd13.0ZZ1960G
Price under request
You can ask for a quote adding the item to the shopcartIn stock. Available within 5-7 Days
- Giving advantage for crane application which requires the resistant to rotation.
- Low Rotation.
- Very Flexible.
- High Strength.
- RHLL - Righ Hand Lang's Lay.
Price under request
Select Model
HYFLEX 35X7 13MM Pi
Item Number: 2023273
| SSID ERP Code: UM35X7OP-WSd13.0ZZ1960G
Price under request
You can ask for a quote adding the item to the shopcartIn stock. Available within 5-7 Days
All wire rope that we supply are only high quality and certified products according to International Standard of BS EN 12385, API Spec 9A, ISO 2408 and SNI.
These wire Rope are manufactured by a company that has ISO 9001:2015 certification and also have 3rd party certification from ABS, DNV-GL and Lloyds.
Recommendations for Use
Do not use damaged wire ropes and slings with defects, such as wire breaks, bulges, bruises, kinks, severed core, heavy wear, rust damage or others.
Do not exceed the specified load carrying capacity (WLL).
Do not strike at a tilt angle exceeding 60°.
Do not use wire ropes with broken strands.
Do not use in contact with chemicals.
Sling ropes may only be used for lifting and transporting loads and only by instructed persons. The regulation on the safe use of cranes (Crane Regulation) must be observed without fail (Suva-Form.1420. d).
Product Technical Information
-
Main Material
Steel -
Packaging Unit (PU)
pcs -
Temperature Range
-40° C to + 100° C -
Packaging Unit (PU) Content
1
Variants information
| Item Number | Item Name | Price | Stock | Purchase | Rope Diameter | Minimum Breaking Force [Kn] | Minimum Breaking Force [Tn] |
|---|---|---|---|---|---|---|---|
| 2023273
UM35X7OP-WSd13.0ZZ1960G |
HYFLEX 35X7 13MM Pi |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
13 mm | 128 kN | 13 t |
| 2023274
UM35X7OP-WSd14.0ZZ1960G |
HYFLEX 35X7 14MM Pi |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
14 mm | 148 kN | 15.1 t |
| 2023275
UM35X7OP-WSd16.0ZZ1960G |
HYFLEX 35X7 16MM Pi |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
16 mm | 194 kN | 19.8 t |
| 2023276
UM35X7OP-WSd18.0ZZ1960G |
18MM HYFLEX 35X7 18MM Pi |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
18 mm | 242 kN | 24.7 t |
| 2023277
UM35X7OP-WSd19.0ZZ1960G |
HYFLEX 35X7 19MM Pi |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
19 mm | 277 kN | 28.2 t |
| 2023278
UM35X7OP-WSd20.0ZZ1960G |
HYFLEX 35X7 20MM Pi |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
20 mm | 301 kN | 30.7 t |
| 2023279
UM35X7OP-WSd21.0ZZ1960G |
HYFLEX 35X7 21MM Pi |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
21 mm | 335 kN | 34.1 t |
| 2023280
UM35X7OP-WSd22.0ZZ1960G |
HYFLEX 35X7 22MM Pi |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
22 mm | 370 kN | 37.7 t |
| 2023281
UM35X7OP-WSd24.0ZZ1960G |
HYFLEX 35X7 24MM Pi |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
24 mm | 441 kN | 45 t |
| 2023282
UM35X7OP-WSd26.0ZZ1960G |
HYFLEX 35X7 6MM Pi |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
26 mm | 517 kN | 52.7 t |
| 2023283
UM35X7OP-WSd28.0ZZ1960G |
HYFLEX 35X7 28MM Pi |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
28 mm | 599 kN | 61.1 t |
| 2023284
UM35X7OP-WSd30.0ZZ1960G |
HYFLEX 35X7 30MM Pi |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
30 mm | 679 kN | 69.2 t |
| 2023285
UM35X7OP-WSd32.0ZZ1960G |
HYFLEX 35X7 32MM Pi |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
32 mm | 769 kN | 78.4 t |
| 2023286
UM35X7OP-WSd35.0ZZ1960G |
HYFLEX 35X7 35MM Pi |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
35 mm | 945 kN | 96.3 t |
| 2023287
UM35X7OP-WSd36.0ZZ1960G |
HYFLEX 35X7 36MM Pi |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
36 mm | 983 kN | 100 t |
| 2023288
UM35X7OP-WSd38.0ZZ1960G |
HYFLEX 35X7 38MM Pi |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
38 mm | 1078 kN | 110 t |
| 2023289
UM35X7OP-WSd40.0ZZ1960G |
HYFLEX 35X7 40MM Pi |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
40 mm | 1202 kN | 123 t |
| 2023290
UM35X7OP-WSd42.0ZZ1960G |
HYFLEX 35X7 42MM Pi |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
42 mm | 1227 kN | 125 t |
| 2023291
UM35X7OP-WSd44.0ZZ1960G |
HYFLEX 35X7 44MM Pi |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
44 mm | 1347 kN | 137 t |
| 2023292
UM35X7OP-WSd46.0ZZ1960G |
HYFLEX 35X7 46MM Pi |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
46 mm | 1472 kN | 150 t |
| 2023293
UM35X7OP-WSd48.0ZZ1960G |
HYFLEX 35X7 48MM Pi |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
48 mm | 1603 kN | 163 t |
| 2023294
UM35X7OP-WSd50.0ZZ1960G |
HYFLEX 35X7 50MM Pi |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
50 mm | 1740 kN | 177 t |
| 2023295
UM35X7OP-WSd52.0ZZ1960G |
HYFLEX 35X7 52MM Pi |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
52 mm | 1881 kN | 192 t |
