Powerform 6P LHOL
Wire Ropes
High Performance Compacted Strands Products
Powerform 6P LHOL
Wire Ropes
High Performance Compacted Strands Products
- Stranded Ropes with Compacted Strands which giving properties improvement over Conventional Ropes.
- Excellent Fatigue Life due to good sheave contact.
- High Breaking Load.
- Crush resistant & low elongation.

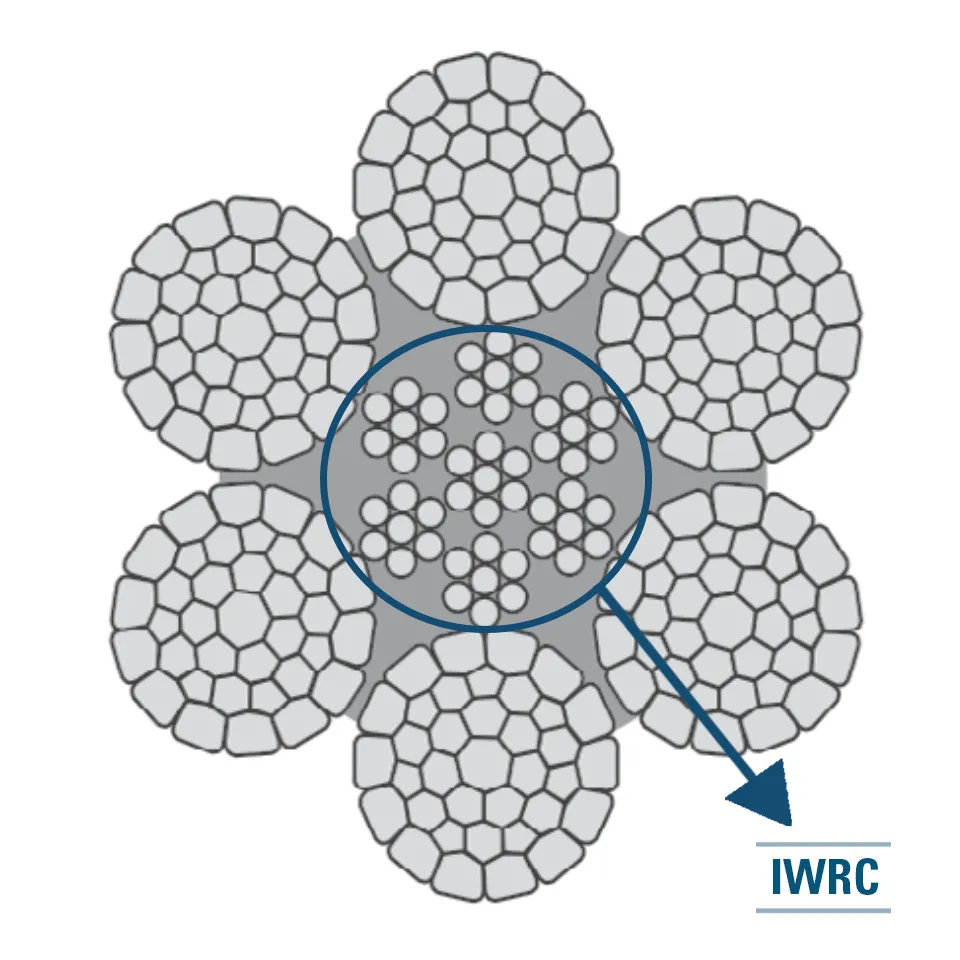

- Plastic inside of rope covered the IWRC giving consistent core performance.
- LHOL - Left Hand Ordinary Lay.
Select Model
POWERFORM 6X36 10MM Pi LHOL
Item Number: 2023442
| SSID ERP Code: UM6X36CP-IWd10.0ZS1960G
Price under request
You can ask for a quote adding the item to the shopcartIn stock. Available within 5-7 Days
- Stranded Ropes with Compacted Strands which giving properties improvement over Conventional Ropes.
- Excellent Fatigue Life due to good sheave contact.
- High Breaking Load.
- Crush resistant & low elongation.
- Plastic inside of rope covered the IWRC giving consistent core performance.
- LHOL - Left Hand Ordinary Lay.
Price under request
Select Model
POWERFORM 6X36 10MM Pi LHOL
Item Number: 2023442
| SSID ERP Code: UM6X36CP-IWd10.0ZS1960G
Price under request
You can ask for a quote adding the item to the shopcartIn stock. Available within 5-7 Days
All wire rope that we supply are only high quality and certified products according to International Standard of BS EN 12385, API Spec 9A, ISO 2408 and SNI.
These wire Rope are manufactured by a company that has ISO 9001:2015 certification and also have 3rd party certification from ABS, DNV-GL and Lloyds.
Recommendations for Use
Do not use damaged wire ropes and slings with defects, such as wire breaks, bulges, bruises, kinks, severed core, heavy wear, rust damage or others.
Do not exceed the specified load carrying capacity (WLL).
Do not strike at a tilt angle exceeding 60°.
Do not use wire ropes with broken strands.
Do not use in contact with chemicals.
Sling ropes may only be used for lifting and transporting loads and only by instructed persons. The regulation on the safe use of cranes (Crane Regulation) must be observed without fail (Suva-Form.1420. d).
Product Technical Information
-
Main Material
Steel -
Packaging Unit (PU)
pcs -
Temperature Range
-40° C to + 100° C -
Packaging Unit (PU) Content
1
Variants information
| Item Number | Item Name | Price | Stock | Purchase | Rope Diameter | Minimum Breaking Force [Kn] | Minimum Breaking Force [Tn] |
|---|---|---|---|---|---|---|---|
| 2023442
UM6X36CP-IWd10.0ZS1960G |
POWERFORM 6X36 10MM Pi LHOL |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
10 mm | 85.7 kN | 8.7 t |
| 2023443
UM6X36CP-IWd11.0ZS1960G |
POWERFORM 6X36 11MM Pi LHOL |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
11 mm | 98.6 kN | 10.1 t |
| 2023444
UM6X36CP-IWd12.0ZS1960G |
POWERFORM 6X36 12MM Pi LHOL |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
12 mm | 114 kN | 11.6 t |
| 2023445
USHA 13MM POWERFORM 6X36 |
POWERFORM 6X36 13MM Pi LHOL |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
13 mm | 140 kN | 15 t |
| 2023446
UM6X36CP-IWd14.0ZS1960G |
POWERFORM 6X36 14MM Pi LHOL |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
14 mm | 147 kN | 17.3 t |
| 2023447
UM6X36CP-IWd15.0ZS1960G |
POWERFORM 6X36 15MM Pi LHOL |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
15 mm | 170 kN | 19.9 t |
| 2023448
UM6X36CP-IWd16.0ZS1960G |
POWERFORM 6X36 16MM Pi LHOL |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
16 mm | 195 kN | 22.2 t |
| 2023449
UM6X36CP-IWd17.0ZS1960G |
POWERFORM 6X36 17MM Pi LHOL |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
17 mm | 218 kN | 25.1 t |
| 2023450
UM6X36CP-IWd18.0ZS1960G |
POWERFORM 6X36 18MM Pi LHOL |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
18 mm | 246 kN | 28.1 t |
| 2023451
UM6X36CP-IWd19.0ZS1960G |
POWERFORM 6X36 19MM Pi LHOL |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
19 mm | 276 kN | 31 t |
| 2023452
UM6X36CP-IWd20.0ZS1960G |
POWERFORM 6X36 20MM Pi LHOL |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
20 mm | 304 kN | 34.1 t |
| 2023453
UM6X36CP-IWd22.0ZS1960G |
POWERFORM 6X36 22MM Pi LHOL |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
22 mm | 335 kN | 40.8 t |
| 2023454
UM6X36CP-IWd24.0ZS1960G |
POWERFORM 6X36 24MM Pi LHOL |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
24 mm | 400 kN | 49.8 t |
| 2023455
UM6X36CP-IWd26.0ZS1960G |
POWERFORM 6X36 26MM Pi LHOL |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
26 mm | 489 kN | 58.9 t |
| 2023456
UM6X36CP-IWd28.0ZS1960G |
POWERFORM 6X36 28MM Pi LHOL |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
28 mm | 578 kN | 67 t |
| 2023457
UM6X36CP-IWd30.0ZS1960G |
POWERFORM 6X36 30MM Pi LHOL |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
30 mm | 657 kN | 77.2 t |
| 2023458
UM6X36CP-IWd32.0ZS1960G |
POWERFORM 6X36 32MM Pi LHOL |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
32 mm | 757 kN | 86.2 t |
| 2023459
UM6X36CP-IWd34.0ZS1960G |
POWERFORM 6X36 34MM Pi LHOL |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
34 mm | 846 kN | 93.4 t |
| 2023460
UM6X36CP-IWd36.0ZS1960G |
POWERFORM 6X36 36MM Pi LHOL |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
36 mm | 1065 kN | 109 t |
| 2023461
UM6X36CP-IWd38.0ZS1960G |
POWERFORM 6X36 38MM Pi LHOL |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
38 mm | 1165 kN | 119 t |
| 2023462
UM6X36CP-IWd40.0ZS1960G |
POWERFORM 6X36 40MM Pi LHOL |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
40 mm | 1295 kN | 132 t |
| 2023463
UM6X36CP-IWd42.0ZS1960G |
POWERFORM 6X36 42MM Pi LHOL |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
42 mm | 1425 kN | 145 t |
| 2023464
UM6X36CP-IWd44.0ZS1960G |
POWERFORM 6X36 44MM Pi LHOL |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
44 mm | 1505 kN | 153 t |
| 2023465
UM6X36CP-IWd46.0ZS1960G |
POWERFORM 6X36 46MM Pi LHOL |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
46 mm | 1665 kN | 170 t |
| 2023466
UM6X36CP-IWd48.0ZS1960G |
POWERFORM 6X36 48MM Pi LHOL |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
48 mm | 1885 kN | 192 t |
| 2023467
UM6X36CP-IWd50.0ZS1960G |
POWERFORM 6X36 50MM Pi LHOL |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
50 mm | 1975 kN | 201 t |
| 2023468
UM6X36CP-IWd52.0ZS1960G |
POWERFORM 6X36 52MM Pi LHOL |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
52 mm | 2135 kN | 218 t |
| 2023469
UM6X36CP-IWd54.0ZS1960G |
POWERFORM 6X36 54MM Pi LHOL |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
54 mm | 2325 kN | 237 t |
| 2023470
UM6X36CP-IWd56.0ZS1960G |
POWERFORM 6X36 56MM Pi LHOL |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
56 mm | 2475 kN | 252 t |
| 2023471
UM6X36CP-IWd58.0ZS1960G |
POWERFORM 6X36 58MM Pi LHOL |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
58 mm | 2650 kN | 270 t |
| 2023472
UM6X36CP-IWd60.0ZS1960G |
POWERFORM 6X36 60MM Pi LHOL |
Price under request You can ask for a quote adding the item to the shopcart |
In stock. Available within 5-7 Days
|
|
60 mm | 2810 kN | 286 t |
