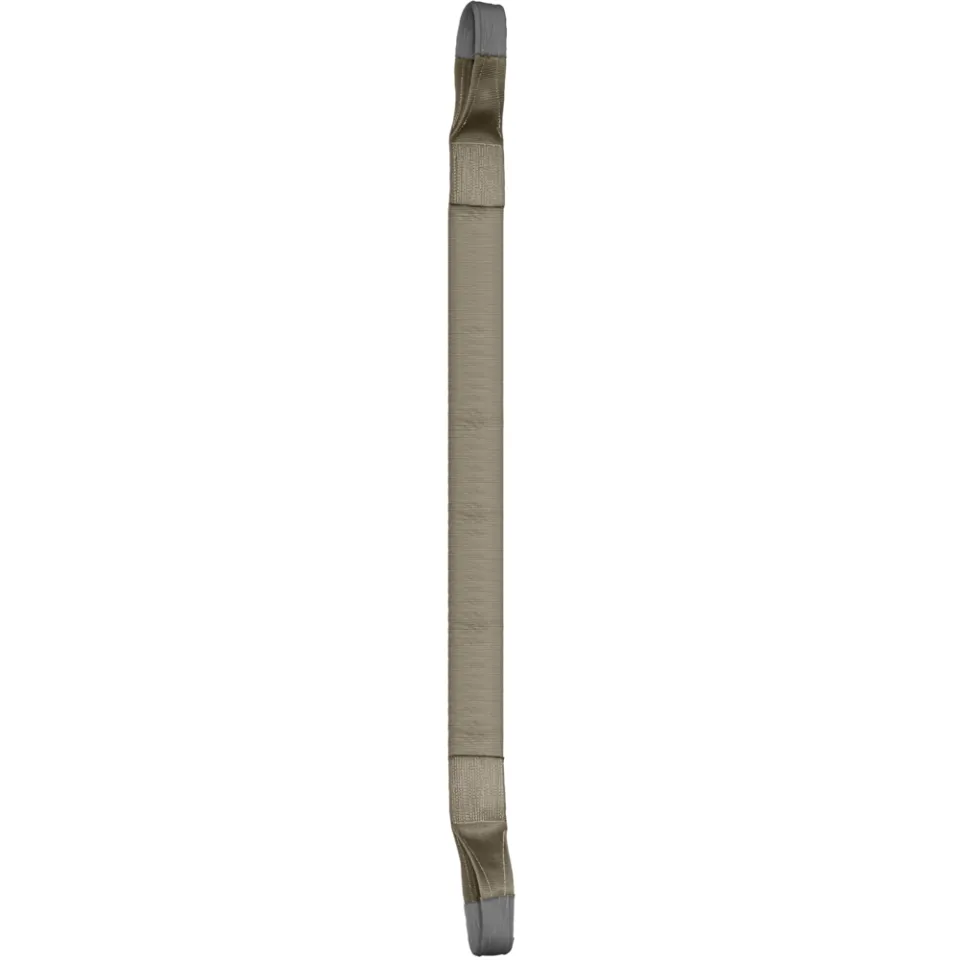

SpanSet A-Series 250kg 1.5m Main picture small
SpanSet A-Series 250kg 1.5m Small picture 1

A-Series 1Ply Web Slings

A-Series 1Ply Web Slings

Manufactured with reinforced eyes for greater durability

Item Number: 2029073
SSAUS ERP Code: A0250-0x1.5
A-Series 250kg 1.5m
  • Single ply extra wide load bearing surface to minimise damage to fragile loads.
  • Lightweight for enhanced manual handling safety.
  • Excellent strength to weight ratio.
  • Tuff Tag, webbing reinforced encapsulated compliance labels.

Select Model

...

Made in Australia

Made, Tested and Certified.





Product Technical Information

  • Number of layers
    1
  • Dimension L1 max
    50 m
  • Safety Factor
    8:1
  • Label Protection
    Yes
  • Main Material
    Polyester
  • Standards
    AS 1353.1
  • Packaging Unit (PU)
    pcs
  • Temperature Range
    -40°C bis +100°C
  • Packaging Unit (PU) Content
    1

Product downloads and manuals

...
Datasheet
Download

Technical Drawings

Item Number Item Name WLL kg Dimension L1 WLL t Webbing Width B Dimension L1 min Loop Length Minimum Load Edge Radius Webbing Thickness Colour
2029073 A-Series 250kg 1.5m 250 kg 1.5 m 0.25 t 35 mm 0.62 m 200 mm 9 mm 3 mm Olive
2029074 A-Series 250kg 2.0m 250 kg 2 m 0.25 t 35 mm 0.62 m 200 mm 9 mm 3 mm Olive
2029075 A-Series 250kg 2.5m 250 kg 2.5 m 0.25 t 35 mm 0.62 m 200 mm 9 mm 3 mm Olive
2029076 A-Series 250kg 3.0m 250 kg 3 m 0.25 t 35 mm 0.62 m 200 mm 9 mm 3 mm Olive
2029077 A-Series 250kg 6.0m 250 kg 6 m 0.25 t 35 mm 0.62 m 200 mm 9 mm 3 mm Olive
2029078 A-Series 500kg 1.5m 500 kg 1.5 m 0.5 t 50 mm 0.845 m 250 mm 9 mm 3 mm Olive
2029079 A-Series 500kg 2.0m 500 kg 2 m 0.5 t 50 mm 0.845 m 250 mm 9 mm 3 mm Olive
2029080 A-Series 500kg 2.5m 500 kg 2.5 m 0.5 t 50 mm 0.845 m 250 mm 9 mm 3 mm Olive
2029081 A-Series 500kg 3.0m 500 kg 3 m 0.5 t 50 mm 0.845 m 250 mm 9 mm 3 mm Olive
2029082 A-Series 500kg 4m 500 kg 4 m 0.5 t 50 mm 0.845 m 250 mm 9 mm 3 mm Olive
2029083 A-Series 500kg 5.0m 500 kg 5 m 0.5 t 50 mm 0.845 m 250 mm 9 mm 3 mm Olive
2029084 A-Series 500kg 6.0m 500 kg 6 m 0.5 t 50 mm 0.845 m 250 mm 9 mm 3 mm Olive
2029085 A-Series 500kg 7.0m 500 kg 7 m 0.5 t 50 mm 0.845 m 250 mm 9 mm 3 mm Olive
2029086 A-Series 1000kg 1.5m 1000 kg 1.5 m 1 t 75 mm 1.24 m 350 mm 12 mm 4 mm Purple
2029087 A-Series 1000kg 2.0m 1000 kg 2 m 1 t 75 mm 1.24 m 350 mm 12 mm 4 mm Purple
2029088 A-Series 1000kg 2.5m 1000 kg 2.5 m 1 t 75 mm 1.24 m 350 mm 12 mm 4 mm Purple
2029089 A-Series 1000kg 3.0m 1000 kg 3 m 1 t 75 mm 1.24 m 350 mm 12 mm 4 mm Purple
2029090 A-Series 1000kg 4.0 1000 kg 4 m 1 t 75 mm 1.24 m 350 mm 12 mm 4 mm Purple
2029091 A-Series 1000kg 5.0m 1000 kg 5 m 1 t 75 mm 1.24 m 350 mm 12 mm 4 mm Purple
2029092 A-Series 1000kg 6.0m 1000 kg 6 m 1 t 75 mm 1.24 m 350 mm 12 mm 4 mm Purple
2029093 A-Series 1000kg 7.0m 1000 kg 7 m 1 t 75 mm 1.24 m 350 mm 12 mm 4 mm Purple
2029094 A-Series 1000kg 8.0m 1000 kg 8 m 1 t 75 mm 1.24 m 350 mm 12 mm 4 mm Purple
2029095 A-Series 2000kg 1.5m 2000 kg 1.5 m 2 t 140 mm 1.75 m 500 mm 12 mm 4 mm Green
2029096 A-Series 2000kg 2.0m 2000 kg 2 m 2 t 140 mm 1.75 m 500 mm 12 mm 4 mm Green
2029097 A-Series 2000kg 2.5m 2000 kg 2.5 m 2 t 140 mm 1.75 m 500 mm 12 mm 4 mm Green
2029098 A-Series 2000kg 3.0m 2000 kg 3 m 2 t 140 mm 1.75 m 500 mm 12 mm 4 mm Green
2029099 A-Series 2000kg 4.0m 2000 kg 4 m 2 t 140 mm 1.75 m 500 mm 12 mm 4 mm Green
2029100 A-Series 2000kg 5.0m 2000 kg 5 m 2 t 140 mm 1.75 m 500 mm 12 mm 4 mm Green
2029101 A-Series 2000kg 6.0m 2000 kg 6 m 2 t 140 mm 1.75 m 500 mm 12 mm 4 mm Green
2029102 A-Series 2000kg 8.0m 2000 kg 8 m 2 t 140 mm 1.75 m 500 mm 12 mm 4 mm Green
2029103 A-Series 3000kg 1.5m 3000 kg 1.5 m 3 t 180 mm 2.4 m 800 mm 12 mm 4 mm Yellow
2029104 A-Series 3000kg 2.0m 3000 kg 2 m 3 t 180 mm 2.4 m 800 mm 12 mm 4 mm Yellow
2029105 A-Series 3000kg 2.5m 3000 kg 2.5 m 3 t 180 mm 2.4 m 800 mm 12 mm 4 mm Yellow
2029106 A-Series 3000kg 3.0m 3000 kg 3 m 3 t 180 mm 2.4 m 800 mm 12 mm 4 mm Yellow
2029107 A-Series 3000kg 4.0m 3000 kg 4 m 3 t 180 mm 2.4 m 800 mm 12 mm 4 mm Yellow
2029108 A-Series 3000kg 5.0m 3000 kg 5 m 3 t 180 mm 2.4 m 800 mm 12 mm 4 mm Yellow
2029109 A-Series 3000kg 6.0m 3000 kg 6 m 3 t 180 mm 2.4 m 800 mm 12 mm 4 mm Yellow
2029110 A-Series 3000kg 7.0m 3000 kg 7 m 3 t 180 mm 2.4 m 800 mm 12 mm 4 mm Yellow
2029111 A-Series 3000kg 8.0m 3000 kg 8 m 3 t 180 mm 2.4 m 800 mm 12 mm 4 mm Yellow
2029113 A-Series 4000kg 2.0m 4000 kg 2 m 4 t 240 mm 3 m 1000 mm 12 mm 4 mm Grey
2029114 A-Series 4000kg 3.0m 4000 kg 3 m 4 t 240 mm 3 m 1000 mm 12 mm 4 mm Grey
2029115 A-Series 4000kg 4.0m 4000 kg 4 m 4 t 240 mm 3 m 1000 mm 12 mm 4 mm Grey
2029116 A-Series 4000kg 5.0m 4000 kg 5 m 4 t 240 mm 3 m 1000 mm 12 mm 4 mm Grey
2029117 A-Series 4000kg 6.0m 4000 kg 6 m 4 t 240 mm 3 m 1000 mm 12 mm 4 mm Grey
2029118 A-Series 4000kg 8.0m 4000 kg 8 m 4 t 240 mm 3 m 1000 mm 12 mm 4 mm Grey
2029119 A-Series 5000kg 3.0m 5000 kg 3 m 5 t 300 mm 3.3 m 1200 mm 12 mm 4 mm Red
2029120 A-Series 5000kg 4.0m 5000 kg 4 m 5 t 300 mm 3.3 m 1200 mm 12 mm 4 mm Red
2029121 A-Series 5000kg 5.0m 5000 kg 5 m 5 t 300 mm 3.3 m 1200 mm 12 mm 4 mm Red
2029122 A-Series 5000kg 6.0m 5000 kg 6 m 5 t 300 mm 3.3 m 1200 mm 12 mm 4 mm Red
