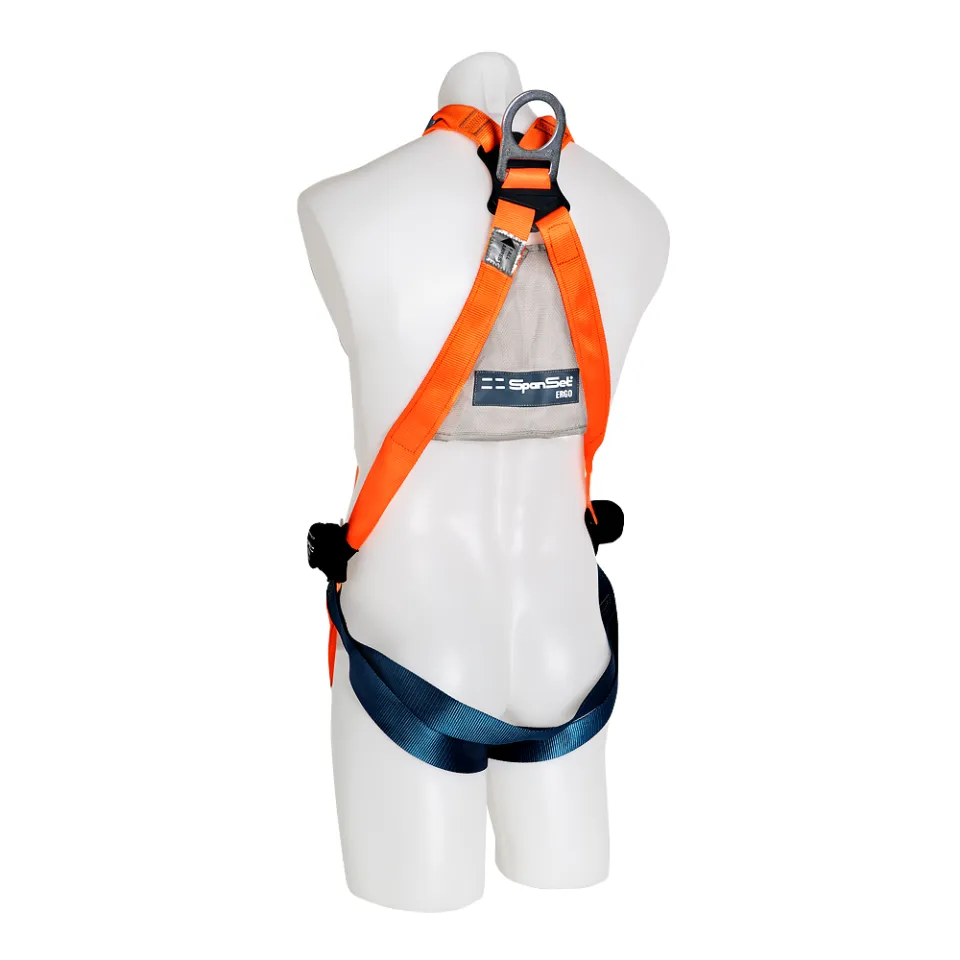

ERGO Harness

ERGO Harness

Full body fall arrest harness with front fall arrest D and rear fall arrest D

Item Number: 2026847
SSAUS ERP Code: 1100ERGO-S-0
1100ERGO-S-0
  • Front and rear fall arrest D.
  • Fully adjustable shoulder, chest and leg straps.
  • Suitable for roof work, ladder systems, EWP, maintenance and construction.
  • Confined space entry loops.
  • Suspension trauma relief straps.
  • Breathable mesh panel at rear.

Select Model

...

Label Protection

Compliance label with details secured in protection pouch.

...

Individual Serial Number

Clear and standard-compliant labelling with traceability code

...

Safeguard for Webbing Ends

Elastic web tidies to secure webbing ends

...

Strong yet supple polyester web

Adapts to the body shape ensuring the harness is comfortable to wear

...

Corrosion Resistance

Zinc Plated

Connectors and fittings are made of zinc plated hardened alloy steel and offer high corrosion resistance and easy adjustment.

The SpanSet ERGO harness is our compliant range that is most popular with tradies and construction workers.

A fully adjustable and easy to fit harness suitable for fall arrest applications and comes with SpanSet suspension trauma relief straps.

Product Technical Information

  • Maximum User Weight
    150 kg
  • Hardware Material
    Zinc Plated Hardened Alloy Steel
  • Harness Webbing Material
    Polyester
  • Positioning Belt
    No
  • Sternal Anchorage
    Yes
  • Dorsal Anchorage
    Yes
  • Fixed Energy absorber
    No
  • Ventral Anchorage
    No
  • Dorsal Extension
    No
  • Padded Shoulders
    No
  • Padded Leg straps
    No
  • Tool Attachments
    No
  • Relief Straps included
    Yes
  • Label Protection
    Yes
  • Standards
    AS/NZS 1891.1:2020
  • Packaging Unit (PU)
    pcs
  • Inspection Guide
    Yes
  • Packaging Unit (PU) Content
    1
  • Individually Serial Numbered
    Yes
  • Individual Certificate
    Yes
  • Private Label
    Yes
  • Colour
    Orange

Product downloads and manuals

Height Safety User Manual
(en)
Download
Suspension Trauma Relief Straps
(en)
Download
Harness Sizing
(en)
Download
Fall Clearance distance
(en)
Download
Datasheet
Download
Height Safety Product Selection Guide
(en)
Download

Item Number Item Name Shirt Size Packaging Type Weight Net
2026847 1100ERGO-S-0 S Drawstring bag 1.37 kg
2026848 1100ERGO-0 M/2XL Drawstring bag 1.41 kg
2026849 1100ERGO-L-0 L/3XL Drawstring bag 1.44 kg
2026850 1100ERGO-XL-0 XL/4XL Drawstring bag 1.48 kg
2026851 1100ERGO-XXL-0 2XL/5XL Drawstring bag 1.51 kg
2026852 1100ERGO-XXXL-0 3XL/6XL Drawstring bag 1.55 kg
2026924 1100ERGO-BP M/2XL Retail box 1.41 kg
