ERGO iPlus with dorsal extension
ERGO iPlus with dorsal extension

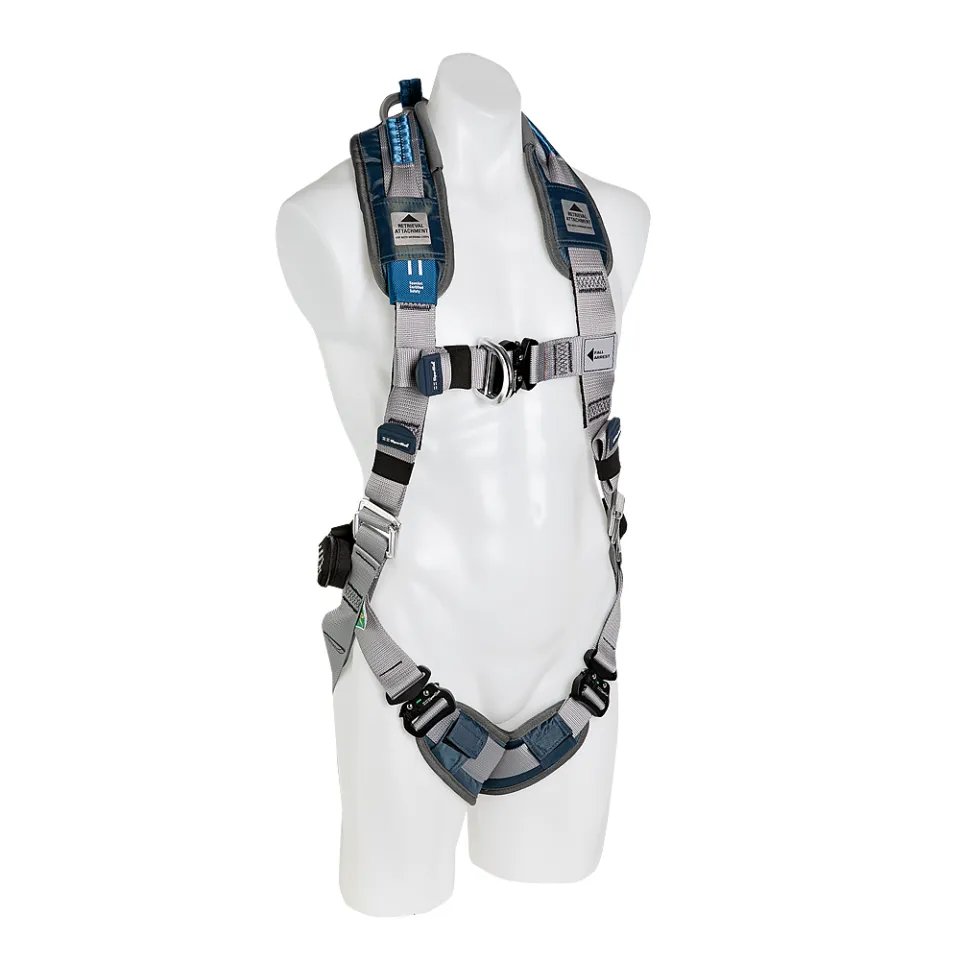

Full body fall arrest harness with front fall arrest D and rear fall arrest D with dorsal extension
- Front and rear fall arrest D with dorsal extension.
- iWeb™ Inspection ready webbing with water and oil resistant Xtreme Guard.
- Premium padded shoulders and legs.
- Lightweight aluminium fittings and quick connect buckles.
- Fully adjustable shoulder, chest and leg straps.
- Suitable for fall arrest, roof work, ladder systems, EWP, maintenance and construction.
- Confined space entry loops and suspension trauma relief straps.
Select Model
Dorsal Extension
Allow operator to visually connect lanyard
SpanSet i-Web™
Inspection Ready Webbing
Red webbing core allows allows an objective inspection criteria for cuts and abrasions
Xtreme Guard Webbing
Abrasion, Water and Oil Resistant
Webbing is treated to offer abrasion, water and oil resistance
Quick Connect Buckles
Make the harnesses even faster and easier to put on
To ensure your safety, a green dot becomes visable when the buckle is closed correctly. The lock system does not allow for unwanted opening.
Padded Shoulders and Leg straps
Offers more comfort for longer working tasks
Label Protection
Compliance label with details secured in protection pouch.
Safeguard for Webbing Ends
Elastic web tidies to secure webbing ends
Individual Serial Number
Clear and standard-compliant labelling with traceability code
Corrosion Resistance
Aluminium
Connectors and fittings are made of aluminium and offer high corrosion resistance and easy adjustment.
The SpanSet ERGO iPlus range is our premium lightweight harness range for superior comfort and all day working applications.
Premium padding reduces sweat and heat build up and allows the user to help stay cool.
The harness is a fully adjustable and easy to fit for fall arrest applications and comes with aluminium fittings, aluminium quick connect buckles and suspension trauma relief straps.
ERGO iPlus harness range uses SpanSet patented iWeb™ inspection ready webbing. To inspect your harness with iWeb™ simply look for visible red yarn that clearly marks cuts and abrasions. If the inner red core is visible upon inspection, then the harness must be removed from service.
The 1104 harness style comes with dorsal extension to allow operator to visually connect a lanyard to rear attachment point.
Product Technical Information
-
Maximum User Weight
150 kg -
Hardware Material
Aluminium -
Harness Webbing Material
iWeb™ High Tensile Polyester -
Positioning Belt
No -
Sternal Anchorage
Yes -
Dorsal Anchorage
Yes -
Fixed Energy absorber
No -
Ventral Anchorage
No -
Dorsal Extension
Yes -
Padded Shoulders
Yes -
Padded Leg straps
Yes -
Tool Attachments
No -
Relief Straps included
Yes -
Colour
Grey -
Packaging Type
Backpack Bag -
Label Protection
Yes -
Standards
AS/NZS 1891.1:2020 -
Packaging Unit (PU)
pcs -
Inspection Guide
Yes -
Packaging Unit (PU) Content
1 -
Individually Serial Numbered
Yes -
Individual Certificate
Yes -
Private Label
Yes -
Lifespan
10 yr.
