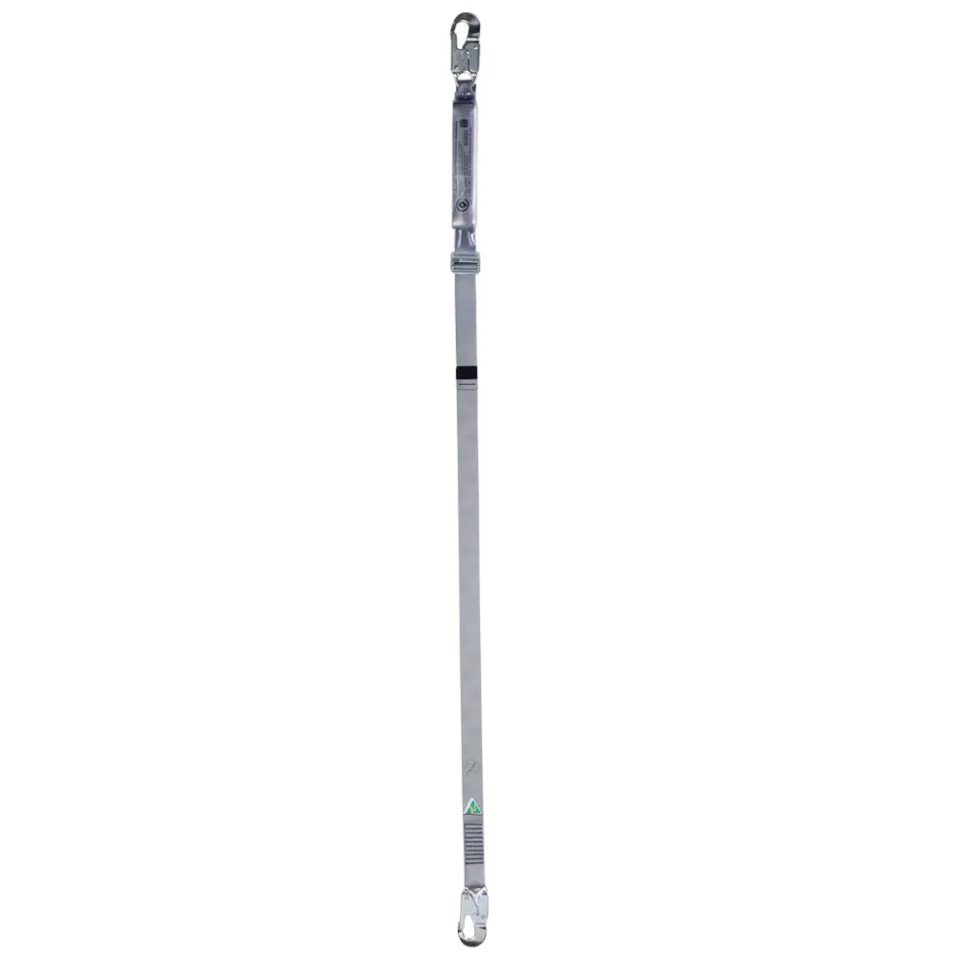

ERGO Plus Web Adjustable - Single

ERGO Plus Web Adjustable - Single

Premium fall arrest energy absorbing web adjustable lanyard.

Item Number: 2024841
SSAUS ERP Code: 3053A-ERGOPLUS-1.8
3053A-ERGOPLUS-1.8
  • Adjustable length webbing.
  • iWeb™ High tensile polyester inspection ready webbing.
  • Water and oil resistant Xtreme Guard.
  • High tensile contrasting stitching.
  • Lightweight aluminium fittings.
  • Tear web energy absorber with clear sleeve to allow inspection.

Select Model

...

Adjustable length

Buckle adjustment

User can determine the length of the lanyard according to the distance required.

...

SpanSet i-Web™

Inspection Ready Webbing

Red webbing core allows allows an objective inspection criteria for cuts and abrasions

...

Xtreme Guard Webbing

Abrasion, Water and Oil Resistant

Webbing is treated to offer abrasion, water and oil resistance

...

Individual Serial Number

Clear and standard-compliant labelling with traceability code

...

Corrosion Resistance

Aluminium

Connectors and fittings are made of aluminium and offer high corrosion resistance and easy adjustment.

...

Label Protection

Label with additional protective foil

SpanSet Premium ERGO Plus Adjustable - Energy absorbing lanyards

Designed to minimise the forces endured by an operator should a fall occur.

  • Adjustable length lanyard - From 0.75m to the selected total length. Allows operator control and greater user flexibility and minimum fall clearance.
  • Single lanyard suits general purpose applications.
  • iWeb™ inspection ready webbing - Inspect your lanyard with iWeb™ simply look for visible red yarn that clearly marks cuts and abrasions. If the inner red core is visible upon inspection, then the lanyard must be removed from service.
  • Lightweight aluminium corrision resistant connectors and high tenacity polyester webbing offering outstanding safety and value.
  • Back up straps should the tear web be fully deployed and all are compliant to AS1891.5:2020.

Product Technical Information

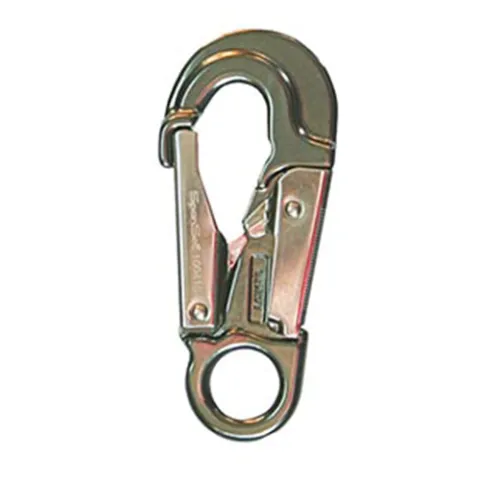

  • Harness Connector: 31668 H1-ALU-GRY-1
  • Standards: AS 1891.5:2020
  • Lifespan: 10 yr.
  • Energy Absorbing: Yes
  • Lanyard Leg Type: Single Adjustable Length
  • Maximum User Weight: 140 kg
  • Hardware Material: Aluminium
  • Label Protection: Yes
  • Colour: Grey
  • Main Material: iWeb High Tensile Polyester
  • Individually Serial Numbered: Yes
  • Individual Certificate: Yes
  • Inspection Guide: Yes
  • Packaging Unit (PU): pcs
  • Packaging Unit (PU) Content: 1
  • Packaging Type: Drawstring bag

Product downloads and manuals

Height Safety Product Selection Guide
(en)
Download
Height Safety User Manual
(en)
Download
Fall Clearance distance
(en)
Download
SpanSet iWeb™ Inspection Ready Webbing
(en)
Download

Item Number Item Name Weight Net Anchor Connector Length
2024841
SSAUS ERP Code: 3053A-ERGOPLUS-1.8
3053A-ERGOPLUS-1.8 0.91 kg Double action snap hook - Aluminium
H1-ALU-GRY-1
1.8 m
2024842
SSAUS ERP Code: 3055A-ERGOPLUS-1.8
3055A-ERGOPLUS-1.8 1.25 kg Double action scaff hook - Aluminium
H3-ALU-GRY-1
1.8 m
2024913
SSAUS ERP Code: 3053A-ERGOPLUS-2.0
3053A-ERGOPLUS-2.0 0.92 kg Double action snap hook - Aluminium
H1-ALU-GRY-1
2 m
2024915
SSAUS ERP Code: 3055A-ERGOPLUS-2.0
3055A-ERGOPLUS-2.0 1.26 kg Double action scaff hook - Aluminium
H3-ALU-GRY-1
2 m
