ERGO Plus Web Fixed - Twin
ERGO Plus Web Fixed - Twin
Premium fall arrest energy absorbing web twin lanyard.
- Fixed length webbing - other lengths available.
- iWeb™ High tensile polyester inspection ready webbing.
- Water and oil resistant Xtreme Guard.
- High tensile contrasting stitching.
- Lightweight aluminium fittings.
- Tear web energy absorber with clear sleeve to allow inspection.
Select Model
![...](/legacy-uploads/catalog-products/PIMTree/960x960/iweb-1.webp)
SpanSet i-Web™
Inspection Ready Webbing
Red webbing core allows allows an objective inspection criteria for cuts and abrasions
![...](/legacy-uploads/catalog-products/PIMTree/960x960/xtreme-guard.webp)
Xtreme Guard Webbing
Abrasion, Water and Oil Resistant
Webbing is treated to offer abrasion, water and oil resistance
![...](/legacy-uploads/catalog-products/PIMTree/960x960/ico-individual-serial-number.webp)
Individual Serial Number
Clear and standard-compliant labelling with traceability code
![...](/legacy-uploads/catalog-products/PIMTree/960x960/ico-corrosion-resistance.webp)
Corrosion Resistance
Aluminium
Connectors and fittings are made of aluminium and offer high corrosion resistance and easy adjustment.
![...](/legacy-uploads/catalog-products/PIMTree/960x960/protective-sleeve-label.webp)
Label Protection
Label with additional protective foil

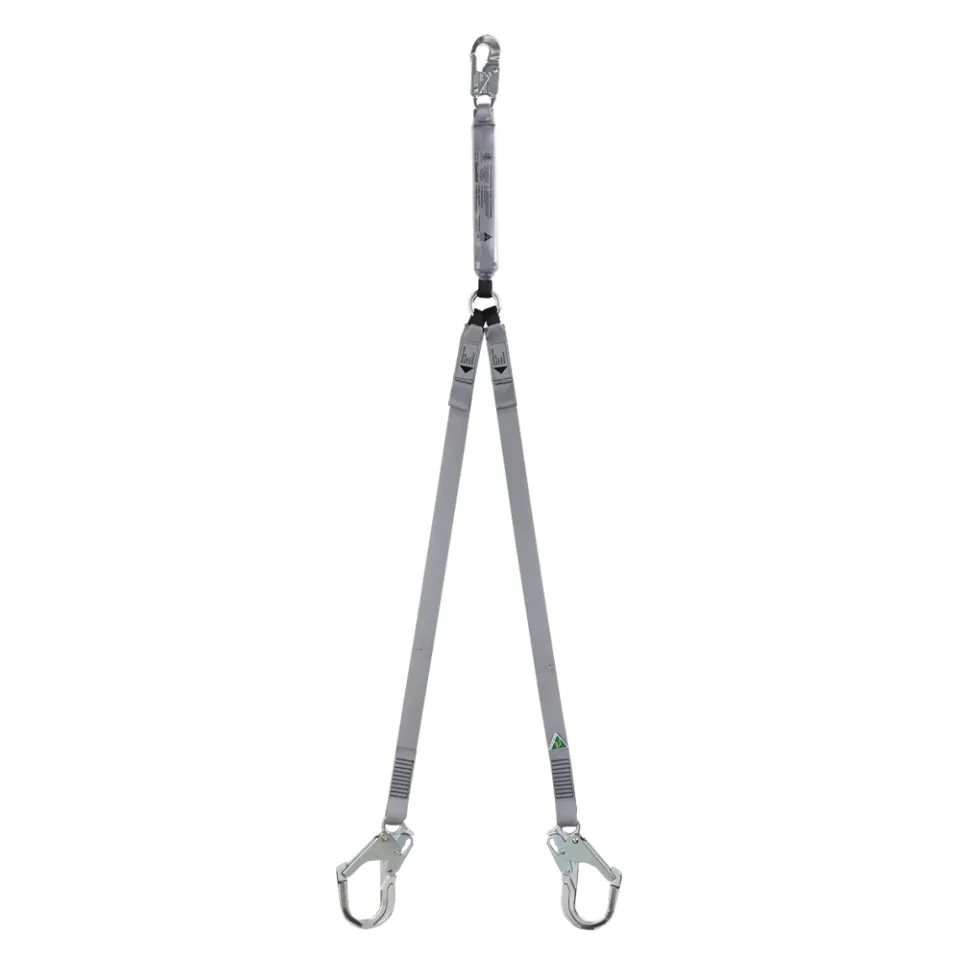

SpanSet Premium ERGO Plus - Energy absorbing lanyard
Designed to minimise the forces endured by an operator should a fall occur.
- Fixed length webbing - other lengths available.
- Twin lanyard allows constant connection to anchor point to ensure greater user flexibility and operation.
- iWeb™ inspection ready webbing - To inspect your lanyard with iWeb™ simply look for visible red yarn that clearly marks cuts and abrasions. If the inner red core is visible upon inspection, then the lanyard must be removed from service.
- Lightweight aluminium corrision resistant connectors and high tenacity polyester webbing offering outstanding safety and value.
- Back up straps should the tear web be fully deployed and all are compliant to AS1891.5:2020.
Product Technical Information
-
Anchor Connector:
31669 H3-ALU-GRY-1
-
Harness Connector:
31668 H1-ALU-GRY-1
-
Standards:
AS/NZS 1891.5:2020
-
Lifespan:
10 yr.
-
Energy Absorbing:
Yes
-
Lanyard Leg Type:
Twin Fixed Length
-
Maximum User Weight:
140 kg
-
Hardware Material:
Aluminium
-
Label Protection:
Yes
-
Colour:
Grey
-
Main Material:
iWeb High Tensile Polyester
-
Individually Serial Numbered:
Yes
-
Individual Certificate:
Yes
-
Inspection Guide:
Yes
-
Packaging Unit (PU):
pcs
-
Packaging Unit (PU) Content:
1
-
Packaging Type:
Drawstring bag
Variants information
Item Number | Item Name | Weight Net | Length |
---|---|---|---|
2024837
SSAUS ERP Code: 3058-ERGOPLUS-1.0 |
3058-ERGOPLUS-1.0 | 1.67 kg | 1 m |
2024838
SSAUS ERP Code: 3058-ERGOPLUS-1.2 |
3058-ERGOPLUS-1.2 | 1.69 kg | 1.2 m |
2024839
SSAUS ERP Code: 3058-ERGOPLUS-1.5 |
3058-ERGOPLUS-1.5 | 1.76 kg | 1.5 m |
2024840
SSAUS ERP Code: 3058-ERGOPLUS-1.8 |
3058-ERGOPLUS-1.8 | 1.8 kg | 1.8 m |
