ERGO Web Fixed - Twin
ERGO Web Fixed - Twin

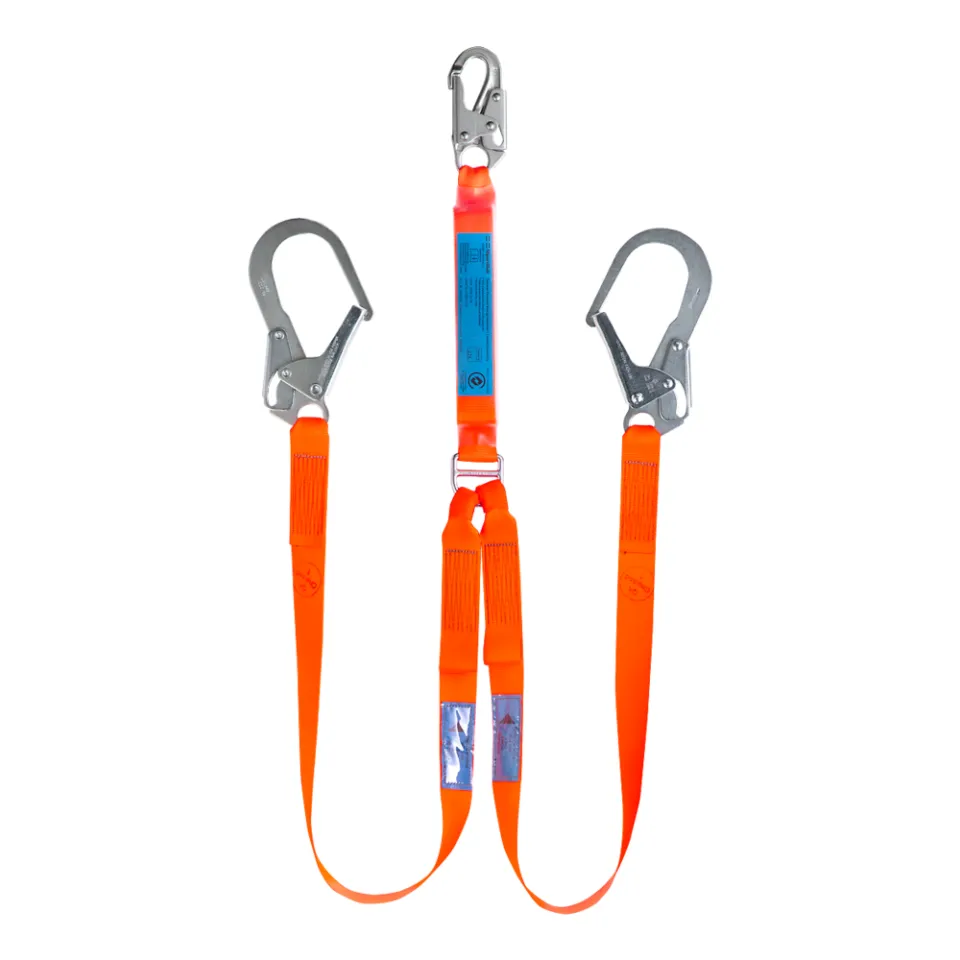

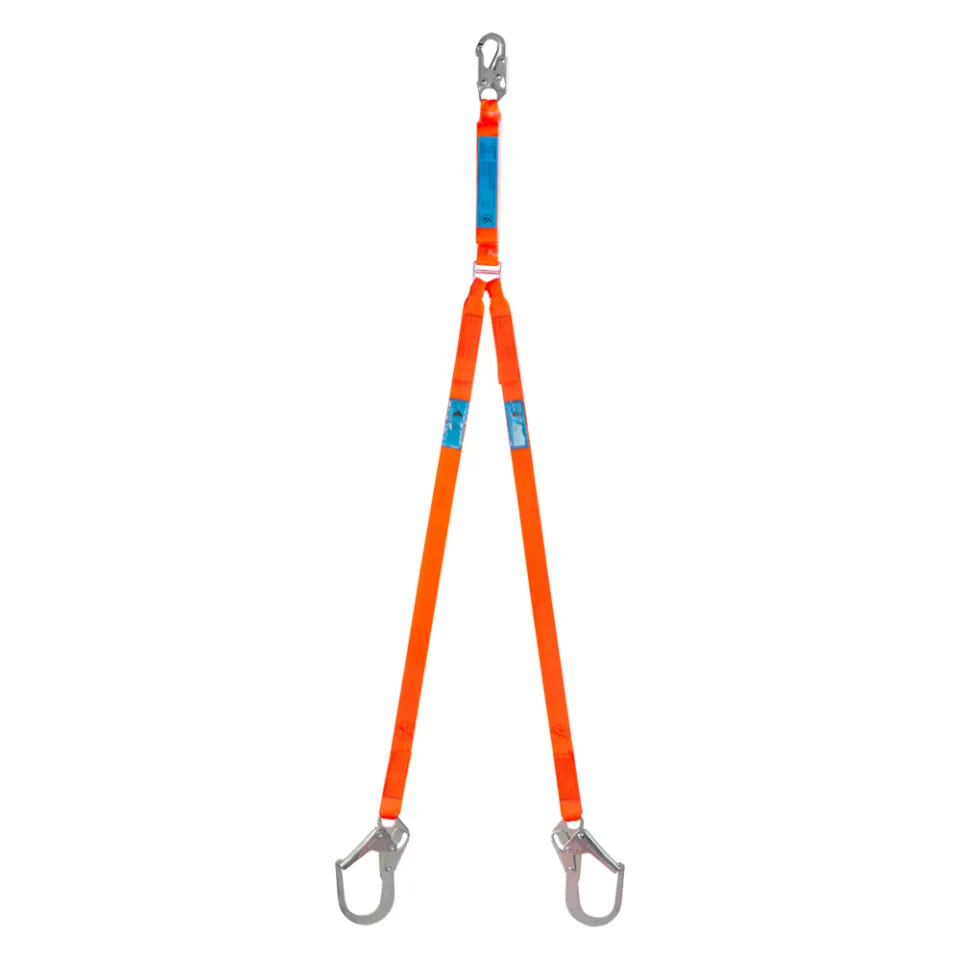

Fall arrest energy absorbing web twin lanyard
Item Number: 2024870
SSAUS ERP Code: 3058-0x0.8
3058-0x0.8
- Fixed length webbing - other lengths available.
- High tensile polyester webbing.
- High tensile contrasting stitching.
- Zinc plated hardened alloy steel fittings.
- Tear web energy absorber with clear sleeve to allow inspection.
Select Model
![...](/legacy-uploads/catalog-products/PIMTree/960x960/ico-corrosion-resistance.webp)
Corrosion Resistance
Zinc Plated
Connectors and fittings are made of zinc plated hardened alloy steel and offer high corrosion resistance and easy adjustment.
![...](/legacy-uploads/catalog-products/PIMTree/960x960/ico-individual-serial-number.webp)
Individual Serial Number
Clear and standard-compliant labelling with traceability code
![...](/legacy-uploads/catalog-products/PIMTree/960x960/protective-sleeve-label.webp)
Label Protection
Label with additional protective foil
SpanSet Ergo Energy absorbing lanyards
Designed to minimise the forces endured by an operator should a fall occur.
- Twin lanyard allows constant connection to anchor point to ensure greater user flexibility and operation.
- Fixed Length - other lengths available.
- Back up straps should the tear web be fully deployed and all are certified to AS1891.5:2020.
- Heavy duty, alloy steel, corrosion resistant components
- High tenacity polyester webbing they offer outstanding safety and value.
Product Technical Information
-
Standards:
AS/NZS 1891.5:2020
-
Lifespan:
10 yr.
-
Energy Absorbing:
Yes
-
Lanyard Leg Type:
Twin Fixed Length
-
Maximum User Weight:
140 kg
-
Hardware Material:
Zinc Plated Hardened Alloy Steel
-
Label Protection:
Yes
-
Colour:
orange
-
Main Material:
High Tensile Polyester
-
Individually Serial Numbered:
Yes
-
Individual Certificate:
Yes
-
Inspection Guide:
Yes
-
Packaging Unit (PU):
pcs
-
Packaging Unit (PU) Content:
1
Variants information
Item Number | Item Name | Weight Net | Anchor Connector | Harness Connector | Length | Packaging Type |
---|---|---|---|---|---|---|
2024870
SSAUS ERP Code: 3058-0x0.8 |
3058-0x0.8 | 1.89 kg |

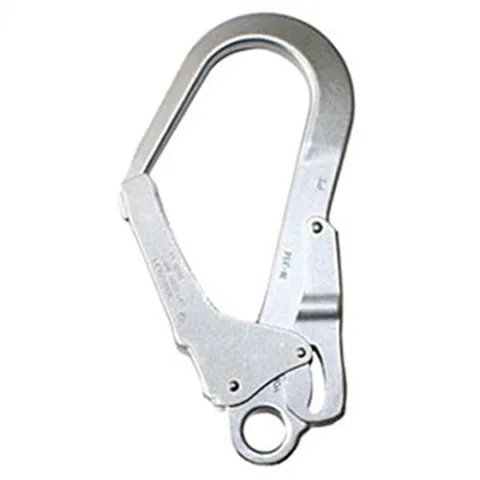

Double action scaff hook H3-1 |
Double action snap hook H1-1 |
0.8 m | Drawstring bag |
2024871
SSAUS ERP Code: 3058-K4-0x0.9 |
3058-K4-0x0.9 | 1.6 kg |

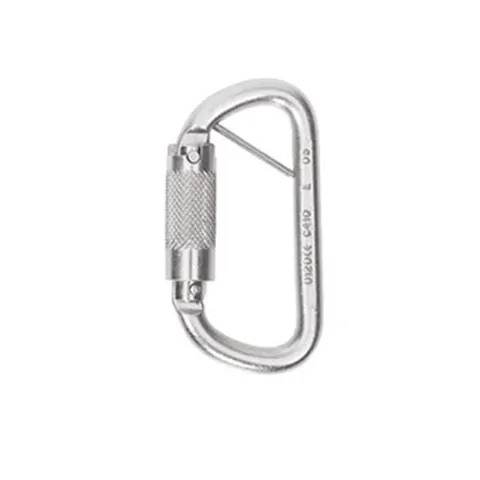

Triple action karabiner K4-0 |
Triple action karabiner K4-0 |
0.9 m | Drawstring bag |
2027424
SSAUS ERP Code: 3058-0x0.9 |
3058-0x0.9 | 1.9 kg |
Double action scaff hook H3-1 |
Double action snap hook H1-1 |
0.9 m | Drawstring bag |
2027425
SSAUS ERP Code: 3058-0x1.0 |
3058-0x1.0 | 1.92 kg |
Double action scaff hook H3-1 |
Double action snap hook H1-1 |
1 m | Drawstring bag |
2027426
SSAUS ERP Code: 3058-0x1.2 |
3058-0x1.2 | 1.95 kg |
Double action scaff hook H3-1 |
Double action snap hook H1-1 |
1.2 m | Drawstring bag |
2027427
SSAUS ERP Code: 3058-0x1.4 |
3058-0x1.4 | 1.97 kg |
Double action scaff hook H3-1 |
Double action snap hook H1-1 |
1.4 m | Drawstring bag |
2027428
SSAUS ERP Code: 3058-0x1.5 |
3058-0x1.5 | 1.99 kg |
Double action scaff hook H3-1 |
Double action snap hook H1-1 |
1.5 m | Drawstring bag |
2027429
SSAUS ERP Code: 3058-0x1.8 |
3058-0x1.8 | 2.03 kg |
Double action scaff hook H3-1 |
Double action snap hook H1-1 |
1.8 m | Drawstring bag |
2027430
SSAUS ERP Code: 3058-ACCESS |
3058-ACCESS | 2.03 kg |
Double action scaff hook H3-1 |
Double action snap hook H1-1 |
1.8 m | Retail box |
2027431
SSAUS ERP Code: 3058-0x2.0 |
3058-0x2.0 | 2.06 kg |
Double action scaff hook H3-1 |
Double action snap hook H1-1 |
2 m | Drawstring bag |
