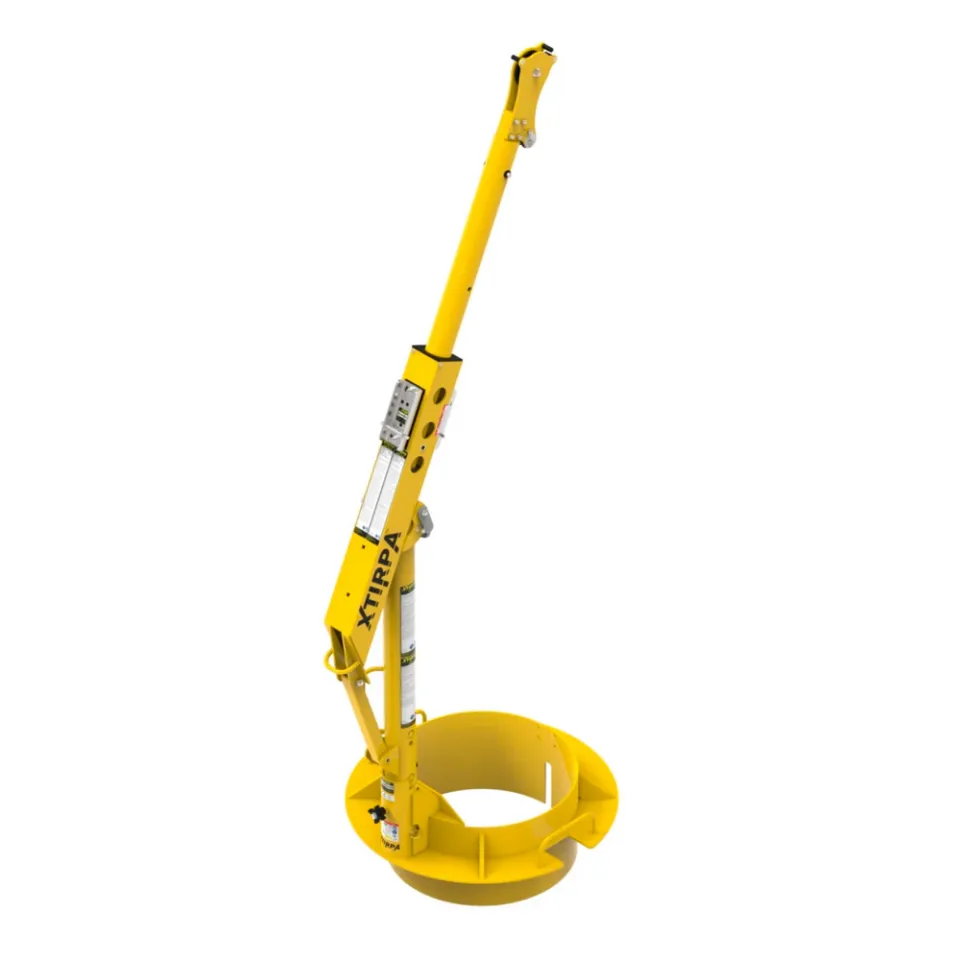

Manhole Collar System
Manhole Collar System

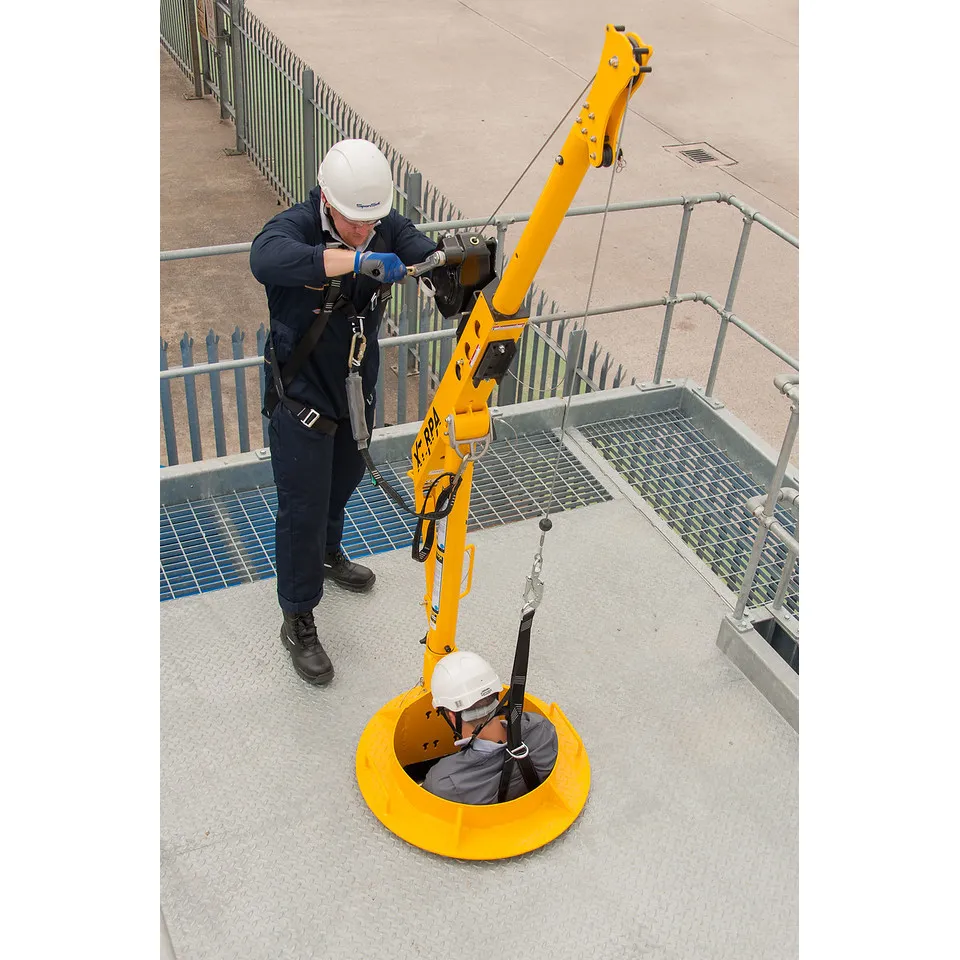

Davit system for rounded accesses like tanks, tankers or manholes
Item Number: 2029923
MCS-460-500
- Portable adapter base and certified anchor point.
- Ideal option for areas where a permanent anchor is not viable.
- Maximum capacity of 164kg.
- Meets or exceeds AS/NZS 5532, CSA, ANSI, OSHA, CSST and CE Standards.
Select Model
Product Technical Information
-
Safety Factor
10:1 -
Standards
EN 795: 2012 AS/NZS 5532 -
Colour
Yellow -
Main Material
Aluminium -
Packaging Unit (PU)
pcs -
Packaging Unit (PU) Content
1 -
Fixing material
Manhole -
Accessories
32158 -
Davit arm
37354 -
Load Capacity (kg)
164 kg -
Arm Reach
381-610 mm -
Working angle
0 °
Product downloads and manuals
Variants information
| Item Number | Item Name | Hole Diameter |
|---|---|---|
| 2029923 | MCS-460-500 | 460-500 mm |
| 2029924 | MCS-500-560 | 500-560 mm |
| 2029925 | MCS-560-610 | 560-610 mm |
| 2029926 | MCS-610-660 | 610-660 mm |
| 2029927 | MCS-660-710 | 660-710 mm |
| 2029928 | MCS-710-760 | 710-760 mm |
| 2029929 | MCS-760-810 | 760-810 mm |
| 2029930 | MCS-810-860 | 810-860 mm |
| 2029931 | MCS-860-910 | 860-910 mm |
| 2029932 | MCS-1080-1120 | 1080-1120 mm |
