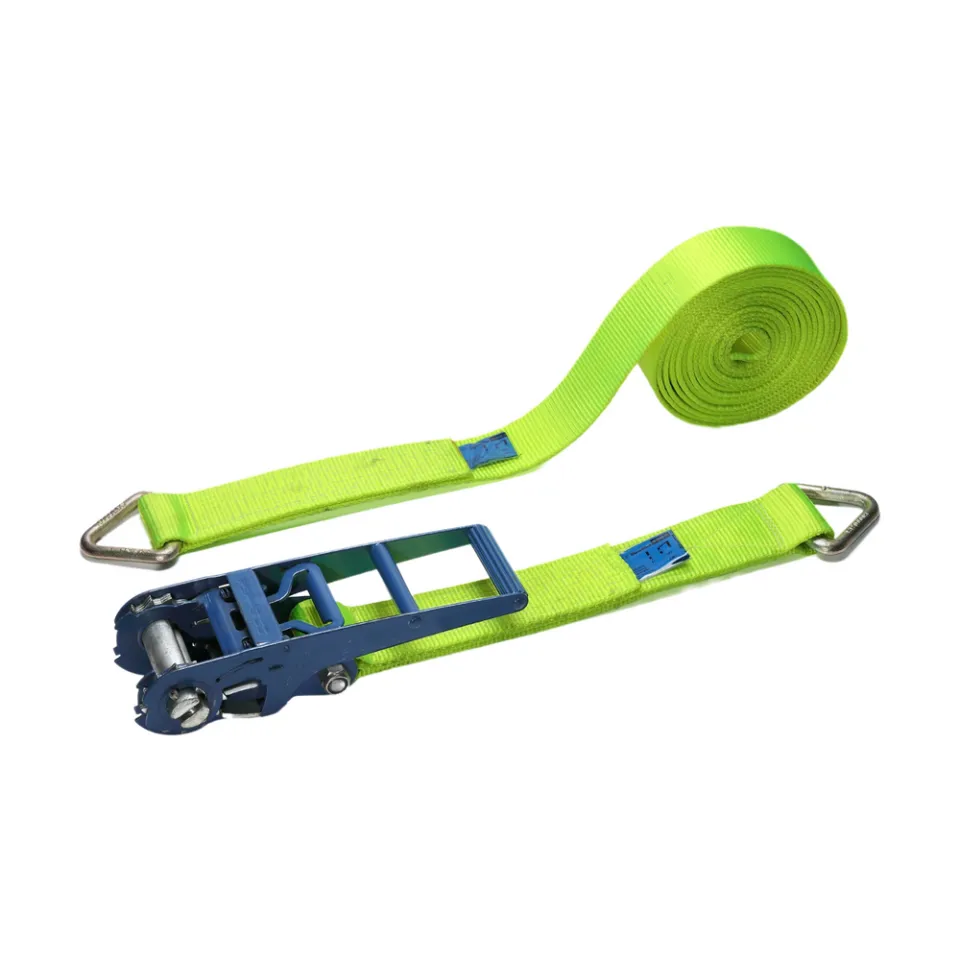

Ratchet Lashing ABS 75mm, LC 50kN
Ratchet Lashing ABS 75mm, LC 50kN
- Manufactured in according to EN 12195-2
- Tensioning device equipped with Anti Belt Slip (ABS) feature that make the ratchet released gradually
- Tensioning Device coated with epoxy resin that effectively protects the ratchet from the effect of weather, prevent rust and ensures a long service life
- Tensioning Device equipped with double slider for optimal power generation due to tensioning in small step
- Tensioning Device equipped with self-locking feature that prevents unintentional opening while being transported and thereby increases the safety of all road users
- Webbing equipped with edge protection to protect from wear, UV protection and webbing has maximum stretching 4%
- This high-performance ratchet is further reinforced by a double bar, meaning that the load is distributed between three points rather than just two. This results in extremely high loading capacity and stability
Select Model
![...](/legacy-uploads/catalog-products/PIMTree/960x960/tfi.webp)
Tension Force Indicator
Show the pre-tensioning force achieved
With the TFI you can read off the pre-tensioning forces achieved in the lashing system when tying down loads and use this information in load control calculations.
![...](/legacy-uploads/catalog-products/PIMTree/960x960/abs-ico.webp)
"Anti-Belt-Slip" procedure
Controlled tension liberation
The ABS system was developed for loads with a risk of tipping and allows the user to release the pretension in small steps. The lashing can also be opened completely.
![...](/legacy-uploads/catalog-products/PIMTree/960x960/protective-sleeve-label.webp)
Protective sleeve label
optimally protected, reinforced with selvedge
In addition to the tear-resistant design with a fabric lining, a robust plastic sleeve perfectly protects the writing from abrasion and dirt. The webbing insert, equipped as standard, also prolongs the service life.
![...](/legacy-uploads/catalog-products/PIMTree/960x960/epx.webp)
Epoxy resin coating
Maximum ratchet protection
Ratchets are first zinc-plated, then chrome-plated and coated with a shock-resistant epoxy resin coat which additionally protects the ratchets from e.g. rust.
Product Technical Information
-
Norms:
EN 12195-2: 2001
-
Webbing Width B:
75
-
Label Protection:
Yes
-
Colour:
Yellow
-
Webbing Material:
100% Polyester, thermofixed and low-stretch
-
Main Material:
Polyester
-
Ratchet Type:
Push-up
-
Tension Force Indicator (TFI):
Yes
-
Lashing Type:
Two-piece
-
Packaging Unit (PU):
pcs
-
Packaging Unit (PU) Content:
1
-
Lashing Capacity:
5000 daN
Technical Drawings
Variants information
Item Number | Item Name | Weight Net | Dimension L1 | Lashing End Fitting Component |
---|---|---|---|---|
2018041
SSID ERP Code: 20040/2-A-4M-11 |
20040/2-A-4M-11 | 7.3 kg | 4 m |

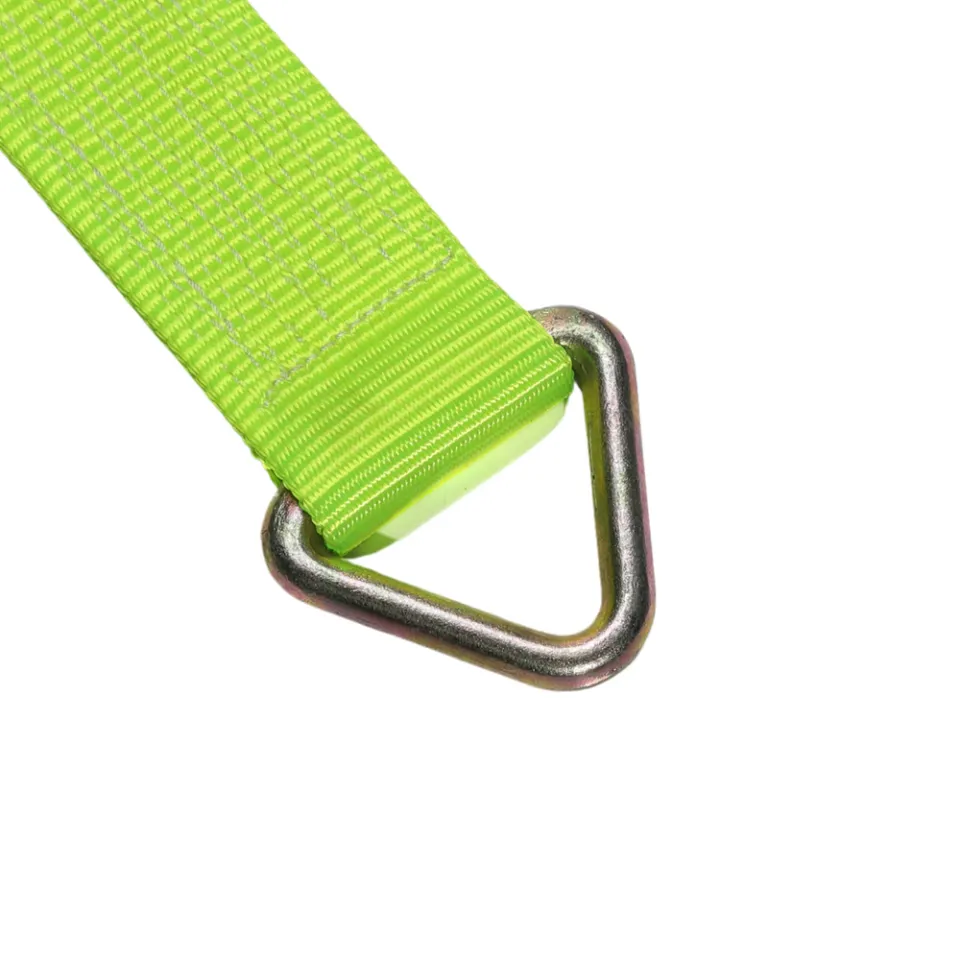

Delta Ring D-75 |
2018042
SSID ERP Code: 20040/2-A-6M-11 |
20040/2-A-6M-11 | 7.8 kg | 6 m |
Delta Ring D-75 |
2018043
SSID ERP Code: 20040/2-C-4M |
20040/2-C-4M-11 | 6.1 kg | 4 m |
Claw Hook Claw Hook 75mm |
2018044
SSID ERP Code: 20040/2-C-6M |
20040/2-C-6M-11 | 6.6 kg | 6 m |
Claw Hook Claw Hook 75mm |
2020373
SSID ERP Code: 20040/2-A-8M-11 |
20040/2-A-8M-11 | 8.3 kg | 8 m |
Delta Ring D-75 |
2020374
SSID ERP Code: 20040/2-A-10M-11 |
20040/2-A-10M-11 | 8.8 kg | 10 m |
Delta Ring D-75 |
2020375
SSID ERP Code: 20040/2-A-12M-11 |
20040/2-A-12M-11 | 9.3 kg | 12 m |
Delta Ring D-75 |
2020381
SSID ERP Code: 20040/2-C-8M |
20040/2-C-8M-11 | 7.1 kg | 8 m |
Claw Hook Claw Hook 75mm |
2020383
SSID ERP Code: 20040/2-C-12M |
20040/2-C-10M-11 | 7.6 kg | 10 m |
Claw Hook Claw Hook 75mm |
2020384
SSID ERP Code: 20040/2-C-10M |
20040/2-C-12M-11 | 8.1 kg | 12 m |
Claw Hook Claw Hook 75mm |
2023591
SSID ERP Code: 20040/2-D-4M-11 |
20040/2-D-4M-11 | 9.2 kg | 4 m |
Delta Hook Delta Hook 75mm |
2023592
SSID ERP Code: 20040/2-D-6M-11 |
20040/2-D-6M-11 | 9.7 kg | 6 m |
Delta Hook Delta Hook 75mm |
2023593
SSID ERP Code: 20040/2-D-8M-11 |
20040/2-D-8M-11 | 10.2 kg | 8 m |
Delta Hook Delta Hook 75mm |
2023594
SSID ERP Code: 20040/2-D-10M-11 |
20040/2-D-10M-11 | 10.7 kg | 10 m |
Delta Hook Delta Hook 75mm |
2023595
SSID ERP Code: 20040/2-D-12M-11 |
20040/2-D-12M-11 | 11.2 kg | 12 m |
Delta Hook Delta Hook 75mm |
